IR-700D
Infrared Wireless Distributor
IR-700D
The IR-700D is a receiver distributor used in the TOA's infrared wireless microphone system.It employs 4 receiver mixing inputs and 2 distribution outputs. By using the IR-700D in conjunction with the IR-702T Infrared Wireless Tuner, up to 16 infrared wireless receivers can be connected to the IR-702T.
- Equipped with 4 receiver mixing inputs and 2 distributor outputs
- By using the IR-700D in conjunction with IR-702T and YW-1022/YW-1024, a system with up to 16 infrared receivers is configurable
Power Source
AC mains, 50/60 Hz (use of the supplied AC adapter)
Power Consumption
25 W or less
Input/Output
4 mixing inputs, 2 distribution outputs
Band-Pass Frequency
3.0 - 6.0 MHz
Gain
0 dB (±3 dB)
Infrared Receiver Input

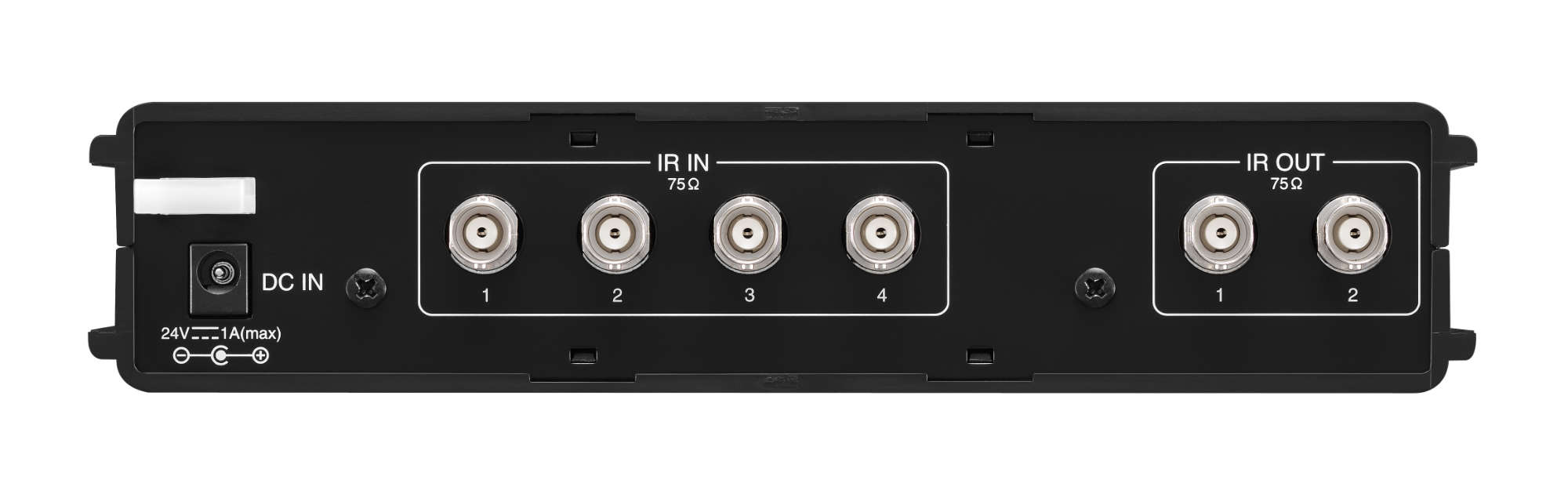

75 Ω, BNC jack x 4 (Infrared wireless receiver's power source: 24 V DC, 800 mA max. in total of 4 terminals)
Number of Connectable Infrared Receiver
16 (YW-1024 x 4)
Distribution Output
75 Ω, BNC jack
Operating Temperature
-10 ℃ to +50 ℃ (14 ℉ to 122 ℉)
Operating Humidity
30 % to 85 %RH (no condensation)
Finish
Case: ABS resin, black
Dimensions
210 (W) x 44 (H) x 200.9 (D) mm (8.27" x 1.73" x 7.91")
Weight
640 g (1.41 lb) (unit only)
Included Accessories
AC adapter* (DC cord length: 1.8 m (5.91 ft) x 1, AC Power cord (2 m (6.56 ft) …1, BNC plug-to-BNC plug cord (50 cm (1.64 ft) …1, Rubber foot …4
Optional Accessories
Rack mounting bracket: MB-WT3, MB-WT4 (for mounting with the optional IR-702T together)
*Not supplied with the IR-700D(KR). For the usable power supply cord and AC adapter, contact your nearest TOA dealer.
Please download Datasheet to access full specifications.
There shall be an available active IR receiver distributor for allowing expansion of the number of IR receivers in larger spaces. The unit shall be housed in a 1U ½ rack case, with dimensions of 8.3” (W) x 1.7” (H) x 7.9” (D) and weighing 1.4 lbs and shall be capable of being rack mounted with an optional kit (MB-WT3/MB-WT4). The unit shall be equipped with (4) 75 ohm BNC-type receiver mixing inputs and (2) 75 ohm BNC-type distribution outputs. The unit shall allow for use of up to 16 IR receivers in any combination when used in conjunction with the IR-702T and up to four passive distributor adaptors (models YW-1022/1024). The unit shall be powered by a supplied 24VDC external power adapter and shall consume a max of 25W.
The unit shall be called the TOA IR-700D.
