Voice Evacuation Systems

Intelligible and audible notification are essential to guide people safely in emergency events.

Voice Evacuation Systems must be truly reliable to ensure the performance for delivering clear messages to people in the area for their quick actions. TOA's Voice Evacuation Systems handle both emergency communications and general operations such as paging announcements and music distributions while meeting EN/UL standards and many other local regulations.

SERIES

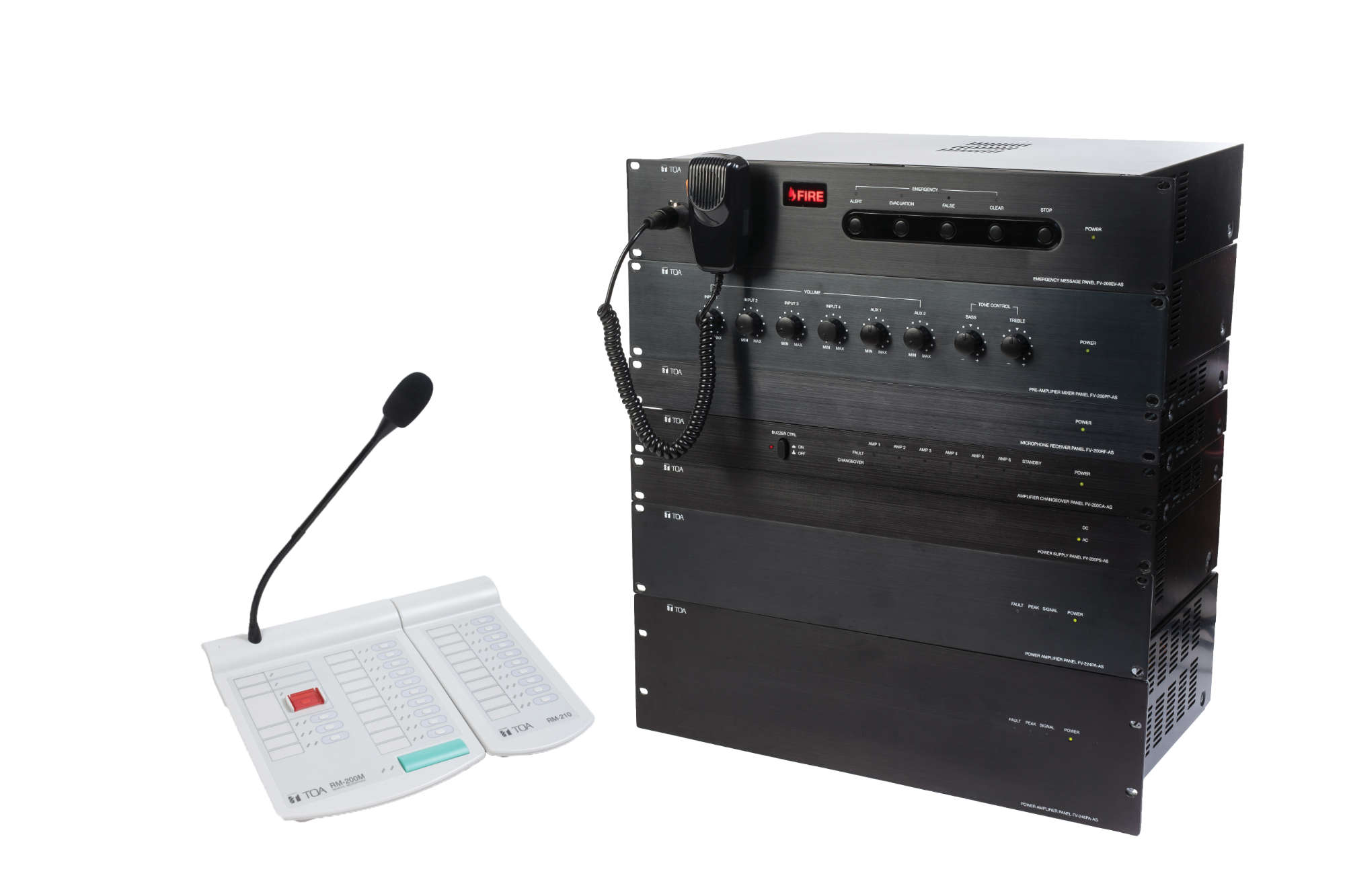

FV-200 Series

Emergency public address system suitable for small- to mid-scale venues

The FV-200 Series Emergency Public Address System is suitable for small to mid-scale venues, allowing up to 50 speaker lines, for general purpose and/or emergency broadcasts. The system provides automatic playback of messages through EV audio files, delivering broadcasts to all areas and over-riding external attenuators. Pre-loaded with 4 voice alarm messages, FV-200EV enables emergency broadcasts to be made automatically to all zones through connection to a fire alarm system. It can also be activated manually using the fireman’s microphone which has the highest priority, or via it’s built-in buttons on the front panel. For general broadcasts, audio output from the main operation panel FV-200PP can be configured to either a 1-channel output of mixed background music (BGM) and priority broadcast, or a 2-channel output of BGM and priority broadcast separately. Announcements to specific areas can be achieved through the Remote Microphone Receiver Panel FV-200RF and Remote Microphone RM-200M using the zone selector keys on the RM-200M or RM-210. In addition, broadcast areas can also be selected when used with SS-2010, SS-1010 or SS-1010R Speaker Selector.

SX-2000 Series

Network enabled system ideal for installations in large building complexes.

The SX-2000 is a scalable system for configuring versatile and highly effective PA systems. The system features new matrix capabilities, so that a single system can have its components distributed in different locations under centralized control. Ideal for large scale installations ranging from multiple buildings to local systems,the versatile SX-2000 Series is particularly suitable for using in airports and railway stations, factories, shopping malls and large offices. The system‘s versatility such as dual power source and redundancy for fail-safe operation makes it a reliable solution for any specific installation without long lead times and the expense of custom systems.

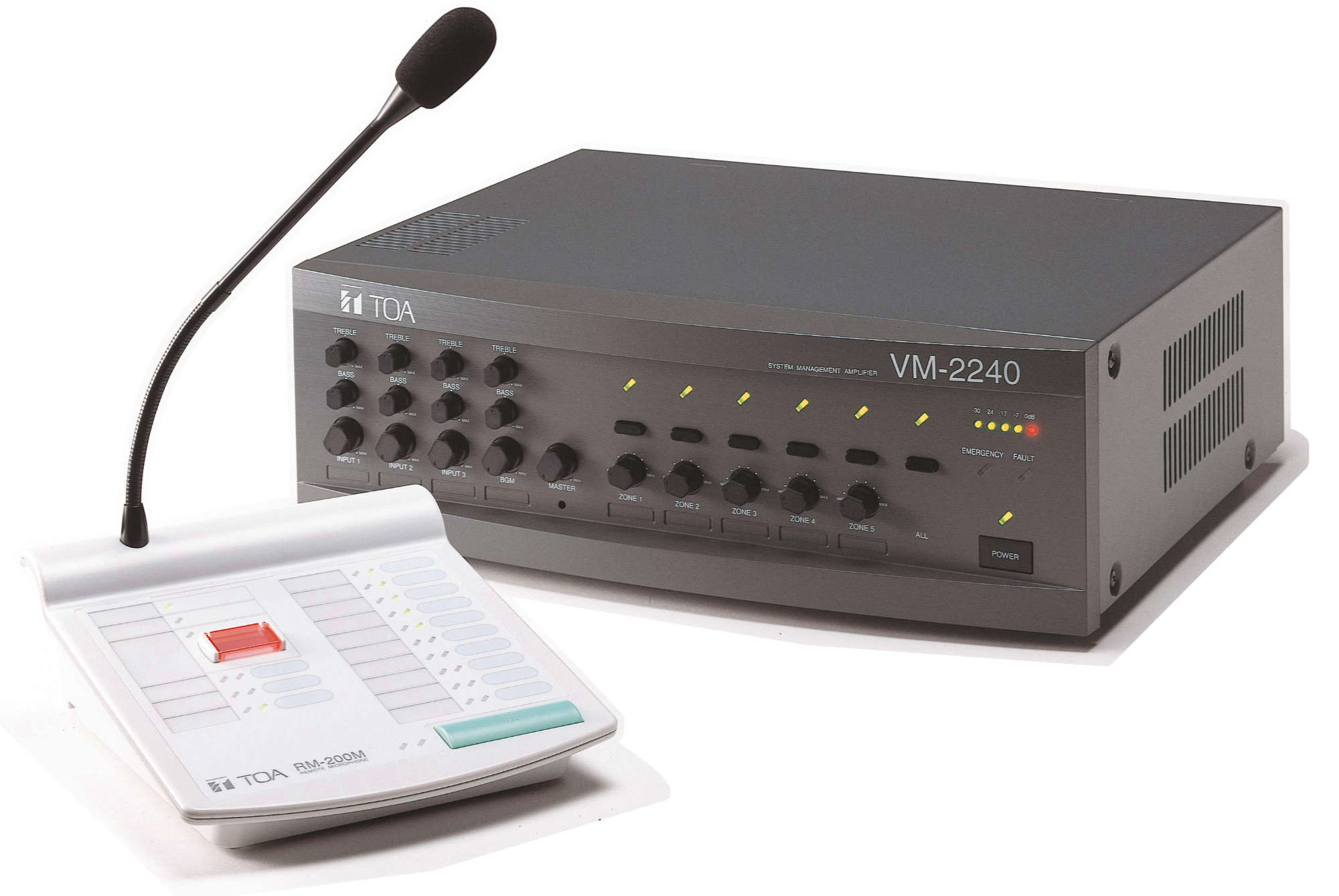

VM-2000 Series

Cost-effective solutions for building management and owners.

Targeted at medium-sized facilities, every VM-2000 Series unit offers three line/mic inputs, 2 BGM inputs and remote mic capability as well as telephone paging.

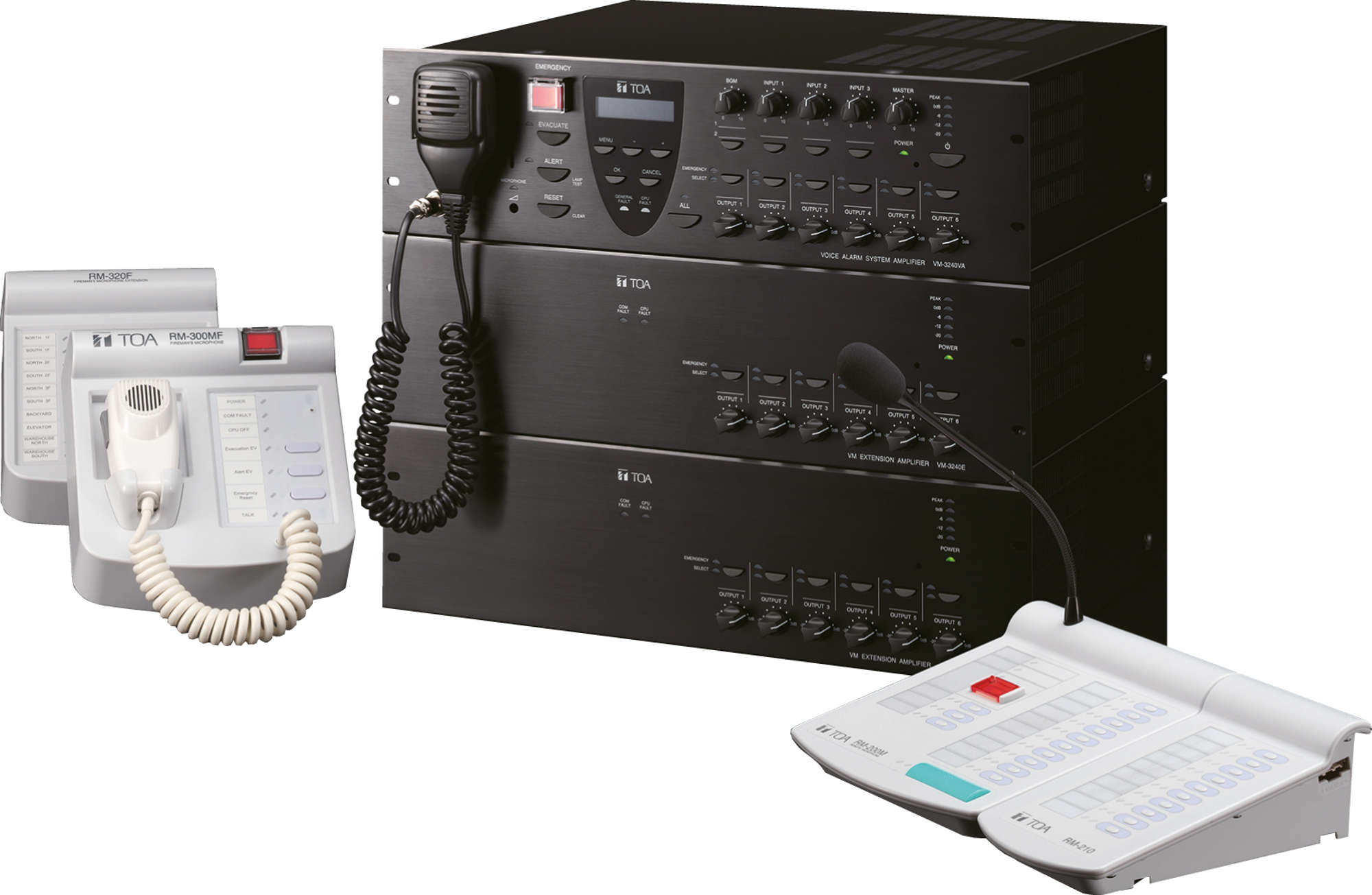

VM-3000 Series

Cost-effective system for small to medium sized applications.

The VM-3000 is a cost-effective integrated public address and voice alarm system. It is designed to fulfil the EN 54 European regulation for voice alarm and also engineered with powerful digital signal processor (DSP), ensuring high quality audio broadcasting for proper speech intelligibility. The compact design enables the system to fit best in various small to medium sized applications such as schools, shopping centres or restaurants.

VX-2000 Series

Fully EN 54 certified Voice Alarm emergency evacuation system with Public Address broadcast capability

The TOA VX-2000 Series is an emergency evacuation broadcast system that is fully certified as meeting the EU (European Union) EN 54 standard for fire alarms, and that is capable of dealing with general purpose public address demands. The VX-2000 is suitable for a wide range of applications and can be combined with a variety of associated equipment such as amplifiers, chimes and digital recorders.

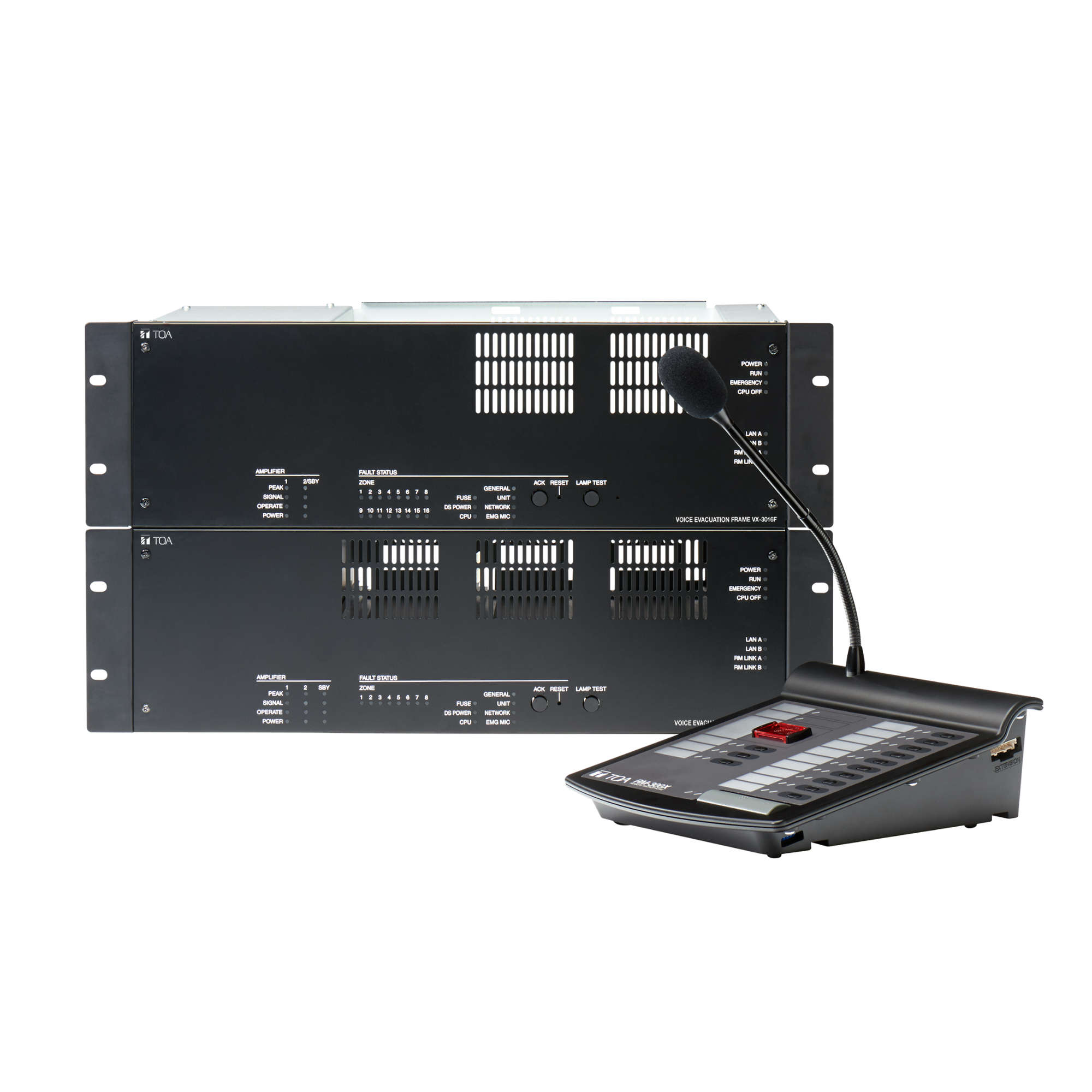

VX-3000 Series

Combined highly integrated voice alarm and public address system.

Our VX-3000 is a reliable and energy-saving voice alarm system that combines all important functions for PA/VA in one unit frame. The limited number of components makes the design and installation much easier, as well as saving space and reducing cable complexity. This enables rapid system configuration and makes the VX-3000 a cost effective system. It comes with low loss modular class D amplifiers, with 3 different output ratings. These can easily be removed or replaced simply by unplugging them; there is no need for specialist tools. By using low loss modular class D amplifiers and modern power supply switching technology the system becomes much more energy efficient and keeps the operating costs low. Thanks to its flexible and scalable system architecture the VX-3000 system can be used for both small and large applications, with up to 1280 remote microphones, 640 audio sources and 2560 speaker lines.
