IR-702T CE
INFRARED WIRELESS TUNER
IR-702T CE
The IR-702T is a 2-channel infrared wireless tuner employing a fixed frequency system. This tuner is combined with an infrared wireless microphone and an infrared wireless receiver to make up the infrared wireless microphone system. The infrared microphone system eliminates problems with interference or eavesdropping, allowing simultaneous use in adjacent conference rooms or school classrooms.
- Built-in 2-channel fixed-frequency tuner
- Up to 4 infrared light receivers per unit
- Equipped with signal reception light and knob for microphone volume control
- Two line outputs, one with a MIX output switch allowing output of mixed voice from channels A and B
(*1) 0 dB = 1 V
Power Source
AC mains, 50/60 Hz (use of the supplied AC adapter)
Power Consumption
15 W or less
Receiving Frequency
Channel A: 3.100 MHz Channel B: 3.350 MHz
Receiver Sensitivity
Signal to Noise Ratio: 50 dB or more (40 dBμV input, 1 kHz modulation, ±4.8 kHz deviation)
Signal to Noise Ratio
61 dB or more (60 dBμV input, ±4.8 kHz deviation, A-weighted)
Tone Squelch Frequency
32.768 kHz
Infrared Receiver Input
75 Ω, BNC jack x 2 (Infrared wireless receiver's power source: 24 V DC, 220 mA max. in total of 2 terminals)
Number of Connectable Infrared Receiver
4 (YW-1022/YW-1024)
16 (IR-700D, YW-1024 x 4)
16 (IR-700D, YW-1024 x 4)
Output
Channel A and B: -10 dB(*1) (±4.8 kHz deviation, at volume level max.), 600 Ω, electrical balanced, 3 pole phone jack.
Note: Channel A switchable to mixer output.
Note: Channel A switchable to mixer output.
Audio Frequency Response
100 Hz - 12 kHz
Operating Temperature
-10 ℃ to +50 ℃ (14 ℉ to 122 ℉)
Operating Humidity
30 % to 85 %RH (no condensation)
Finish
Case: ABS resin, black
Dimensions
210 (W) x 44 (H) x 210.9 (D) mm (8.27" x 1.73" x 8.3")
Weight
630 g (1.39 lb) (unit only)
Included Accessories
AC adapter (DC cord length: 1.8 m (5.91 ft) (*2) x 1,
AC Power cord (2 m (6.56 ft)(*2) …1, Rubber foot …4, Cord with a phone plug (1 m (3.28 ft) …1, Color label (6 colors) …1
AC Power cord (2 m (6.56 ft)(*2) …1, Rubber foot …4, Cord with a phone plug (1 m (3.28 ft) …1, Color label (6 colors) …1
Optional Accessories
Rack mounting bracket: MB-WT3, MB-WT4 (for mounting with the optional IR-700D together)
(*2) Not supplied with the IR-702T(KR). For the usable power supply cord and AC adapter, contact your nearest TOA dealer.
Please download Datasheet to access full specifications.
Optional Accessory

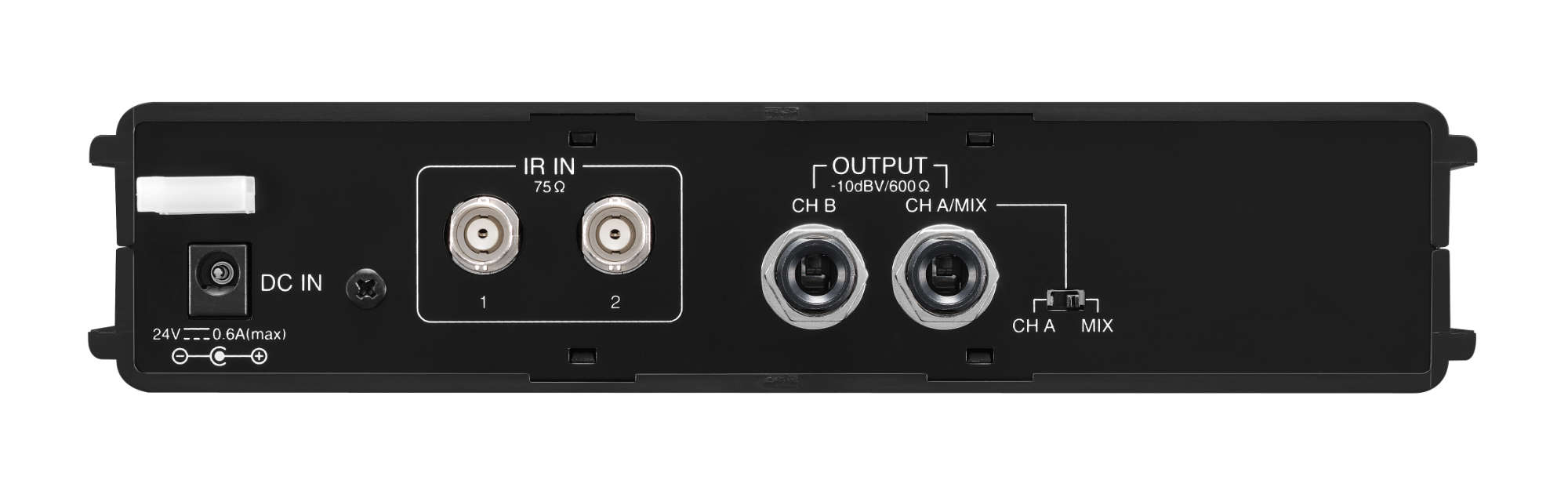

The IR wireless system shall consist of an IR (Infra-Red) tuner in a 1U,1/2 rack housing measuring 8.3” (W) x 1.7” (H) x 8.3” (D) and weighing 1.4 lbs. The unit is capable of being rack-mounted via an optional rack kit (MB-WT3). The tuner shall operate on two independent channels, each selectable to one of two available IR frequencies in the 3 mHz range (3.10 & 3.35 mHz). Each channel shall have an independent front panel output level control and corresponding ¼” output connector, one of which can function as a mix of both channels. The rear panel shall also have two BNC-type connectors for remote IR receivers, each supplying 24VDC for receiver operation. The unit shall power from a supplied external 24VDC power adapter and shall consume a max of 15W. The unit shall be called the TOA IR-702T.
