YA-1000A

Fault Detector

Discontinued

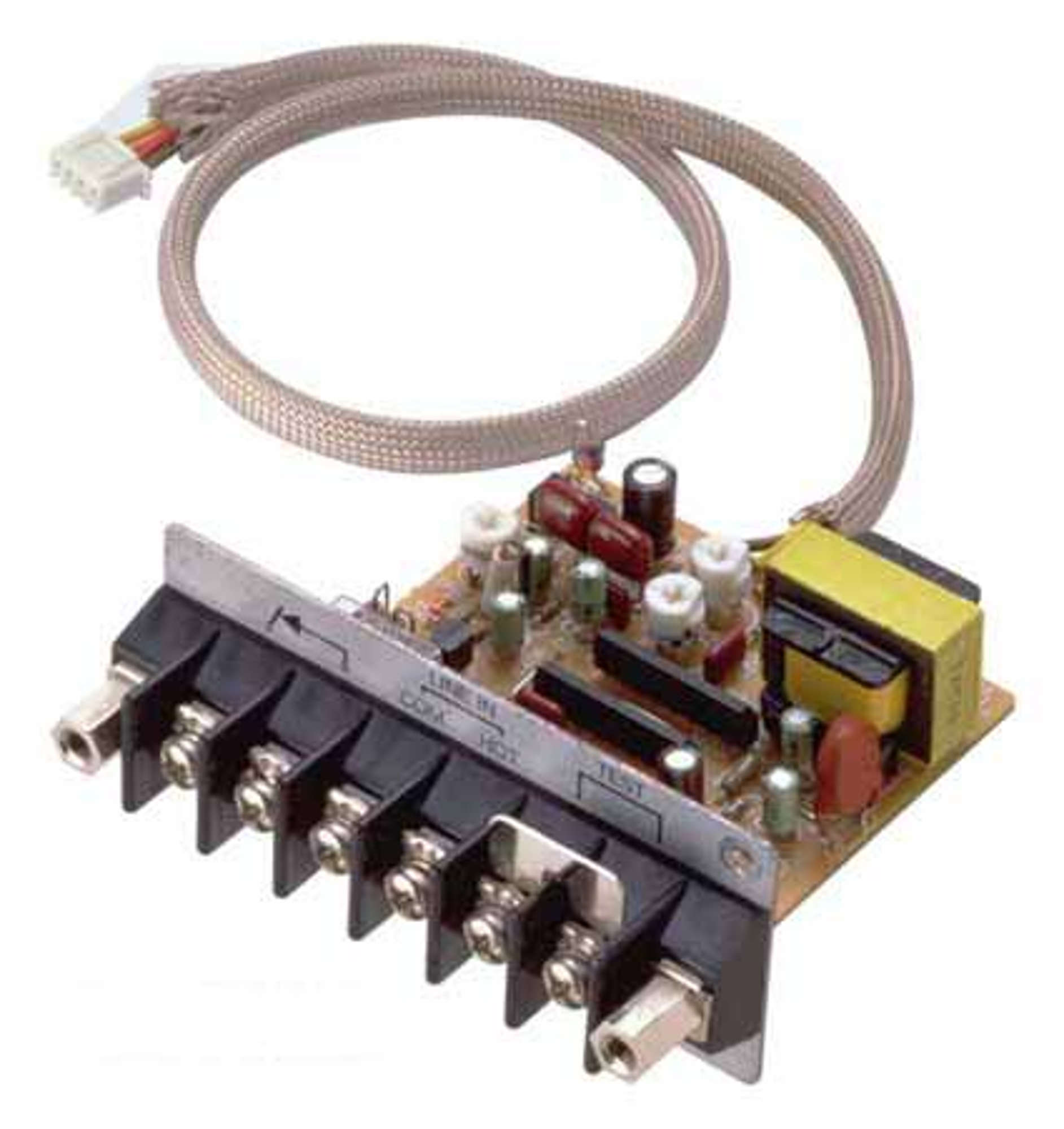

YA-1000A

The YA-1000A is installed in a power amplifier to detect the power amplifier's failure. Avoid using the YA-1000A during the power amplifier's parallel operation because it cannot detect a failure correctly.

Specifications Downloads

Power Source

24 V DC (supplied from the power amplifier)

Power Consumption

20 mA

Input

LINE IN: Connects to the power amplifier's output (high impedance 100 V line)
M4 screw terminal, distance between barriers: 9 mm

Detected Fault Indication

Power amplifier's power indicator is extinguished.

Fault Detection Output

Relay contact closes.
Withstand voltage: 30 V DC, current capacity: 1 A

Weight

140 g

Included Accessories

Terminal block cover x 1, Amplifier mounting screw x 2, Cover mounting screw x 2

Please download Datasheet to access full specifications.
