VX-3200PS-AS

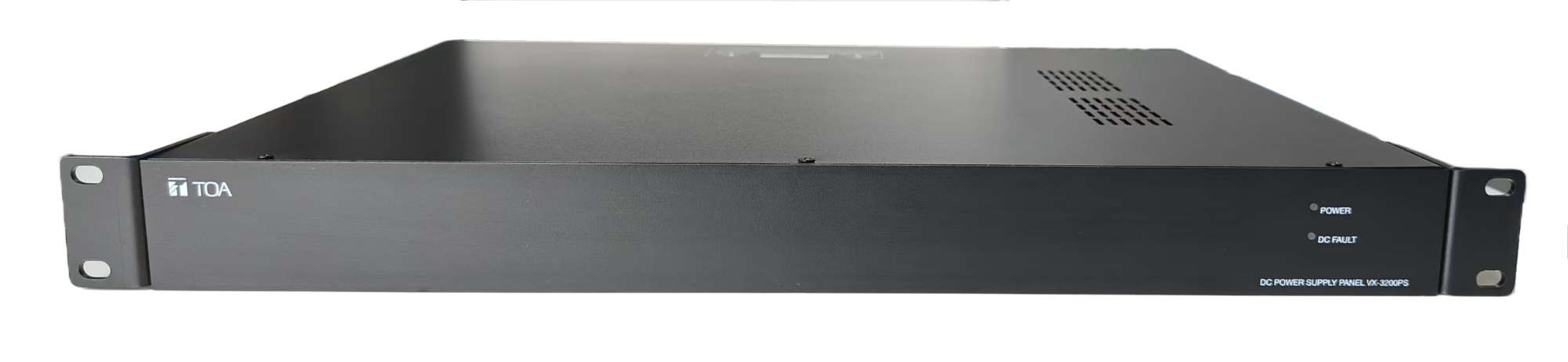

DC Power Supply Panel
VX-3200PS-AS
The VX-3200PS is a DC power supply used for VX-3000 systems. It is a 1U rack-mount unit designed for efficient use of rack space, energy savings, and lightweight installation. The total number of connected amplifier/devices must be 2000W or less.
- Compact & Efficient: Featuring an ultra-thin 1U rack-mount design, the unit maximizes space while delivering high energy efficiency of over 92%.
- Reliable & Robust: It provides complete protection against short circuits and overloads, with superior dynamic characteristics optimized for heavy impact loads.
- High Capacity: The VX-3200PS delivers up to 2000W (75A) of total DC output power.
Power Source
220 - 240 V AC, 50/60 Hz
Power Consumption
2500 W max. in total (at rated output)
435W max. in total (EN62368-1)
435W max. in total (EN62368-1)

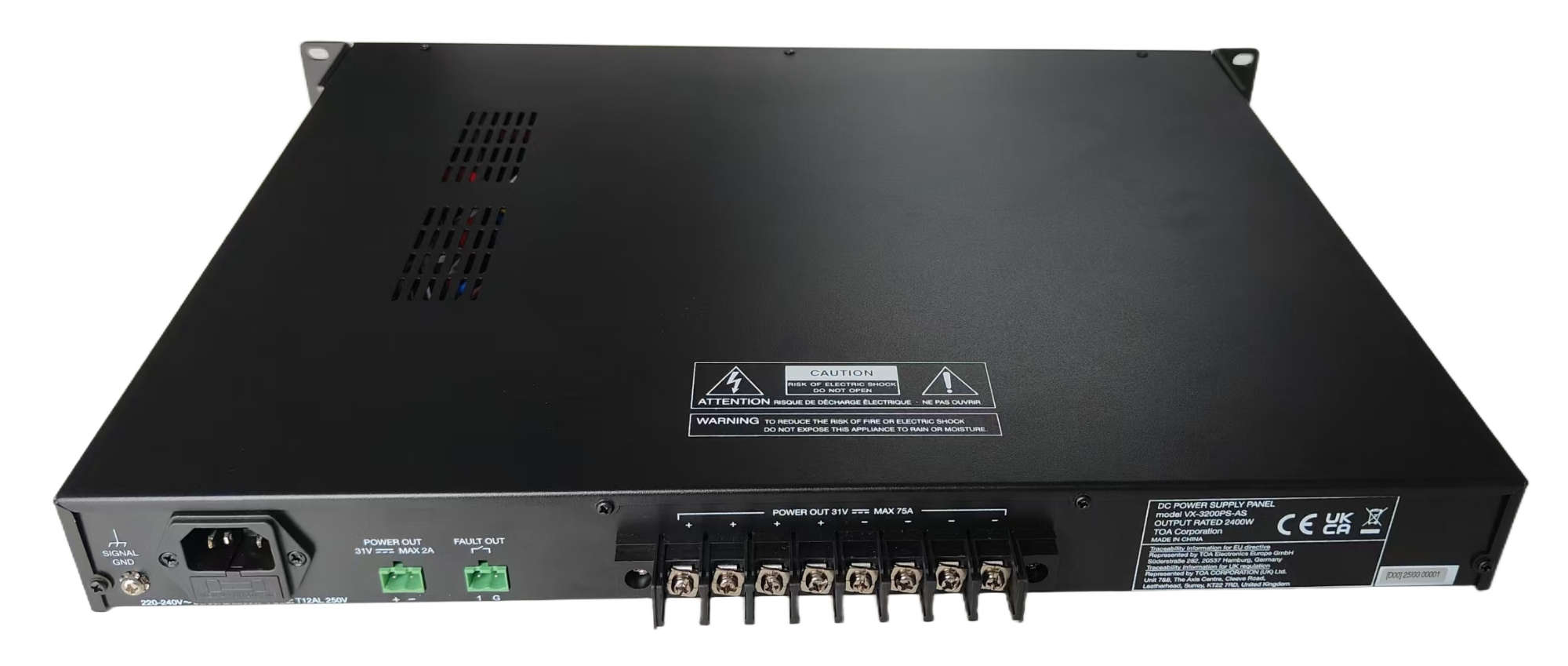

DC Power Output
Rated output: 2400 W (total DC power output)
4 x 31 V 25 A max. each, M4 screw terminal, distance between barriers; 13 mm (0..51")
1 x 31 V 2 A max., removable terminal block (2 pins)
4 x 31 V 25 A max. each, M4 screw terminal, distance between barriers; 13 mm (0..51")
1 x 31 V 2 A max., removable terminal block (2 pins)
Indicator
Power (Green), DC Fault (Yellow)
Operating Temperature
0 °C to +40 °C (32 °F to 104 °F)
Operating Humidity
Under 90% RH (no condensation)
Finish
Panel: Surface-treated steel plate, black, paint
Dimensions
482 (W) x 44 (H) x 345 (D) mm (19" x 1.7" x 13.6")
Weight
7.51 kg (16.56 lbs)
Included Accessories
Power cord (1.8 m) x 2, removable terminal plug (2 pins) x 2
