VX-3000CT
Control Panel
VX-3000CT
The VX-3000CT is an operation panel designed for exclusive use with the VX-3000 Series.
Operation such as the activation of general broadcast and the input/output volume control can be performed by connecting the VX-3000CT to the VX-3000 Frame via network. It is equipped with 9 function keys and 8 volume controls.
Up to 2 units can be connected to a single VX-3000 Frame, and a maximum of 80 units can be configured per system.
It can be mounted in an EIA equipment rack (1U size).

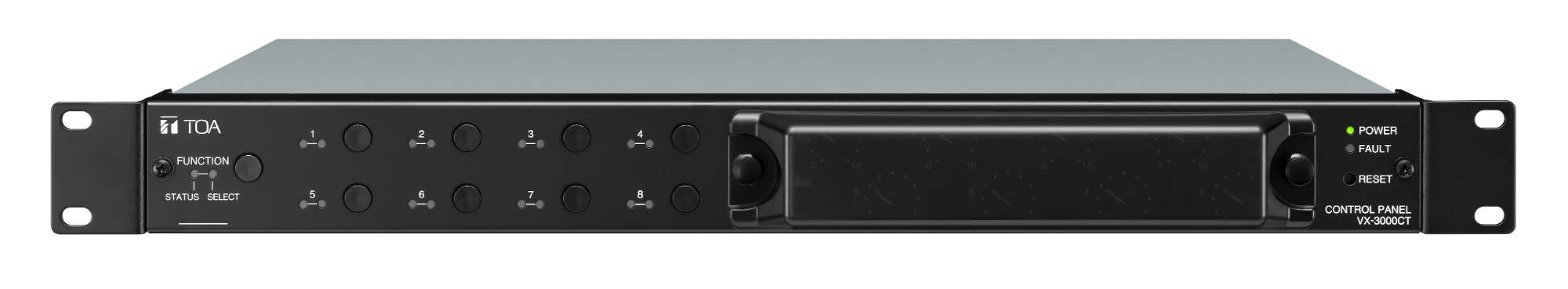

- Control panel with 9 function keys and 8 volume control knobs for easy operation
- Function keys are used for public address operation such as the activation of general broadcast.
- Volume controls allow volume level adjustment of the frame's audio input or audio output (assignable).
- Up to 2 units can be connected to a single frame unit.

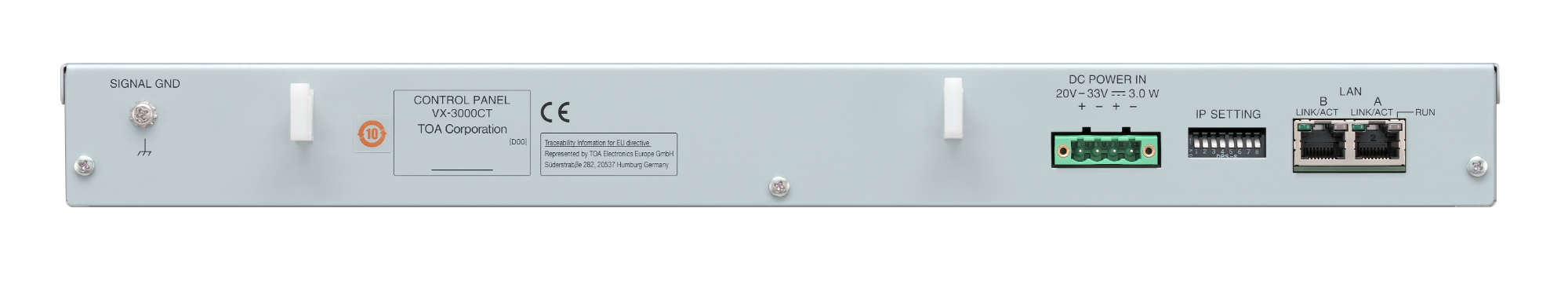

Power Source
20 - 33 V DC, removable terminal block (4 pins)
Current Consumption
0.09 A at 33 V DC input
0.11 A at 24 V DC input
0.11 A at 24 V DC input
Indicators
POWER (green) x 1, RUN (green) x 1, LINK/ACT (green) x 2, SIGNAL (green) x 8, FAULT (yellow) x 1, STATUS (green/yellow) x 9, SELECT (green) x 9
Volume Control
8 channels
Operation
Function key x 9, Reset key x 1, IP address setting switch x 1
Operating Temperature
0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity
90% RH or less (no condensation)
Finish
Panel: Surface-treated steel plate, black, 30 % gloss, paint
Volume control section cover: ABS resin, gray smoke
Volume control section cover: ABS resin, gray smoke
Dimensions
482 (W) x 44 (H) x 315.2 (D) mm (18.98" x 1.73" x 12.41")
Weight
3 kg (6.61 lb)
Included Accessories
Rack mounting screw x 4, Removable terminal plus (4 pins) x 1
Please download Datasheet to access full specifications.
The control panel shall be an operation panel used with TOA’s VX-3000 System. By connecting the panel to VX-3000's Voice Evacuation Frame via network, the operation such as the activation of general broadcast and the volume control can be performed on its front panel.
It shall be equipped with 9 function keys and 8 volume controls. A specific function can be assigned to each function key by setting software. Volume control knobs can adjust the volume level of the Voice Evacuation Frame’s audio input or audio output, and which can be set by setting software. Up to 2 units can be connected to a single Voice Evacuation Frame, and a maximum of 80 units can be configured per system.
Power requirements shall be 20 - 33 V DC connected via 4 pin removable terminal block. The unit shall use 1 space unit of a standard EIA component rack space and its dimensions shall be 482 (W) X 44 (H) X 315.2(D) mm (18.98" x 1.73" x 12.41"). Weight shall be 3 kg (6.61lb.) and finished in black surface-treated steel plate front panel, with gray smoke ABS resin volume control section cover.
Manufacturer: TOA Corporation
Model: VX-3000CT
