VM-3240E

  • Extension Amplifier
Extension Amplifier

Extension Amplifier

VM-3240E

The VM-3240E is a multifunctional amplifier that can be mounted in an EIA-Standard equipment rack (3-unit size). The unit comes with the speaker output section which has an internal attenuator and 6-output selector. In addition, the unit features the surveillance function which automatically checks the system for failures.

  • System management amplifier can be expanded by connecting up to 9 extension amplifiers
  • 240 W rated output
  • 6 speaker line outputs
  • 8 control inputs and 8 control outputs for general purpose
  • 6 control inputs for emergency purpose and 3 control outputs for status information
  • Connection to system management amplifier via VM Link
QTY
▼
Power Source
230 V AC, 50/60 Hz
Power Consumption
600 W (with rated output signal), 260 W (according to EN60065)
Rated Output
240 W
Frequency Response
50 Hz – 20 kHz, ±3 dB (at 1/3 rated output)
Distortion
0.7% or less (at rated output, 1 kHz)
Input
Local Input: –50 dB* (MIC) / –10 dB* (LINE) (changeable), 600 Ω,
electronically balanced, removable terminal block (14 x 2 pins)
External amplifier Input: 100 V line, removable terminal block (14 pins)
Output
Speaker output 1 – 2: Max. (240 W) per output
Speaker output 3 – 6: Max. (120 W) per output
Speaker output 1 – 6: Total within 240 W, removable terminal block (14 pins)
Allowable minimum load:500 Ω (20 W) at 100 V line for speaker line failure detection
Direct output: Direct output from internal or external amplifier, removable terminal block (16 pins)
VM Link
Input: Connecting the VM-3240VA or VM-3360VA,
RJ45 female connector Output: Connecting the VM-3240E or VM-3360E,
RJ45 female connector Maximum distance: 800 m
Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT5-STP)
EXT PA Link
Connecting the VP-2241, RJ45 female connector
Maximum distance: 5 m
Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT5-STP)
General Control
Input 1 – 8: No-Voltage make contact input, open voltage: 24 V DC,
short-circuit current: 2 mA or less, removable terminal block (14 pins)
Output 1 – 8: Isolated open collector output, withstand voltage: 30 V DC,
operating current: 10 mA or less, removable terminal block (14 pins)
Emergency Control
Input 1 – 5: No-Voltage make contact input, open voltage: 24 V DC,
short-circuit current: 2 mA or less, RJ45 female connector
Input 6: Isolated voltage input, Inactive: –24 V ±20%, Active: +24 V ±20%,
RJ45 female connector Status out: Relay contact output, withstand voltage: 40 V DC,
operating current: 2 – 300 mA, RJ45 female connector
ATT Control
Relay contact 1 – 6, 125 V AC or 30 V DC, total under 5 A,
removable terminal block (16 pins)
Power Input/Output
Power in: Connecting the VX-2000DS only (operating range: 20 – 40 V DC)
PS out: 28 V DC / 18 A M4 screw terminal, distance between barriers: 11 mm
DC24V Output
24 V DC, Maximum feeding current 0.3 A
DS Link
Connecting the VX-2000DS, RJ45 female connector
Maximum distance: 5 m
Link cable: Category 5 Shielded Twisted-Pair straight cable (CAT5-STP)
Operating Temperature
–5 to +45 °C
Operating Humidity
5 to 95%RH (no condensation)
Finish
Panel: Aluminum, hair-line, black
Case: Surface-treated steel plate, black, paint
Dimensions
482 (w) x 132.6 (h) x 407 (d) mm
Weight
16.5 kg

Please download Datasheet to access full specifications.

Microprocessor-controlled extension amplifiers for voice alarm compact amplifiers with complete monitoring according to VDE 0833-4 and VDE 0828-1.
6 switchable and adjustable volume speaker outputs with a total of 240 Watt nominal power output.
Audio input for local transmission with choice of outputs over inputs. 8 universally usable inputs and 8 universally usable control outputs; 6 separate inputs for alarm control of the BMZ with switchable monitoring, one with 24-volt control (polarity); three separate status outputs with relay contacts for feedback to the BMZ: collective fault signal (changeover contact), emergency activated (changeover contact) and CPU from (normally open). Each line output a switching relay for example external volume control in 3- and 4-wire technology.
An appropriate additional amplifier can be used as a rescue and announcement enhancer, in the second case, announcements are made without the interruption of background music in durchsagelose areas can be made. The monitoring of the additional amplifier is taken over by the extension amplifier.

Please sign in to access further technical materials such as software, firmware or EASE files.

  • VM-3240e_pf1e.jpg

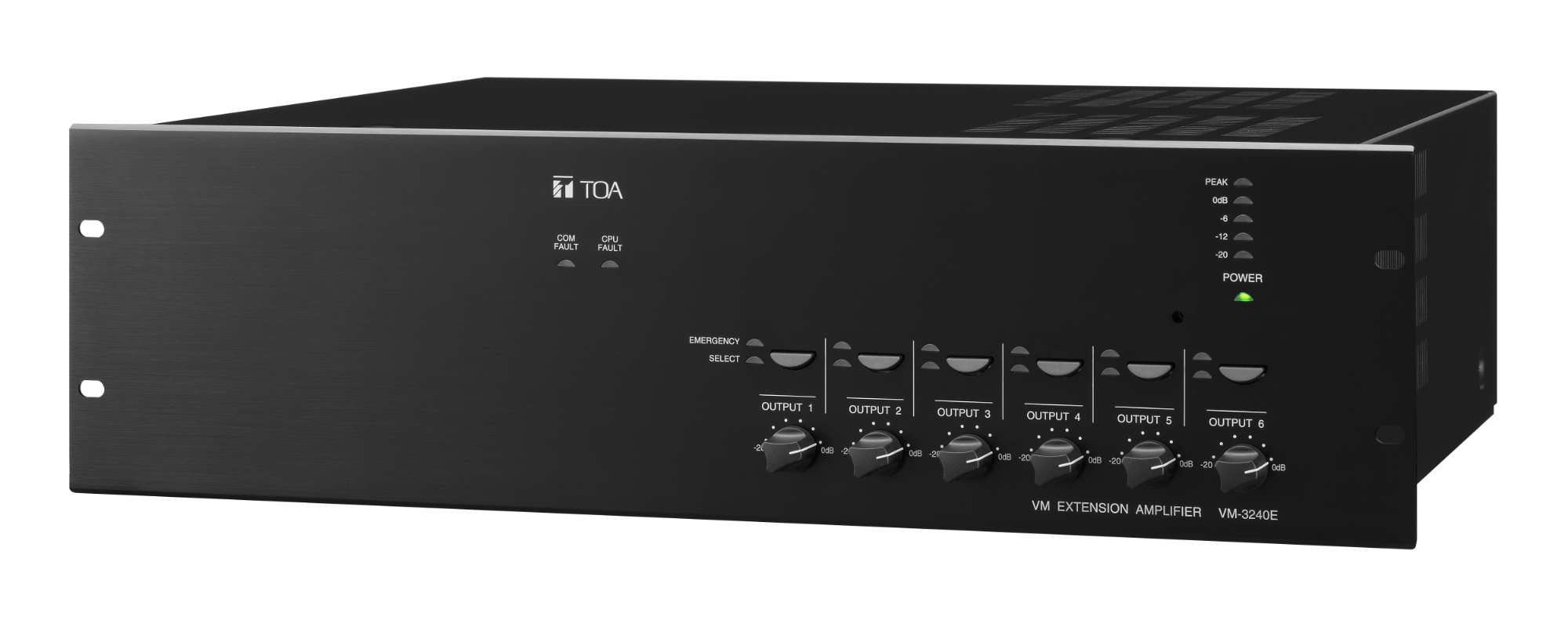

  • VM-3240e_pn1e.jpg

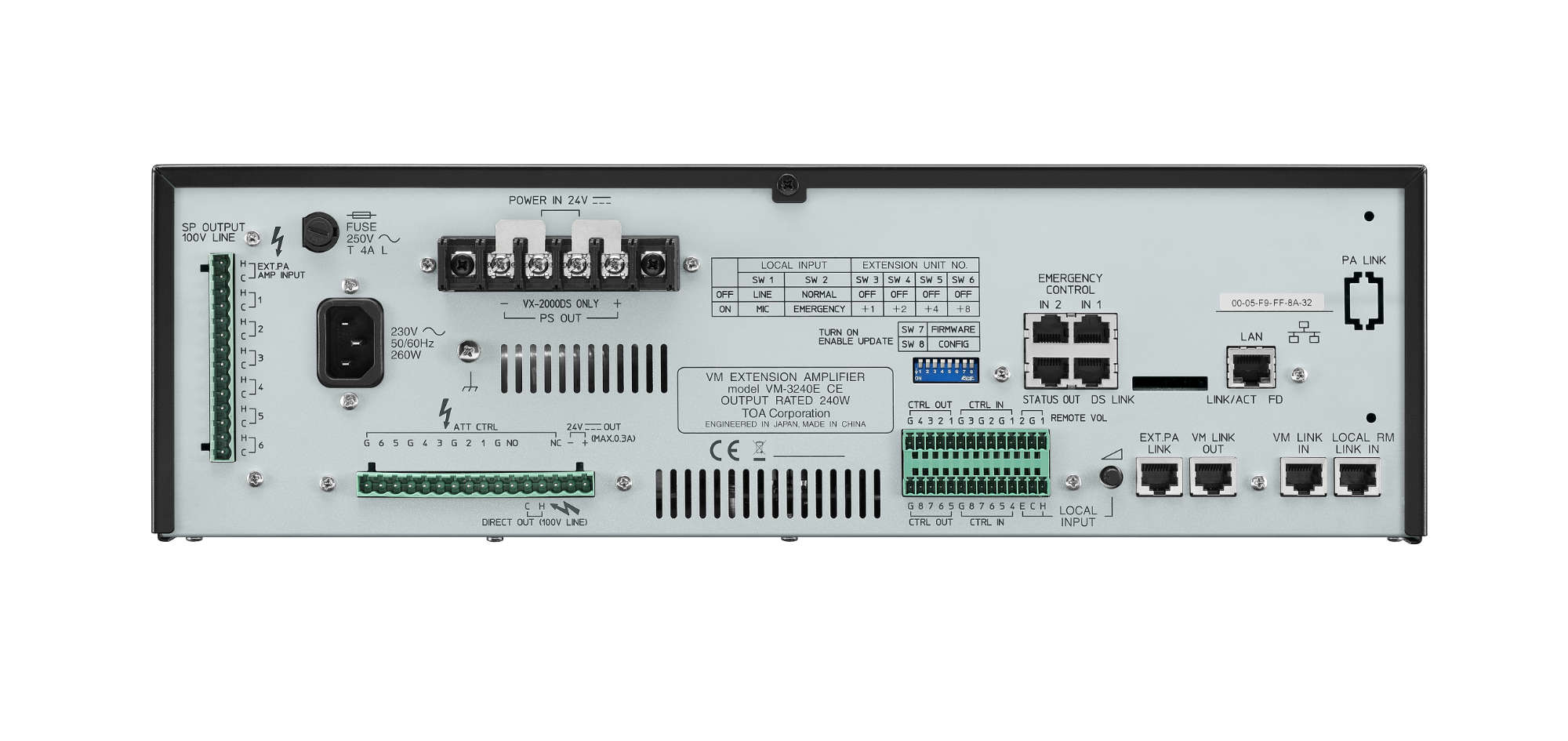

  • VM-3240e_pr1e.jpg
