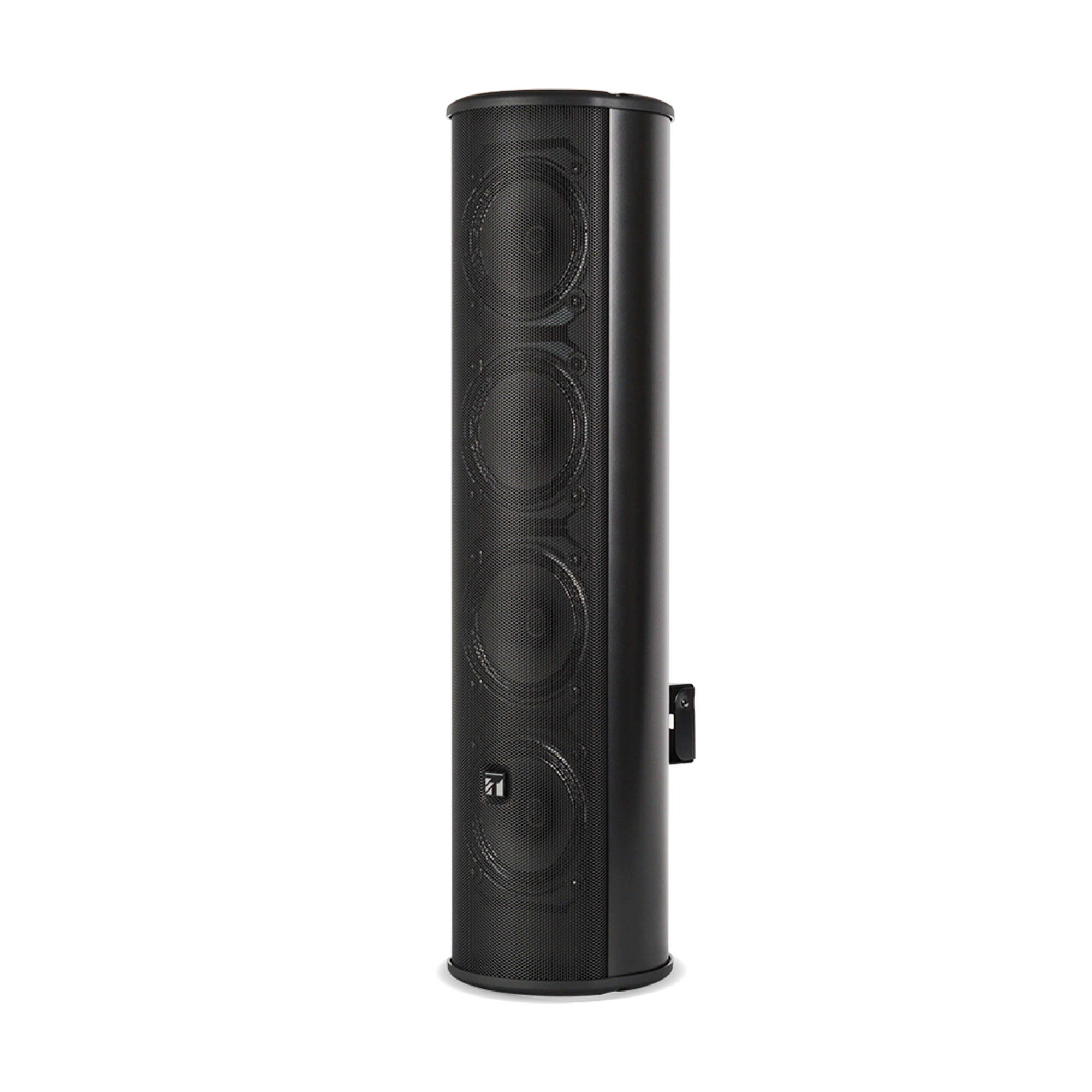

TZ-207-AS
Column Speaker
TZ-207-AS
The column speaker is a small and compact type designed for high efficiency, wide range especially high frequency result and high-power input handling capability. With the supplied bracket, the speaker be mounted in many different applications.
Rated Input
20 W (Max 30 W)
Rated Impedance
100 V line: Hot 500 Ω - black, Com - White
Sound Pressure Level
96 dB (1W, 1m)
Frequency Response
85 to 12 kHz
Directivity Angle
Horizontal: 200° (1 kHz); 98° (4 kHz)
Vertical: 36° (1 kHz); 39° (4 kHz)
Vertical: 36° (1 kHz); 39° (4 kHz)
Speaker Component
10 cm Cone-type x 4

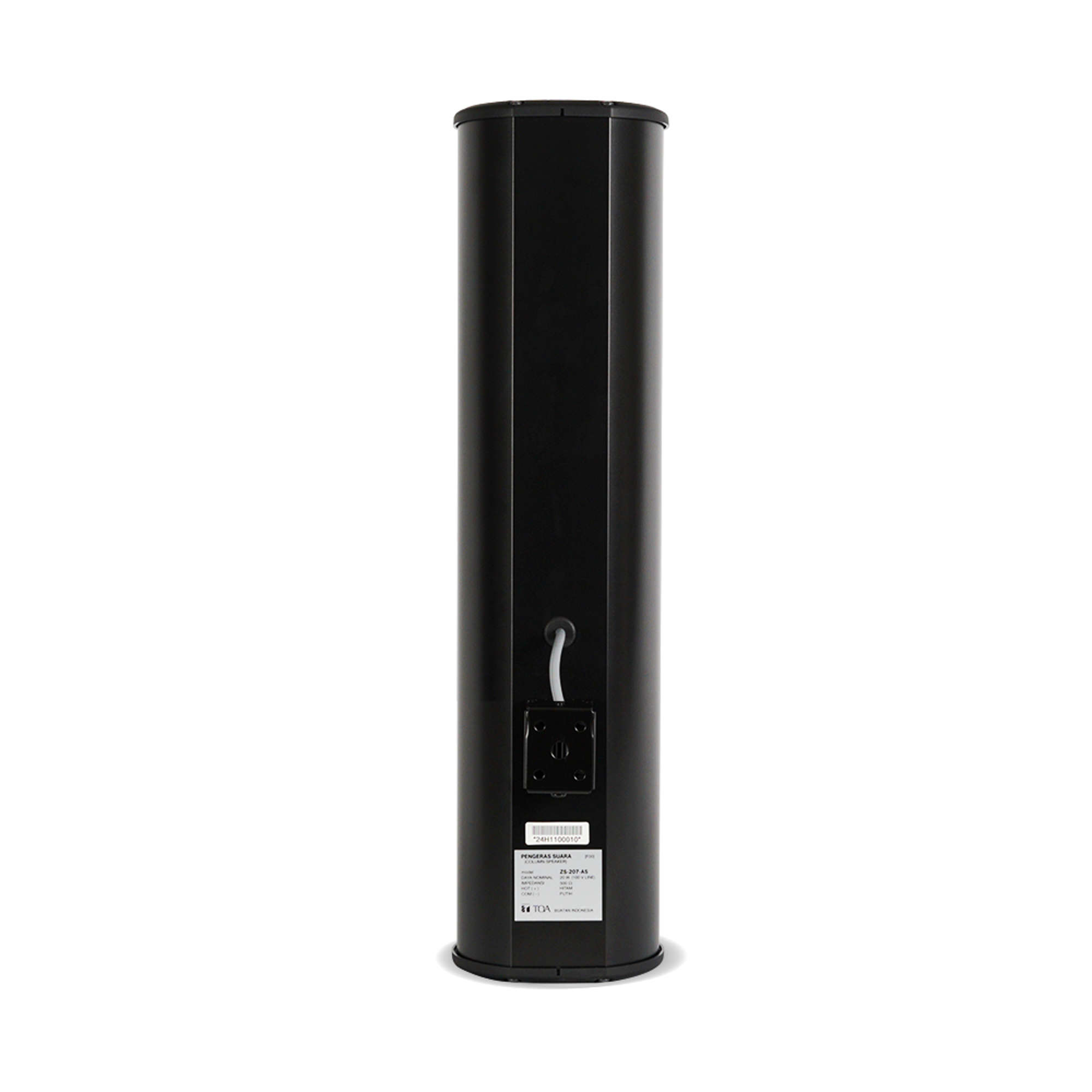

Connection
Speaker cord (2-core cabtyre cord ø6 mm (0.24"), gray)
Dust/Water Protection
IP44
Finish
Enclosure Case: Extrude Aluminum, black, paint
Side Panel: Resin, black, paint
Punched Net: Surface treated steel plate, black, paint
Side Panel: Resin, black, paint
Punched Net: Surface treated steel plate, black, paint
Dimensions
140 (W) x 560 (H) x 140 (D) mm (5.51" x 22.05" x 5.51")
Weight
3.8 kg (8.37 lb)
Included Accessories
Speaker Bracket x 1, Wall Bracket x 1, BH Screw M5x60 Fe Blk 3-SEMS x 1
