TS-D1000-M1

(IN) Standard Microphone

TS-D1000-M1

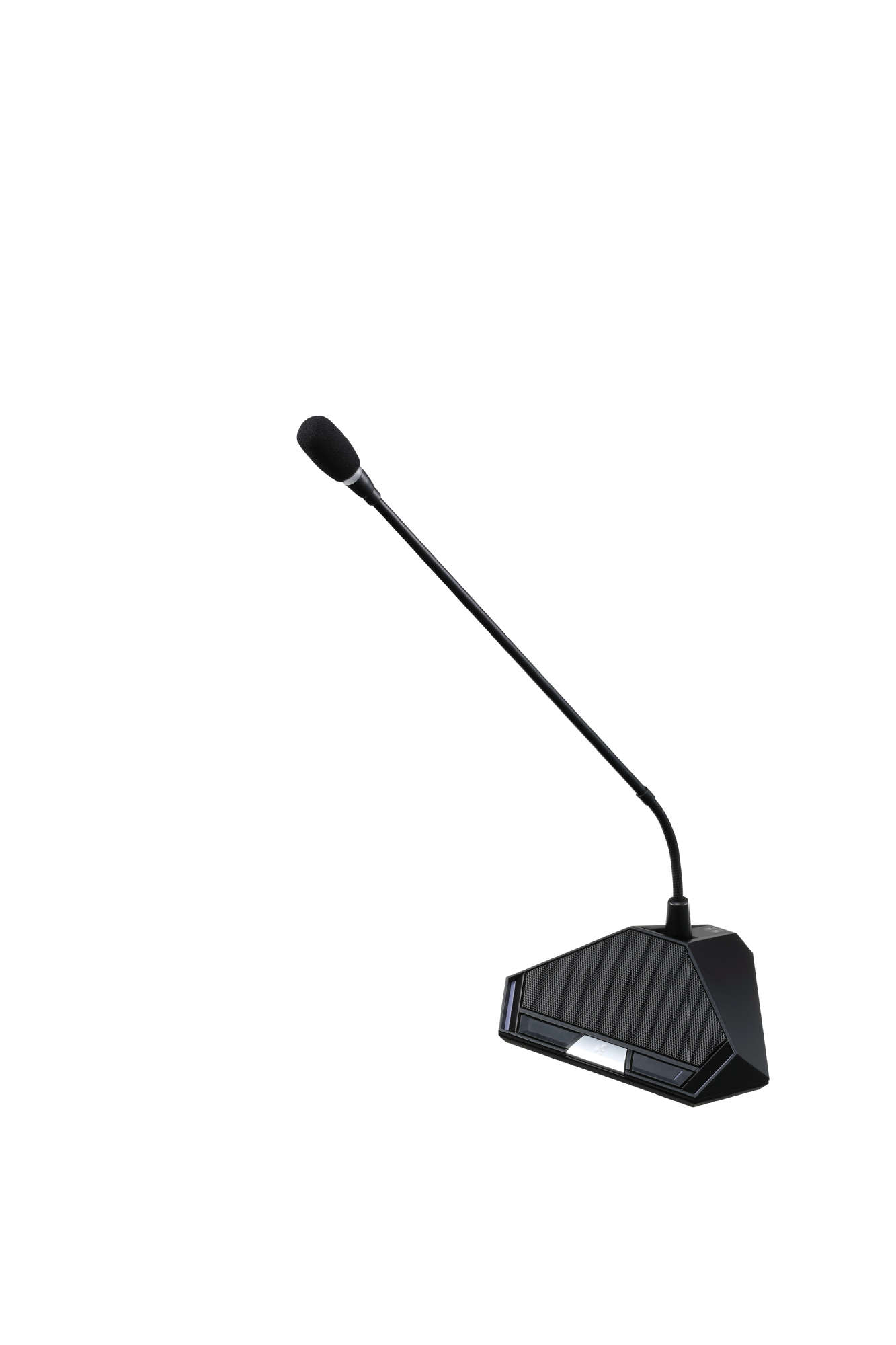

(For India) The TS-D1000-M1 Microphone is a dedicated component of the Digital conference system's Chairman unit and Delegate unit. Its mic head is equipped with an illuminated display ring that allows the status of the units in use to be monitored at a glance.

English India Field Test
Gooseneck microphone
Unidirectional electret condenser microphone
LED shows microphone status
XLR-3-12C connector
Sensitivity:-37 dB (1 kHz, 0 dB = 1 V / PA)
Frequency response: 100 Hz - 13 kHz
Length: 518 mm (1.7 ft)

Specifications Equipment A&E Specs Downloads

Type

(IN) Electret condenser microphone

Directivity

Unidirectional

Impedance

1.4 kΩ

Sensitivity

-37 dB (1 kHz 0 dB = 1 V/Pa)

LED Indicator

Speech indicator (ring type) Red

Frequency Response

100 Hz - 13 kHz

Output Terminal

Equivalent to XLR-3-12C

Operating Temperature

0 °C to 40 °C (32 ºF to 104 ºF)

Operating Humidity

90%RH or less (no condensation)

Finish

Gooseneck: Stainless steel, black
Other: ABS resin, black

Length

518 mm (1.7 ft)

Weight

110 g (0.24 lb)

Compatible Unit

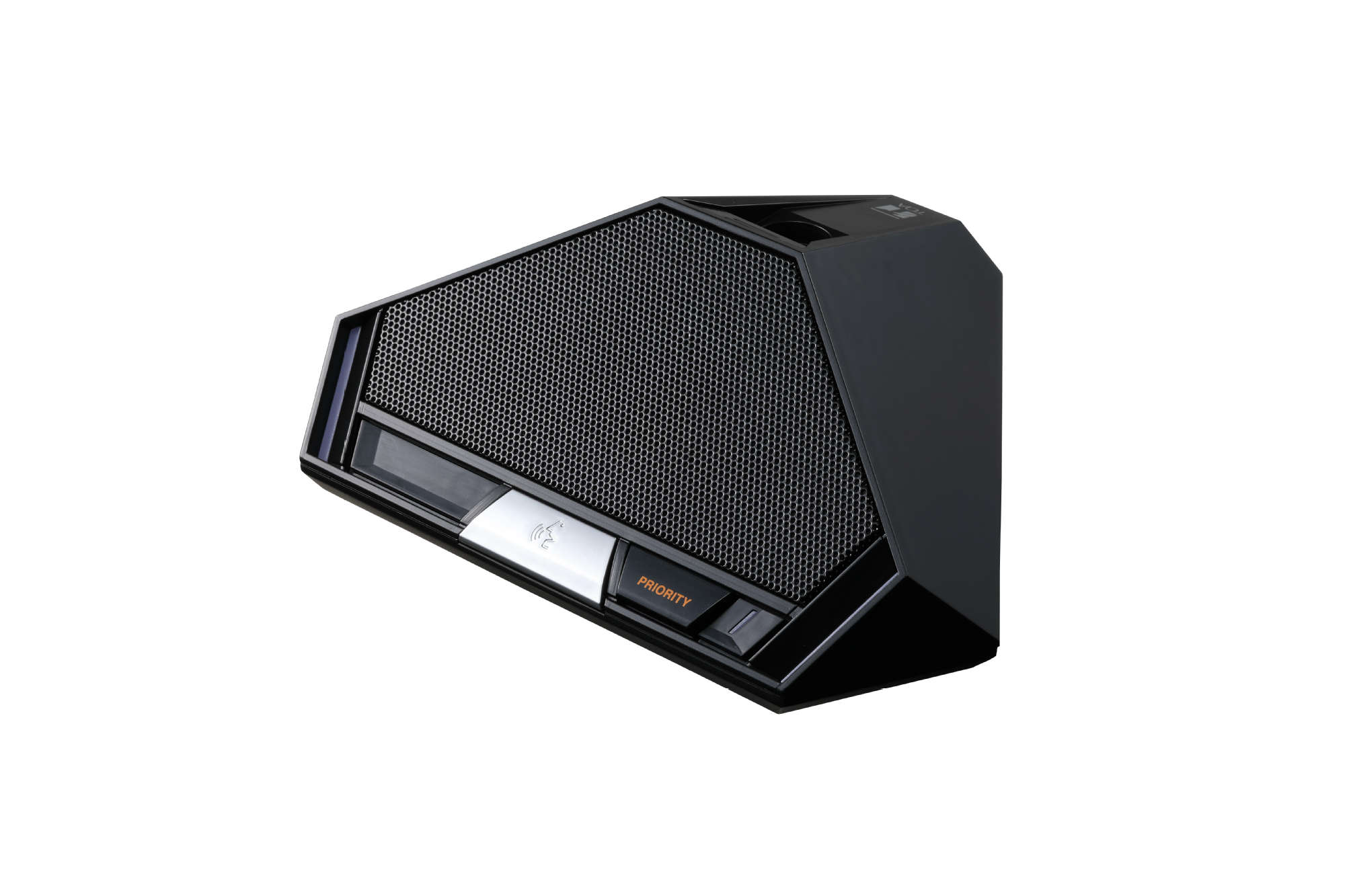

Chairman unit: TS-D1000-CU
Delegate unit: TS-D1000-DU

Please download Datasheet to access full specifications.

Optional Accessory

TS-D1000-CU Y

TS-D1000-DU Y

The ergonomically designed short stem microphone shall be able to simply plug into an associated chairman or delegate unit via the built-in XLR connector and shall have a frequency response of 100 Hz – 13 kHz with a sensitivity of -37dB.

The microphone shall be of an electret condenser type that will provide optimum performance.

The microphone shall have a red ring at the top that shall illuminate when active indicating its status to others.

The microphone shall be finished with a black stainless steel gooseneck with an overall length of 518 mm (1.7’) and shall weigh 110 g (0.24 lb.)

Applicable units: TS-1000-CU chairman unit, TS-1000-DU delegate unit manufactured by TOA Corporation

Manufacturer: TOA Corporation

Model: TS-D1000-M1
