TS-D1000-DU

  • Delegate Unit
Delegate Unit

Delegate Unit

TS-D1000-DU

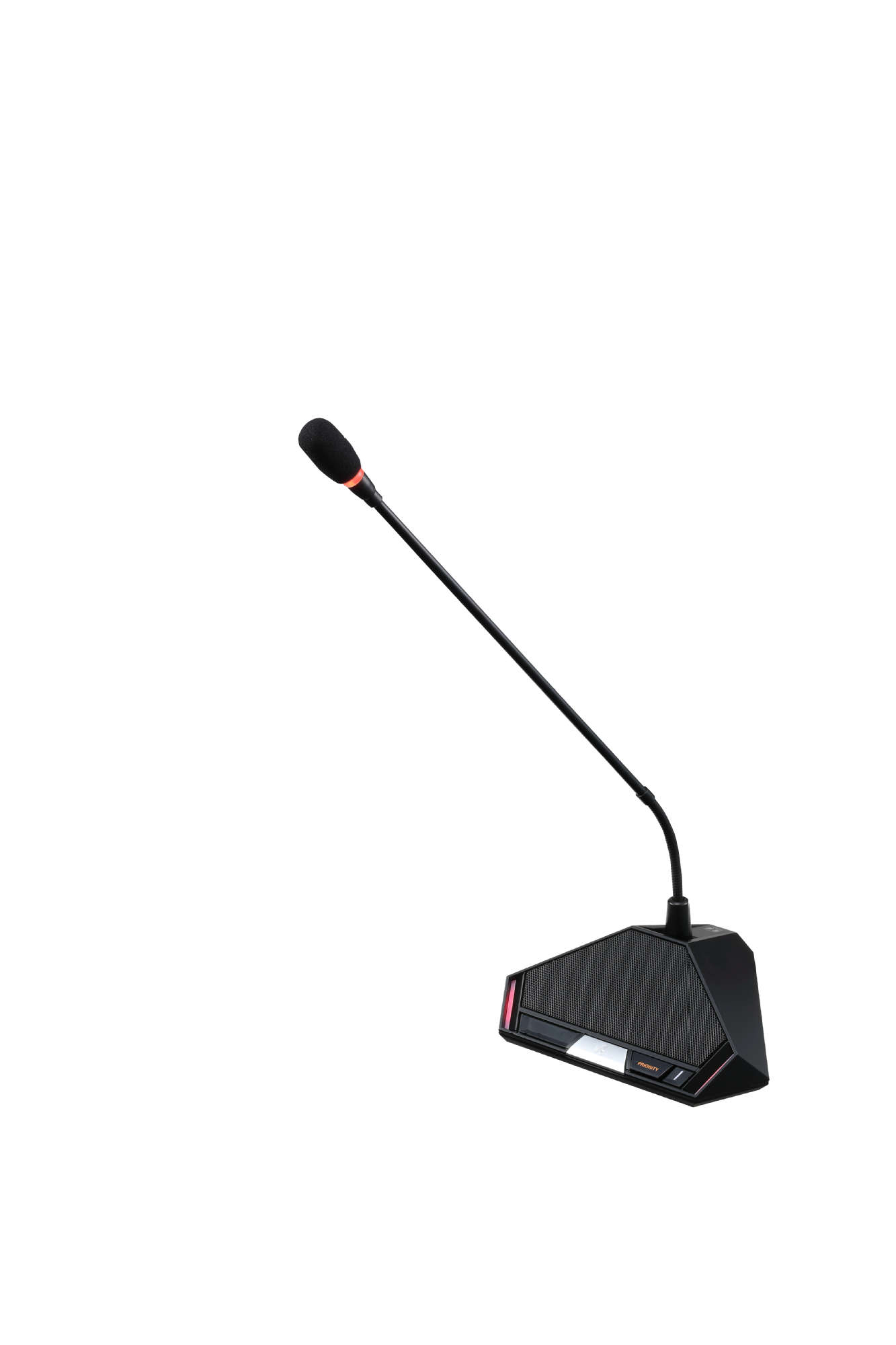

The Digital conference system's dedicated TS-D1000-DU Delegate unit can be instantly used by simply connecting it to the TS-D1000-MU or TS-D1100-MU Master control unit using CAT5e STP LAN cables. It can also be optionally equipped with either the TS-D1000-M1 Standard microphone or the TS-D1000-M2 Long microphone.

  • Delegate unit for basic discussion
  • 0.4W monitor speaker
  • 2 headphone jacks with individual volume control
  • PoE powered
QTY
▼
Power Source
24 V DC (supplied from the TS-D1000-MU Master control unit (option), TS-D1100-MU Master control unit (option), ​TS-D1000-SU Sub control units (option) or TS-D1000-EX Extension units (option)
Power Consumption
1.5 W or less
Input
Microphone terminal: XLR-3-31 type
Output
Monitor speaker: 8 Ω, 0.4 W
Earphone: Ø3.5 mm mini Jack (3P:monaural) x2
Speaker Output
75 dB SPL
Connection Terminal
RJ45 connector x2
LED Indicator
Power indicator, Speech indicator
Function
Speech function, Earphone volume control (x2)
Operating Temperature
0 °C to +40 °C (32 °F to 104 °F)
Operating Humidity
90 %RH or less (no condensation)
Finish
Case: ABS resin, black, mat finish, paint
Speaker net: Black, mat finish, paint
Dimensions
208.9 (W) x 71.3 (H) x 160.5 (D) mm (8.22 x 2.81" x 6.32")
Weight
875 g (1.93 lb)
Optional Accessories
Standard microphone: TS-D1000-M1

Please download Datasheet to access full specifications.

Required Accessory

Optional Accessory

The unit shall have compact design and speech functions.
A speech button shall allow the delegate to access the microphone and in doing so will disable the internal loudspeaker, preventing acoustic feedback.
The delegate unit shall be self-powered by the central control unit (TS-D1000-MU) and shall include two mini-jack earphone sockets with individual volume controls.
The microphone shall have a ring-type LED “in-use” lamp located at the head that will illuminate the operation status when in use. The microphone can be attached and detached from the unit via a locking XLR-4-31 type connector. There shall be two optional microphone types available, standard length (518 mm) and a long reach (668 mm). The finish of the unit shall be of ABS resin in a matt black finish weighing 875 g (1.93 lb.) The dimensions of the unit shall be 208.9 (W) × 71.3 (H) × 160.5 (D) mm (8.22" × 2.81" ×6.32")

Optional extras: Microphone: TS-D1000-M1 (standard), TS-1000-M2 (long) manufactured by TOA Corporation

Manufacturer: TOA Corporation
Model: TS-D1000-DU
