TS-D1000-DF
Delegate Unit
TS-D1000-DF

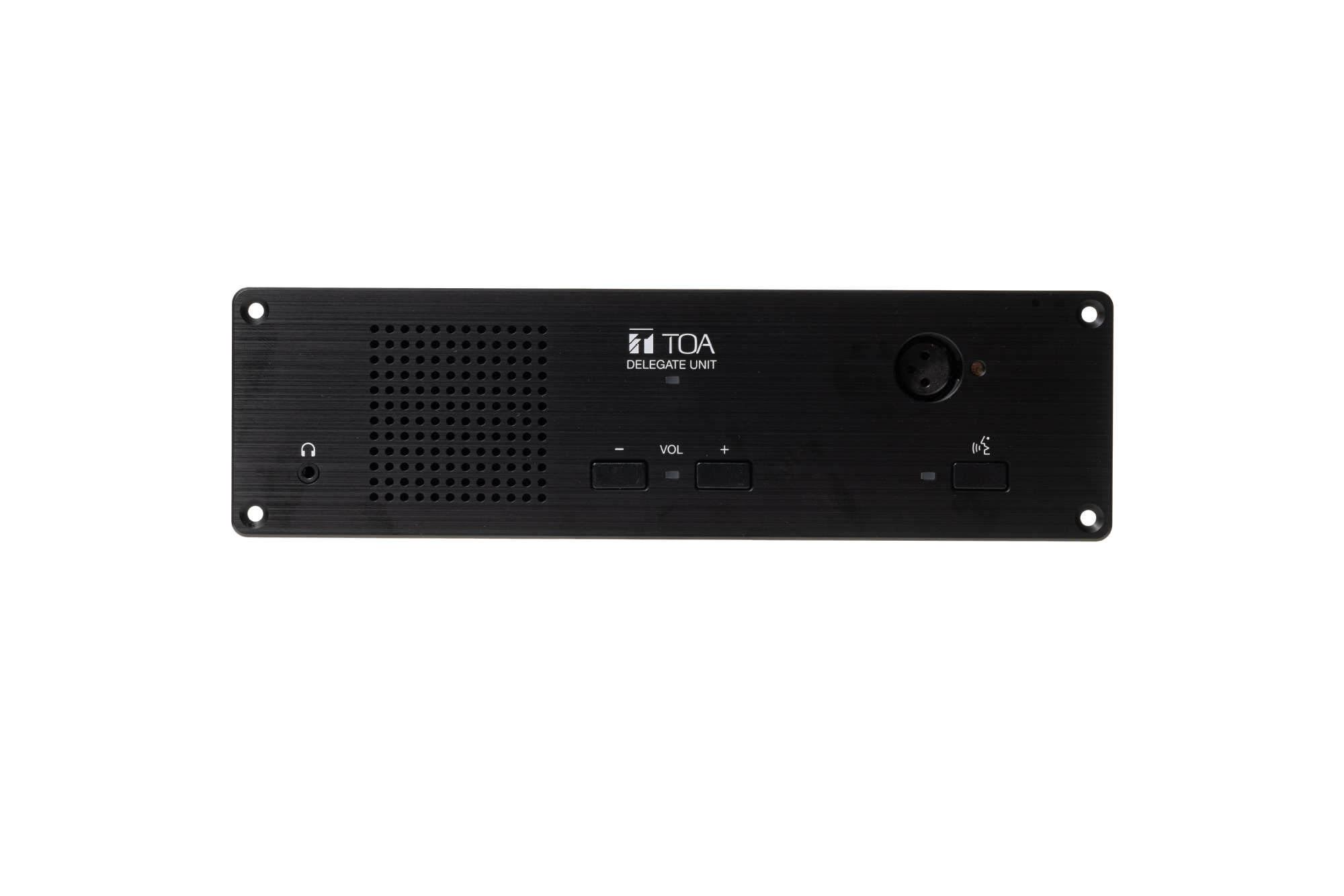

The Digital conference system's dedicated TS-D1000-DF Delegate unit can be used by simply connecting it to the TS-D1000-MU or TS-D1100-MU Master control unit using CAT5e STP LAN cables. It can also be optionally equipped with either the TS-D1000-M1 Standard microphone or the TS-D1000-M2 long microphone or the TS-D1000-M1S Short microphone.
It's the Flush-mount device, ideal for use in permanent installations, creating indicidual participant positions.
Power Source
24 V DC (supplied from the TS-D1000-MU Master Control Unit (option), TS-D1100-MU Master Control Unit (option), TS-D1000-SU Sub Control Unit (option), or TS-D1000-EX Externsion Unit (option)
Power Consumption
1.5 W or less
Signal to Noise Ratio
65 dB or more (A-weighted)
Input
Microphone terminal: XLR-3-31 type, hidden latch lock for removable microphone
Output
Monitor speaker: 8Ω. 0.4 W
Earphone: Ø3.5 mm mini jack (3P:monaural)
Earphone: Ø3.5 mm mini jack (3P:monaural)
Speaker Output
75 dB SPL
Connection Terminal
RJ45 connector x2
LED Indicator
Power indicator, Speech indicator, Volume key indicator
Function
Speech function, Earphone volume control
Operating Temperature
0 °C to +40 °C (32 °F to 104 °F)
Operating Humidity
90 %RH or less (no condensation)
Finish
Front Panel: Aluminum, Hairline, Anodizing (color: Black)
Case: Steel plate
Case: Steel plate
Dimensions
260 (W) x 120 (H) x 74 (D) mm
Weight
1.04 kg
Included Accessories
Wood screw (M4) x 4, Cable tie x 2
Optional Accessories
Standard microphone: TS-D1000-M1
Long microphone : TS-D1000-M2
Short microphone: TS-D1000-M1S
Long microphone : TS-D1000-M2
Short microphone: TS-D1000-M1S
Please download Datasheet to access full specifications.
