TS-924

  • Long Microphone Unit
Long Microphone Unit

Long Microphone Unit

TS-924

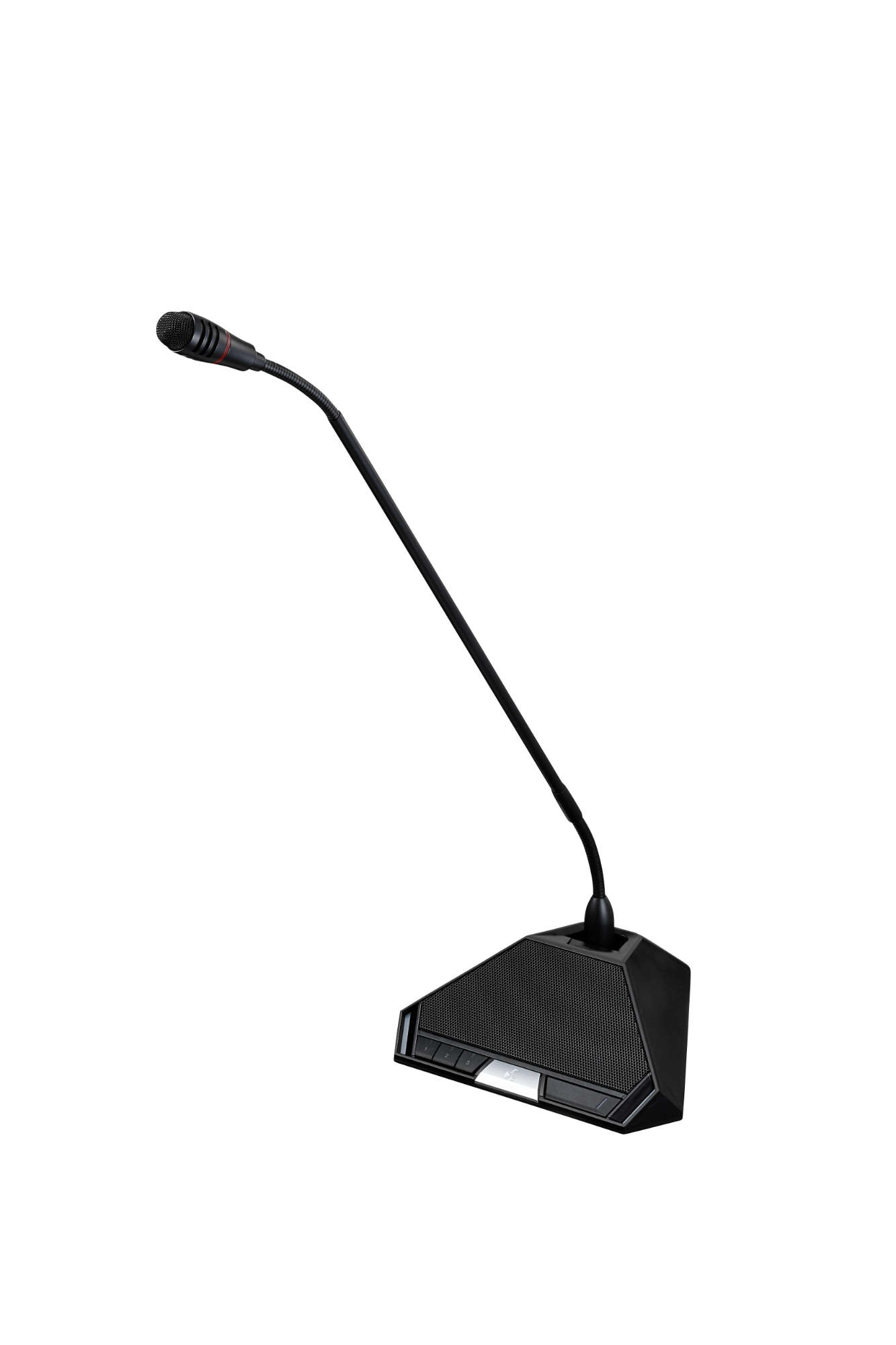

The TS-924 Microphone is a dedicated component of the Infrared Conference System's Chairman unit and Delegate unit. Its mic head is equipped with an illuminated display ring that allows the status of the units in use to be monitored at a glance. Its gooseneck has two flexible parts, making it possible to adjust the microphone to an optimal position for the user.

  • Gooseneck microphone with two flexible sections
  • Unidirectional electret condenser microphone
  • Red lights ring to display talk released
  • XLR-4-32 connector
  • Sensitivity:-37 dB (1 kHz, 0 dB = 1 V / PA)
  • Frequency response: 100 Hz - 13 kHz
  • Length: 620 mm (2.03 ft)
QTY
▼
Type
Electret condenser microphone
Directivity
Unidirectional
Impedance
1.4 kΩ
Sensitivity
-37 dB (1 kHz 0 dB = 1 V/Pa)
LED Indicator
Speech indicator (ring type) Red
Frequency Response
100 Hz - 13 kHz
Output Terminal
Equivalent to XLR-4-32
Angle Adjustment
2 parts
Operating Temperature
0 °C to +40 °C (32 °F to 104 °F)
Operating Humidity
90 %RH or less (no condensation)
Finish
Body: Aluminum, black, semi-gloss, paint
Shaft: Copper alloy, black, semi-gloss, paint
Length
620 mm (2.03 ft)
Weight
150 g (0.33 lb)
Compatible Unit
Chairman unit: TS-821, TS-921, TS-811, TS-911

Please download Datasheet to access full specifications.

Long Gooseneck microphone for large tables etc. with red lights ring to display talk released, with two flexible sections. XLR-4-32 connector for connection to the Delegate and Chairperson Units of Infrared Conference systems TS-820(RC)/TS-920RC.

Sensitivity:-37 dB (1 kHz, 0 dB = 1 V / PA)
Frequency response: 100 Hz - 13 kHz
Color: black, semi-gloss, paint
Length: 620 mm (2.03 ft)
Weight: 150 g (0.33 lb)

The long microphone unit shall be the TOA model TS-924.
