TS-921

Chairman Unit

TS-921

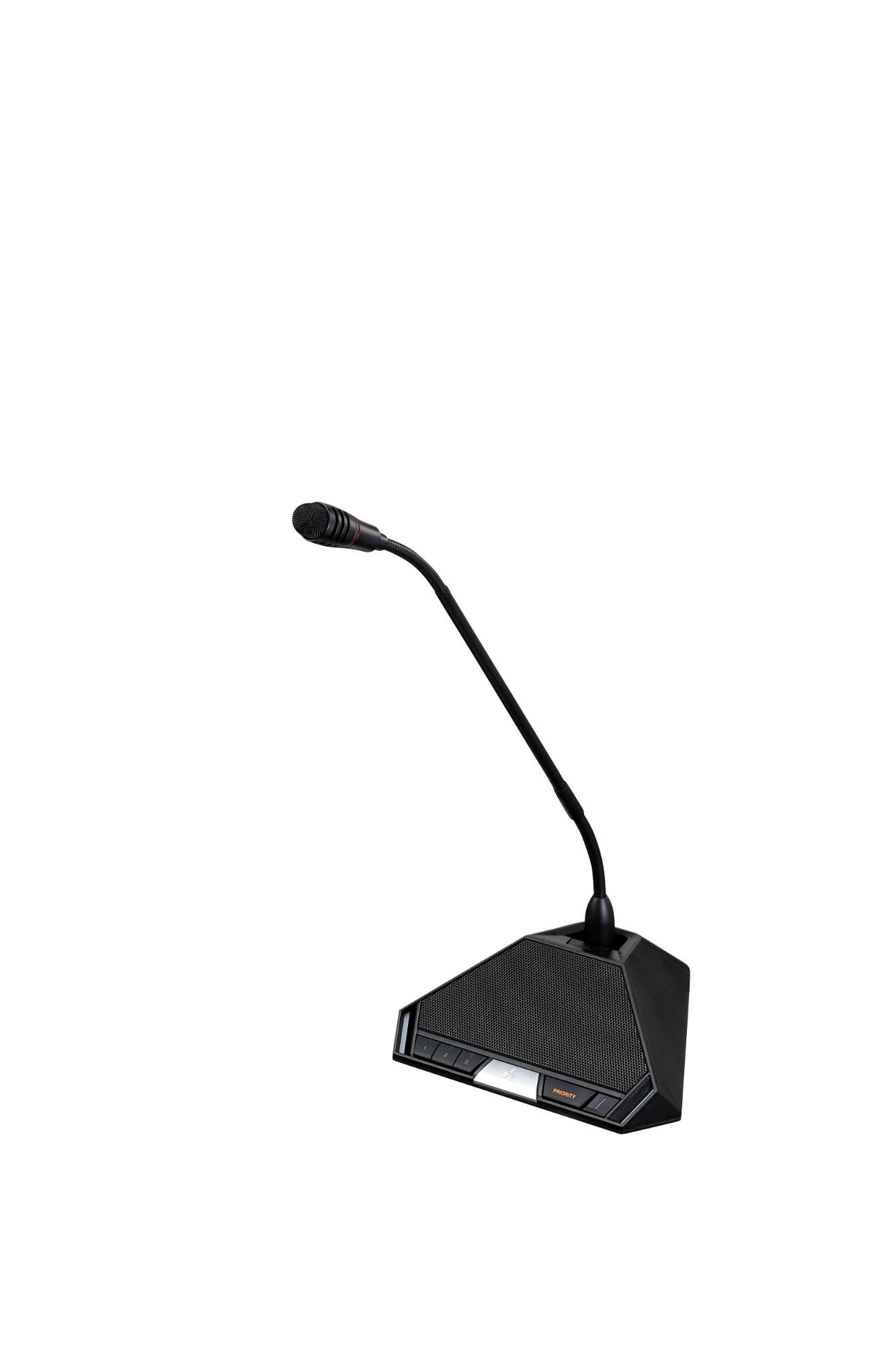

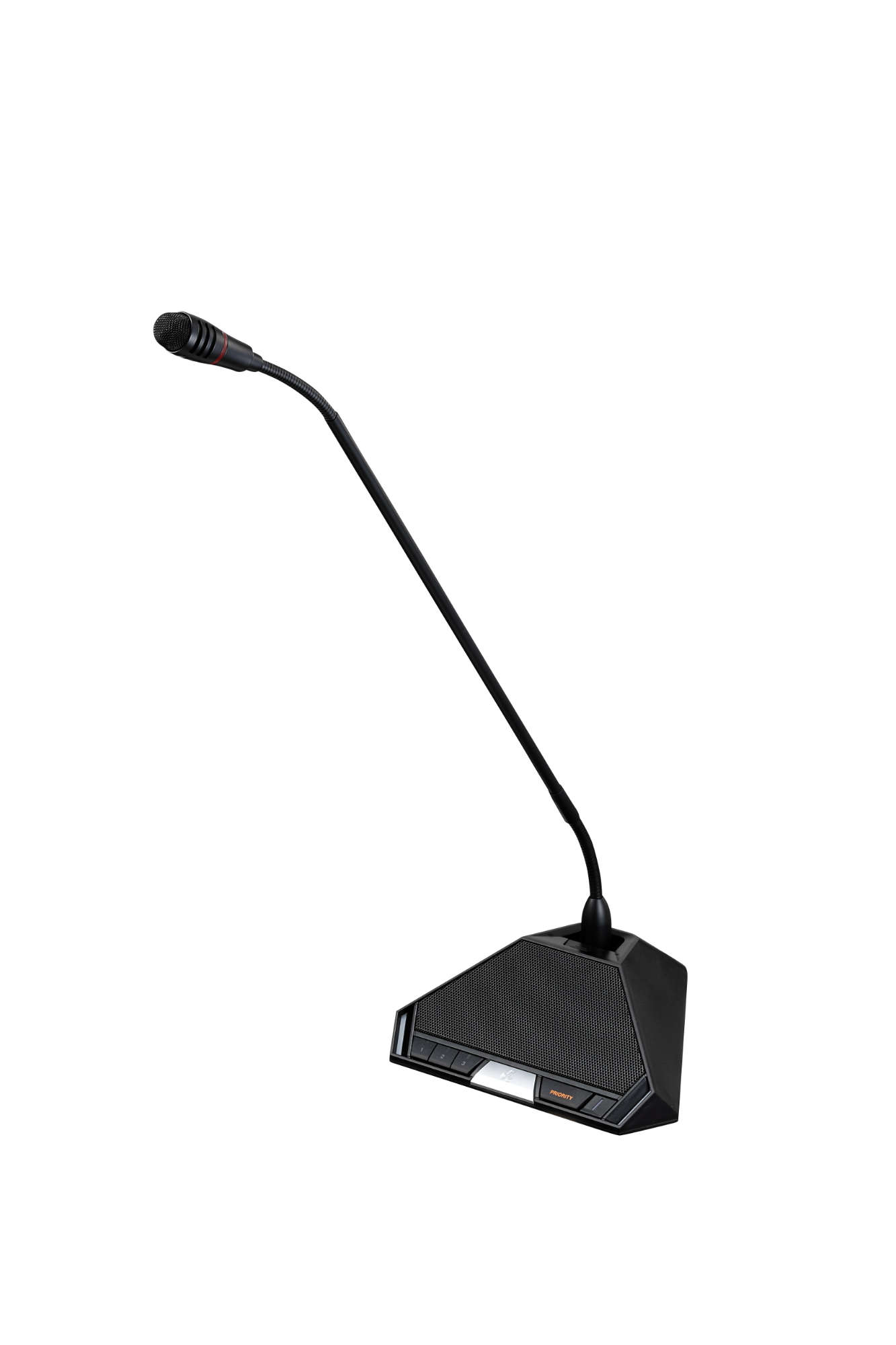

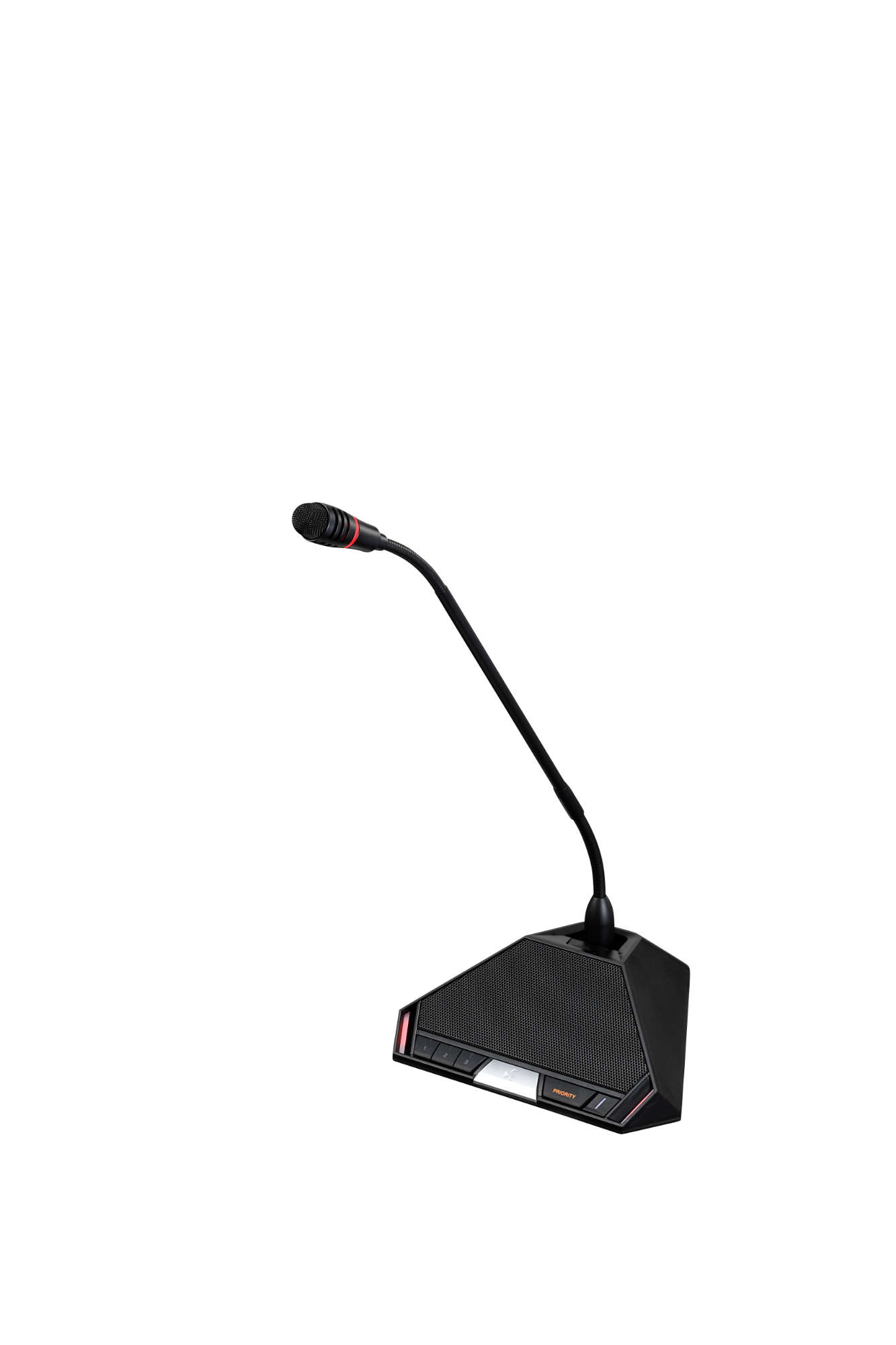

The TS-921 is a Chairman unit of the Infrared Conference system. Since the system is cordless, it can be easily installed and removed. The Chairman unit features a priority speech key which allows it to take precedence over the TS-922 Delegate units when speaking. It can be operated on either the AD-0910 AC adapter or the BP-900A lithium-ion battery. It is equipped with a remaining battery indicator. Two types of dedicated microphones are made available for the TS-921 as optional products: the TS-923, TS-903 standard type and the TS-924, TS-904 long type.

Chairman unit for basic discussion
Priority button
Equipped with voting function
0.2W monitor speaker

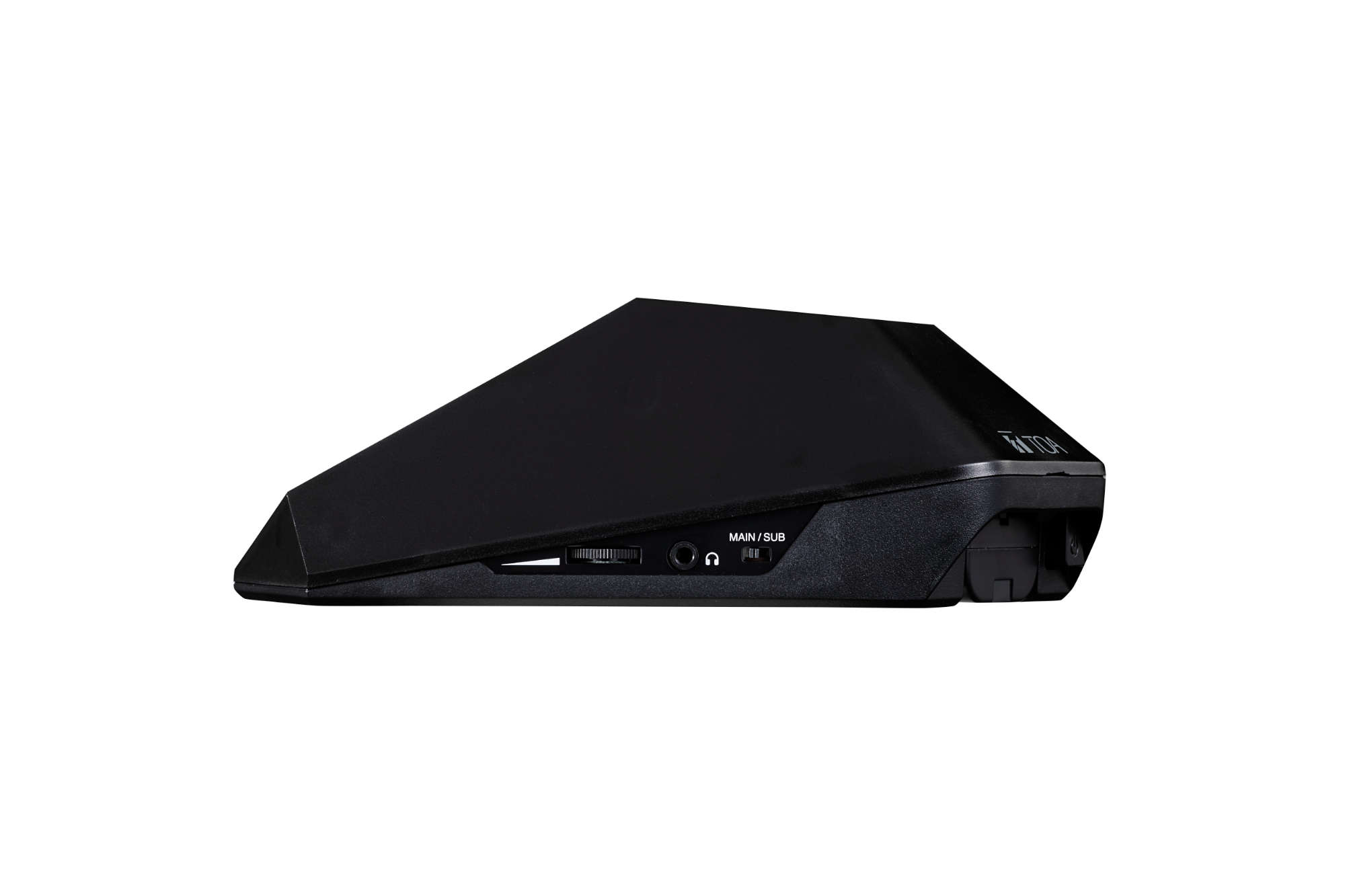

Audio monitoring switch (Main or Sub)
2 headphone jacks with individual volume control
Approx. 10 hours continuous operation with the use of optional rechargeable lithium-ion battery

Specifications Equipment A&E Specs Downloads

Power Source

7.2 V DC (supplied from optional lithium-ion battery), 9 V DC (supplied from optional AC adapter)

Current Consumption

Max. 390 mA
Infrared Emitter/Detector

Input

Microphone terminal: XLR-4-31 type

Output

Monitor speaker: 8 Ω, 0.2 W
Headphone: Ø3.5 mm mini Jack (3P:monaural) x 2

LED Indicator

Speech indicator, Voting status indicators 1 -3, Power indicator

Function

Monitor volume control, Headphone volume control, Priority speech function, Voting function, Monitor selector switch (MAIN/SUB)

Battery Life

Approx. 10 hours

Operating Temperature

0 °C to +40 °C (32 °F to 104 °F)

Operating Humidity

90 %RH or less (no condensation)

Finish

Case: PC resin, black
Speaker net: black, mat finish, paint

Dimensions

205.7 (W) x 70.3 (H) x 164.2 (D) mm (8.1 x 2.77" x 6.46")

Weight

525 g (1.16 lb)

Optional Accessories

Microphone: TS-923, TS-903, TS-924, TS-904 (Select either one.)

Please download Datasheet to access full specifications.

Required Accessory

TS-920RC 1CE

Optional Accessory

TS-923

TS-924

AD-0910 CE

BP-920 Y

The Chairman Unit shall feature a priority speech key, which allows it to take precedence over the Delegate Unit when speaking. The unit shall have base language/translation language selection function. The Chairman Unit shall provide microphone-input terminal using the combined type of XLR-4-31 connector for the (optional) standard microphone or the (optional) long microphone. The Chairman Unit shall include a monitor speaker (8 ohms, 0.2 watts) and two of headphone mini jacks. The monitor speaker volume and two headphone outputs volume shall be adjustable. The Chairman Unit shall include an LED indicator, which shall provide a speech indicator, power indicator / low battery indicator and out of communication range indicator. Built-in DIP switch on its bottom shall enable the following settings: Priority operation setting, Priority chime mute setting, and Priority speech key operation setting. The Chairman Unit shall operate on 7.2V DC (using the optional Lithium-Ion Battery) or 9V DC (using the optional AC Power Supply). Two types of dedicated microphones shall be available as optional products: the standard type and the long type. The Chairman Unit shall weigh 525g (1.16 lbs) and be constructed of PC resin with black finish. The dimensions shall be 205.7 (W) x 70.3 (H) x 164.2 (D) mm (8.10" x 2.77" x 6.46").

The Chairman Unit shall be the TOA model TS-921.

The standard microphone shall be the TOA model TS-923.

The long microphone shall be the TOA model TS-924.

The AC Power Supply shall be the TOA model AD-0910.

The Lithium-Ion Battery shall be the TOA model BP-900A.
