Central Unit

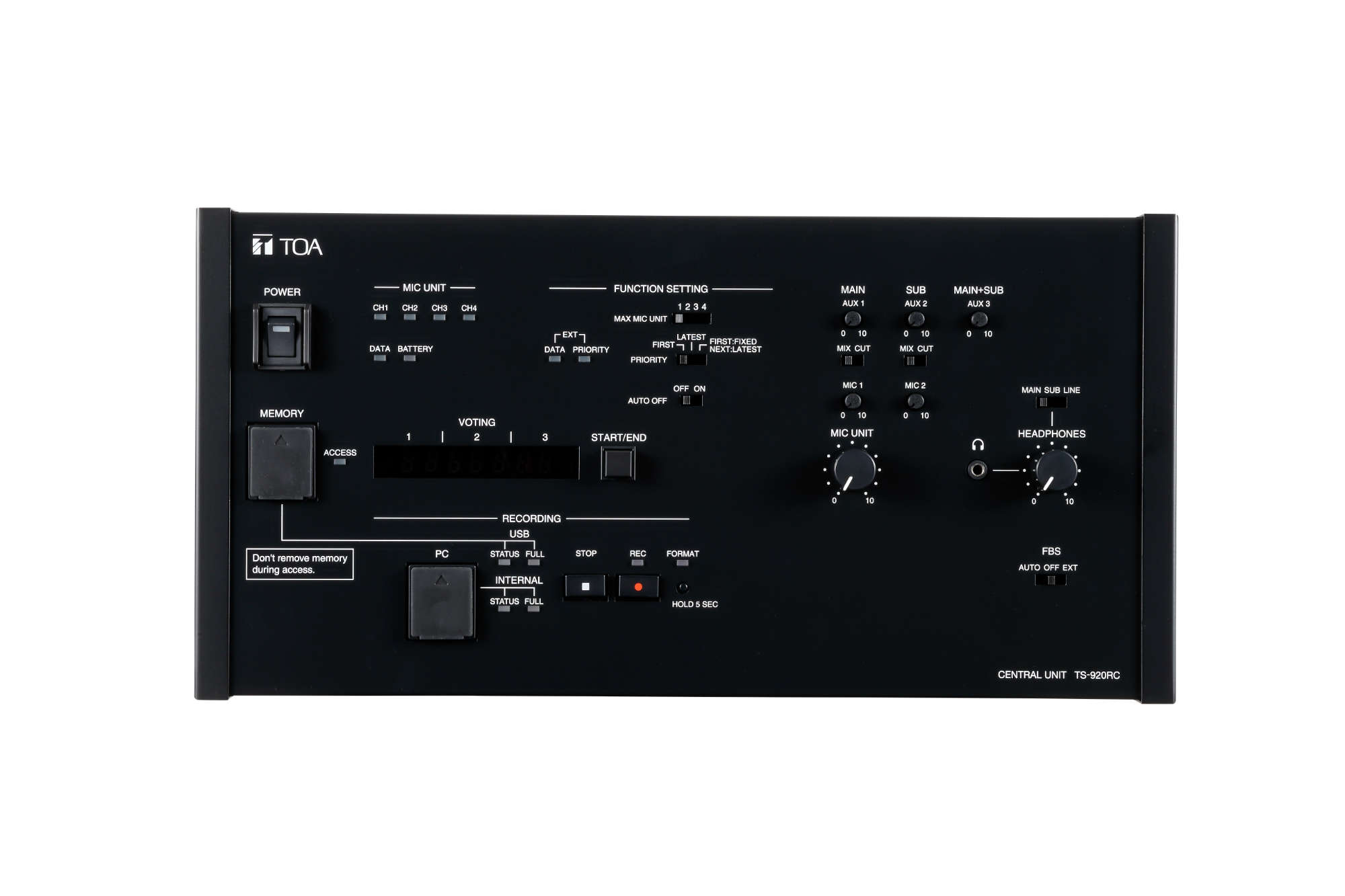

The TS-920RC is a Central Unit of the Infrared Conference System that allows easy installation and flexible layout. By connecting TS-905/907 IR Transmitter/Receiver, TS-920RC can control the Chairman and Delegate Units via wireless infrared signal. It features the installation confirmation function that allows the connection status of IR Transmitter/Receiver and Chairman/Delegate Units to be verified, and the voting function. The TS-920RC is also equipped with FBS (Feedback Suppression), enabling effective control of acoustic feedback. In addition the unit employs an MP3 recorder that makes it possible to record all conference contents to either a connected USB memory drive or internal memory. The system can be controlled by PC (*1). With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipment rack (4 unit size).
(*1) Relevant control software is supplied on a custom-made basis.

  • Main unit of the TS-920 Series Conference System
  • Up to 192 conference unit controllable
  • 2 x Mic In (Main/Sub), 3 x AUX In (Main/Sub/Main and Sub) Line Out, Rec Out, Headphone monitor out, EQ in/out
  • Function setting – Number of open microphones, Auto mic-off function, Speech priority selector, Feedback suppressor
  • Recording capability to USB and internal memory
  • Voting result indicator
  • Rack-mountable with MB-TS920 optional bracket
Power Source
100 - 240 V AC, 50/60 Hz (use of the supplied AC adapter)
Power Consumption
72 W
Current Consumption
Max. 3 A DC (when 24 V DC is supplied from the accessory AC adapter)
MIC 1 (Base Language): -60 dB (*2) , 600 Ω, unbalanced, Ø6.3 mm phone jack (2P)
MIC 2 (Translation Language): -60 dB (*2) , 600 Ω, unbalanced, Ø6.3 mm phone jack (2P)
AUX 1 (Base Language): -20 dB (*2) , 10 kΩ, unbalanced, Ø6.3 mm phone jack (2P)
AUX 2 (Translation Language): -20 dB (*2) , 10 kΩ, unbalanced, Ø6.3 mm phone jack (2P)
AUX 3 (Base and Translation Language): -20 dB (*2) , 10 kΩ, unbalanced, Ø6.3 mm phone jack (2P)
LINE: -10 dB (*2), 10 kΩ, unbalanced, Ø6.3 mm phone jack (2P)
REC: -10 dB (*2), 10 kΩ, unbalanced, RCA pin jack
HEADPHONES: Ø3.5 mm mini jack (3P:monaural)
Equalizer Input/Output Terminal
Input: -20 dB (*2), 10 kΩ, unbalanced, RCA pin jack
Output: -20 dB (*2), 10 kΩ, unbalanced, RCA pin jack
LED Indicator
Voting result indicators 1 - 3 (7-segment LED, 3 digits), Short-circuit indicator, Audio signal receiving indicators 1 - 4 CH, Data signal receiving indicator, External control priority indicator, External control communication indicator, Battery indicator (flashes when a Chairman/Delegate unit's battery nears complete discharge), Recording status indicator, Format in-progress indicator, Access Indicator, Internal memory status indicator, USB memory status indicator, Remaining internal memory capacity warning indicator, Remaining USB memory capacity warning indicator
Number of Connectable Conference Units
192 units
Number of Connectable Infrared Transmitter/Receiver Units
Up to 4 units (with the use of distributor, up to 16 units connectable
when they are all TS-905, and up to 12 units when they are all TS-907, or TS-905 and TS-907 are used in combination)
Infrared Transmitter/Receiver I/O Terminal
BNC jacks
External Control Connection Terminal
D-sub connector (9P, male)/USB-B selectable
Record Switch
Recording start button, Recording stop button, Format button
Recording Port
USB-A (for USB memory devices) and USB Mini-B (for PCs)
Recording Function
Recordings can be made to a USB memory device (*3) or the internal memory.
Recording format: MP3 (MPEG-1 Audio Layer-3), monaural
Sampling frequency: 32 kHz, Bit rate: 128 kbps
Function Switch
Number of open microphones setting switch: 1/2/3/4
Mic-off setting switch: TIME OUT ON/OFF
Speech priority selector switch: FIRST (First-in-first-out priority)
LATEST (Last-in-first-out priority)
FIRST:FIXED NEXT:LATEST (Priority fixed for the first unit, and last-in-first-
out priority for all other subsequent units.)"
Operating Temperature
0 °C to +40 °C (32 °F to 104 °F)
Operating Humidity
90 %RH or less (no condensation)
Panel: Surface-treated steel plate, black, 30 % gloss, paint
2.8 kg (6.17 lb)
Included Accessories
AC adapter (Cord length: 1.8 m (5.91 ft) DC cord, and 2 m (6.56 ft) detachable AC cord)(*4) …1
Optional Accessories
Rack mounting bracket: MB-TS920
(*2) 0 dB = 1 V
(*3) A USB 2.0-compatible FAT32-formatted flash memory device of up to 32 GB in capacity can be used. There may be cases in which a USB flash drive cannot be used with the TS-920RC, depending on the drive's attributes or recording conditions.
(*4) Not supplied with the TS-920RC(-CN). For the usable power supply cord and AC adapter, contact your nearest TOA dealer.

Please download Datasheet to access full specifications.

Optional Accessory

The Central Unit shall include the following functionalities: “Number of Open Microphones Setting” shall support a well-organized meeting. One, two, three or four persons can be allowed to talk at the same time to prevent the confusion that could result from multiple participants all speaking at once. “Speech Priority Setting Function” shall operate as follows: when the Talk Keys on the conference units are activated exceeding the set number of authorized speakers, microphone ON/OFF operation can be set to any of the following: First-In-First-Out, Last-In-First-Out, or First-Fixed-Next-Latest (Priority fixed for the first unit). “Auto Mic-Off Function” shall prevent leaving the microphone on inadvertently. When this function is activated, the microphone shall automatically switch itself off after a 30-second period of silence. “Installation Status Checkup Function” shall allow a user to confirm the state of communication at a glance. If activated on the Central Unit, the microphone indicators in the Chairman/ Delegate Units light up. “Feedback Suppressor (FBS) Function” shall be able to locate up to seven feedback frequencies and set notch filters to eliminate them. “Recording Function” shall allow recording audio in mp3 format. Audio files shall be stored to a supplied 1 GB internal memory or additional USB drives (up to 32 GB). With the use of an optional rack mounting bracket, it can be mounted in an EIA standard equipment rack (4-unit size).
The conference system software is available. The software enables setup of Graphic User Interface configuration, camera control and audio. It is able to control 192 conference delegate units and up to 4 IP HD cameras. Clear image of the active speaker shall be captured by the camera.

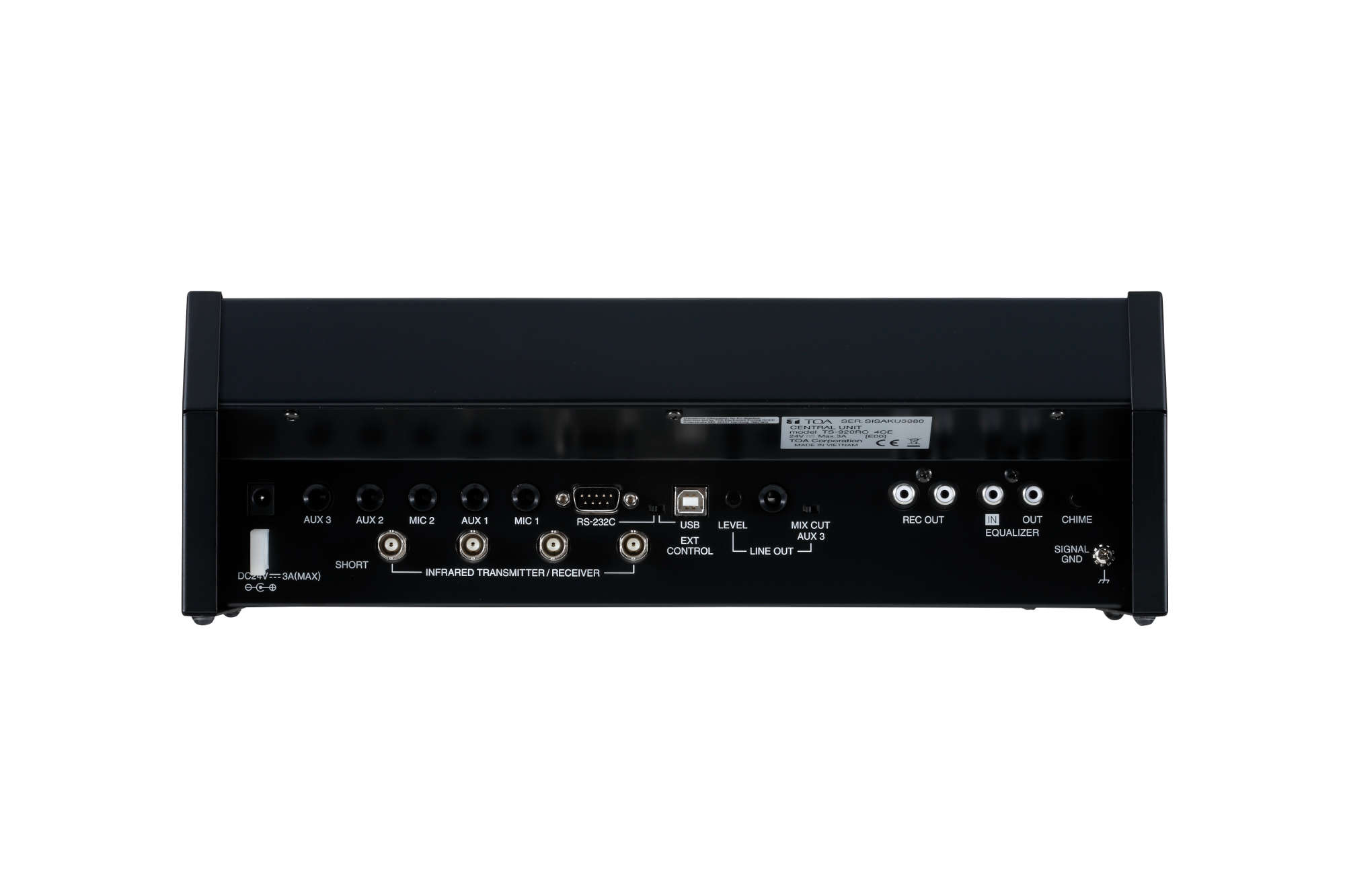

The Central Unit shall provide two external microphone inputs: phone jack (600 ohms, -60 dBV, unbalanced), three auxiliary inputs: phone jack (10k ohms, -20 dBV, unbalanced), auxiliary outputs: phone jack (10k ohms, -10 dBV, unbalanced), RCA jack (10k ohms, -10 dBV, unbalanced), headphone mini jack, and external control terminal: D-sub connector 9P or USB-B.
The optional Infrared Transmitter/Receiver shall be connectable to the BNC jacks on the rear panel. Speech volume control shall be located on the front panel and adjust the microphone volume of the Chairman Unit and Delegate Unit. Priority chime volume control shall adjust the output volume of the chime tone that sounds when the Priority Speech Key on the Central Unit is pressed.
Power requirement shall be 100-240 VAC, 50/60 Hz, maximum 72 W power consumption (using the provided AC Power Supply). Operating temperature range shall be 0°C to 40°C (32°F to 104°F). The Central Unit shall weigh 2.8 kg (6.17 lbs) and be constructed of surface-treated steel plate with black metallic paint, semi-gloss finish. The dimensions shall be 361 (W) x 122.6 (H) x 179.8 (D) mm (14.21" x 4.83" x 7.08").

The Central Unit shall be the TOA model TS-920RC.
The rack mounting bracket shall be the TOA model MB-TS920.
The Infrared Transmitter/Receiver shall be the TOA model TS-905 or TS-907.
