TS-919B1

Bridge Unit

TS-919B1

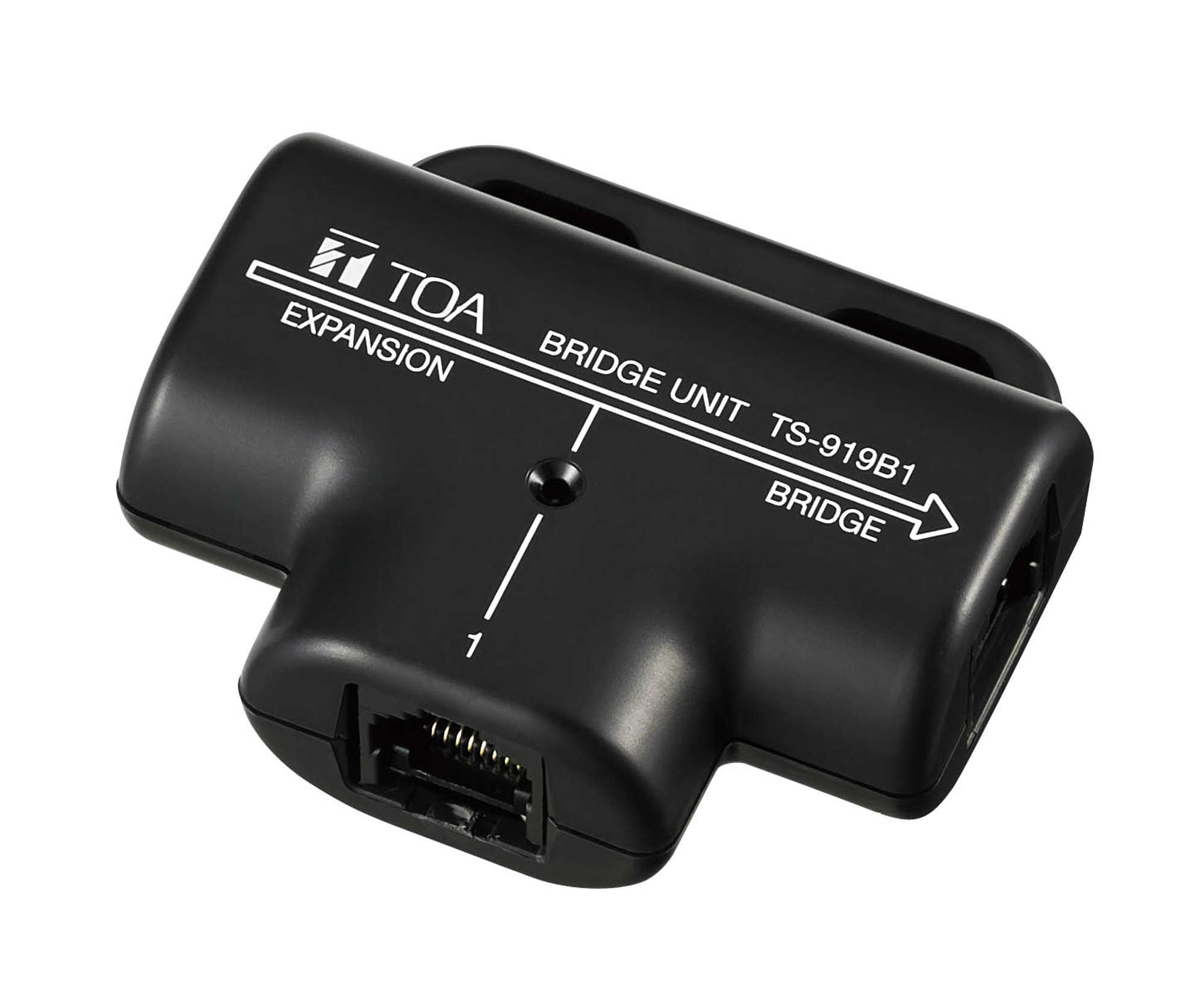

The TS-919B1 is a Bridge unit for connecting a single Wired Conference unit of the TS-811, TS-911, TS-812, or TS-912. It connects to the conference unit with a Category 5 cable.

Bridge units for connecting single wired conference unit of the TS-911 or TS-912 types
Connected to the conference unit by means of CAT5 Cable

Specifications A&E Specs Downloads

Power Source

24 V DC (supplied from the TS-918 Expansion Unit (option)

Current Consumption

Max. 16 mA

Branching Loss

Upstream: 16.5 dB
Downstream: 16 dB

Insertion Loss

Upstream: 1 dB
Downstream: 0.5 dB

Connection Terminal

Communication cable connection terminal: RJ45 connector x 2
Conference unit connection terminal: RJ45 connector

LED Indicator

Connection status indicator

Number of Connectable Conference Units

1 unit

Operating Temperature

0 ℃ to +40 ℃ (32 ℉ to 104 ℉)

Operating Humidity

90 %RH or less (no condensation)

Finish

ABS resin, black

Dimensions

68 (W) x 60.3 (H) x 24 (D) mm (2.68 x 2.37" x 0.94")

Weight

40 g (1.41 oz)

Please download Datasheet to access full specifications.

The Bridge Unit shall be used for connecting a single wired Chairperson/Delegate unit. The Bridge unit shall be directly connected to the dedicated Expansion unit which is connected to the Central unit. Connection between each Bridge unit and the Expansion unit or Chairperson/Delegate unit shall be made with a single CAT-5 LAN cable.

The Bridge Unit shall be the TOA model TS-919B1.
