TS-918
Expansion Unit
TS-918
The TS-918 is an interface necessary for incorporating the Wired conference unit(s) in the conference system. It is connected to the TS-910 Central unit with a coaxial cable and to the TS-919B1 or TS-919B4 Bridge unit with a Category 5 cable. With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard equipment rack (1 unit size).
- Interface for incorporating the wired conference unit(s) into the conference system
- Can be mounted in an EIA Standard equipment rack (1 unit size)
- Auto Mic-Off function to prevent inadvertent microphone shutoff failure
- Speaker restriction function
- Speeches can be addressed to audience via externally interlinked sound reinforcement system
Power Source
100 - 240 V AC, 50/60 Hz (use of the supplied AC adapter)
Power Consumption
74.4 W
Current Consumption
Max. 3.1 A DC (when 24 V DC is supplied from the accessory AC adapter)
Gain
Upstream: +16.5 dB
Downstream: +12.5 dB
Downstream: +12.5 dB
Connection Terminal
Central unit connection terminal: BNC jack
Bridge unit connection terminal: RJ45 connector
Bridge unit connection terminal: RJ45 connector
LED Indicator

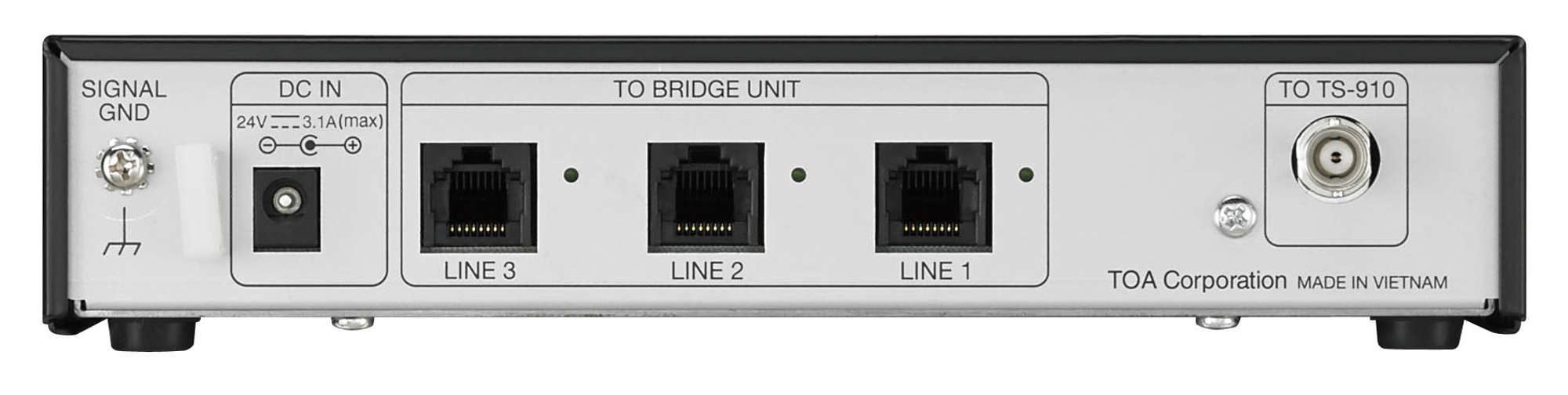

Connection status indicators (3 LEDs each on the front and rear panels),
Power indicator
Power indicator
Number of Connectable Conference Units
Up to 24 units (when using 21 units of TS-919B1 or 6 units of TS-919B4, both optional Expansion units)
Operating Temperature
0 ℃ to +40 ℃ (32 ℉ to 104 ℉)
Finish
Panel: Aluminum, black, 30% gloss, melamine-baked paint
case: Pre-coated steel plate, black
case: Pre-coated steel plate, black
Dimensions
210 (W) x 44 (H) x 296.5 (D) mm (8.27 x 1.73" x 11.67")
Weight
1.6 kg (3.53 lb)
Included Accessories
AC adapter (Cord length: 1.8 m (5.91 ft) DC cord, and 2 m (6.56 ft)
detachable AC cord)…1, BNC plug-to-BNC plug cord (50 cm (1.64 ft) …1
detachable AC cord)…1, BNC plug-to-BNC plug cord (50 cm (1.64 ft) …1
Optional Accessories
Rack mounting bracket: MB-15B-BK (for rack mounting one TS-918 unit)
MB-15B-J (for rack mounting two TS-918 units)
MB-15B-J (for rack mounting two TS-918 units)
Please download Datasheet to access full specifications.
The Expansion Unit shall be an interface for incorporating the Wired Conference unit(s) in the conference system. It shall be connected to the Central unit with a coaxial cable and to the Bridge Unit with a Cat-5 cable. Two types of Bridge units shall be available: single-Conference unit connection type and 4-Conference unit connection type, either of which is freely selectable depending on installation conditions. A total of up to 24 Chairperson/Delegate Units shall be connected per the Expansion unit. The Expansion Unit shall supply 24V DC power to the connected Chairperson/Delegate Units through Bridge Unit(s). Up to 8 Expansion units shall be installed in one system. The Expansion Unit shall be mounted on an EIA equipment rack by using the optional rack-mounting bracket.
The Expansion Unit shall be the TOA model TS-918.
The Bridge Unit shall be the TOA model TS-919B1/919B4.
