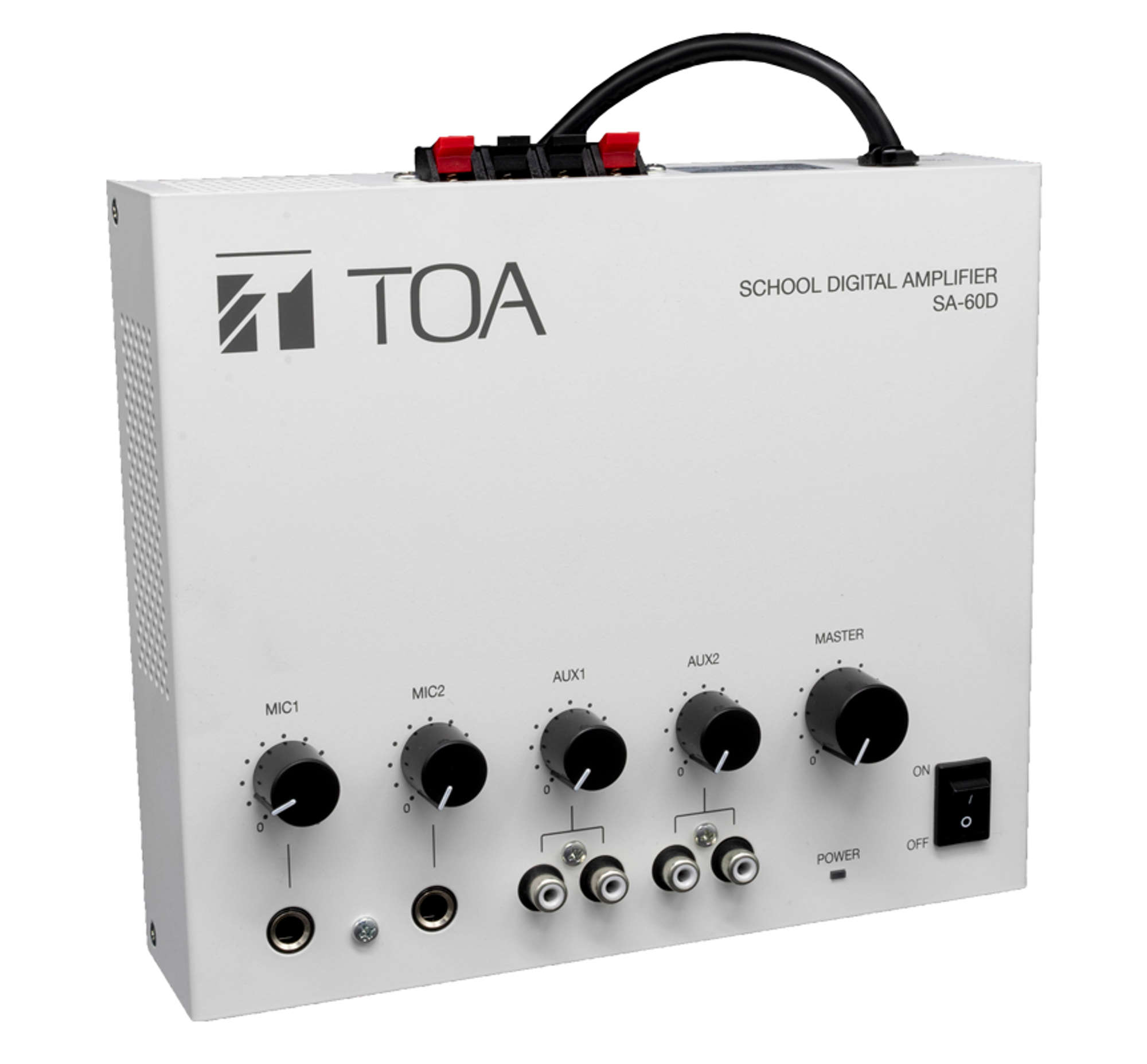

SA-60D-AS

School Digital Amplifier

SA-60D-AS

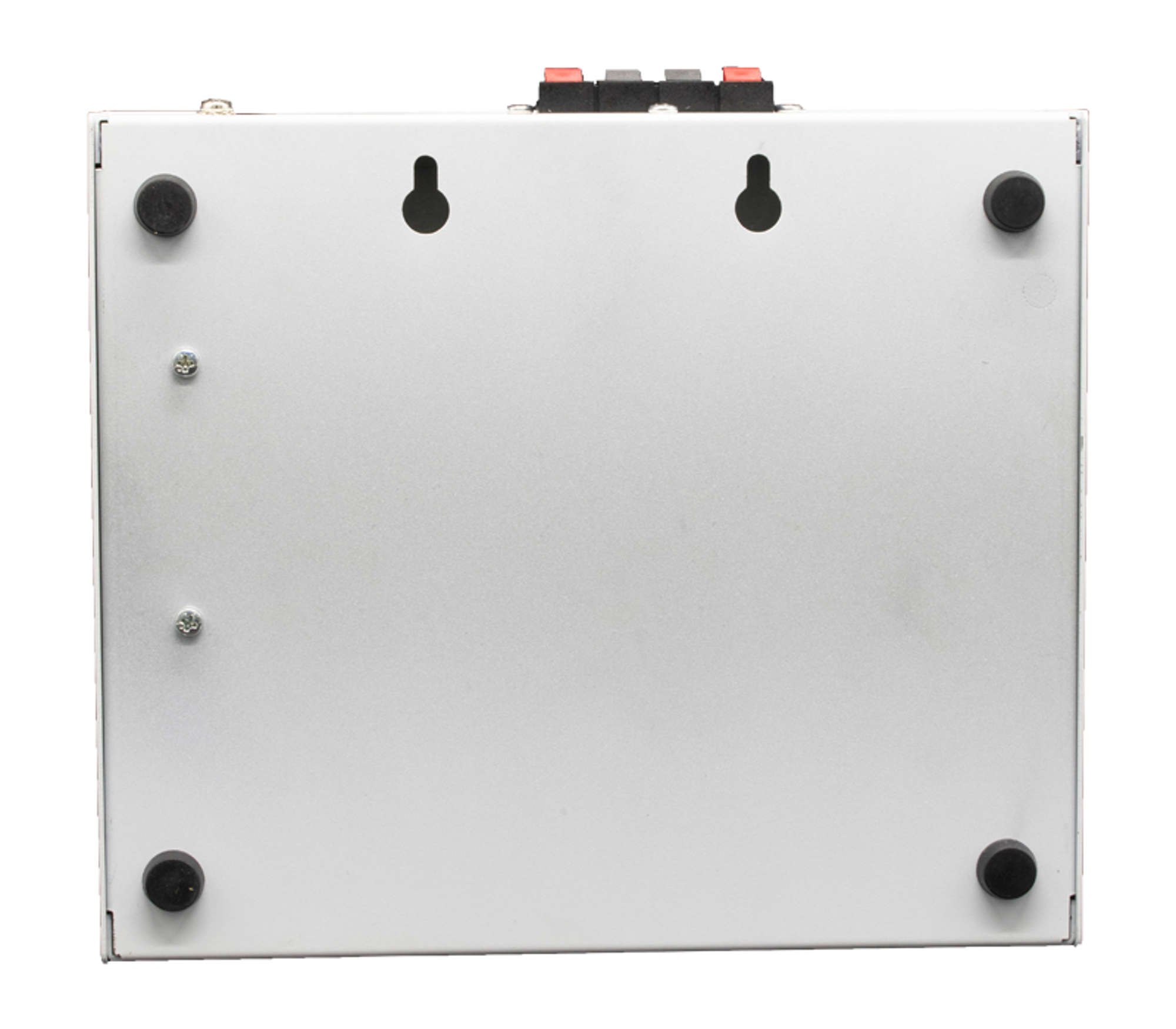

Your simple and cost effective solution to achieve clear sound quality in the classroom. This 60W Class D digtal amplifier is designed specially for classroom, training room applications in schools. Paired up with 1-2 speakers, a microphone system, an external audio device or MP3 player and you are already set up. An added advantage for this School Digital Amplifier is that it can be wall-mounted or left on the desk.

Ensure optimum communication, free from interference
Deliver sound uniformly over the entire area
Allow configurations to precisely match each environment

Specifications Downloads

*0 dB = 1 V

Power Source

220 – 240 V AC, 50/60 Hz

Rated Output

60 W

Power Consumption

100 W (rated output), 18 W (EN60065)

Frequency Response

20 Hz – 20 kHz

Distortion

1 % or less

Signal to Noise Ratio

MIC 1, 2: 60 dB or more
AUX 1, 2: 70 dB or more

Input

MIC 1, 2: -52 dB*, 600 Ω, unbalanced, ø6.3 phone jack (2P)
AUX 1, 2: -20 dB*, 10 kΩ, unbalanced, RCA pin jack

Output

Speaker out: Low impedance (2 x 8 Ω or 1 x 4 Ω), Push-in terminal

Protection

Power Supply Thermal Shut down
Power Amplifier Thermal Shut down
Power Amplifier Over Current
Each protection will be restored automatically

Indicator

Power LED (Blue)

Operating Temperature

0 °C to +40 °C

Operating Humidity

90 %RH or less (no condensation)

Finish

Case: Steel plate, off-white, paint / Knob: ABS resin, black

Dimensions

210 (W) × 70.6 (H)× 180 (D) mm

Weight

1.6 kg

Included Accessories

Wall mounting pattern paper x 1

Please download Datasheet to access full specifications.
