PJ-430W-AS

Bi‑directional Speaker

PJ-430W-AS

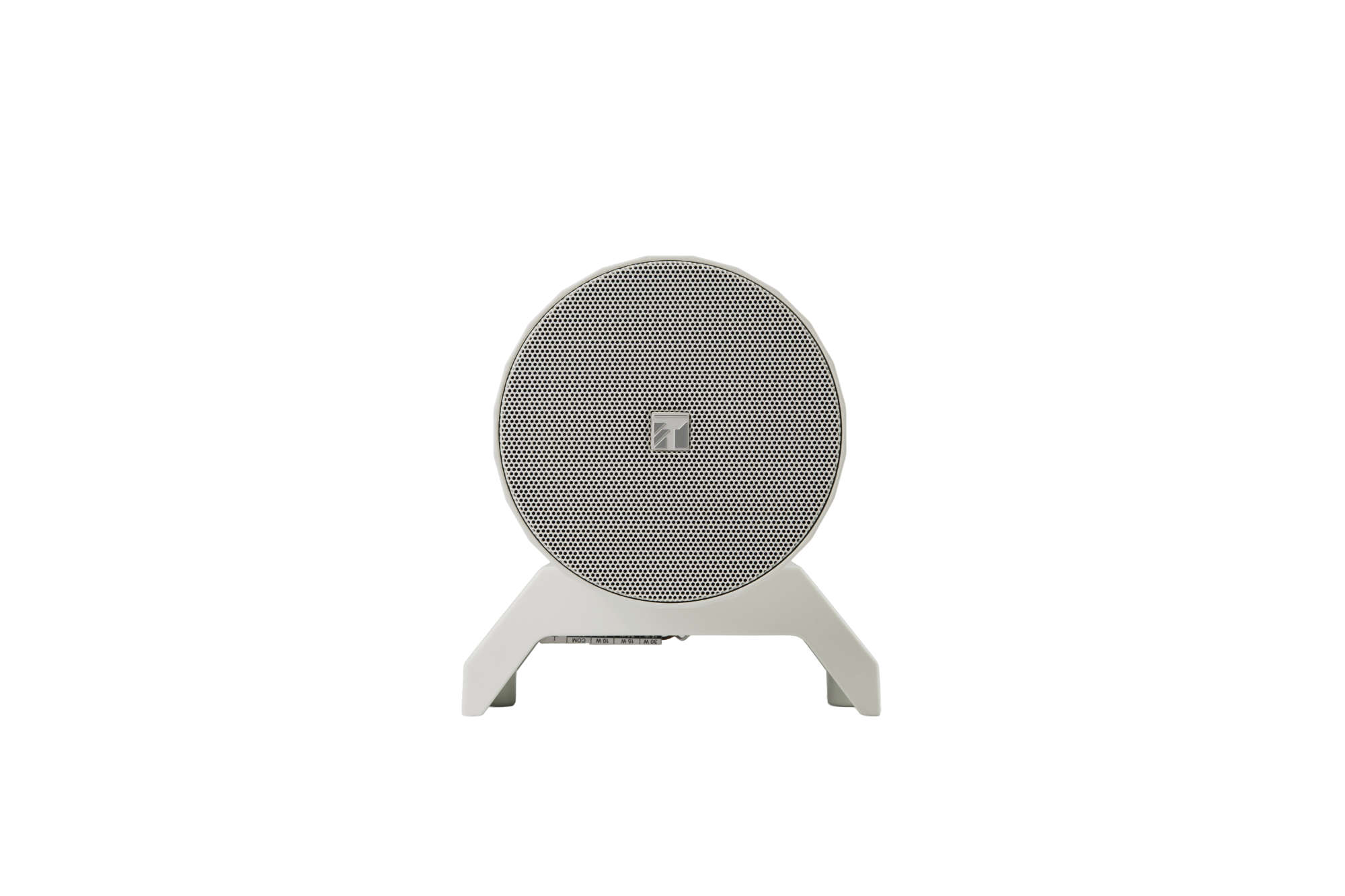

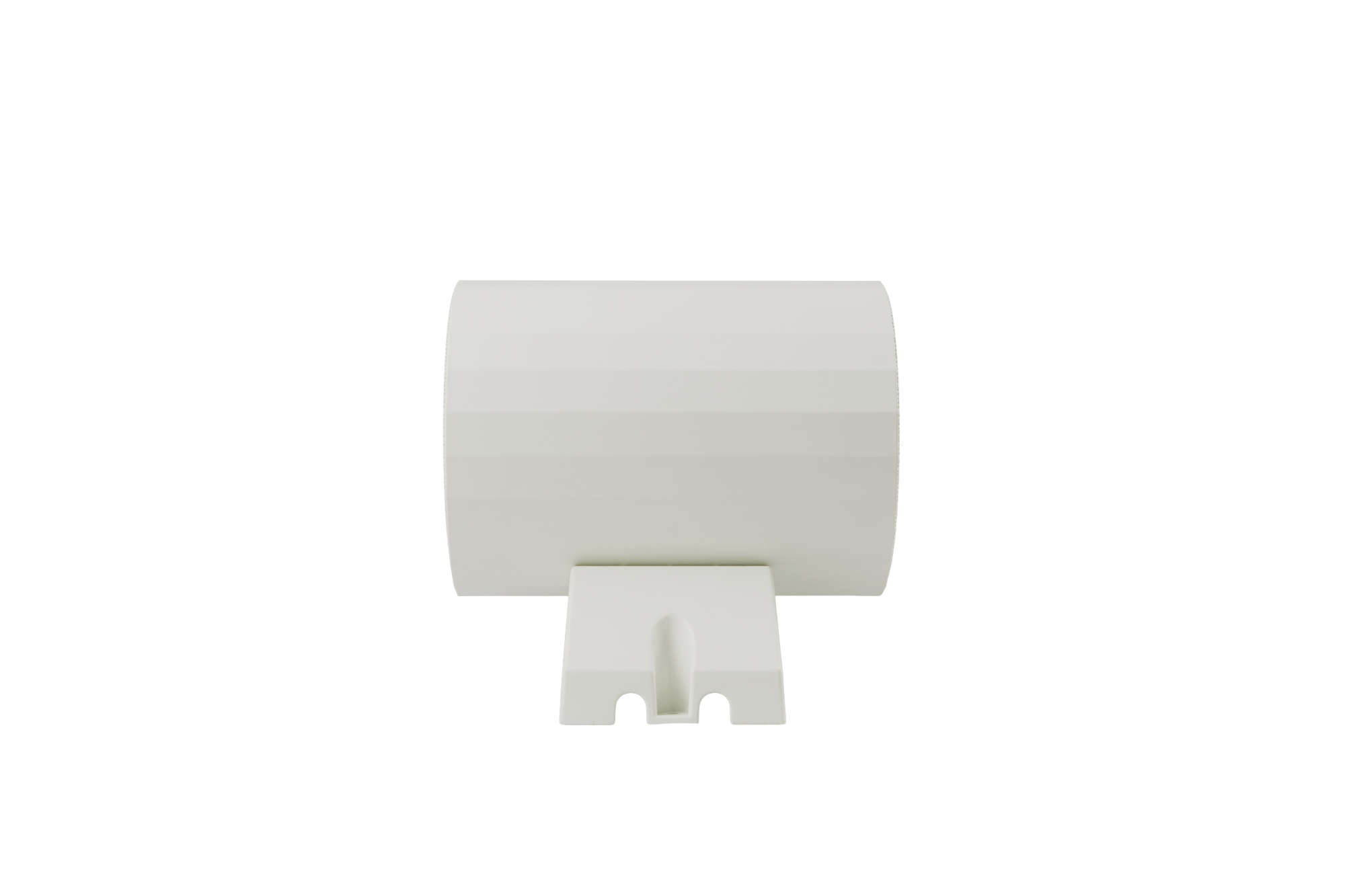

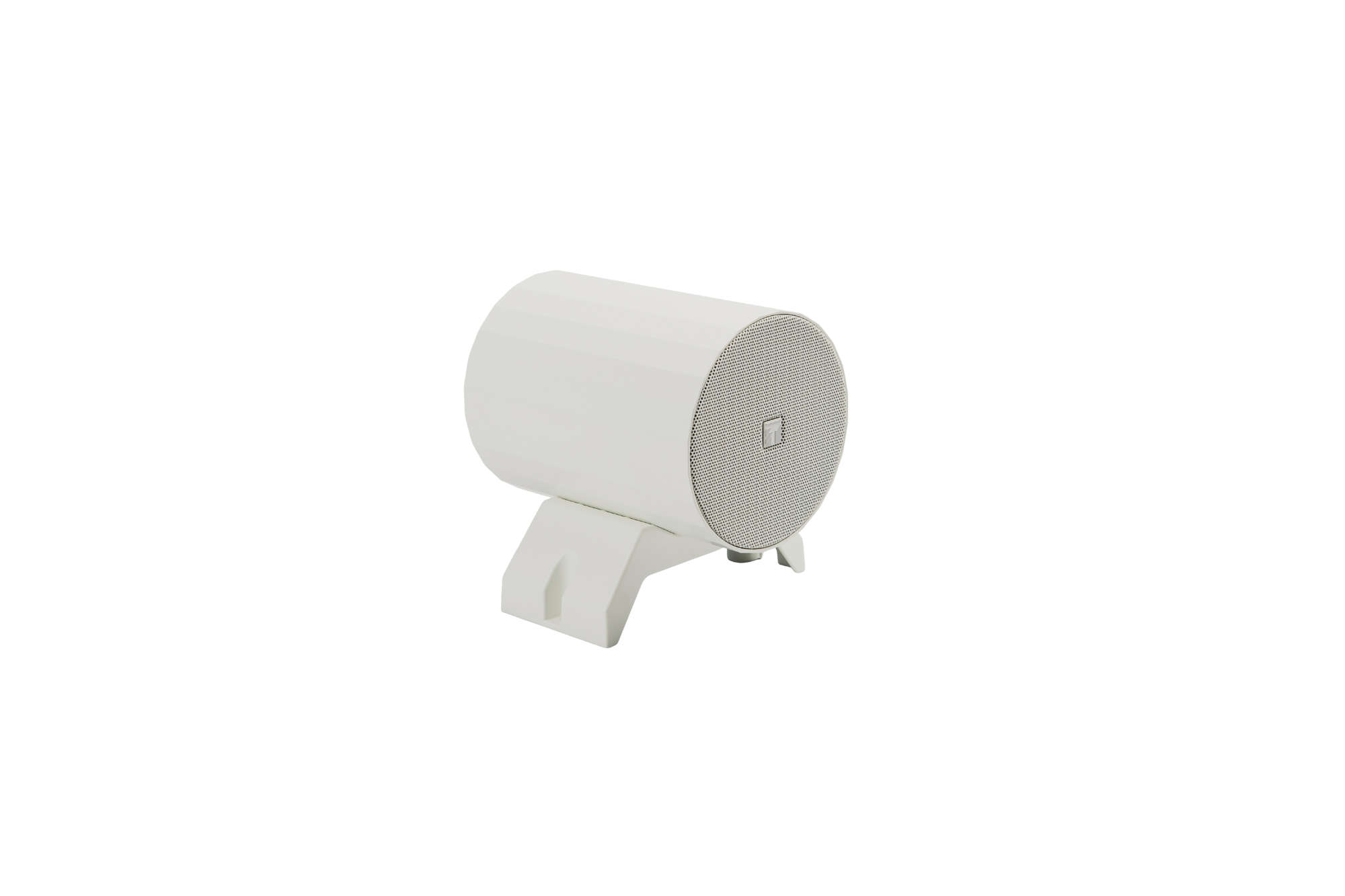

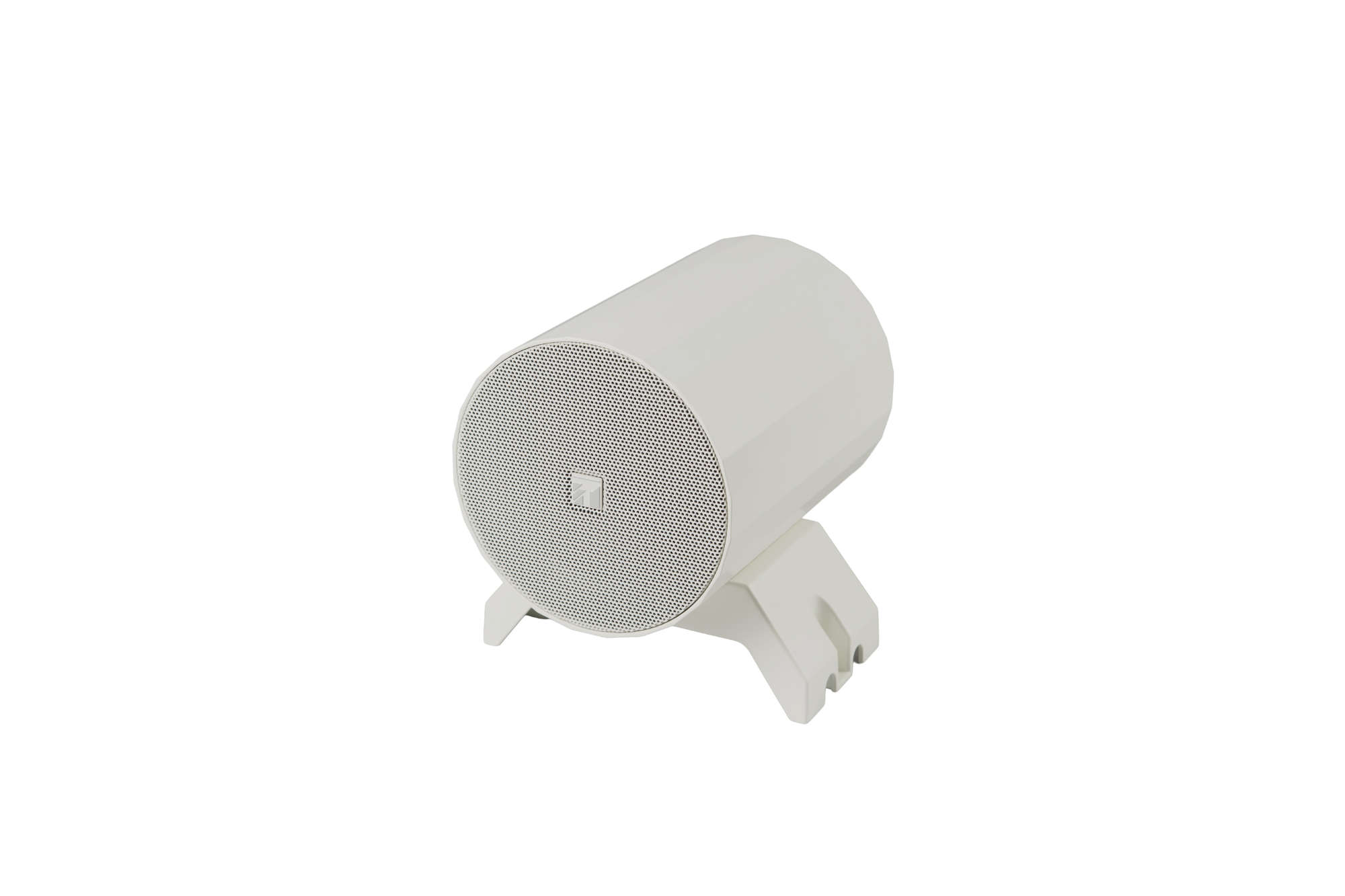

The PJ-430W is a bi‑directional projection speaker designed for surface-mount installation on walls or ceilings. Equipped with two high-quality speaker units, it delivers reliable sound coverage and is ideally suited for voice alarm and public address systems. This model allows users to select the input power based on the indications on the terminal board. The speaker is fitted with steatite screw terminals, enabling easy cable connection and facilitating bridge wiring for more flexible system configurations.

Specifications Downloads

Rated Input

30W (100V line) or 15W (70V line)

Rated Impedance

100V line: 330Ω (30W), 670Ω (15W), 1kΩ (10W)
70V line: 330Ω (15W), 670Ω (7.5W), 1kΩ (5W)

Sensitivity (1W, 1m)

89 dB (1W, 1m) (500Hz - 5kHz, pink noise, 2 speakers)
103dB (30W, 1m) (500Hz - 5kHz, pink noise, 2 speakers)

Frequency Response

97 Hz – 20 kHz (Peak -20dB)

Coverage Angle (-6 dB)

2x Hor./Ver.: 131° (500Hz) 162° (1kHz), 71° (2kHz), 59° (4kHz)

Environmental Type

IP44 (indoor and outdoor installation)

Speaker Component

2 x 10 cm double cone-type

Cable Requirements

Outer diameter: Ø6.5 - Ø12.5mm
Conductor: Solid wire or Stranded wire (7-core wire)
No bridge connection:
0.8 - 6mm² (AWG18 - AWG10) for solid wire
0.8 - 4mm² (AWG18 - AWG12) for stranded wire
Bridge connection:
0.8 - 2.1mm² (AWG18 - AWG14) for solid wire
0.8 - 1.8mm² (AWG18 - AWG15) for stranded wire

Connection

2-pins + 3-pins Screw terminal (ceramic), can be bridge connection

Operating Temperature

-25 °C to +70 °C

Finish

Cabinet, Mounting bracket, Aluminum, white (RAL 9016 equivalent), paint
Grille: Steel perforate, white (RAL 9016 equivalent), paint
Terminal cover: ABS resin, white (RAL 9016 equivalent), paint

Dimensions

189 x 178 x 191 mm

Weight

3.5 kg

Optional Accessories

Terminal cover with cable gland PGB 13.5 - 12 grey x 1(*1), Speaker mounting screw x 2

(*1) One cable gland is factory-installed, for bridge connection one cable gland can be added.
