PC-2668
Ceiling Speakers
PC-2668

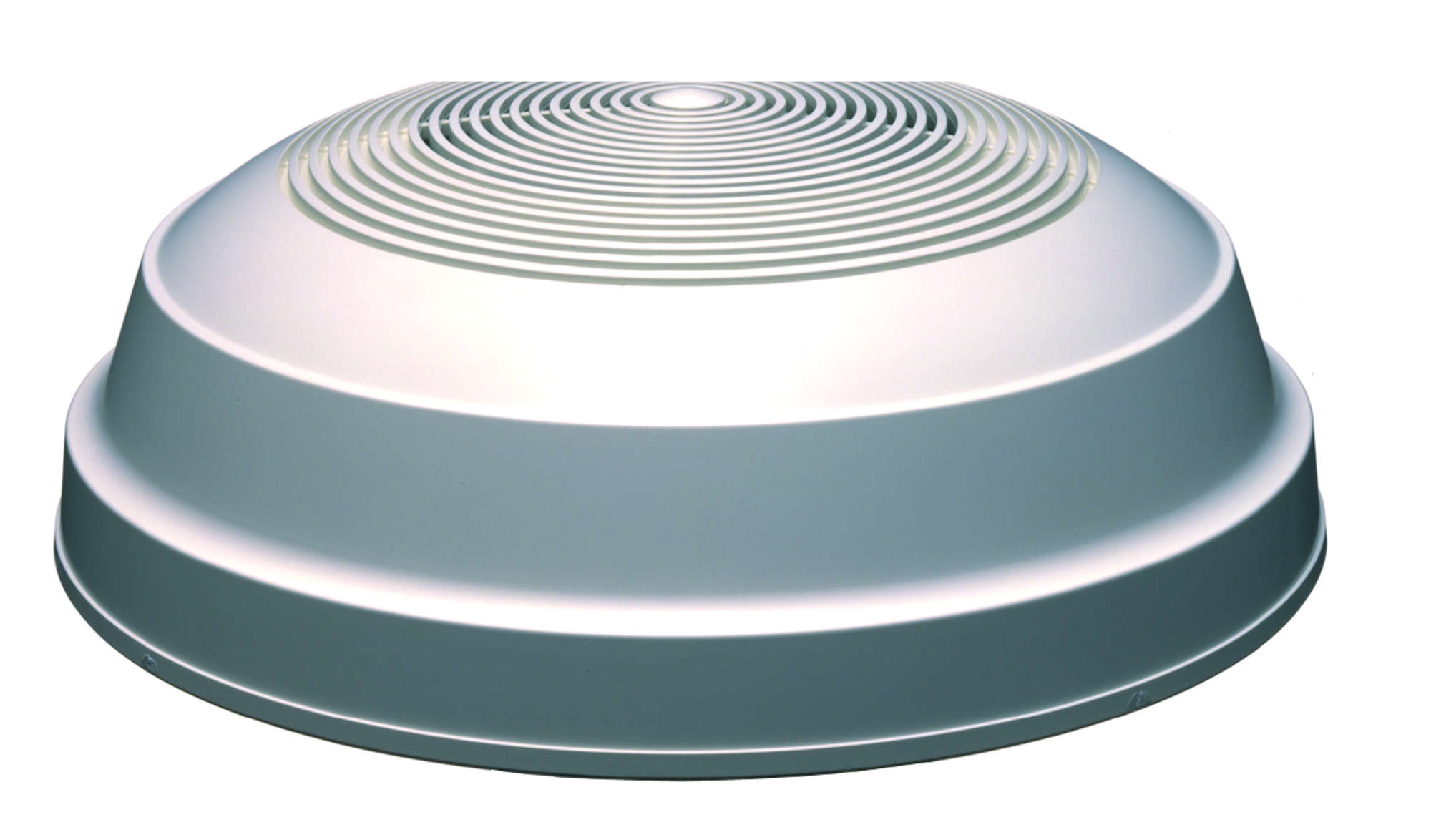

The PC-2668 speaker can be mounted (exposed installation) to the ceiling where flush mounting is impossible. It can be easily installed thanks to its spring catch method. Push-in connector allows quick wire connection, and speaker lines can be bridged by bridging terminals. The supplied bracket can be mounted to a flush-mount pull box.
- 12 cm speaker
- Exposed installation to the ceiling (surface mounting)
- Easy installation with spring catches
- Push-in terminals for speaker cable
- In-/Out bridge connection
- Mounting bracket for optional back box included
Rated Input
6 W (for 100 V Line), 3 W (for 70 V Line)
Rated Impedance
100 V Line: 1.7 kΩ (6 W), 3.3 kΩ (3 W),
(6.7 kΩ (1.5 W), 13 kΩ (0.8 W): Internal wiring must be changed)
70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W),
(6.7 kΩ (0.8 W), 13 kΩ (0.4 W): Internal wiring must be changed)
(6.7 kΩ (1.5 W), 13 kΩ (0.8 W): Internal wiring must be changed)
70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W),
(6.7 kΩ (0.8 W), 13 kΩ (0.4 W): Internal wiring must be changed)
Sound Pressure Level
90 dB (1 W, 1 m, 330 Hz - 3.3 kHz Pink noise)
Frequency Response
100 Hz - 16 kHz
Speaker Component
12 cm dynamic cone-type speaker
Speaker Mounting Method
Spring catch
Applicable Cable
600 V Vinyl-insulated cable (IV wire or HIV wire)
Solid copper wire: Φ0.8 - Φ1.2 mm
7-core twisted copper wire: 0.75 - 1.25 m㎡
Applicable Cable
600 V Vinyl-insulated cable (IV wire or HIV wire)
Solid copper wire: Φ0.8 - Φ1.2 mm
7-core twisted copper wire: 0.75 - 1.25 m㎡
Connection
Push-in connector (Bridging terminal-2 branch type)
Finish
Baffle: ABS resin, off-white (RAL 9010 or equivalent color)
Dimensions
Φ260 x 92 (D) (Exposed section) mm
Weight
820 g (Bracket included)
Please download Datasheet to access full specifications.
Ceiling mounted loudspeaker in 100V technology with curved screen made of ABS
