PC-1860S

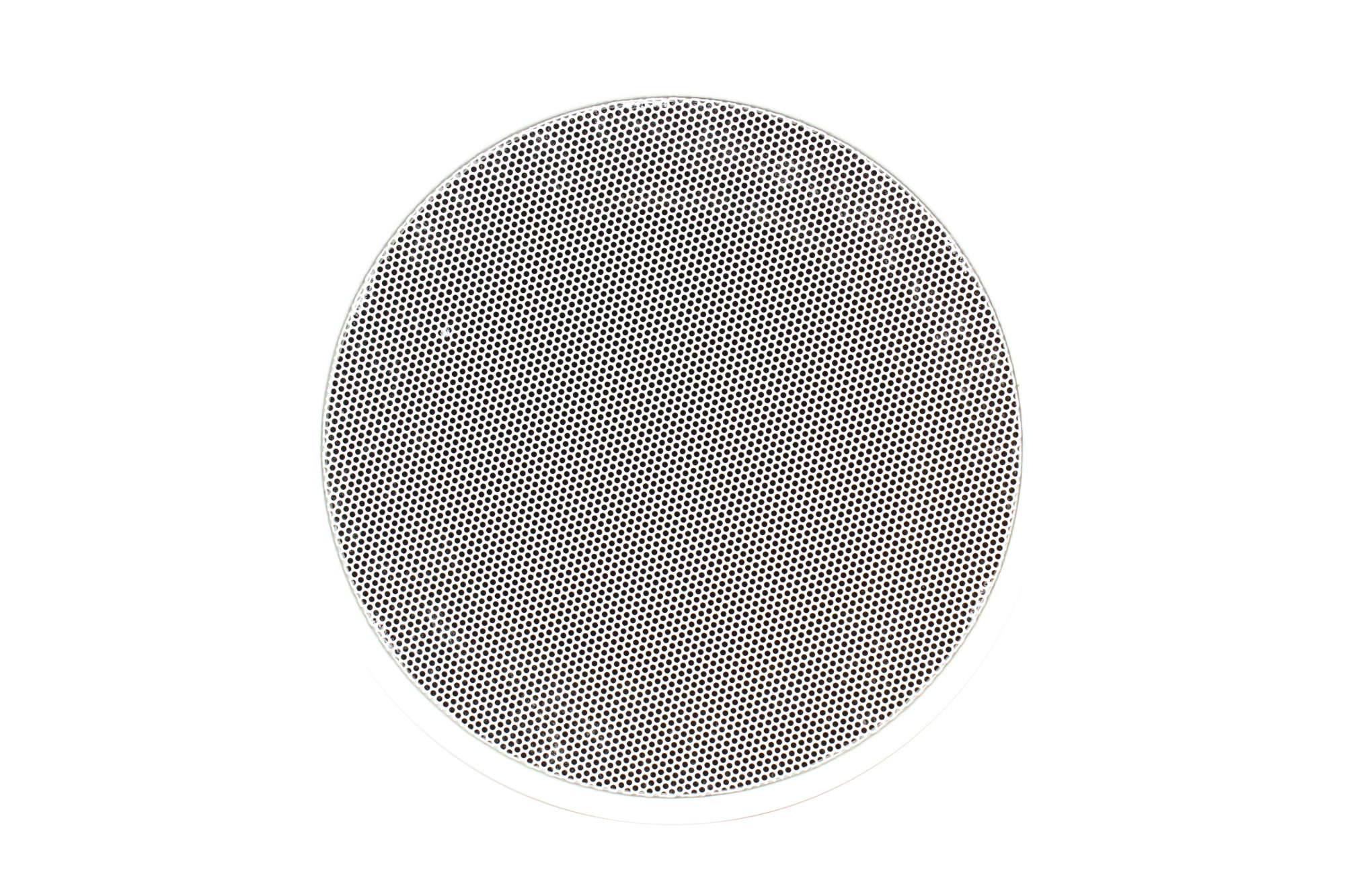

Ceiling Speaker

PC-1860S

The PC-1860S is suitable for announcements and BGM system use in high sound quality. The speaker’s design harmonizes with modern architecture and decor.

Flat front panel
Quick and easy installation
Mounting Brackets
Snap in cable terminal
6 W rated input
12 cm speaker

Specifications A&E Specs Downloads

Rated Input

6 W (100 V line), 3 W (70 V line)

Rated Impedance

100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W)
70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W)

Sensitivity

94 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise)

Frequency Response

80 Hz - 20 kHz (peak -20 dB)

Speaker Component

12 cm (5") cone-type

Mounting Hole

Mounting hole: Ø150±3 mm (5.91±0.12")
Ceiling thickness: 5 - 25 mm (0.2" - 0.98")

Speaker Mounting Method

Spring catch

Cable Requirements

Solid wire: 0.5 - 3 mm² (AWG 20 - 12)

Connection

Push wire connection (Bridging terminal-2 branch type)

Operating Temperature

-10 °C to +50 °C (14 °F to 122 °F)

Finish

Frame: Steel plate, white (RAL 9016 equivalent), paint
Grille: Steel net, white (RAL 9016 equivalent), paint
Mounting bracket: Steel plate, plating

Dimensions

Ø180 x 5 (exposed section) + 101 (D) mm (7.09 x 0.2" + 3.98")

Weight

750 g (1.65 lb)

Included Accessories

Paper pattern …1

Please download Datasheet to access full specifications.

The loudspeaker shall be of in-ceiling type design, with a full lightweight metal construction with no visible fixings and a discreet outer bezel of only 5 mm.
Installation shall be via a separate spring catch latching mechanism allowing it to be mounted in a ceiling with a thickness of between 5 - 25mm (0.2'' – 0.98").A template shall be provided to assist in cutting mounting holes. The loudspeaker shall incorporate a single 12 cm (5”) full range cone-type transducer with a smooth frequency response of 80 Hz to 20 kHz measured on axis. The loudspeaker shall produce a Sound Pressure Level (SPL) of 94 dB on axis at 1 meter with a power input of 1 watt and shall be capable of producing 6 watts (for 100 V Line) and 3 watts (for 70 V Line) of power.
The loudspeaker shall be fitted with a factory mounted transformer with easy selectable power tappings of 6 W, 3 W, 1.5 W and 0.8 W when using 100 V Line and 3 W, 1.5 W, 0.8 W and 0.4 W when using 70 V Line. Push-in-type connectors shall make cable connection quick and easy and shall allow bridge wiring when necessary.
The dimensions shall be Ø180 × 101 mm (d) (7.09" x 3.98") weighing 750 g (1.65 lb.) The finish of the loudspeaker shall be: Baffle: steel plate, white (RAL 9016 equivalent). Grille: Steel net, white (RAL 9016 equivalent). Mounting bracket: steel plate.
Manufacturer: TOA Corporation
Model: PC-1860S
