PC-1860
Ceiling Speaker
PC-1860
The PC-1860 is suitable for announcements and BGM system use in high sound quality. The speaker’s design harmonizes with modern architecture and decor.
- Flat front panel

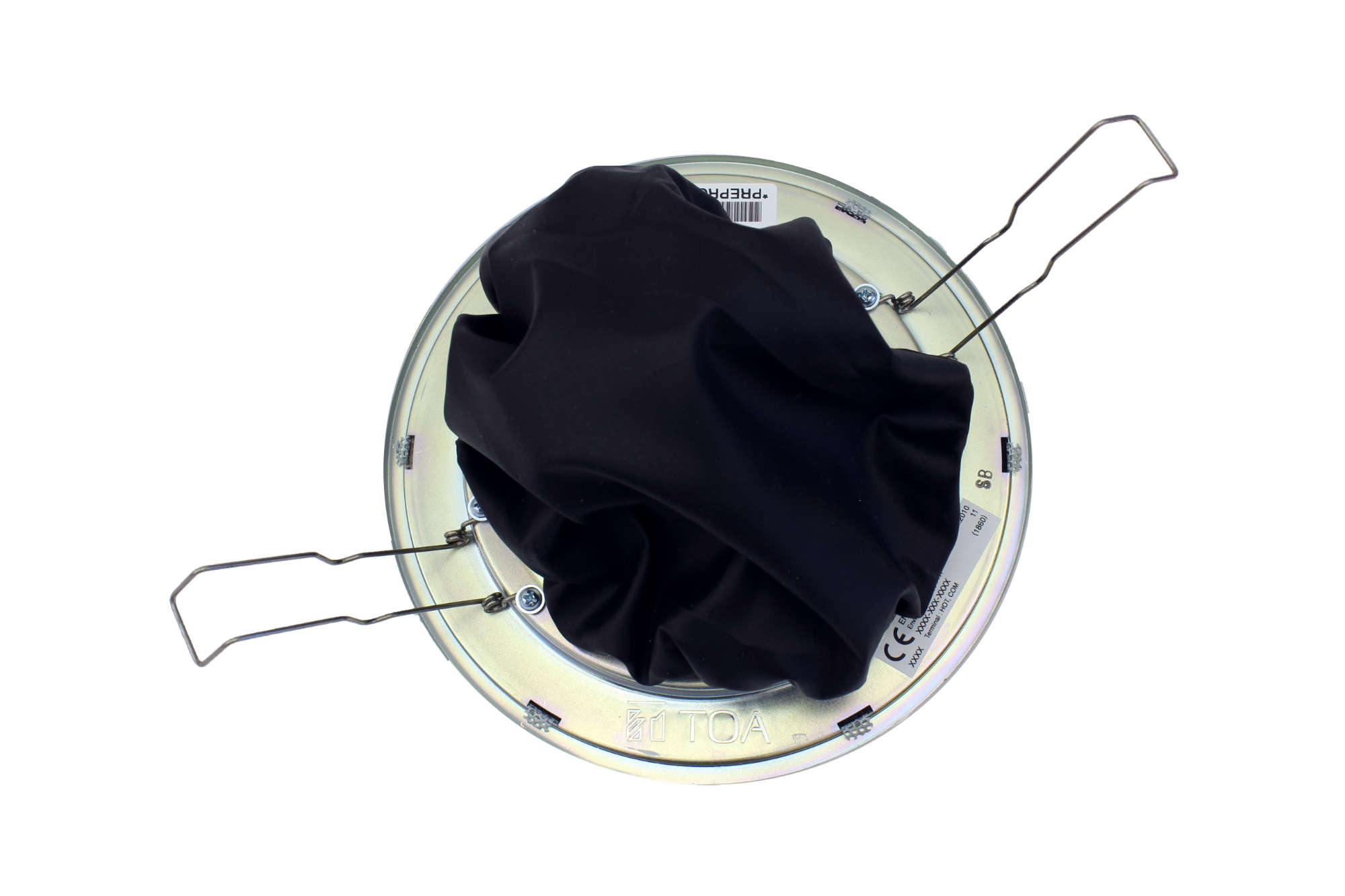

- Quick and easy installation with spring catches
- Dust cover
- Snap in cable terminal
- 6 W rated input
- 12 cm speaker
70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W)
Ceiling thickness: 5 - 25 mm (0.2" - 0.98")
Grille: Steel net, white (RAL 9016 equivalent), paint
Please download Datasheet to access full specifications.
The loudspeaker shall be of in-ceiling type design, with a full lightweight metal construction with no visible fixings and a discreet outer bezel of only 5 mm.
Installation shall be via pre-mounted springs allowing it to be mounted in a ceiling with a thickness of between 5 - 25 mm (0.2" - 0.98"). A template shall be provided to assist in cutting mounting holes.The loudspeaker shall incorporate a single 12 cm (5”) full range cone-type transducer with a smooth frequency response of 80 Hz to 20 kHz measured on axis.
The loudspeaker shall produce a Sound Pressure Level (SPL) of 94 dB (measured between 500Hz – 5kHz of pink noise) on axis at 1 meter with a power input of 1 watt and shall be capable of producing 6 watts (for 100 V Line) and 3 watts (for 70 V Line)of power.
The loudspeaker shall be fitted with a factory mounted transformer with easy selectable power tappings of 6 W, 3 W, 1.5 W and 0.8 W when using 100 V Line and 3 W, 1.5 W, 0.8 W and 0.4 W when using 70 V Line. Push-in-type connectors shall make cable connection easy and quick and shall allow bridge wiring when necessary.
The dimensions shall be Ø180 × 70 (D) mm (7.09" x 2.76") weighing 560 g (1.23 lb.) The finish of the loudspeaker shall be: Baffle: steel plate, white (RAL 9016 equivalent). Grille: Steel net, white (RAL 9016 equivalent).
Manufacturer: TOA Corporation
Model: PC-1860
