MX-9200

Mixer Pre-Amplifier

MX-9200

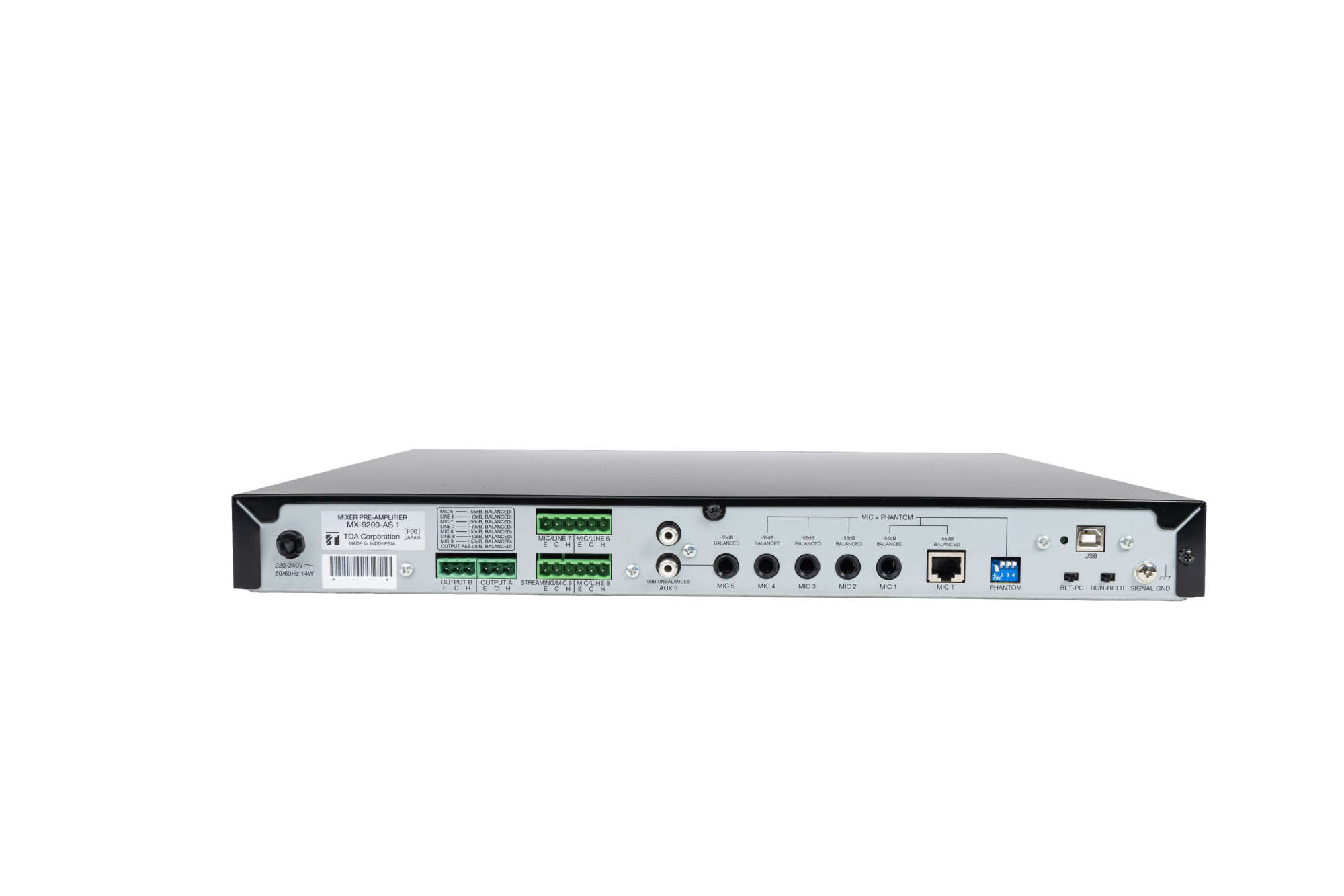

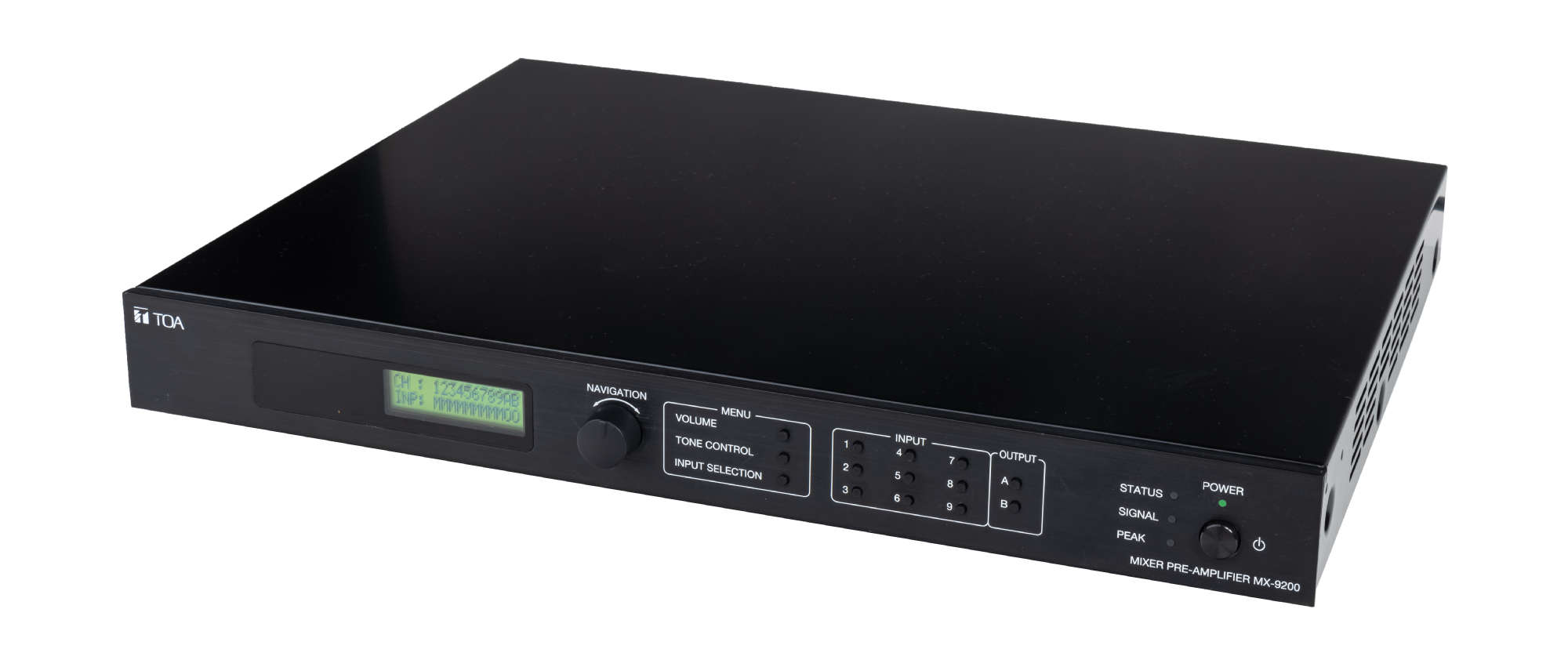

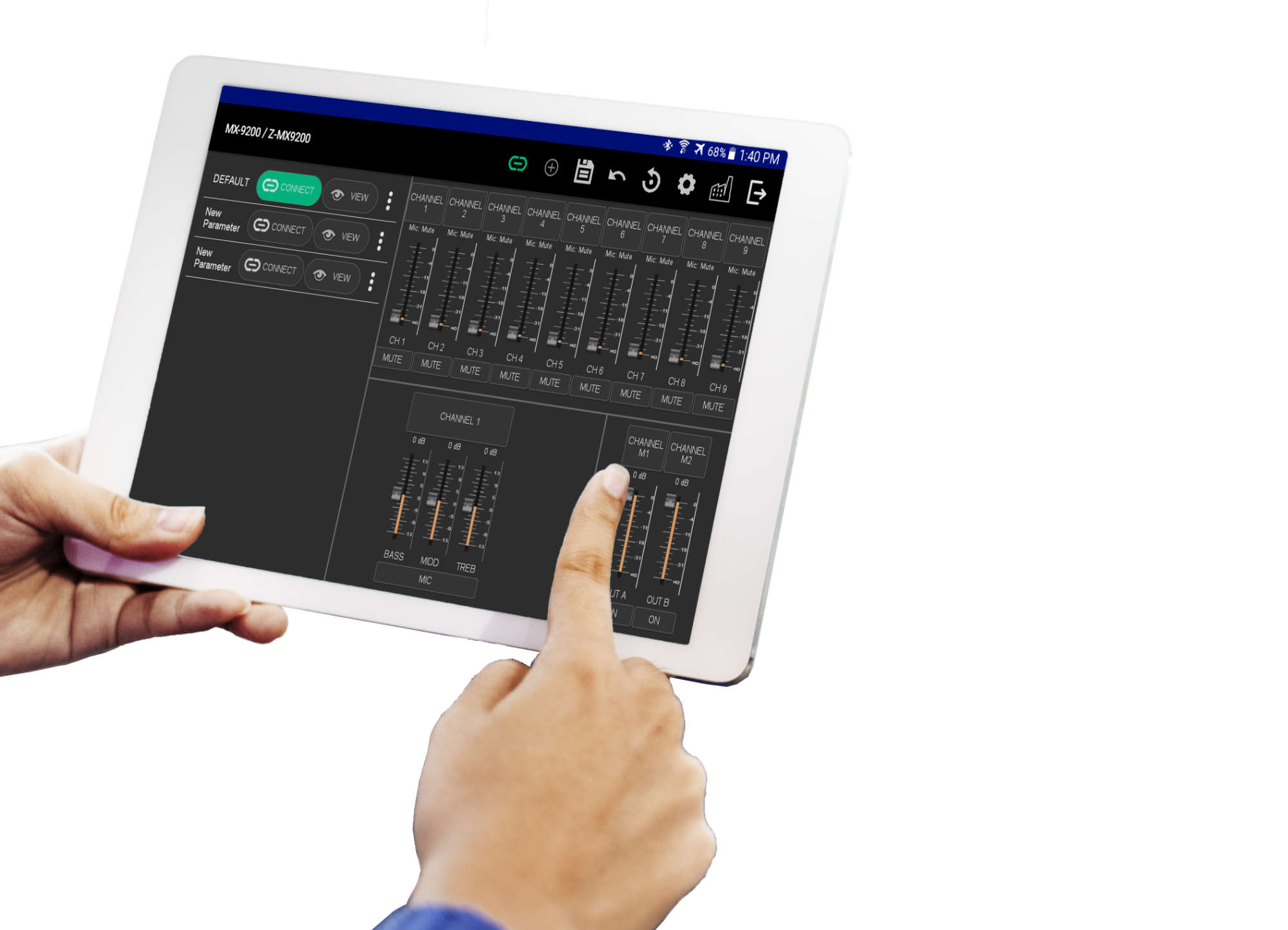

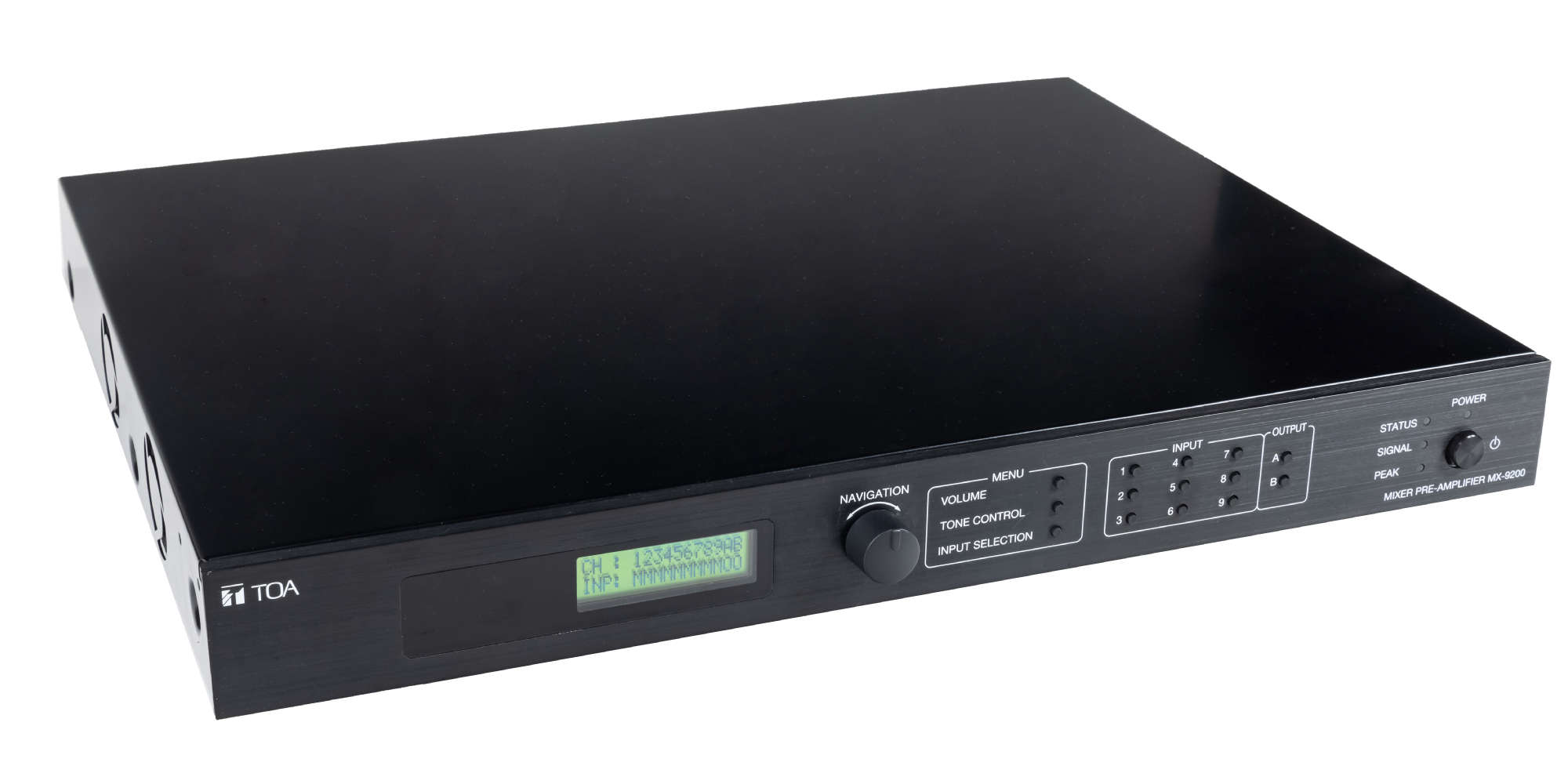

The MX-9200 is a wireless mixer pre-amplifier ideal for function rooms, training rooms and even small-scale houses of worship. It’s equipped with up to 9 inputs of which 4 inputs comes with phantom power. Parameter settings for Volume, Bass, Middle, Treble, Mute on individual input channel and 2 output channels can be controlled via an android touch screen device connected by bluetooth, bringing you the convenience to make adjustments there and then even when you are far away from the equipment.

Better sound quality
Versatile installation application
Suitable for large functions and small-scale religious worship

Specifications A&E Specs Downloads

Power Source

220 - 240 V AC, 14 W

Frequency Response

30 Hz - 20 kHz, ± 3dB

Distortion

Under 1 % at 1 kHz, rated power

Input

Input CH 1 with Phantom option 19 V DC:
- CHIME MIC: Balanced, Selectable sensitivity -55 dB (1.8 mV)/ -30 dB (30 mV), 2.2 kΩ, rated 1 kHz, RJ45 connector
- MIC: Balanced, Selectable sensitivity -55 dB (1.8 mV)/ -30 dB (30 mV), 2.2 kΩ, rated 1 kHz, Phone jack connector
Input CH 2-4 with Phantom option 19 V DC:
- Balanced, Sensitivity -55 dB (1.8 mV), 2.2 kΩ, rated 1 kHz, Phone jack connector
Selectable Input CH 5 with options:
- MIC: Balanced, Sensitivity -55 dB (1.8 mV), 2.2 kΩ, rated 1 kHz, Phone jack connector
- AUX: Unbalanced, Sensitivity 0 dB (1.8 mV), 10 kΩ, rated 1 kHz, RCA jack connector
Selectable Sensitivity Input CH 6-8, Removable terminal 3 pins with sensitivity options:
- LINE: Balanced, Sensitivity 0 dB, 2.2 kΩ, rated 1 kHz
- MIC: Balanced, Sensitivity -55 dB (1.8 mV), 2.2 kΩ, rated 1 kHz
Selectable Sensitivity Input CH 9, Removable terminal 3 pins with sensitivity options:
- MIC: Balanced, Sensitivity -55 dB (1.8 mV), 2.2 kΩ, rated 1 kHz
- STREAMING: Unbalanced, Sensitivity 0 dB, 10 kΩ, rated 1 kHz

Output

Audio OUT A & B, Balanced, Removable terminal 3 pins
Optional output level: 0 dB / -10 dB (300 mV) / -20 dB (100 mV), 600 Ω, rated 1 kHz

Control Output

9 Shortcut switch IN, 2 Shortcut switch OUT, 1 Shortcut switch VOLUME, 1 Shortcut switch TONE CONTROL, 1 Shortcut switch INPUT SELECTION, 1 Navigation switch (Right, Left, Push)

Tone Controller

Bass ± 13 dB at 100 Hz, Middle ± 13 dB at 1 kHz, Treble ± 13 dB at 10 kHz

Connection

Bluetooth 4.2, USB Type B (PC Setting/Update Firmware)

Operating Temperature

0 °C to +40 °C

Operating Humidity

Under 90 % RH (no condensation)

Finish

Front Panel: Aluminium Hair Line, Paint, Black
Case: Steel Plate, Paint, Black

Dimensions

420 (W) × 59 (H) × 339.7 (D) mm

Weight

3.3 kg

Included Accessories

6P connector x 2, 3P connector x 2

Please download Datasheet to access full specifications.

The MX-9200 is a desk mount (1unit size) wireless mixer pre-amplifier that comes with 9 audio inputs. These inputs include 5 microphone inputs, 4 lines inputs and 2 monaural outputs. The microphone 1 to 5 inputs are balance phone jack and inputs 6 to 9 are euro block connectors. Input 5 can be configured as microphone or AUX while input 6 to 9 can be select between microphone and Line or streaming for input 9. The wireless mixer pre-amplifier shall be connected to an android device with allows pre-installed MX-9200 application software control.
Microphone input 1-5: 2.2kΩ, -55 dB balance phone jack,
Microphone input 6 – 8: 2.2kΩ, -55 dB () or Line input 2.2K, 0dB
AUX input 5, RCA, sensitivity: 10KΩ, -0 dB
Microphone input 9 is 2.2kΩ, -55 dB balance euro connector or audio streaming Bluetooth.
Output 1 & 2: Audio out A & B, balanced, removable terminal 3 pins.
Optional output level: 0 dB/-10 dB (300 mv/-20 dB (100mv, 600Ω, rated 1 KHz)
Frequency response: 30-20,000 Hz
Tone control: Bass ± 13 dB at 100 Hz, Middle ± 13 dB at 1 kHz, Treble ± 13 dB at 10 kHz
Distortion: Under 1 % at 1 kHz, rated power
Noise level: 60dB
Connection via Bluetooth 4.2, USB Type B (PC Setting/Update Firmware)

The wireless mixer pre-amplifier shall be TOA model MX-9200-AS.
