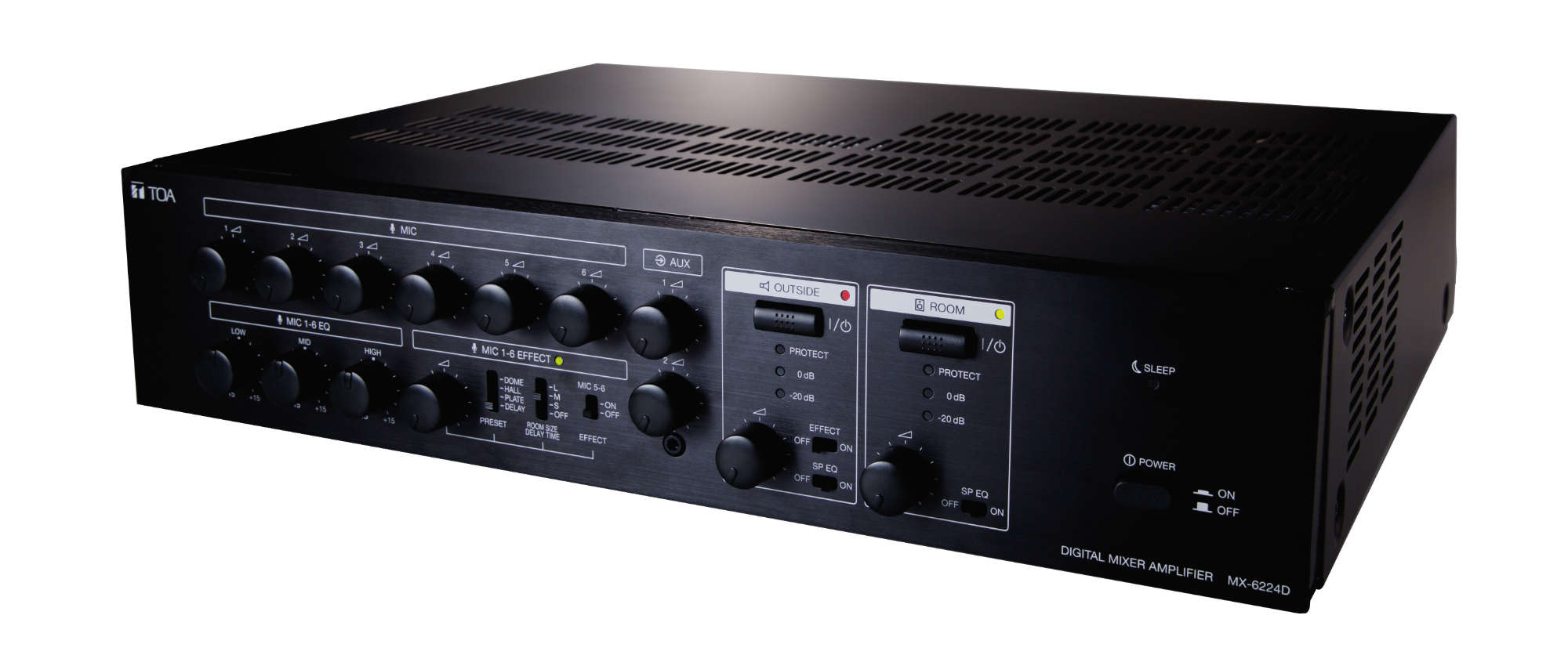

MX-6224D

Digital Mixer Amplifiers for Mosques

MX-6224D

The Ultimate Choice for Mosques

The number of mosques around the world is rapidly increasing however there are very few sound systems that can match their complex needs, as well as their tight budget.

TOA has created the MX-6224d, an affordable digital mixer amplifi er, specifi cally to cater for medium and small mosques. the MX-6224d is a reliable and simple system, needing very little technical knowledge to operate, yet still maintains exceptional sound quality.

2 x 240W Digital Mixer Amplifier
Incorporating DSP function
Class D amplifier
Reliable sound quality
Optimal digital signal processing
Easily-operable advanced functions

Specifications Equipment A&E Specs Downloads

Power Source

220 V - 240 V AC, 50/60 Hz

Rated Output

240 W x 2 channels (100 V, 42 Ω, rated output)

Power Consumption

100 W (according to IEC60065), 570 W (at rated output, both channels)

Amplification System

Class D, Output transformerless galvanic isolated output

Frequency Response

50 Hz - 20 kHz, ±3 dB (at 1/3 rated output, rated load, from power amplifier input)

Distortion

1 % or less (at 1 kHz, 1/3 rated output power)

Signal to Noise Ratio

60 dB or more (All volume controls: min.)

Input

MIC 1: -50 dB (*1) (24 V phantom powered)/-60 dB (*1) (phantom power OFF)
600 Ω, electronically-balanced, Φ6.3 mm phone jack (3P:balance)
MIC 2 - 4: -66 dB (*1), 200 Ω, electronically-balanced, XLR-3-31 type and Φ6.3 mm phone jack (3P:balance) (either one usable)
MIC 5 - 6: -60 dB (*1), 600 Ω, electronically-balanced, XLR-3-31 type and Φ6.3 mm phone jack (3P:balance) (either one usable)
AUX 1: -10 dB (*1), 10 kΩ mixed monaural, unbalanced, RCA pin jacks (1 pair)
AUX 2: -20 dB (*1), 10 kΩ mixed monaural, unbalanced, Φ3.5 mm mini jack (3P:stereo)
Power amplifier input: 0 dB (*1), 10 kΩ, unbalanced, RCA pin jacks (1 each for ROOM and OUTSIDE outputs)

Output

Speaker output: 2 zones, 100 V (42 Ω), galvanic isolated balanced, M4 screw terminal
Recording output: 0 dB (*1), 600 Ω monaural, unbalanced, RCA pin jacks (1 pair)
Effect bus output: 0 dB (*1), 600 Ω monaural, unbalanced, RCA pin jacks (1 pair)
Preamplifier output: 0 dB (*1), 600 Ω monaural, unbalanced, RCA pin jacks (1 each for ROOM and OUTSIDE outputs)

Phantom Power

ON/OFF switchable for MIC 1 and XLR-3-31 type connectors of MIC 2 - 6

Control

6 Microphone volume controls, 2 AUX volume controls, 1 ROOM output switch, 1 ROOM volume control, 1 OUTSIDE output switch, 1 OUTSIDE volume control, 1 Effect control (0 % to 100 %) of Effect bus, 1 Effect preset type selection switch (DOME/HALL/PLATE/DELAY), 1 Effect Room size/Delay time selection switch (L/M/S/OFF), 1 Effect output selection switch (OFF/ON), 1 MIC 5-6 effect switch, 1 Low EQ control (±15 dB, 80 Hz) for MIC 1 - 6, 1 Mid EQ control (±15 dB, 2.5 kHz) for MIC 1 - 6, 1 High EQ control (±15 dB, 12 kHz) for MIC 1 - 6, 1 Speaker EQ (TC-631M, TC-651M) switch for OUTSIDE output, 1 Speaker EQ (BS-1030B, BS-1030W) switch for ROOM output, 1 Power switch, 1 Phantom switch for MIC 1, 1 Phantom switch for MIC 2 - 6 (XLR-3-31)

Indicator

SLEEP indicator
Output Level meters (2 points, -20 dB and 0 dB) for ROOM and OUTSIDE
Protection indicators for ROOM and OUTSIDE amplifiers
Output indicators for ROOM and OUTSIDE
EFFECT indicator for MIC 1 - 6

Ventilation

Natural air cooling

Operating Temperature

0 °C to +40 °C (32 °F to 104 °F)

Operating Humidity

35 % to 80 %RH (no condensation)

Finish

Front Panel: Aluminum, black, alumite
Case: Steel plate, black, paint

Dimensions

420 (W) x 99.8 (H) x 360.6 (D) mm (16.54 x 3.93 x 14.2")

Weight

6.1 kg (13.45 lb)

Included Accessories

Power supply cord …1, Sticker for Arabic indication …1

Optional Accessories

Remote controller: RC-03
Power amplifier :P-2240
Multichannel power amplifier: DA-250FH
Dynamic microphone: DM-1300
Lavalier microphone: EM-410
Horn speaker: TC-631M, TC-651M
Universal speaker: BS-1030B, BS-1030W
Rack mounting bracket: MB-25B
Perforated panel: PF-013B

Please download Datasheet to access full specifications.

Optional Accessory

RC-03

The digital mixer power amplifier will have 6 MIC inputs and 6 Outputs. It will operate on AC mains or from a 220V – 240V AC, 50/60Hz line. The amplifier shall meet the following performance criteria: Power consumption shall be 150W according to IEC60065 and 650W at rated output of both 2ch with less than 1% THD at 50Hz to 20kHz at 1/3 rated output, rated load, from power amplifier input. It shall be power amplifier class D. It will include 2 x 240 Watt digital amplifiers, allowing for internal and external zones. It will include 3 band EQ, which will be available on all 6 mic inputs, which will allow users to find preferable sound quality easily without the technical experience other EQ bands require. Three microphone inputs will have increased sensitivity to 6dBV allowing the speaker to move around the microphone freely. It shall include a built in digital amp and DSP module which will provide exceptional sound quality. The hardware will be simply designed and compact to install. An optional remote control panel will be available. The digital mixer power amplifier will have a high pass filter ensuring speakers are less vulnerable to damage. It’s built in speaker EQ will reduce acoustic feedback and ensure more intelligible sound. It will include a built in effector, realizing celestial sound in small buildings where lack of reverberation needs to be compensated for. The dimensions shall be 420 (W) X 99 (H) X 364.8 (D) mm and weight 6.5kg.

The amplifier shall be TOA model MX-6224D.
