MD-300-AS

Media Player

MD-300-AS

TOA's MD-300-AS is a media player and digital processing FM radio tuner. The unit features USB and SD card slot for seamless MP3 Playback, along with Bluetooth functionality for easy audio streaming. The radio has the capability to store up to 30 channels. The MD-300-AS can be mounted on a EIA equipment rack.

Specifications Equipment Downloads

Power Source

24 V DC
M3 screw terminal or DC socket connector

Current Consumption

350 mA

Receiving Frequency

87.5 - 108 MHz (50 kHz step)

Frequency Response

20 - 20 kHz, ±3 dB

Audio Input

USB port for memory stick (up to 32 GB, Type file: MP3 file)
SD card slot (up to 32 GB, Type file: MP3 file)
FM antenna terminals
Bluetooth

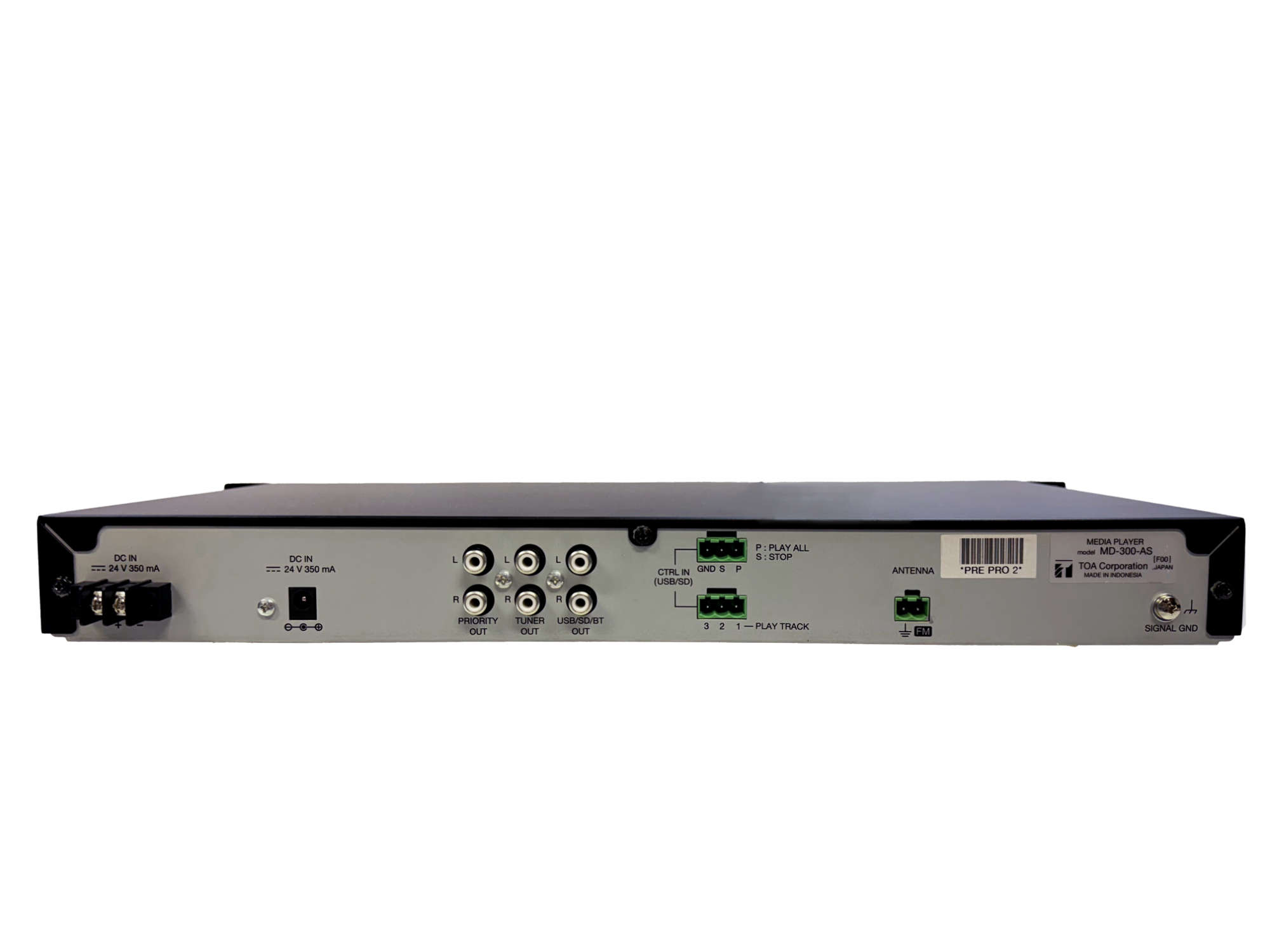

Audio Output

RCA audio output L and R channels for PRIORITY
RCA audio output L and R channels for TUNER
RCA audio output L and R channels for USB/SD/BLUETOOTH

Control Input

Play track 1 - 3, Play All, STop:
No-voltage make contact input, open voltage: 24 V DC, Short circuit current: Under 5 mA, Removable terminal block

Channels of Memory

30 Channels in total for FM broadcasts

Indicator

LCD Display Light Blue
3 LED Indicator Light Green

Operating Temperature

0 °C to +40 °C

Operating Humidity

Under 90 % RH (no condenstation)

Finish

Front Panel: Aluminum, Black, Anodize
Case: Steel Plate, Black, Painting

Dimensions

482 (W) x 44 (H) x 229.5 (D) mm (18.97" x 1.73" x 9.03")

Weight

2.1 kg

Included Accessories

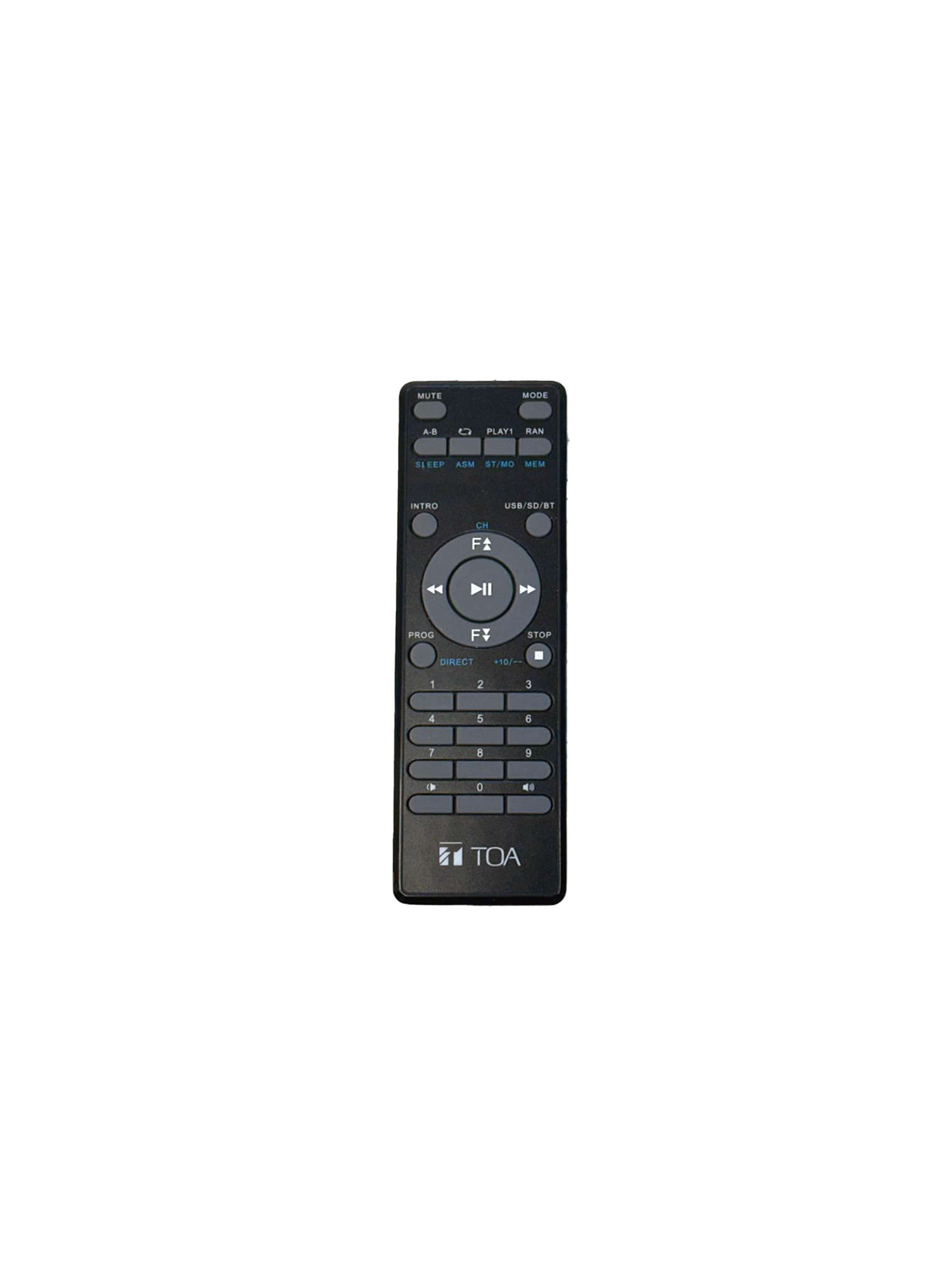

Remote Control x 1, Antenna FM Radio x 1, Removable terminal plug (2 pins) x 1, Removable terminal plug (3 pins) x 2

Optional Accessories

AC/DC Adapter: AD-246

Please download Datasheet to access full specifications.
