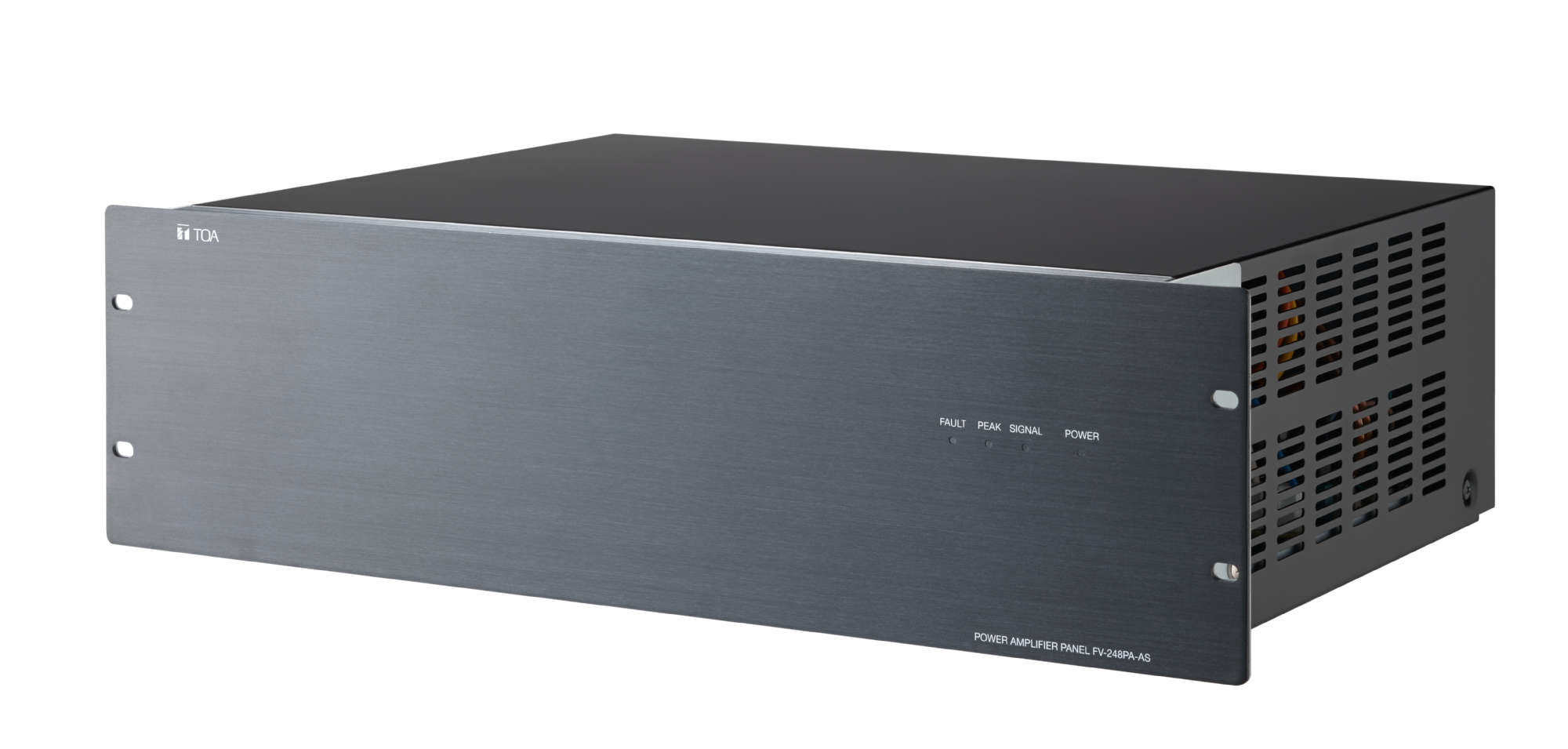

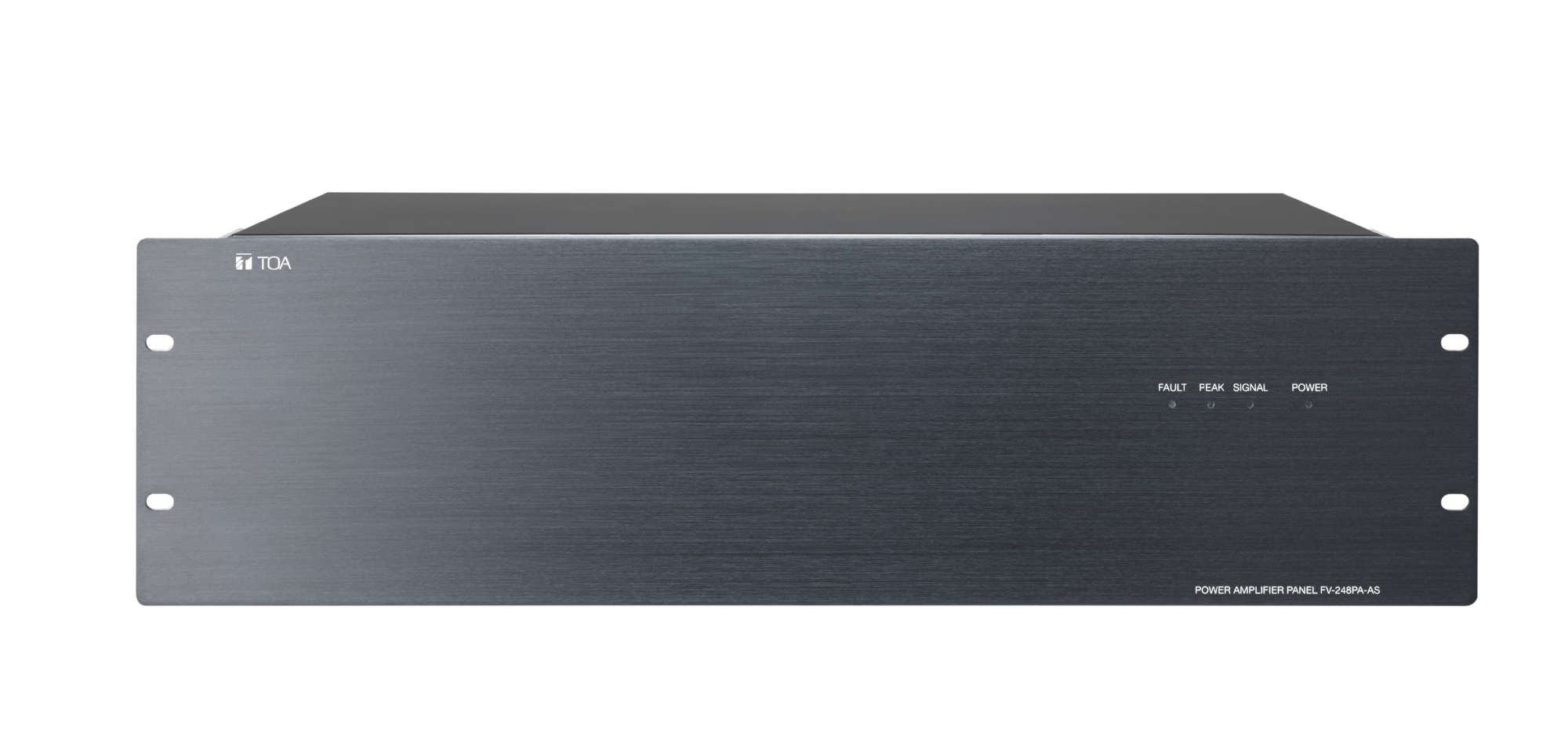

FV-248PA
Power Amplifier
FV-248PA
The FV-248PA features 480W rated output with high capacity for audio requirements.
*0 dB = 1V
Power Source
AC: 220 - 230 V AC, 50/60 Hz
DC: 24 V DC (operating range: 19.5 - 27 V)
M4 screw terminal, distance between barriers: 12mm
DC: 24 V DC (operating range: 19.5 - 27 V)
M4 screw terminal, distance between barriers: 12mm
Current Consumption
DC at rated output: 30 A (condition: DC27V)
DC at no signal: 1.0 A
IEC60065: 10.9 A
DC at no signal: 1.0 A
IEC60065: 10.9 A
Power Consumption
AC at rated output: 1110 W (condition: AC230V)
AC at no signal: 44 W
IEC60065: 480 W
AC at no signal: 44 W
IEC60065: 480 W
Input
2 parallel inputs, 0 dB*, 20 kΩ, balanced, removable terminal plug (3 pins)
Input module VP-200VX (Option)
Input module VP-200VX (Option)
Output Impedance
10 Ω (70 V), 21 Ω (100 V)
Speaker Output
M4 screw terminal, distance between barriers : 12 mm
Control Output
Fault ouput: Make : Normal, Break : Error or Power Off
Frequency Response
80 Hz - 15 kHz, ±3 dB, 1 kHz
Total Harmonic Distortion
Under 1% (1 kHz, 1/3 rated output)
Signal to Noise Ratio
Over 60 dB
LED Indicator
Power (Green), Signal (Green), Peak (Red), Fault (Red)
Ventilation
Fan cooling
Operating Temperature
0 °C to +40 °C
Operating Humidity
Under 90% RH (no condensation)
Finish
Panel: Aluminum, black, alumite
Dimensions
482 (W) × 132 (H) × 333.2 (D) mm
Weight
18.5 kg
Included Accessories
Removable terminal plug (3 pins) x 3, Instruction manual x 1
Optional Accessories
VP-200VX input module
Please download Datasheet to access full specifications.
Optional Accessory
The power amplifier shall be capable of operation from a 230VAC, 50/60 Hz or 24 V DC.
The amplifier shall meet the following performance criteria.
The amplifier shall meet the following performance criteria.
The amplifier shall have a fault output: Make: Normal, Break: Error or Power Off.
Power output shall be 480 W at less than 1% (1K Hz, 1/3 rated output). Frequency response shall be 80 to 16k Hz, ±1dB. S/N ratio shall be over 60 dB. Input impedance shall be 2 inputs, 0 dB*, 20 kΩ, balanced, removable terminal plug (3 pins). Load impedance shall be 10Ω (70V), 21Ω (100V).. An option VP-200VX input module card is required when connect with VX-2000 system.
It shall have an operation temperature of 0°C to +40°C. The amplifier shall have a heat ventilation fan. The front panel shall have four LED indicators to indicate the following conditions Power, Peak, Signal and Fault. The front panel finish shall be black aluminium, alumite.
The power amplifier shall be 3U, 19” rack-mounted. The amplifier’s dimensions shall be 482 (W) x 132.6 (H) x 361 (D) mm and its weight shall be 18.6kg.
The power amplifier shall be TOA model FV-248PA AS.
The power amplifier shall be 3U, 19” rack-mounted. The amplifier’s dimensions shall be 482 (W) x 132.6 (H) x 361 (D) mm and its weight shall be 18.6kg.
The power amplifier shall be TOA model FV-248PA AS.
