FV-224PA

Power Amplifier

FV-224PA

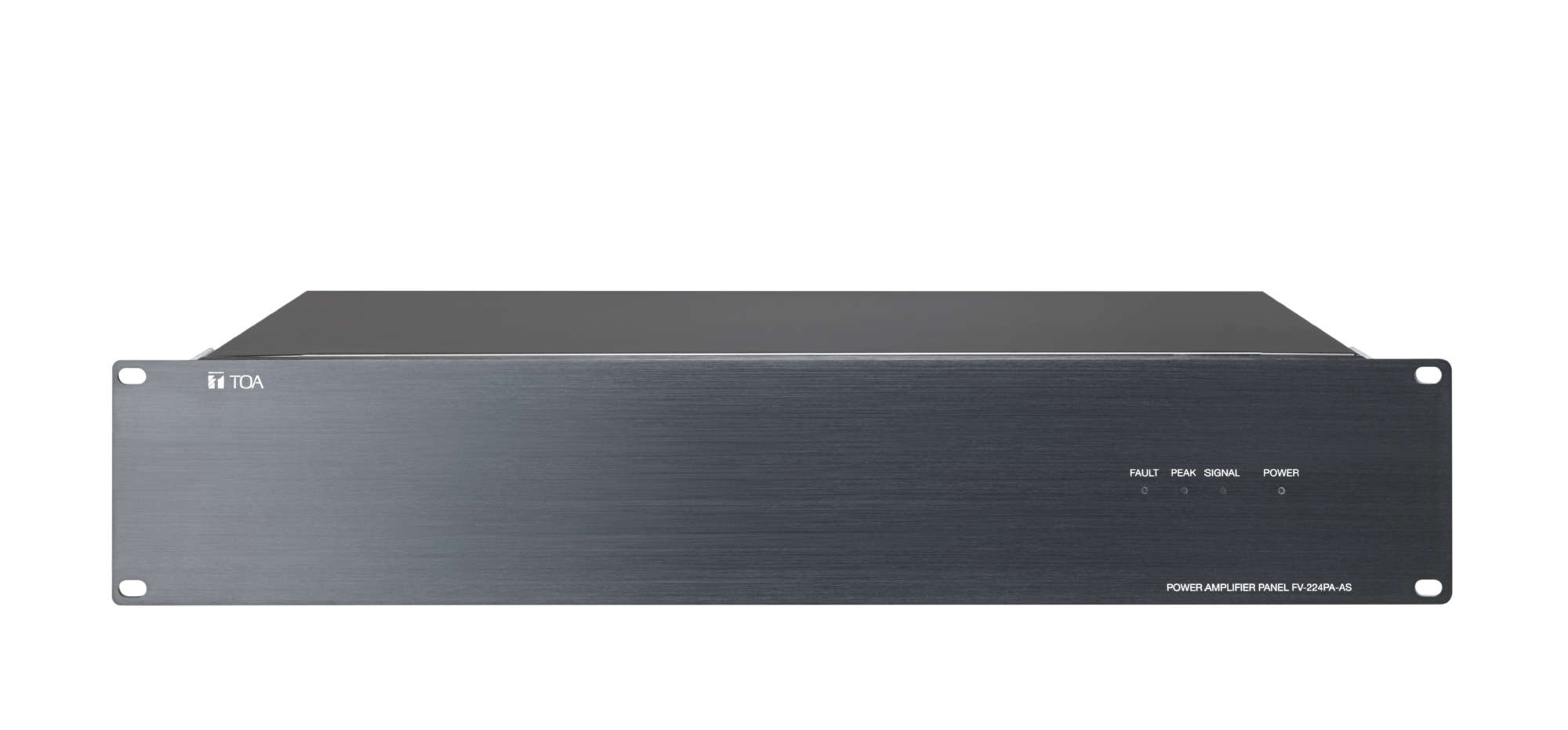

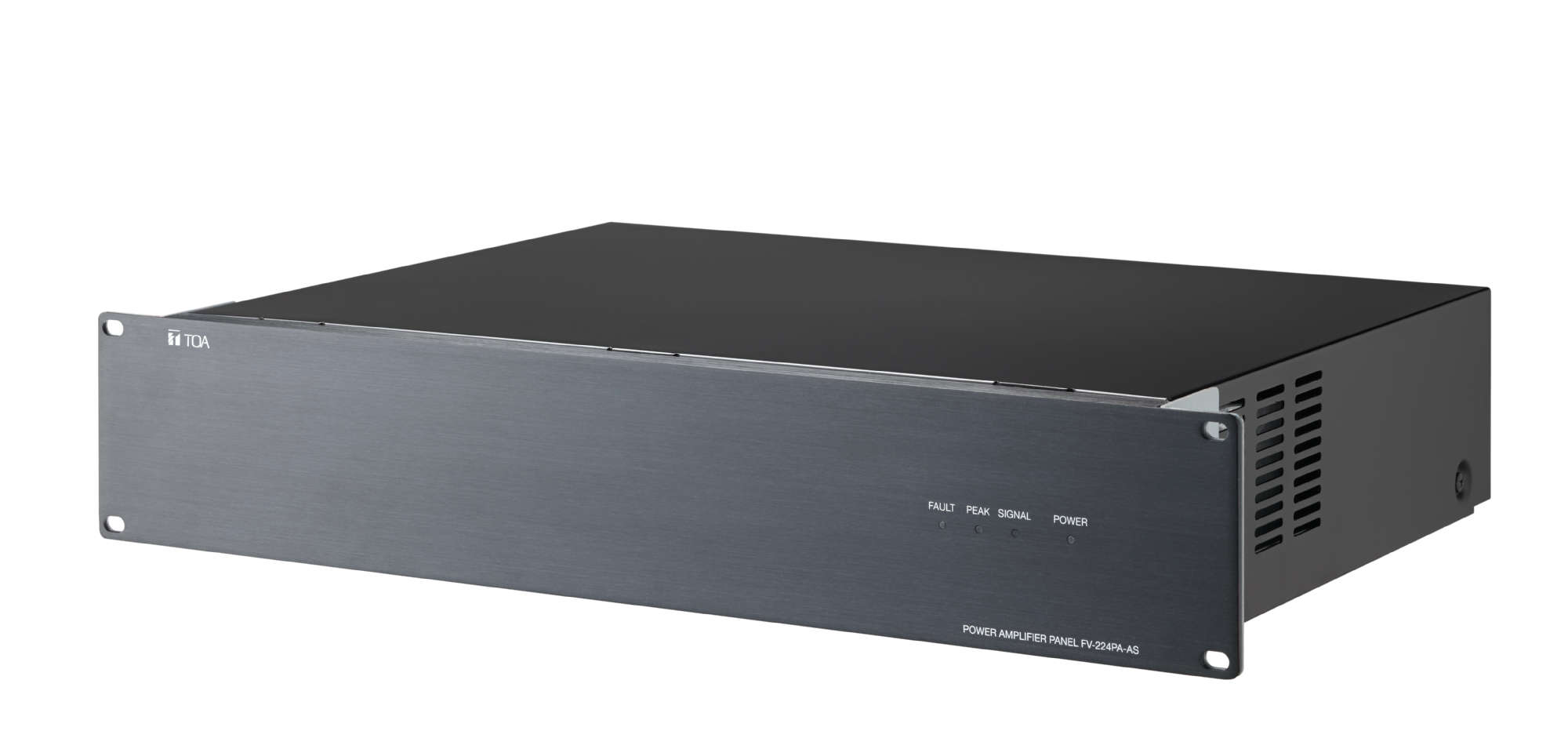

The FV-224PA features 240W rated output with high capacity for audio requirement

Specifications Equipment A&E Specs Downloads

*0 dB = 1V

Power Source

AC: 220 - 230 V AC, 50/60 Hz
DC: 24 V DC (operating range: 19.5 - 27 V)
M4 screw terminal, distance between barriers: 12mm

Current Consumption

DC at rated output: 15 A (condition: DC27V)
DC at no signal: 0.3 A
IEC60065: 5.8 A

Power Consumption

AC at rated output: 565 W (condition: AC230V)
AC at no signal: 22 W
IEC60065: 245 W

Rated Output

240W

Input

2 parallel inputs, 0 dB*, 20 kΩ, balanced, removable terminal plug (3 pins)
Input module VP-200VX (Option)

Output Impedance

21 Ω (70 V), 42 Ω (100 V)

Speaker Output

M4 screw terminal, distance between barriers : 12 mm

Control Output

Fault ouput: Make : Normal, Break : Error or Power Off

Frequency Response

80 Hz - 15 kHz, ±3 dB, 1 kHz

Total Harmonic Distortion

Under 1% (1 kHz, 1/3 rated output)

Signal to Noise Ratio

Over 60 dB

LED Indicator

Power (Green), Signal (Green), Peak (Red), Fault (Red)

Ventilation

Fan cooling

Operating Temperature

0 °C to +40 °C

Operating Humidity

Under 90% RH (no condensation)

Finish

Panel: Aluminum, black, alumite

Dimensions

482 (W) × 88.4 (H) × 337.2 (D) mm

Weight

13.4 kg

Included Accessories

Removable terminal plug (3 pins) x 3, Instruction manual x 1

Optional Accessories

VP-200VX input module

Please download Datasheet to access full specifications.

Optional Accessory

VP-200VX

The power amplifier shall be capable of operation from a 230VAC, 50/60 Hz or 24 V DC.

The amplifier shall meet the following performance criteria.
The amplifier shall have a fault output: Make: Normal, Break: Error or Power Off.
Power output shall be 240 W at less than 1% (1K Hz, 1/3 rated output).
Frequency response shall be 80 to 16k Hz, ±1dB. S/N ratio shall be over 60 dB.
Input impedance shall be 2 inputs, 0 dB*, 20 kΩ, balanced, removable terminal plug (3 pins). Load impedance shall be 21 Ω (70V), 42Ω (100V).
An option VP-200VX input module card is required when connect with VX-2000 system.
It shall have an operation temperature of 0°C to +40°C.

The amplifier shall have a heat ventilation fan.
The front panel shall have four LED indicators to indicate the following conditions Power, Peak, Signal and Fault.
The front panel finish shall be black aluminium, alumite. The power amplifier shall be 2U, 19” rack-mounted.
The amplifier’s dimensions shall be 482 (W) x 88.4 (H) x 351.3 (D) mm and its weight shall be 13.3kg.

The power amplifier shall be TOA model FV-224PA AS.
