FV-2148W-AS

Wall-Mount Voice Evacuation System

FV-2148W-AS

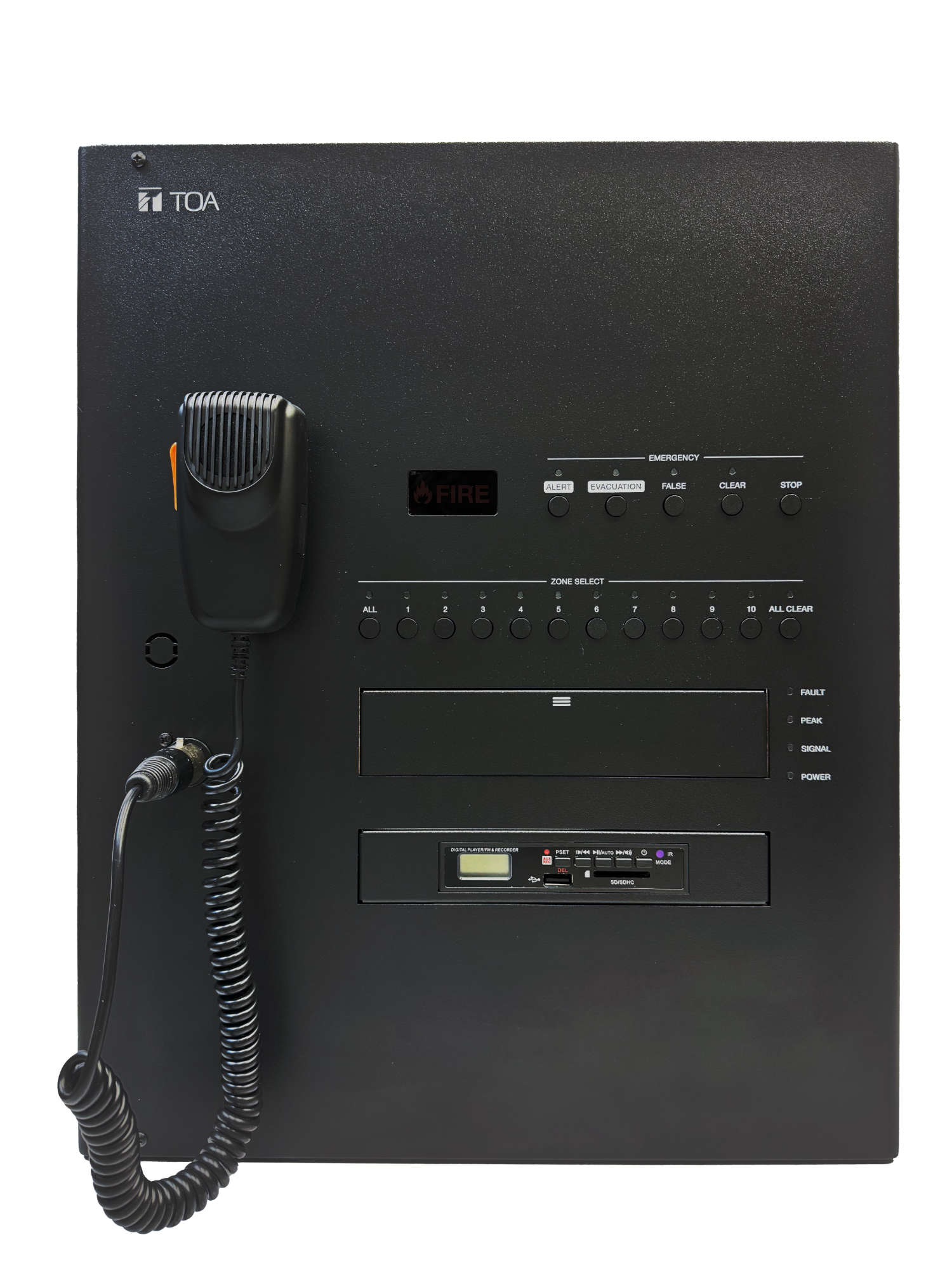

FV-2148W is a compact and lightweight Voice Evacuation wall mount system. It is designed for both general and emergency purpose broadcasts. The wall mount system is comprised of the 4 pre-recorded Voice Evacuation messages, 480 W digital power amplifier modules, speaker zone selector, and is able to connect up to 4 remote microphones. The FV-2148W can link with the fire alarm panel. Emergency messages are automatically broadcast when the fire alarm is activated.
An optional MP-300 module is available for playback of background music to the speaker.

Compact all in one
Supplied Fireman microphone
10 speaker zones, 480 W rated output
Built-in 4 emergency messages
Linked with fire alarm panel
Connect up to 4 x RM-200M remote microphones
Optional MP3 player module available (MP-300-AS)

Specifications Equipment Downloads

*0 dB = 1 V

Power Source

100 - 240 V AC ~ 50/60 Hz, M4 screw terminal

Power Consumption

99 W (EN 62368-1)
530 W (Rated Output)

Rated Output

480 W

Input

Front Microphone: -60 dB*, 2.2 KΩ, unbalanced, XLR connector
Input 1: -60 dB*/-20dB* (selectable), 2.2 KΩ, balanced, screw terminal
phone jack priority (if connected to phone jack, voice changes automatically)
Input 2: -20 dB*, 10 KΩ, balanced, screw terminal

Remote Microphone

Usable remote microphone: RM-200M Max 4 unit, RJ45 Maximum Cable Distance: Total 800m

Output

Speaker output: Screw terminal
Speaker Selector: 10 zones, high impedance (100V line) individual selector, group

Signal to Noise Ratio

Over 60 dB

Total Harmonic Distortion

Under 1 % at 1 kHz, 1 /3 rated power

Frequency Response

50 Hz - 20 kHz

Tone Control

Bass: ± 10 dB at 100 Hz Treble: ± 10 dB at 10 kHz

Emergency Announcement

Alert, Evacuation, False, Clear
(repeated continuously / one time, selectable)

Chime

Built-in 2 chimes

Control Input

FA IN: No-voltage make contact input, open voltage: 24 V DC, short-circuit current: under 5mA, screw terminal
CTRL IN 1 - 6: No-voltage make contact input, open voltage: 24 V DC, short-circuit current: under 5mA, screw terminal. (assignable)

Control Output

FA OUT: Relay contact output, rated voltage: 24 V DC, screw terminal
CTRL OUT 1 - 2: Relay contact output, rated voltage: 24 V DC, screw terminal (assignable)

Indicator

Power, Signal, Peak, Fault
Each of Zone, All Zone
Alert, Evacuation, False, Clear

Operating Temperature

0 °C to +40 °C

Operating Humidity

Under 90 % RH (no condensation)

Ventilation

Fan Cooling

Dimensions

370 (W) x 456 (H) x 132 (D) mm

Weight

9.1 kg
