FV-200RF
Microphone Receiver Panel
FV-200RF

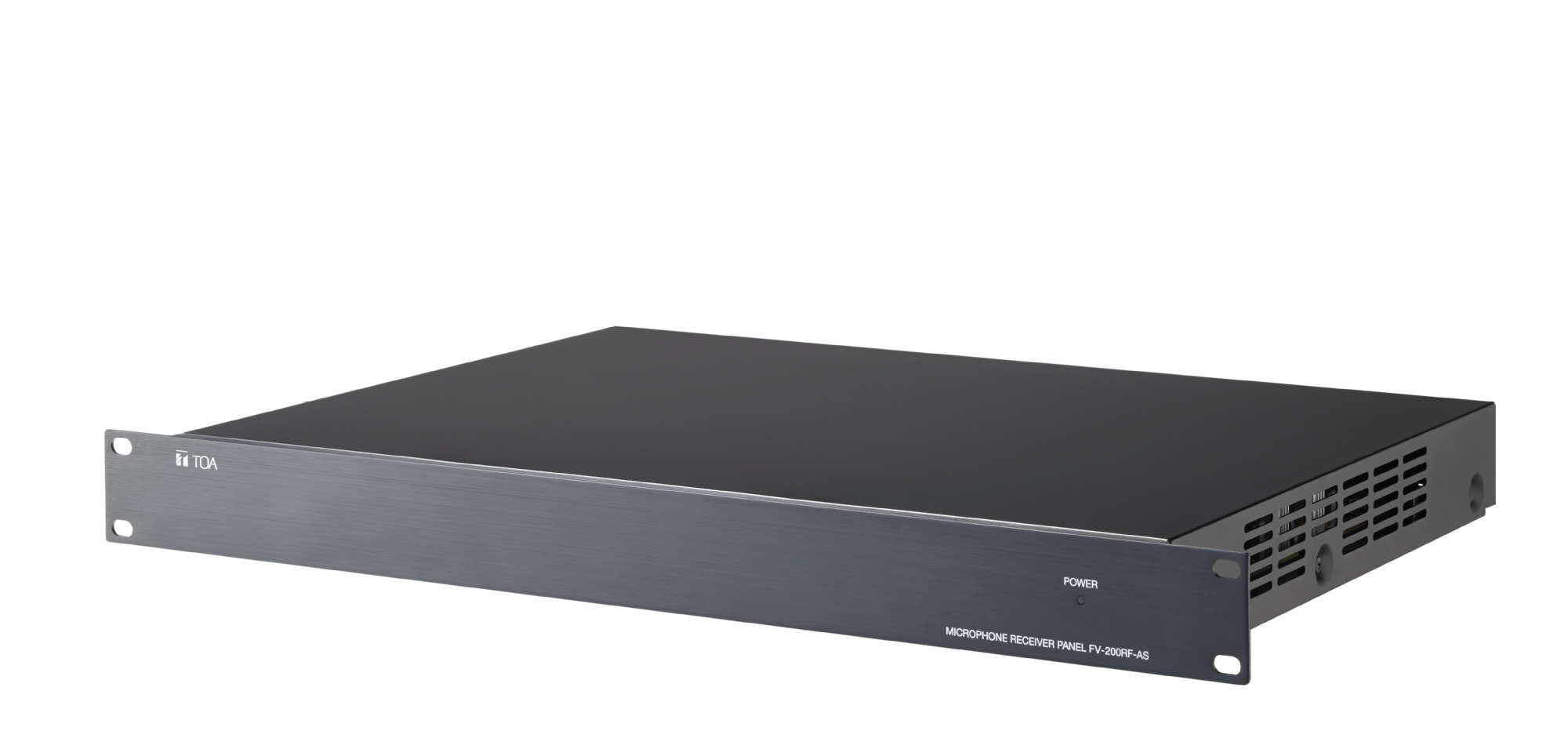

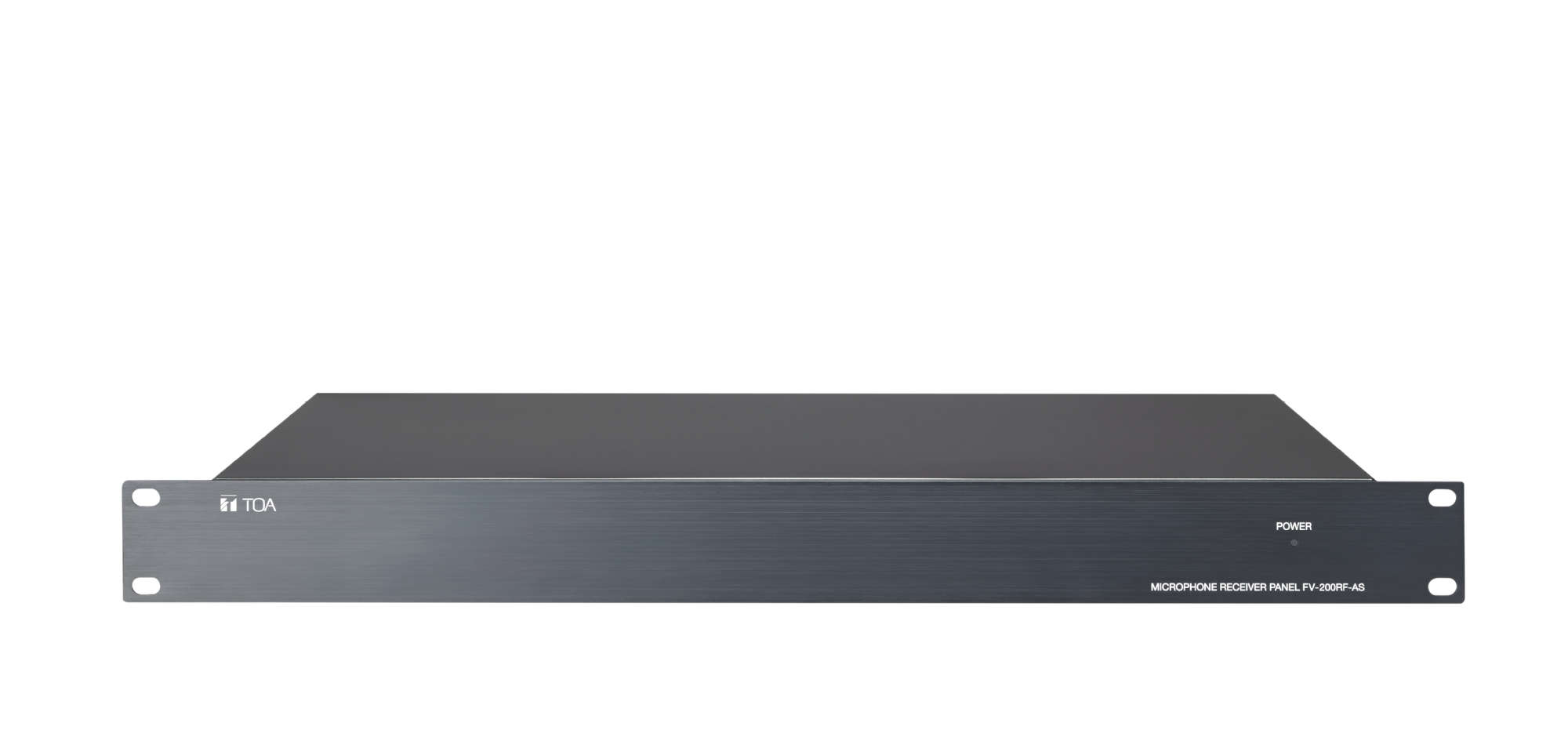

The FV-200RF Microphone Receiver Panel is used to connect the RM-200M Remote Microphone to the FV-200 Series Emergency Public Address System. Up to 4 RM-200M can be connected.
Power Source
Usable Power Supply Unit: FV-200PS
24 V DC (operating range: 19.5 - 27 V), M3 screw terminal
24 V DC (operating range: 19.5 - 27 V), M3 screw terminal
Current Consumption
230 mA
Number of Zone Groups in Speaker Selector
Max. 10 (SS-2010, SS-1010R, SS-1010)
Priority Control for Remote Microphone
Last-in-1st-out priority / 1st-in-1st-out priority / individual priority / selectable
Distortion
Under 1% (1 kHz, rated output)
Signal to Noise Ratio
Over 60 dB
Chime
Ascending 4-note tone
Control Output
SS Control : 55 outputs, open collector output, removable terminal block (6 pins)
RF Link
Audio Output
0 dB*, unbalanced, removable terminal block (2 pins)
RM Link
Usable Remote Mic
RM-200M Remote microphone extention unit : RM-210 (Max. 4 units)
No. of Connectable Remote Mic
Max. 4 x RM-200M
Maximum Cable Distance
Total 800 m
Control Input
All call :1 input,No-voltage make contact input,open voltage 24V DC, short-circuit current : Under 5 mA, removable terminal block (2 pins)
Indicator
Power (Green), Error (Red)
Operating Temperature
0 °C to +40 °C
Operating Humidity
Under 90% RH (no condensation)
Finish
Front Panel : Aluminum, black, alumite
Dimensions
482 (W) × 44 (H) × 320 (D) mm
Weight
2.8 kg
Included Accessories
Removable terminal plug (2 pins) x 2, removable terminal plug (3 pins) x 1, removable terminal plug (6 pins) x 10, Instruction Manual x 1
Please download Datasheet to access full specifications.
Optional Accessory
The remote microphone receiver panel shall be 1U size, 19” rack mounted. It shall able to remote microphones and 50 control outputs. The remote microphone shall be RM-200M and remote microphone extension unit is RM-210. The maximum remote microphone RM-200M shall be 4 units. 1 unit of RM-200M can connect to 4 number of RM-210 extension. The total length of the remote microphone shall be 800M. The number of microphones in-used can be set from the dip switch located on the rear. The setting of microphone priority control shall be Last-in-1st-out priority / 1st-in-1st-out priority / individual priority. The audio output and All-Call terminal shall connect to the FV-200PP panel.
Specifications shall include frequency response of 100Hz - 20 kHz, ±3 dB, (1k Hz) and distortion under 1% (1k Hz, rated output). Front panel green LED indicators shall include “POWER” and rear red LED shall include “Microphone Data Error”. Power shall be derived from an external 24 V DC/230mA power supply. It shall have an operation temperature of 0°C to +40°C. The front panel finish shall be black aluminium, alumite.
Dimensions shall be 482 (W) × 44 (H) × 335.2 (D) mm and weight shall be 2.8 kg.
The remote microphone receiver panel shall be TOA model FV-200RF-AS.
