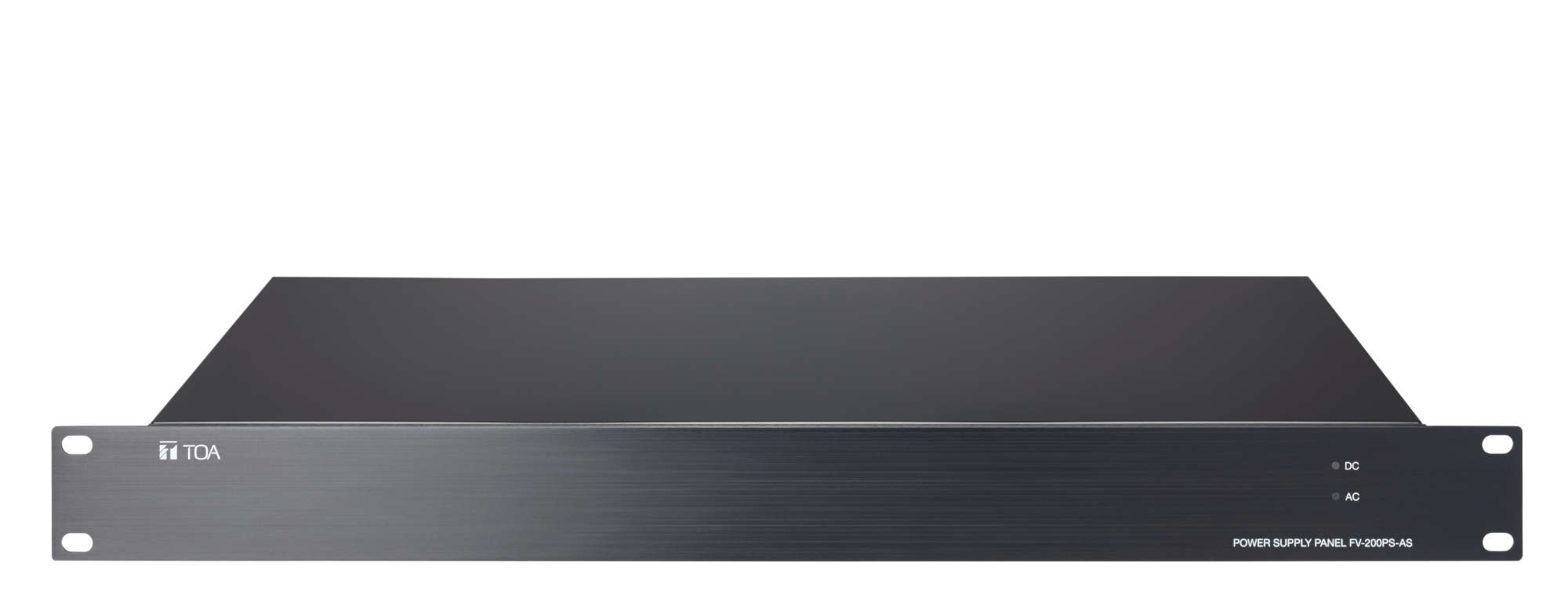

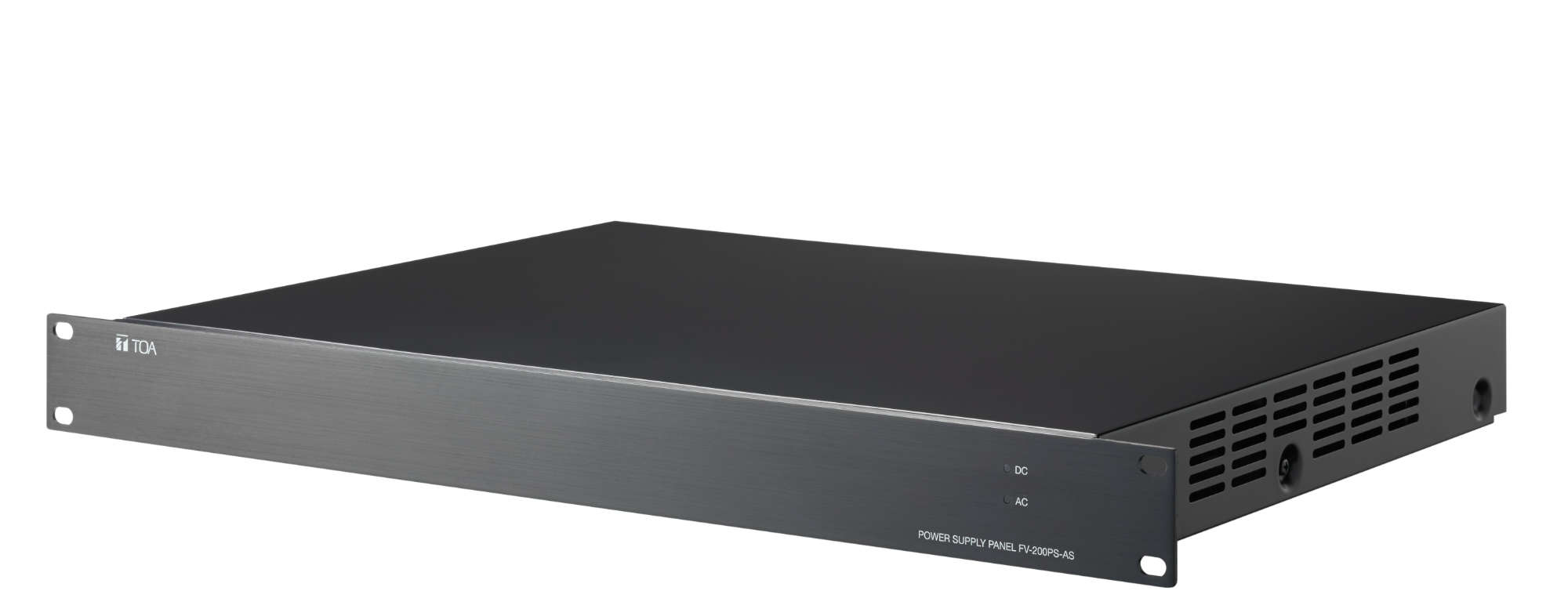

FV-200PS

Power Supply Panel

FV-200PS

The FV-200PS Switching DC Power Supply Panel supplies 24V DC power to each component of FV-200 Series Voice Evacuation System. In additional, the DC power supply shall connect to an emergency power supply for uninterrupted DC power during AC power failure.

Specifications A&E Specs Downloads

Power Source

220 - 230 V AC, 50/60 Hz
24 V DC (operating range: 19.5 - 27 V), M3 screw terminal

Power Consumption

160 W (275 VA) at rated power output (230 V AC operation)

Output

AC Operation : 24 V DC ±1, 5A (total)
DC Operation : Voltage lowering DC input voltage approx. by 2 V, M4 screw terminal

Indicator

AC Power (Green), AC Power (Orange)

Operating Temperature

0 °C to +40 °C

Operating Humidity

Under 90% RH (no condensation)

Finish

Front Panel : Aluminum, black, alumite

Dimensions

482 (W) × 44 (H) × 335 (D) mm

Weight

3.2 kg

Included Accessories

Power cable (YA-301 or YA-313)

Please download Datasheet to access full specifications.

The power supply panel shall be capable of operation from a 220-230 V AC, 50/60 Hz. Power output shall be 24 V DC (19.5 to 27 V) and power consumption shall be 160W (275 VA) at rated power AC power output. The power supply shall have 3 sets of 24V DC out terminals, total 5 amperes.

The power supply shall meet the following performance criteria.

It shall have an operation temperature of 0°C to +40°C. The front panel shall have 2 LED indicators to indicate the following conditions: AC Power (GREEN) and DC power (ORANGE).

The front panel finish shall be black aluminium, alumite.

The power amplifier shall be 2U, 19” rack-mounted. The dimensions shall be 482 (W) x 44 (H) x 335 (D) mm and its weight shall be 3.2kg.

The power supply panel brand shall be TOA, model FV-200PS-AS
