FV-200PP

Pre-Amplifier Mixer Panel

FV-200PP

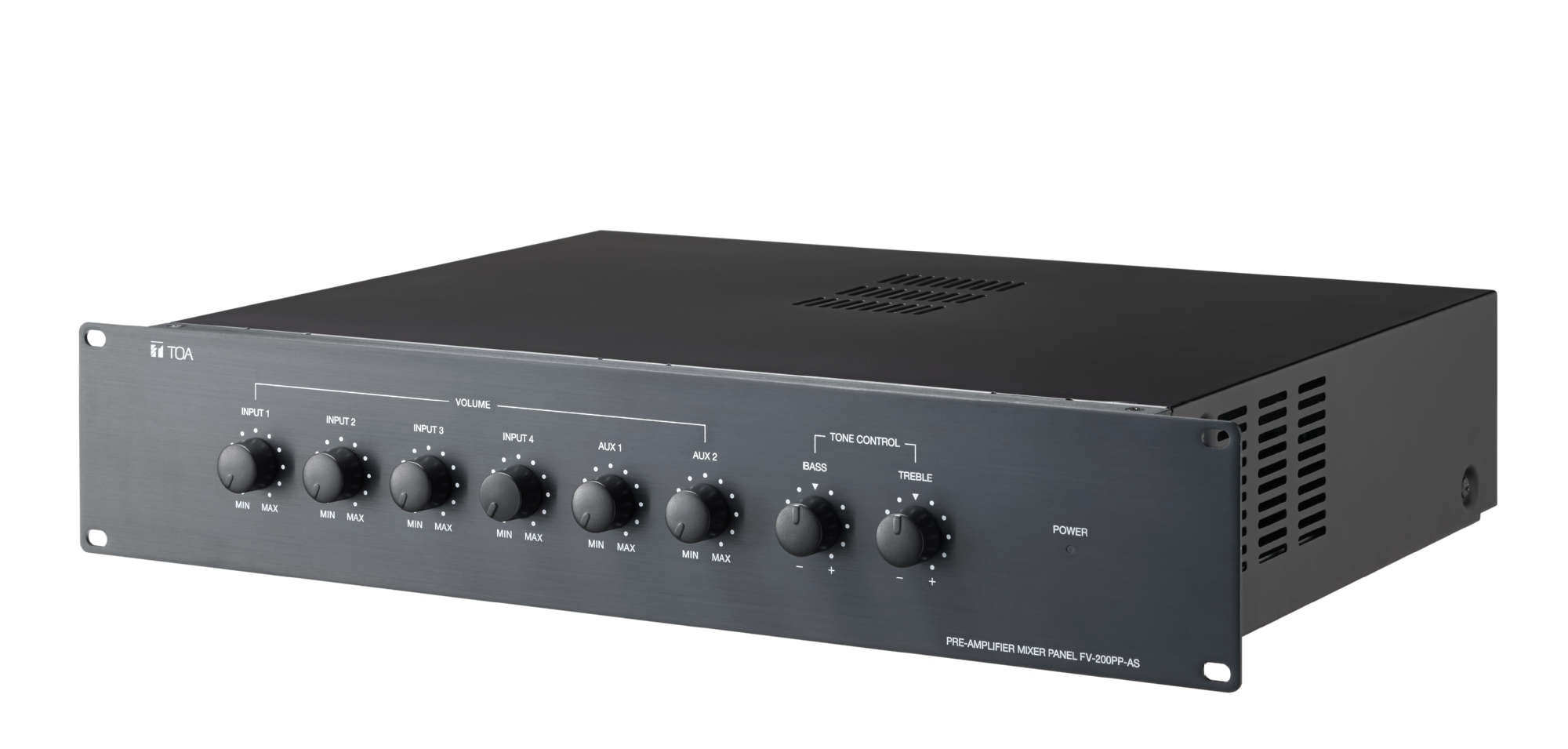

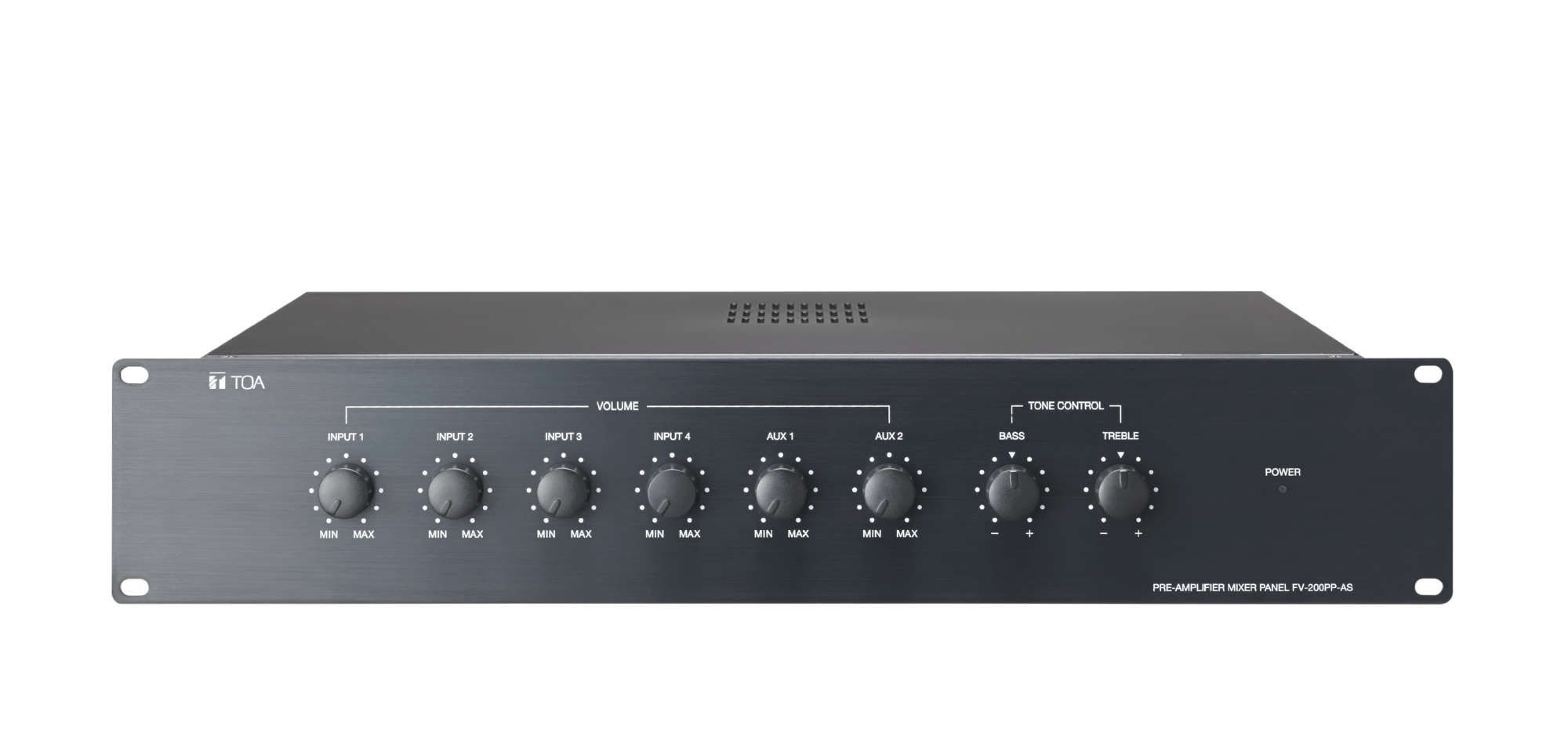

The FV-200PP Pre-Amplifier Mixer Panel is the basic operation section of the FV-200 Series Emergency Public Address System

Specifications A&E Specs Downloads

*0 dB = 1 V

Power Source

Usable power supply unit : FV-200PS
24 V DC (operating range : 19.5 - 27 V), M3 screw terminal

Current Consumption

110 mA

Frequency Response

50 Hz - 15 kHz, ±3 dB, 1 kHz

Distortion

Under 1% (1 kHz, rated output)

Signal to Noise Ratio

Over 60 dB

Audio Input

EV : -20 dB*, 600 Ω, unbalanced, removable terminal block (2 pins)
Timer : -20 dB*, 600 Ω,unbalanced,removable terminal block (2 pins)
Paging : -60/-20 dB* (selectable), 600 Ω, balanced, removable terminal block (3 pins)
RF Link : 0 dB*, 600 Ω,unbalanced,removable terminal block (2 pins)
MIC/LINE 1 - 4 : -60/-20 dB* (selectable), 600 Ω, balanced, removable terminal block (3 pins)
AUX 1 - 2 : -20 dB*,10 kΩ, unbalanced, RCA Jack

Audio Output

Priority output : 0 dB*, balanced, removable terminal block (3 pins)
BGM output : 0 dB*, balanced, Removable terminal block (3 pins)

Phantom Power

MIC/LINE 1 (selectable) (+21 V DC)

Tone Control

Bass : -10 dB at 100 Hz, +10 dB at 100 Hz (for INPUT BGM)
Treble : -10 dB at 10 kHz, +10 dB at 10 kHz (for INPUT BGM)

Muting

MIC/LINE 1 : Mutes other input signals (Mic/Line 2 - 4, AUX 1 - 2) by 0 - 30 dB attenuation

Control Input

Timer : No-voltage make contact input, open voltage : 24 V DC, short-circuit current : Under 5 mA, removable terminal block (2 pins)
Paging : No-voltage make contact input, open voltage : 24 V DC, short-circuit current : Under 5 mA, removable terminal block (2 pins)
EV : No-voltage make contact input, open voltage : 24 V DC, short-circuit current : Under 5 mA, removable terminal block (2 pins)

Control Output

All Call : Contact Switch (Normally Open), removable terminal block (2 pins)

LED Indicator

Power (Green)

Operating Temperature

0 °C +40 °C

Operating Humidity

Under 90% RH (no condensation)

Finish

Front Panel : Aluminum, black, alumite

Dimensions

482 (W) X 88.4 (H) X 353.3 (D) mm

Weight

4.2 kg

Included Accessories

Removable terminal plug (2 pins) x 7, removable terminal plug (3 pins) x 8, Instruction Manual x 1

Please download Datasheet to access full specifications.

The pre-amp mixer panel shall be 2U size, 19” rack mounted and have 4 selectable monaural mic/line inputs, 2 Aux inputs and 4 priority audio input. There are 2 selectable channels audio output and an All Call contact. The highest priority order shall be Fireman microphone, follow by EV, Paging, Timer, Remote microphone, microphone and BGM.

The audio inputs shall be:

EV: -20 dB*, 600 ohms, unbalanced, Removable terminal block (2pins)

Timer: -20 dB*, 600 ohms, unbalanced, Removable terminal block (2pins)

Paging: -60/-20 dB* (selectable), 600 Ω, balanced, Removable terminal block (3pins)

RF Link: 0 dB*, 600 ohms, unbalanced, Removable terminal block (2pins)

MIC/LINE INPUT 1: -60/ -20 dB* (selectable), 600 Ω, balanced, Removable terminal block (3pins), phantom power switch and mute function.

MIC/LINE INPUT 2 - 4: -60/-20 dB* (selectable), 600 Ω, balanced, Removable terminal block (3pins)

AUX1 and 2: -20 dB*, 10k ohms, unbalanced, RCA Jack

The audio output shall be:

Priority output: 0 dB*, balanced, Removable terminal block (3pins)

BGM output: 0 dB*, balanced, Removable terminal block (3pins)

Specifications shall include frequency response of 50Hz - 15 kHz, ±3 dB (1k Hz) and distortion under 1% (1k Hz, rated output).

It shall have an operation temperature of 0°C to +40°C. Power shall be derived from an external 24 V DC/110mA power supply.
Front panel LED indicators shall include Power. The front panel finish shall be black aluminium, alumite.

Dimensions shall be 482 (W) × 88.4 (H) × 339 (D) mm and weight shall be 4.2 kg.

The pre-amp mixer panel shall be TOA model FV-200PP AS.
