FV-200CA

Amplifier Changeover Panel

FV-200CA

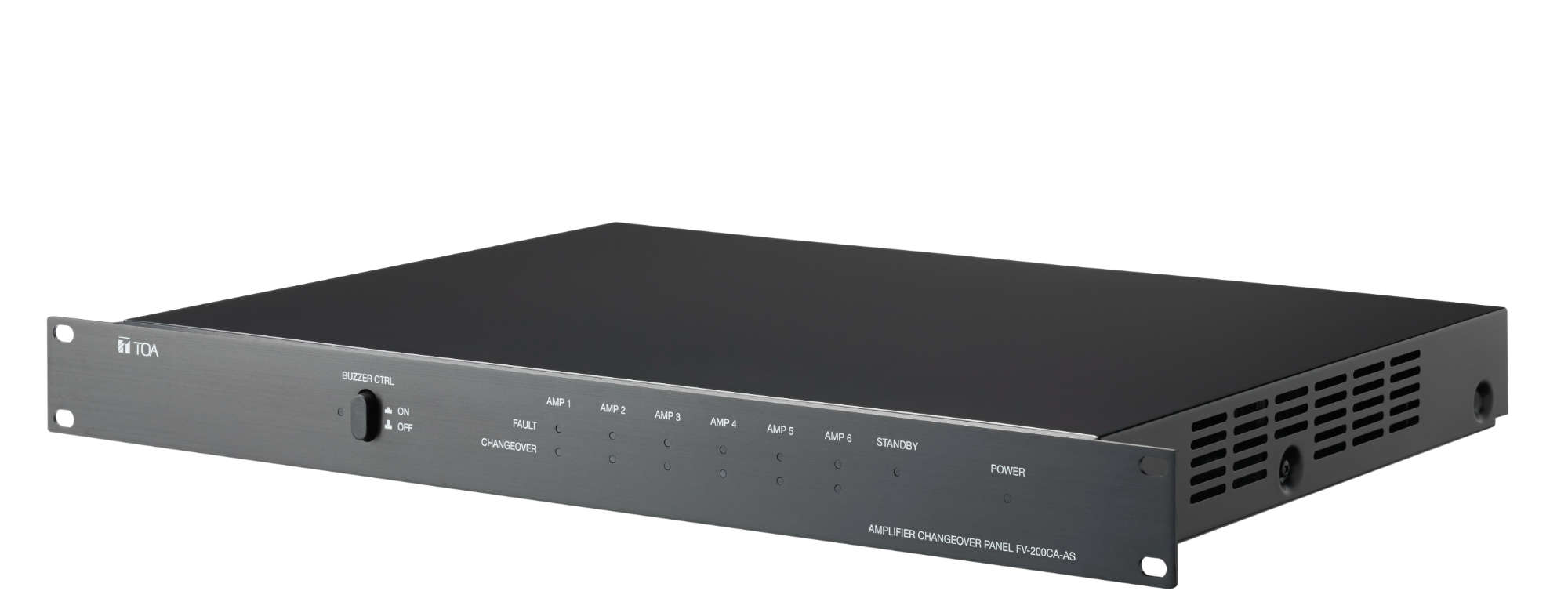

The FV-200CA Amplifier Changeover Panel is used to automatically changeover FV-200 Series fault duty amplifier to working standby amplifier. 1 unit of FV-200CA can handle up to 6 nos. of FV-200 Series amplifiers.

Specifications A&E Specs Downloads

Power Source

24 V DC (operating range: 21.6 - 26.4 V), M3 screw terminal

Current Consumption on 24 V DC Power Input

240 mA

Number of Input Channel

6 Duty Amplifier, 1 Standby Amplifier

Number of Output Channel

6 Output

Failure Detection

Fault Buzzer with buzzer control switch

LED Indicator

Power (Green), Changover (Orange), Fault / Buzzer Control (Red)

Operating Temperature

0 °C to +40 °C

Operating Humidity

Under 90% RH (no condensation)

Finish

Front Panel : Aluminum, black, alumite

Dimensions

482 (W) × 44 (H) × 343.8 (D) mm

Weight

2.6 kg

Included Accessories

Removable terminal plug (2 pins) x 3, removable terminal plug (8 pins) x 4

Please download Datasheet to access full specifications.

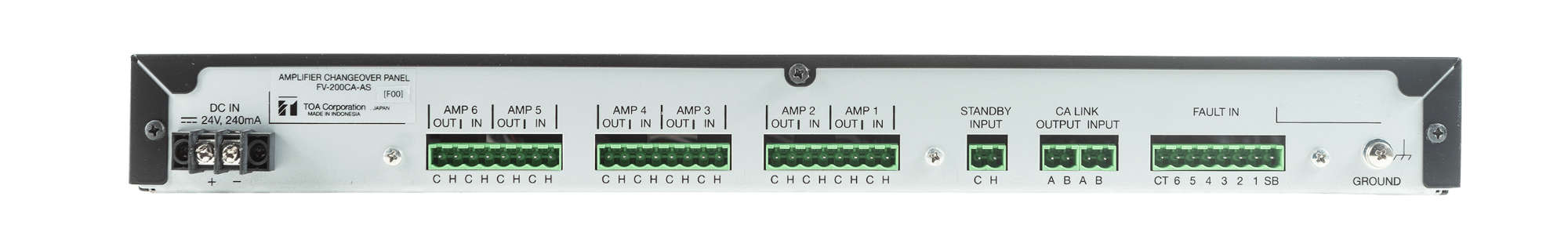

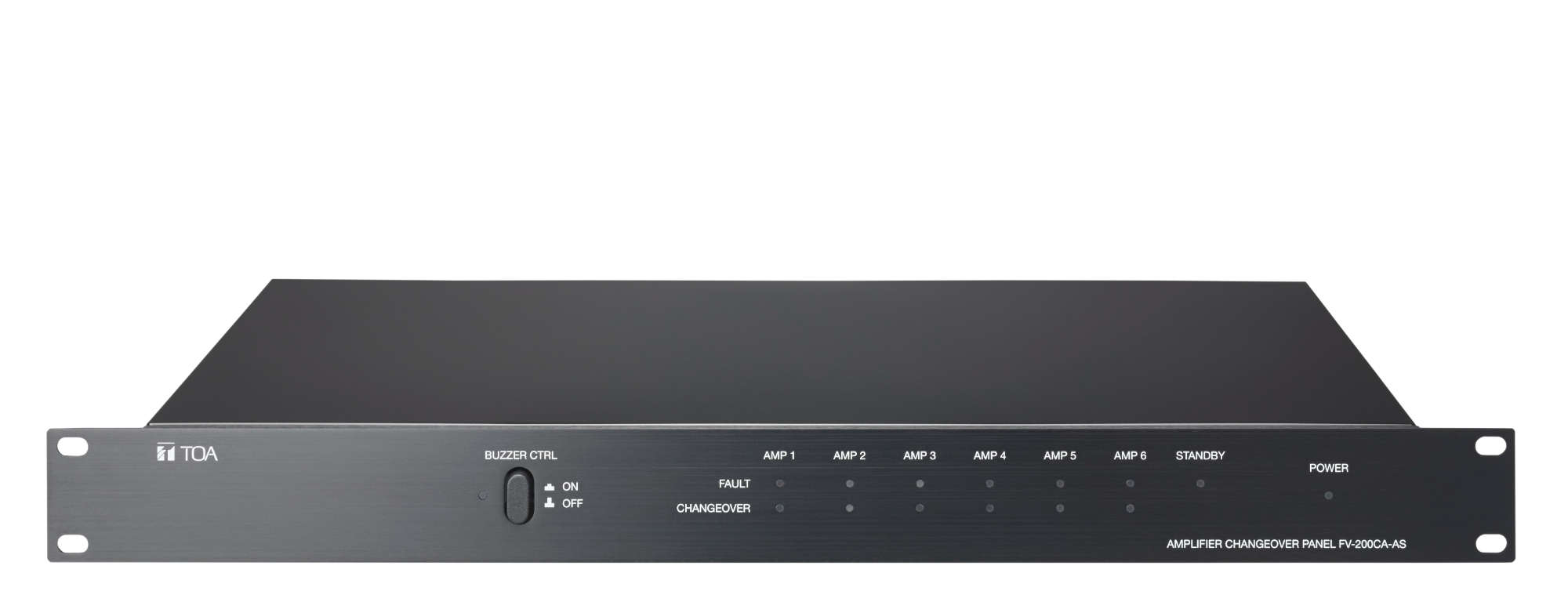

The amplifier changeover panel shall able to connect up to 6 duly amplifiers and a standby amplifier input. The front panel shall have 1 buzzer control switch with LED indicator, 7 nos. of fault LEDs indicator, 6 no. of Changeover LEDs indicator. The changeover panel can be expandable by connecting the link IN and OUT located on rear. Up to 4 panels and a maximum of 24 amplifiers to 1 standby amplifier.

The power and current consumption shall be 24 V DC, 240mA which is supplied from FV-200PS power supply panel.

The front panel finish shall be black aluminium hair line.
The speaker selector shall be 19” rack-mountable. The dimensions shall be 482 (W) x 44 (H) x 343.8 (D) mm and its weight shall be 2.6kg.

The speaker selector brand shall be TOA, model FV-200CA-AS.
