FB-2862C-AS
Ceiling Subwoofer
FB-2862C-AS
Ceiling Subwoofer, FB-2862C-EA offers an attractive exterior designed created by an interior designer to blend it naturally to any architectural space, enhancing the immediate area's sense of harmony. The bass reflex speaker system designed to provide low frequency range and high-quality sound output, ideal for locations with high ceiling or places that requires true-to-life sounds.
- 16 cm (6.5”) cone-type, 60W continuous

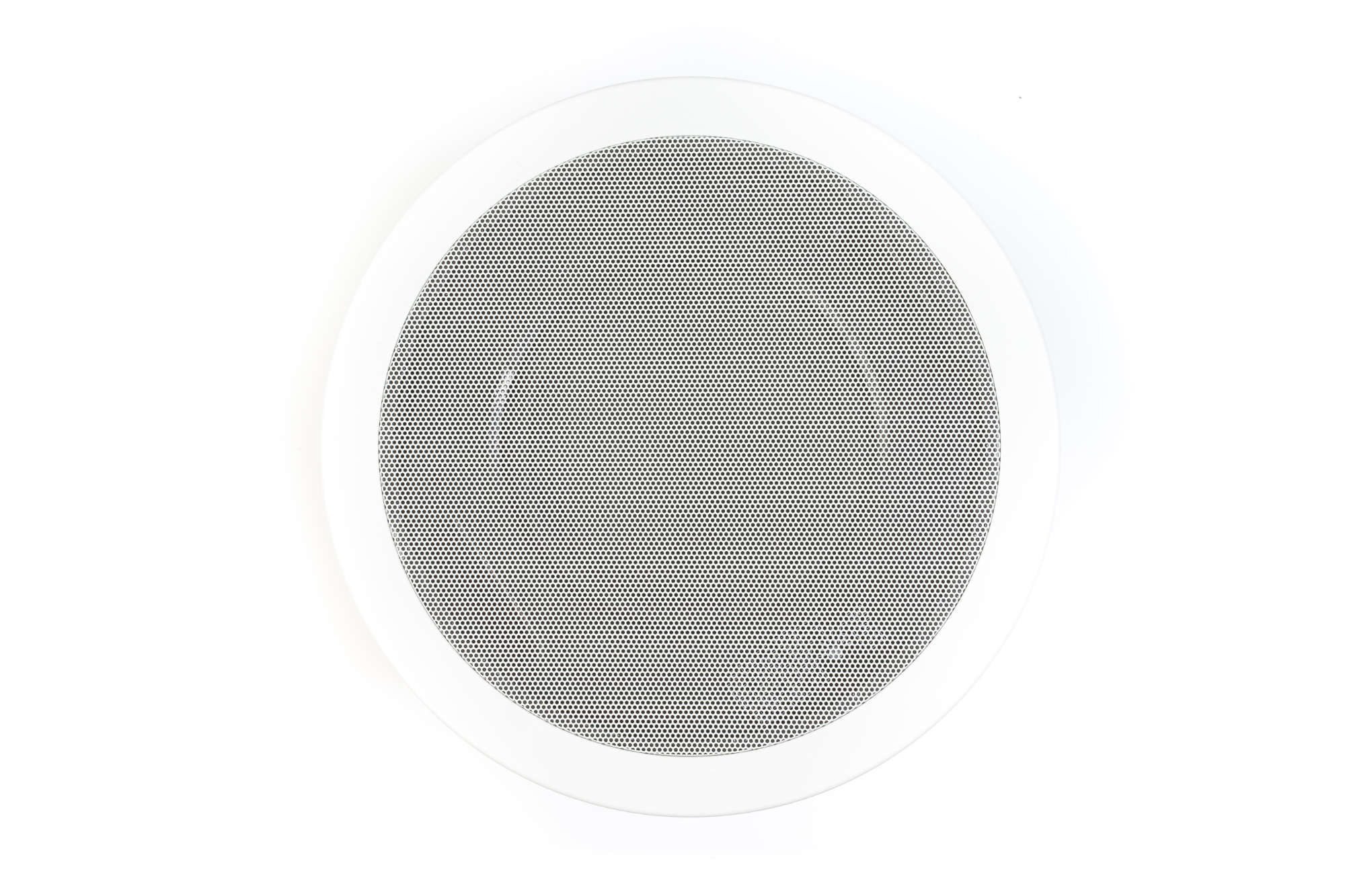

- Rotating grille for quick & convenient installation

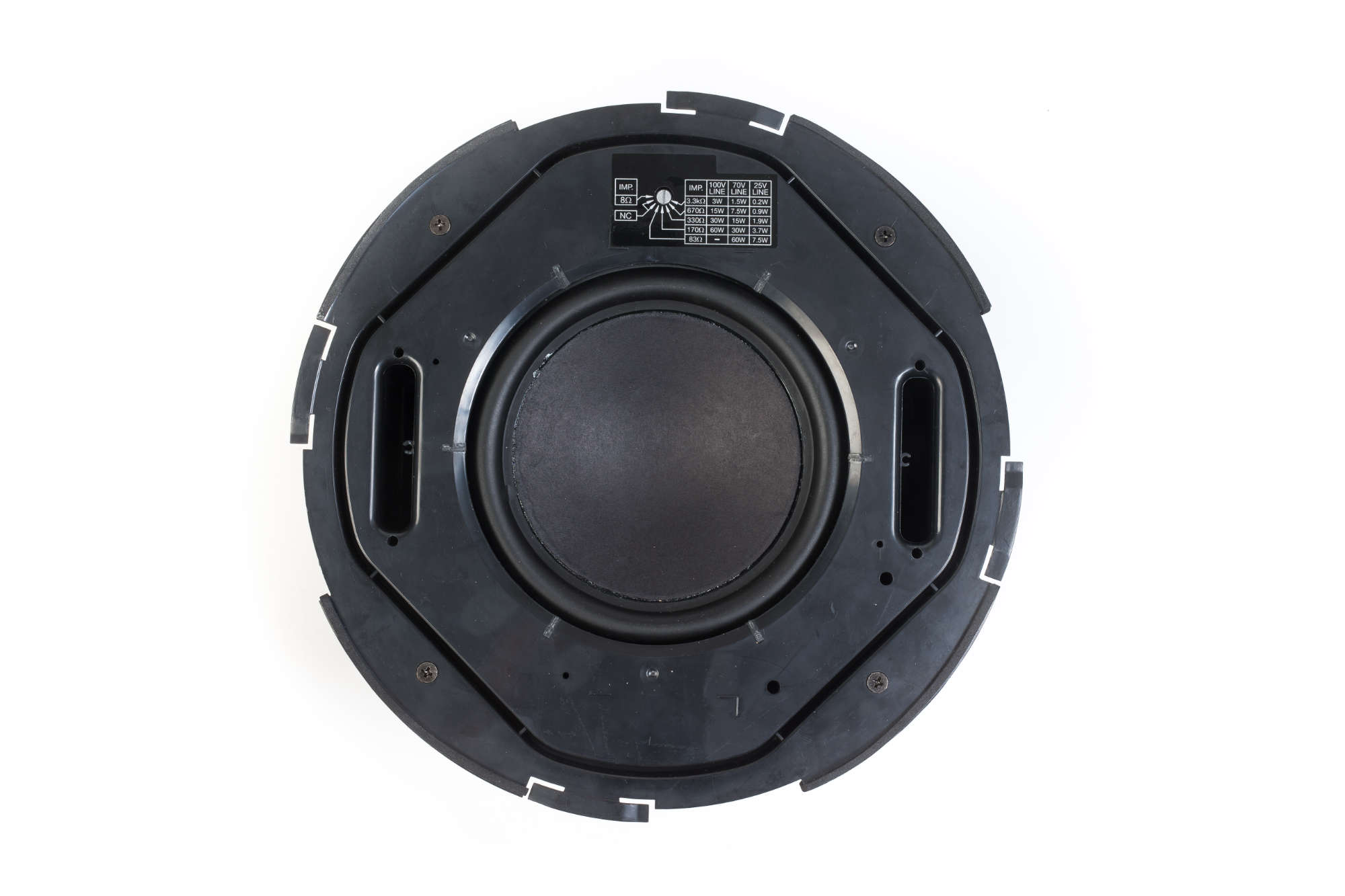

- Tapping switch allows for 70V/100V or 8Ω operation
- Low pass filter with overload protection
Enclosure
Bass reflex type
Rated Input
60W (High Impedance)
Power Handling
Continous: 60W (8Ω) (IEC60268-5)
Program: 120W (8Ω)
Program: 120W (8Ω)
Rated Impedance
100V line : 170Ω (60W), 330Ω (30W), 670Ω (15W), 3.3kΩ (3W)
70V line : 83Ω (60W), 170Ω (30W), 330Ω (15W), 670Ω (7.5W), 3.3kΩ (1.5W)
25V line : 83Ω (7.5W), 170Ω (3.7W), 330Ω (1.9W), 670Ω (0.9W), 3.3kΩ (0.2W)
8Ω (120W)
70V line : 83Ω (60W), 170Ω (30W), 330Ω (15W), 670Ω (7.5W), 3.3kΩ (1.5W)
25V line : 83Ω (7.5W), 170Ω (3.7W), 330Ω (1.9W), 670Ω (0.9W), 3.3kΩ (0.2W)
8Ω (120W)
Sound Pressure Level
87dB (1W, 1m) installation in 1/2 free sound field (Measured by installing the unit in the center of a ceiling or wall)
81 dB (1W, 1m) installation in free sound field (Measured in an echoic chamber)
81 dB (1W, 1m) installation in free sound field (Measured in an echoic chamber)
Frequency Response
60 - 250Hz (-10dB) Installation in 1/2 free sound field
(Measured by installing the unit in the center of a ceiling or wall)
(Measured by installing the unit in the center of a ceiling or wall)
Speaker Component
Low frequency : 16 cm cone-type
Mounting Hole
Ø250 mm (Maximum ceiling thickness: 37 mm)

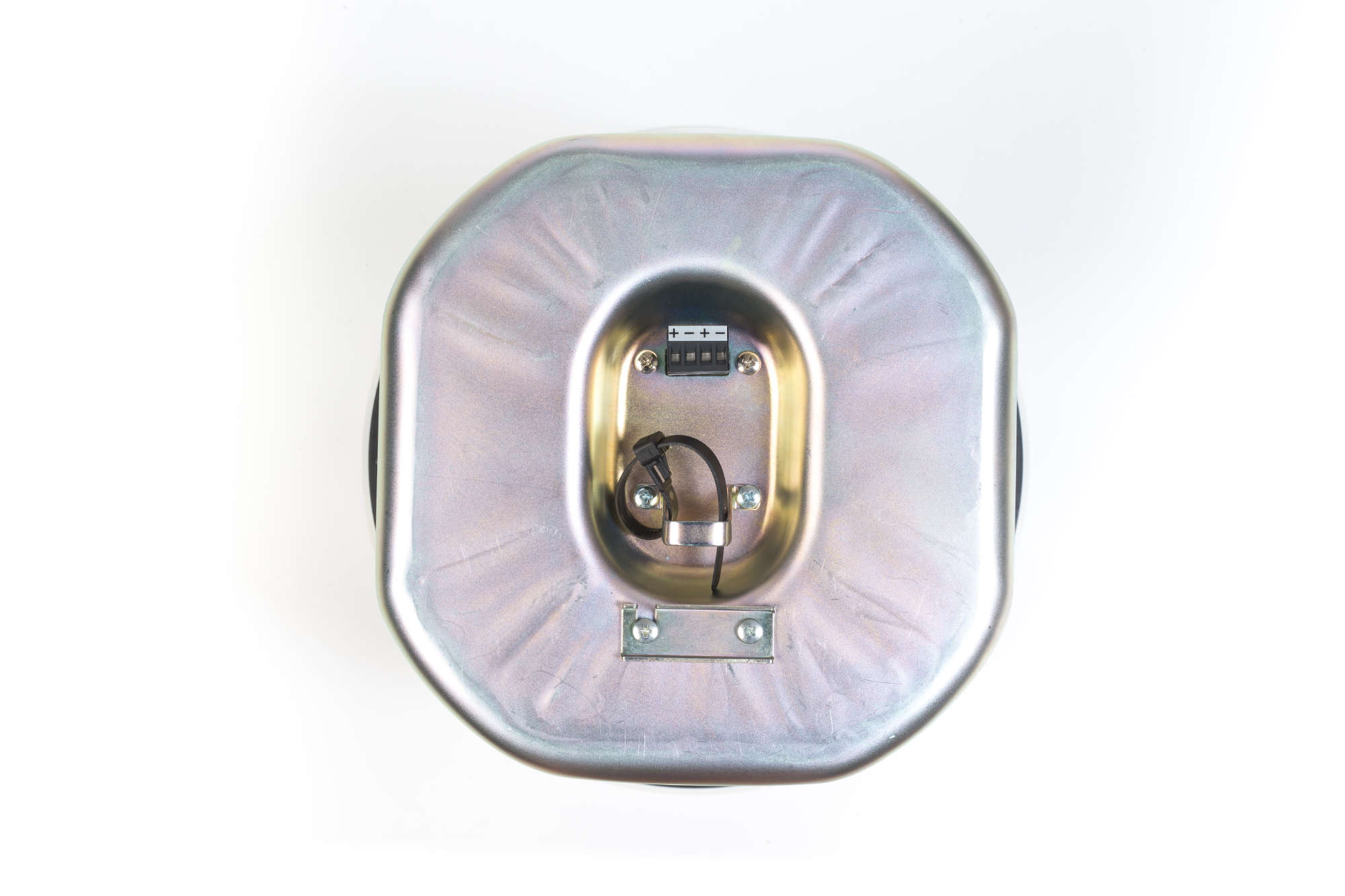

Input Terminal
Removable locking connector with screw-down terminals (2 input terminals and 2 bridge terminals)
Cable Requirements
Solid copper wire: Ø0.5 - Ø1.6 mm (equivalent to AWG No. 24 -14)
Stranded copper wire: 0.2 - 2.5 mm (equivalent to AWG No. 24 -14)
Stranded copper wire: 0.2 - 2.5 mm (equivalent to AWG No. 24 -14)
Finish
Enclosure: Steel plate, plating, Baffle: Fire-resistant ABS resin (UL-94 V-0), black
Rim: Fire-resistant ABS resin (UL-94 V-0 ), white (RAL 9016), Punched net: Steel plate, white (RAL 9016), paint
Rim: Fire-resistant ABS resin (UL-94 V-0 ), white (RAL 9016), Punched net: Steel plate, white (RAL 9016), paint
Dimensions
Ø280 x 198 (D) mm (Ø11" x 7.79")
Weight
6.3kg (including mounting accessory)
Included Accessories
Grille x1, Ceiling reinforcement x1, Safety wire x1, Paper pattern x1
Optional Accessories
Anchor hanging bracket: HY-AH1, Tile bar bridge: HY-TB1
Please download Datasheet to access full specifications.
