FB-120B
Subwoofer system
FB-120B

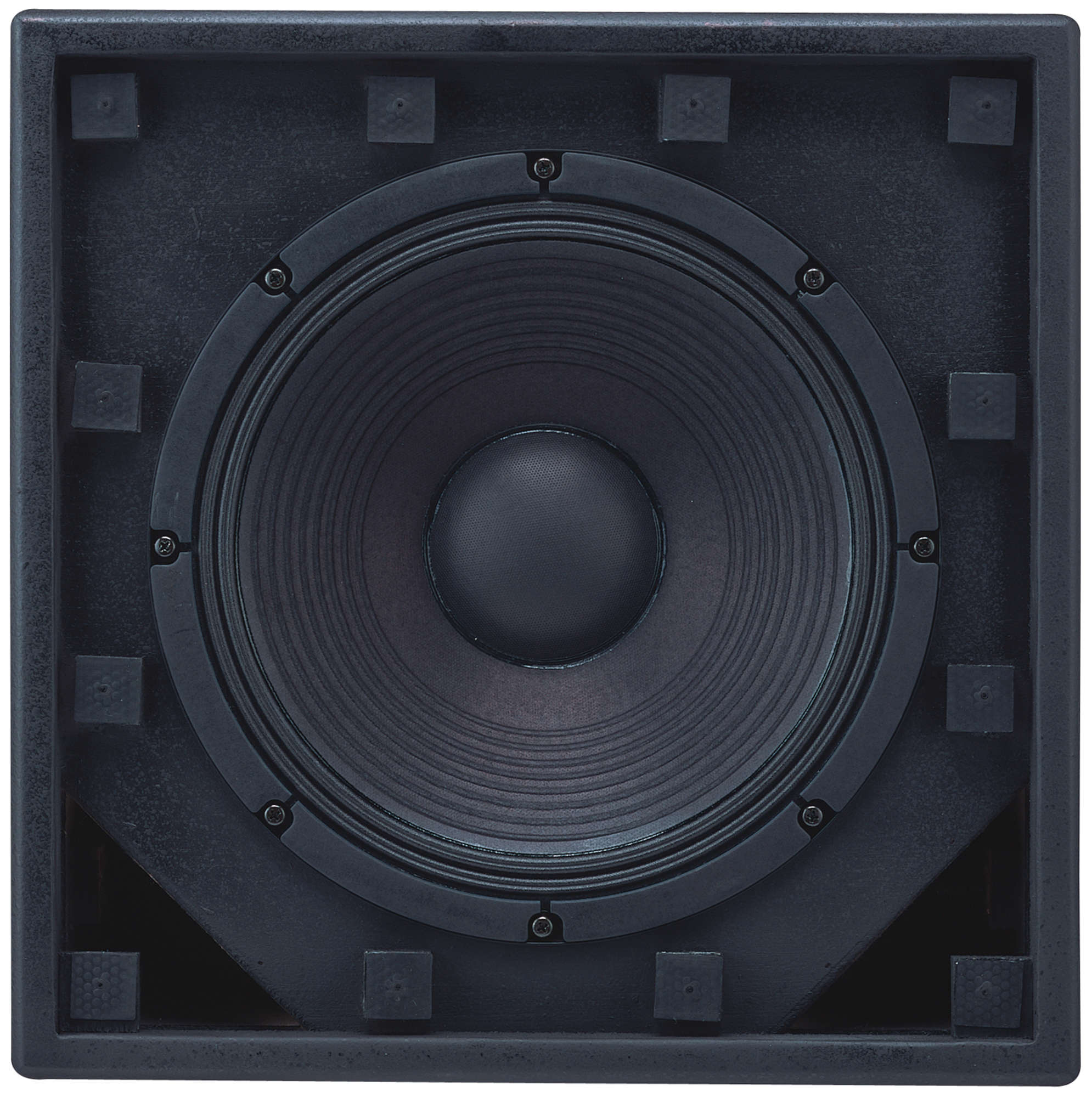

The FB-120 is a compact, indoor-use subwoofer system employing a high-power 30 cm (12") woofer. It is designed for use in conjunction with TOA's HX-5 series or other full range speakers, and is particularly ideal for reproducing dynamic low-frequency sound for both permanent and temporary installations.
- Compact subwoofer
- 30 cm (12“) woofer
- Ideal in conjunction with HX-5 speaker
- Extremely wide frequency range
- For rigging, floor-, wall-, corner- or ceiling-mount
- 600 W high-power subwoofer system
- Carry handle
- Speakon® connector
- Cascading of multiple units
Power Handling
Continuous pink noise: 200 W
Continuous program: 600 W
Continuous program: 600 W
Impedance
8 Ω
Sensitivity
90 dB (1 W, 1 m) at installation in free sound field
96 dB (1 W, 1 m) at installation in 1/2 free sound field
96 dB (1 W, 1 m) at installation in 1/2 free sound field
Frequency Response
40 - 1.2 kHz (-10 dB)
Speaker Component
30 cm cone-type
Input Terminal

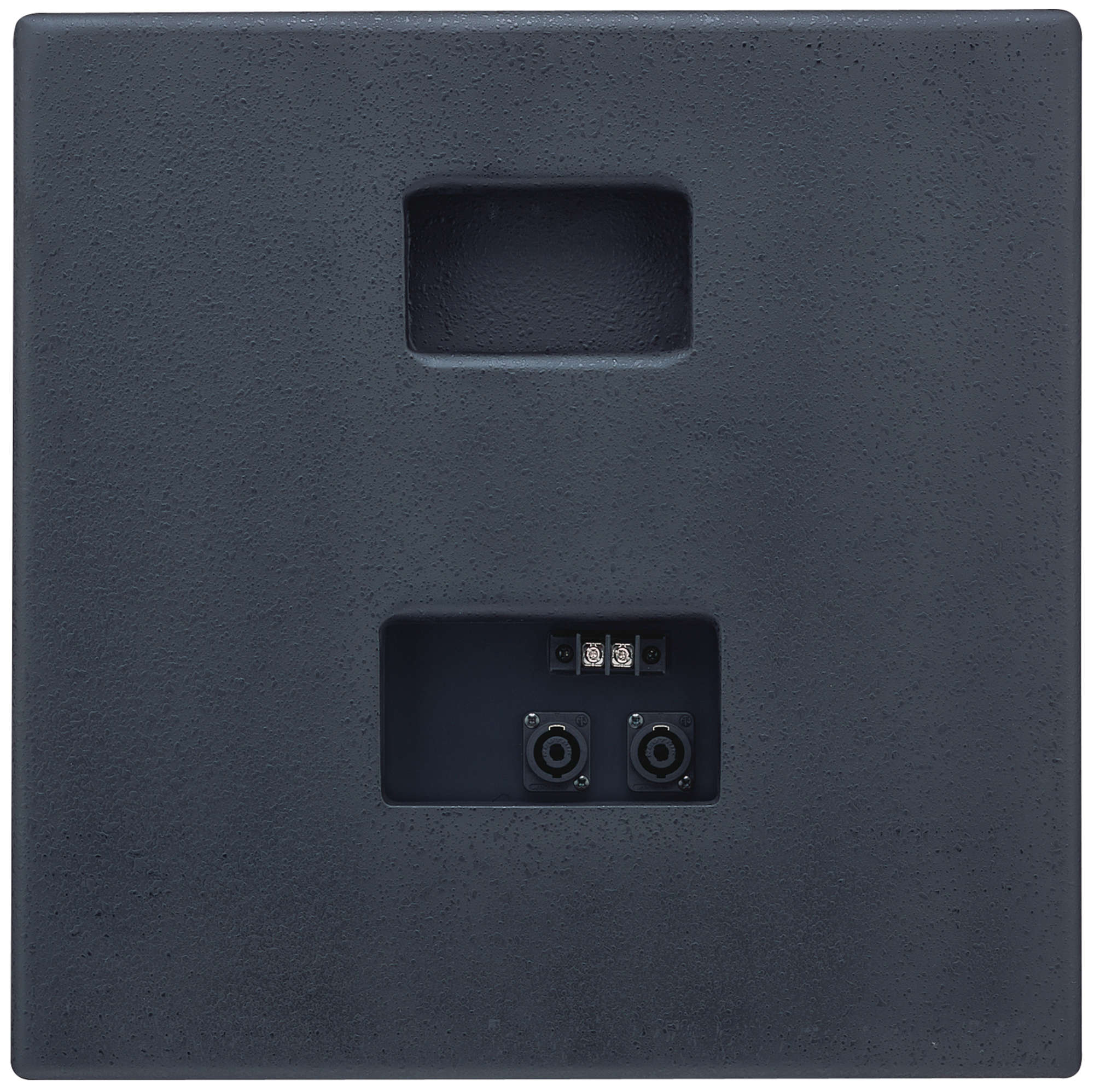

Speakon NL4MPXX x 2 and M4 screw terminal, distance between barriers: 11 mm
Finish
Enclosure: Plywood
Punched net: Surface-treated steel plate, black, paint
Punched net: Surface-treated steel plate, black, paint
Dimensions
408 (W) x 408 (H) x 450 (D) mm
Weight
15 kg
Optional Accessories
Speaker rigging frame: HY-PF1B
Please download Datasheet to access full specifications.
Optional Accessory
The sub bass loudspeaker systems shall incorporate a single 30 cm(12") transducer. System frequency response shall vary no more than +/-3 dB from 40 Hz to 1.2 kHz measured on axis. The loudspeaker shall produce a Sound Pressure Level (SPL) of 90 dB on axis at 1 meter with a power input of 1 watt, and shall be capable of producing 600 watts of continuous power and have a nominal impedance of 8 Ohms.
The loudspeaker enclosure shall be rectangular in shape and will be of a plywood construction with punch net steel perforated front grill. It shall be finished in black.
Input connectors shall be Neutrik NL4 MP and two M4 terminal strips.
Power Handling Capacity: Continuous pink noise: 200 W, Continuous program: 600 W
Impedance: 8 Ω
Sensitivity: 90 dB (1 W, 1 m) at installation in free sound field 96 dB (1 W, 1 m) at installation in 1/2 free sound field
Frequency Response: 40 - 1.2 kHz (-10 dB)
Speaker Component: 30 cm (12") cone-type
Input Terminal: Speakon NL4MP × 2 and M4 screw terminal, distance between barriers: 11 mm (0.43")
Finish Enclosure: Plywood
Punched net: Surface-treated steel plate, black, paint
Dimensions: 408 (W) × 408 (H) × 450 (D) mm (16.06" x 16.06" x 17.72")
Weight: 15 kg (37.48 lb.)
Power Handling Capacity: Continuous pink noise: 200 W, Continuous program: 600 W
Impedance: 8 Ω
Sensitivity: 90 dB (1 W, 1 m) at installation in free sound field 96 dB (1 W, 1 m) at installation in 1/2 free sound field
Frequency Response: 40 - 1.2 kHz (-10 dB)
Speaker Component: 30 cm (12") cone-type
Input Terminal: Speakon NL4MP × 2 and M4 screw terminal, distance between barriers: 11 mm (0.43")
Finish Enclosure: Plywood
Punched net: Surface-treated steel plate, black, paint
Dimensions: 408 (W) × 408 (H) × 450 (D) mm (16.06" x 16.06" x 17.72")
Weight: 15 kg (37.48 lb.)
Optional rigging frame shall be available, model HY-PF1B, manufactured by TOA Corporation
Manufacturer TOA Corporation
Model FB-120B
Manufacturer TOA Corporation
Model FB-120B
