EM-362-AS

Neck-worn Microphone

EM-362-AS

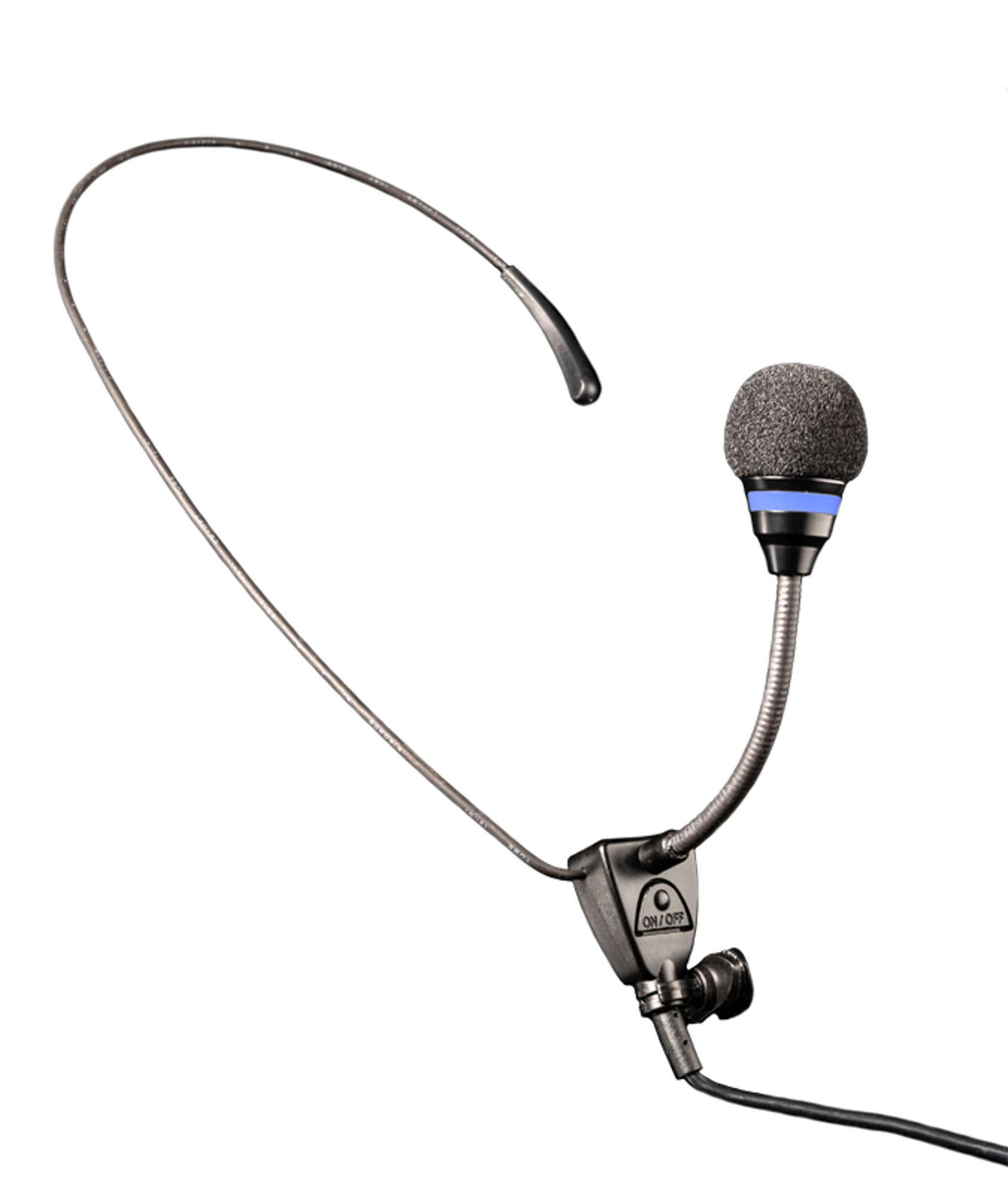

The EM-362 is designed specially to suit users who have constant body movements when using a microphone, like teachers, presenters, prayer leaders. It provides a nice balance of close proximity and natural sound reproduction without worrying about clothing noise. Its unique design suspends the microphone in front of the speaker’s mouth optimizing speech pick up and avoiding being brushed against by the movement of body creating unnecessary noise. High sensitivity and wide-range frequency response ensure sound clarity regardless user’s movement.

Specifications A&E Specs Downloads

Element

Electret Condenser

Power Source

3 V DC (2 x "AAA" batteries) or Phantom Power: 9 V - 52 V

Polar Pattern

Cardioid

Impedance

600 Ω, balanced

Sensitivity

-35 dB ± 3 dB (1 kHz 0 dB=1 V/Pa)

Frequency Response

60 Hz - 20 kHz

Cable Length

7 m

Operating Temperature

0 °C - 40 °C

Finish

Battery Case Unit, Switch Unit, Mic Unit: ABS Resin, Black

Dimensions

260 x 135 mm

Weight

190 g (exclude battery)

Please download Datasheet to access full specifications.

The neck worn microphone shall be designed specially to suit users who have constant body movements when using a microphone, like teachers, presenters, prayer leaders. It shall provide a nice balance of close proximity and natural sound reproduction without worrying about clothing noise. Its unique design suspends the microphone in front of the speaker’s mouth optimizing speech pick up and avoiding being brushed against by the movement of body creating unnecessary noise. High sensitivity and wide-range frequency response ensure sound clarity regardless user’s movement.

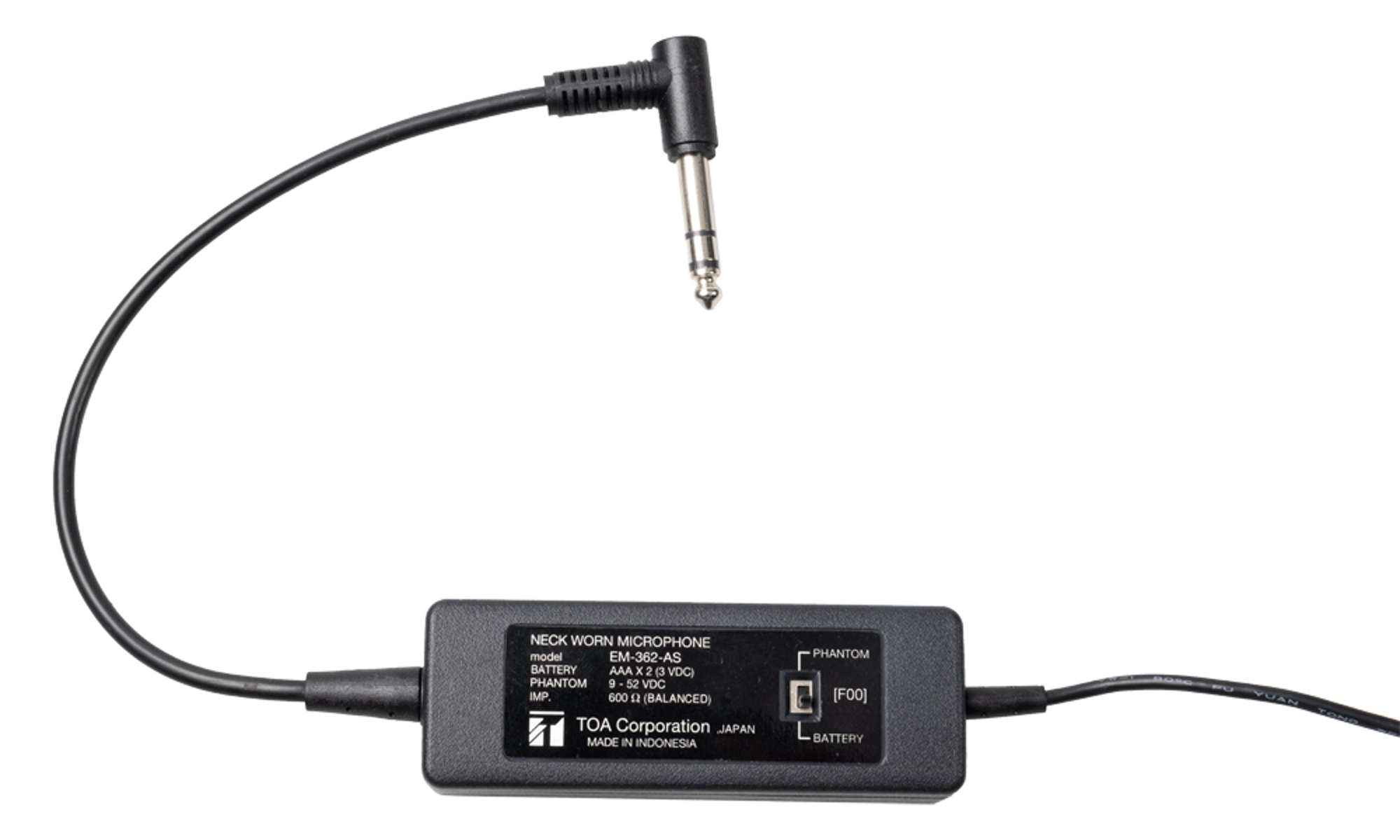

The neck worn microphone shall be electret condenser with omni-directional cardioid pattern. Specifications shall include impedance of 600 Ω, balanced, sensitivity -35dB (1k Hz 0 dB=1V/Pa) and frequency response of 60 – 20k Hz. The microphone shall be flexible and a cushion is included. The microphone shall have an on/off switch and blue LED indicator when it is turn on. The build-in connection cable shall be included 2-core shielded cable, balanced, length 7 metre. The microphone shall have a selection switch for battery or phantom power. The microphone body shall house an “AAA” battery and a 200mm 1/4" balanced phone plug. The microphone finish shall be: battery case, ABS black, Neck hook; metal, black and wire; black colour. Dimensions (H x W) shall be 250mm x 135mm and weight shall be 190g (without battery).

The neck worn microphone shall be TOA model EM-362-AS.
