DP-K1
Digital Processor
DP-K1
The DP-K1 is a 3U rack mountable Digital Audio Processor. It features an Automatic Resonance Control function that automatically generates an optimum filter curve to improve sound clarity after measuring the acoustic characteristics in architectural space.
It permits flexible configuration of inputs and outputs, from 2-IN/4-OUT to 8-IN/8-OUT using the optional modules. Each function is set by a PC using the dedicated software. The settings can be stored in the unit's internal memory and the stored preset memories can be recalled from the unit without connecting the PC.
- Digital signal processor with max. 8 inputs and outputs
- Antiresonance function for 8 channels
- A variety of filters, dynamic (noise gate, compressor), delay, crossover, matrix
- Modular inputs and outputs for easy adjustment of the system
- Different input and output modules available
- Adjustment by PC via LAN possible
- Easy to use and many automatic functions
- Rack-mountable
Power Source
230 V AC, 50/60 Hz
Power Consumption
40 W (450 mA)
Frequency Response
20 Hz – 20 kHz, ±1 dB (±4 dB* input)
Input
Max. 8 channels, modular construction (modules optional)
Output
Max. 81 channels, modular construction (modules optional)
I/O Configuration
2-IN/4-OUT, 2-IN/8-OUT, 4-IN/4-OUT, 4-IN/8-OUT, 6-IN/4-OUT, 6-IN/8-OUT, 8-IN/4-OUT , 8-IN/8-OU
Automatic Resonance Control
Parametric equalizer: 20 Hz – 20 kHz, ±12 dB, Q: 0.267 – 69.249
Level Control
–∞ to +12 dB (0.5 dB steps), with polarity selector
Equalizer/Filter
Parametric equalizer: 20 Hz – 20 kHz, ±12 dB, Q: 0.267 – 69.249
Filtering: High-pass filter 20 Hz – 20 kHz, 6 dB/oct, 12 dB/oct Low pass filter 20 Hz – 20 kHz, 6 dB/oct, 12 dB/oct
Notch filter 20 Hz – 20 kHz, Q: 8.651 – 69.249 All-pass filter 20 Hz – 20 kHz, Q: 0.267 – 69.249
High shelving filter 6 – 20 kHz, ±12 dB
Low shelving filter 20 – 500 Hz, ±12 dB Horn equalizer 20 kHz, 0 to +18 dB (0.5 dB steps)
Crossover filter: 20 Hz – 20 kHz, 6 dB/oct, 12 dB/oct, 18 dB/oct, 24 dB/oct
Filtering: High-pass filter 20 Hz – 20 kHz, 6 dB/oct, 12 dB/oct Low pass filter 20 Hz – 20 kHz, 6 dB/oct, 12 dB/oct
Notch filter 20 Hz – 20 kHz, Q: 8.651 – 69.249 All-pass filter 20 Hz – 20 kHz, Q: 0.267 – 69.249
High shelving filter 6 – 20 kHz, ±12 dB
Low shelving filter 20 – 500 Hz, ±12 dB Horn equalizer 20 kHz, 0 to +18 dB (0.5 dB steps)
Crossover filter: 20 Hz – 20 kHz, 6 dB/oct, 12 dB/oct, 18 dB/oct, 24 dB/oct
Compressor
Threshold: –16 to +24 dB* (1 dB steps)
Ratio: 1:1, 2:1, 3:1, 4:1, 8:1, 12:1, 20:1, ∞:1
Attack time: 0.2 – 100 ms
Release time: 10 ms – 5 s
Ratio: 1:1, 2:1, 3:1, 4:1, 8:1, 12:1, 20:1, ∞:1
Attack time: 0.2 – 100 ms
Release time: 10 ms – 5 s
Noise Gate
Threshold: –∞ to –26 dB* (1 dB steps)
Attack time: 0.1 – 100 ms
Release time: 20 ms – 5 s
Attack time: 0.1 – 100 ms
Release time: 20 ms – 5 s
Delay
Delay time: 0 – 682.0 ms (0.021 ms steps)
Matrix
8 x 8
Level control: –∞ to 0 dB (1 dB steps), with polarity selector
Level control: –∞ to 0 dB (1 dB steps), with polarity selector
Function
Key lock function
Setting Software
OS: Windows 7, Windows 10
Control system: 10 BASE-T/100 BASE-TX, Auto-negotiation, RJ45 connector
Control system: 10 BASE-T/100 BASE-TX, Auto-negotiation, RJ45 connector

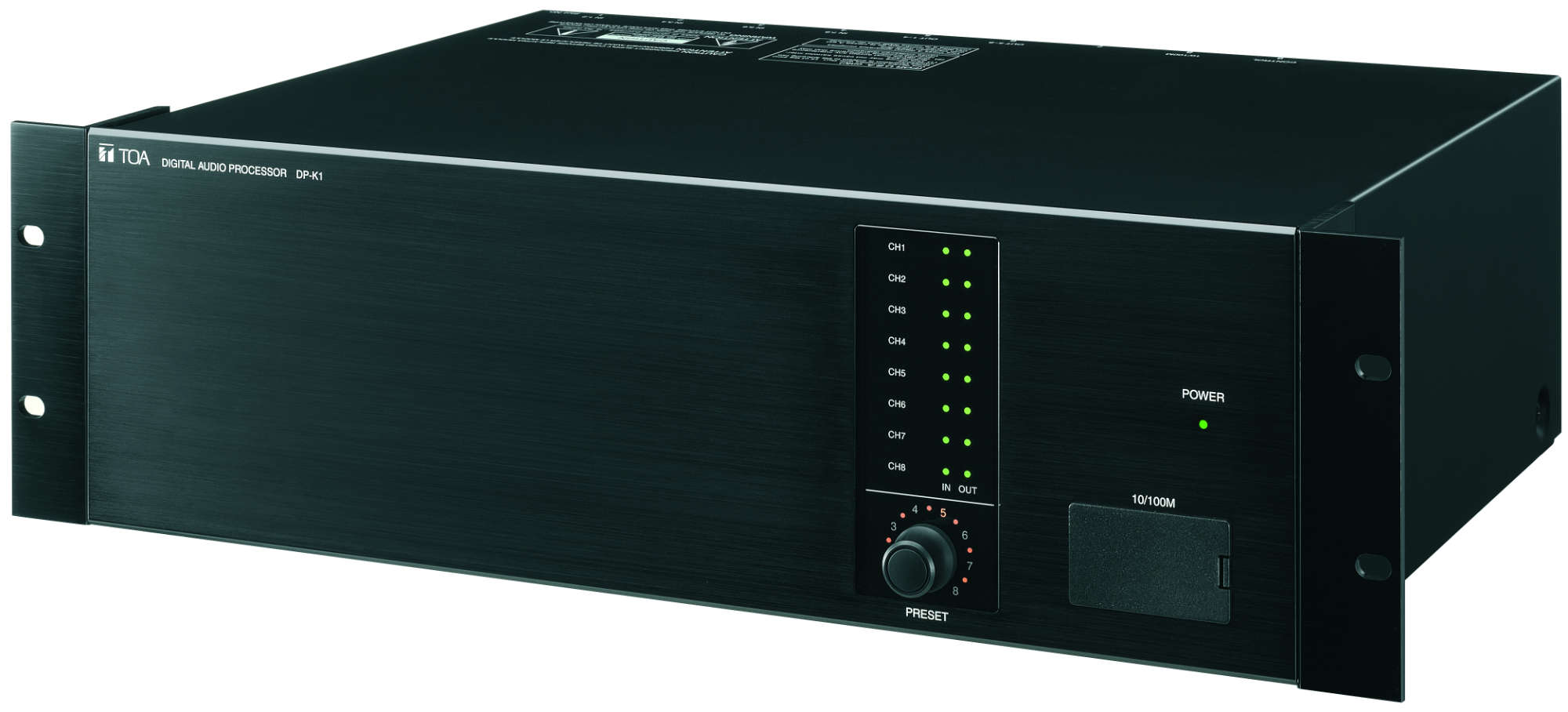

Front Panel Section
Preset knob: 1
Input channel indicator: Green LED
Output channel indicator: Green LED
Input channel indicator: Green LED
Output channel indicator: Green LED

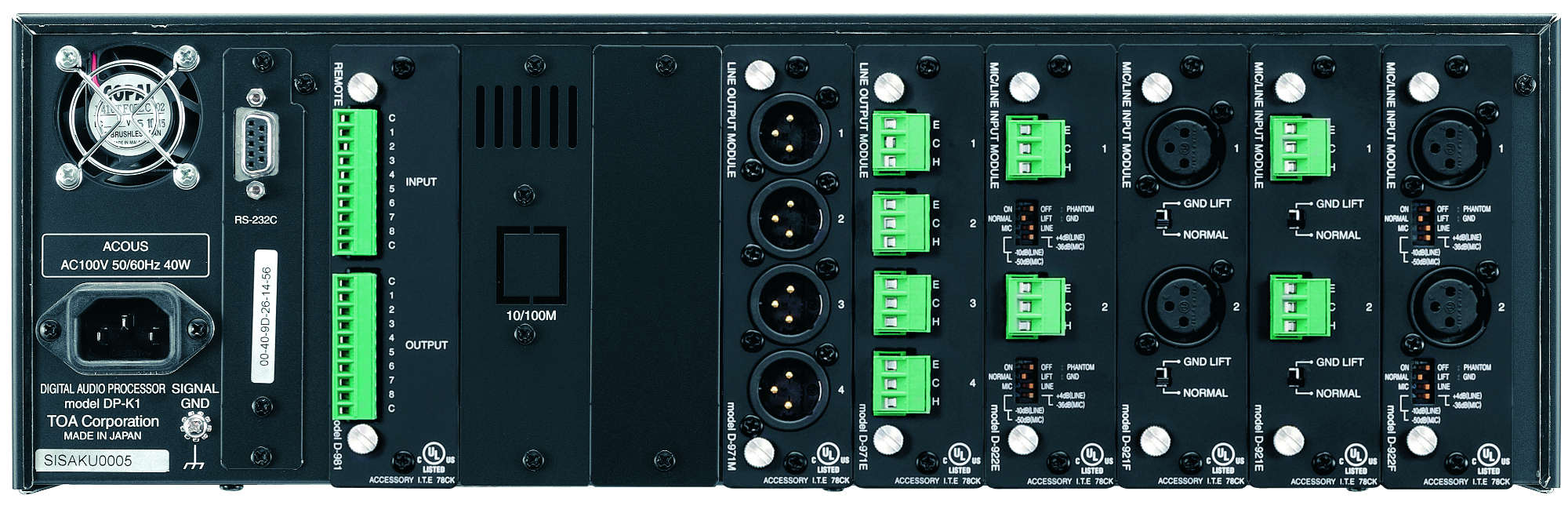

Module Slot (Rear Panel)
Input module slot: 4
Output module slot: 2
Remote control module slot: 1
Output module slot: 2
Remote control module slot: 1
Operating Temperature
+5 to +40 °C
Finish
Panel: Aluminum, hair-line finish, black
Others: Pre-coated steel plate, black, 30% glossy
Dimensions
482.6 (w) x 132.6 (h) x 320 (d) mm (excluding projection)
Weight
7.4 kg
Please download Datasheet to access full specifications.
Modular digital signal processor with anti-response function for up to 8 audio inputs and 8 outputs. Through the feedback function is achieved depending on the acoustic environment a much clearer sound and thus increases the intelligibility. Automatic measurement of the room up to 8 measurement locations with analysis of the critical room resonances. Up to 8 zones can be individually adjusted.
Each signal path has 18 filter, of which 12 are free configurable and programmable from the following types: parametric EQ, high, low and all pass filter, notch filters, shelving filters for bass and treble, CD Horn equalization.
Other DSP functions per signal path: mixing matrix, 2 level controls, gain, phase reversal, 2 squelch, delay up to 682 ms, 2 compressors, 2-, 3-, 4-way crossover with run-time correction (alignment).
8 configuration presets storable in the device and accessible on the unit or by remote control. Variable access lock with password protection programmable for the software.
All inputs and outputs with led signal indicator.
6 Slots for various analog and digital input and output modules, a socket for remote control modules configuration selection and volume adjustment. Matching optional modules for analog microphone and line level inputs, as well as for the digital formats (24-bit) AES/EBU and SPDIF.
Including control software for PC/laptop on Windows® interface. Creation of the configuration online and offline via Ethernet interface in real time. Simple firmware update.
®: brands registered by Microsoft Corporation
