BS-1030B

  • Universal Speaker
Universal Speaker

Universal Speaker

BS-1030B

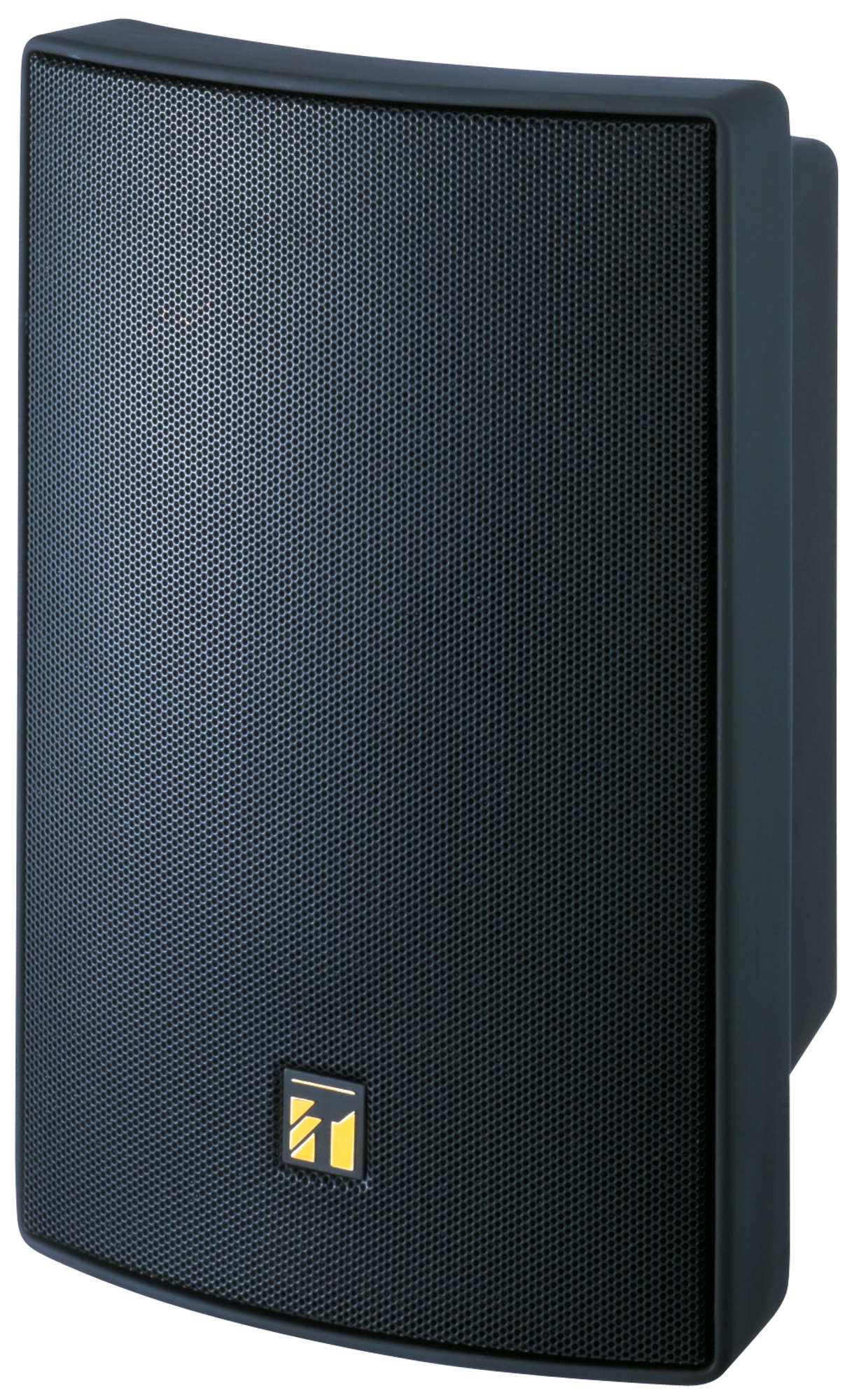

The BS-1030B is a small, 2-way bass-reflex type speaker featuring a wide frequency range suitable for use for announcements and music playback. The BS-1030B can be used for both high-impedance and low-impedance applications. The speaker's splash-proof construction permits it to be installed under the eaves where the speaker is not directly exposed to rain.

  • 2-way bass reflex speaker
  • Cost-effective high power PA box speaker
  • Various installation options
  • Low impedance (8Ω) or high impedance (100V) selectable by rotary switch
  • Splashproof construction in compliance with IPX3
QTY
▼
Enclosure
2-way bass-reflex type
Rated Input
30 W
Rated Impedance
8 Ω
100 V line: 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W)
70 V line: 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W)
Sound Pressure Level
90 dB (1 W, 1 m)
Frequency Response
80 Hz - 20 kHz
Speaker Component
12 cm cone-type + dome-type
Speaker Cable
2-core cabtyre cord with diameter of 6 mm
Water Protection
IPX4 (can be installed vertically or horizontally.*)
Operating Temperature
-10 °C to +50 °C
Finish
Enclosure: ABS resin, black (RAL9011 GRAPHITE BLACK), paint
Net: Surface treated steel plate, black (RAL9011 GRAPHITE BLACK), powder coating
Bracket: Surface treated steel plate, black equivalent to RAL9011 GRAPHITE BLACK,
powder coating
Dimensions
196 (W) x 290 (H) x 150 (D) mm (unit only)
Weight
2.5 kg (unit only)
Included Accessories
Bracket x 1, Bracket mounting screw x 2, Bracket mounting washer x 2
Optional Accessories
Applicable bracket: WCB-13B, SP-410
Applicable stand: ST-16A

Please download Datasheet to access full specifications.

Optional Accessory

Speaker box with elegant softline design fits into modern architecture. High quality 2-way speaker in a bass reflex enclosure suitable for flush-mounting/ surface-mounting wall/ceiling speaker with optional bracket or on an optional floor stand, including 100V-transformer, 12 cm cone Woofer and 2.5 cm dome tweeter designed for both music reproduction and high intelligibility, rotary switch for power adjustment including low impedance selection on the rear. Low resonance ABS enclosure with removable metal grille in the same color as the body , with U-brackets for tilt and pan.
