AN-9001

Ambient Noise Sensor Microphone

AN-9001

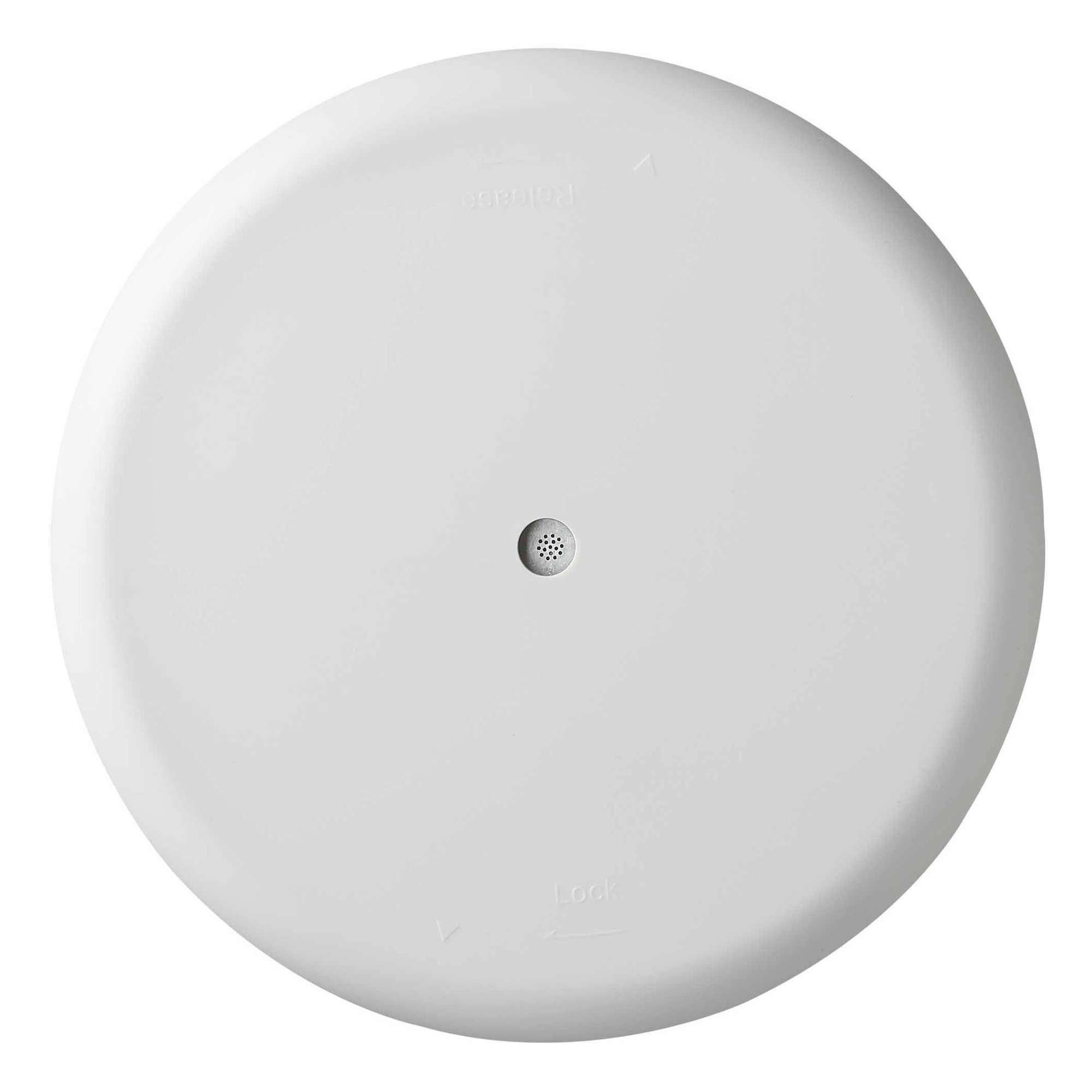

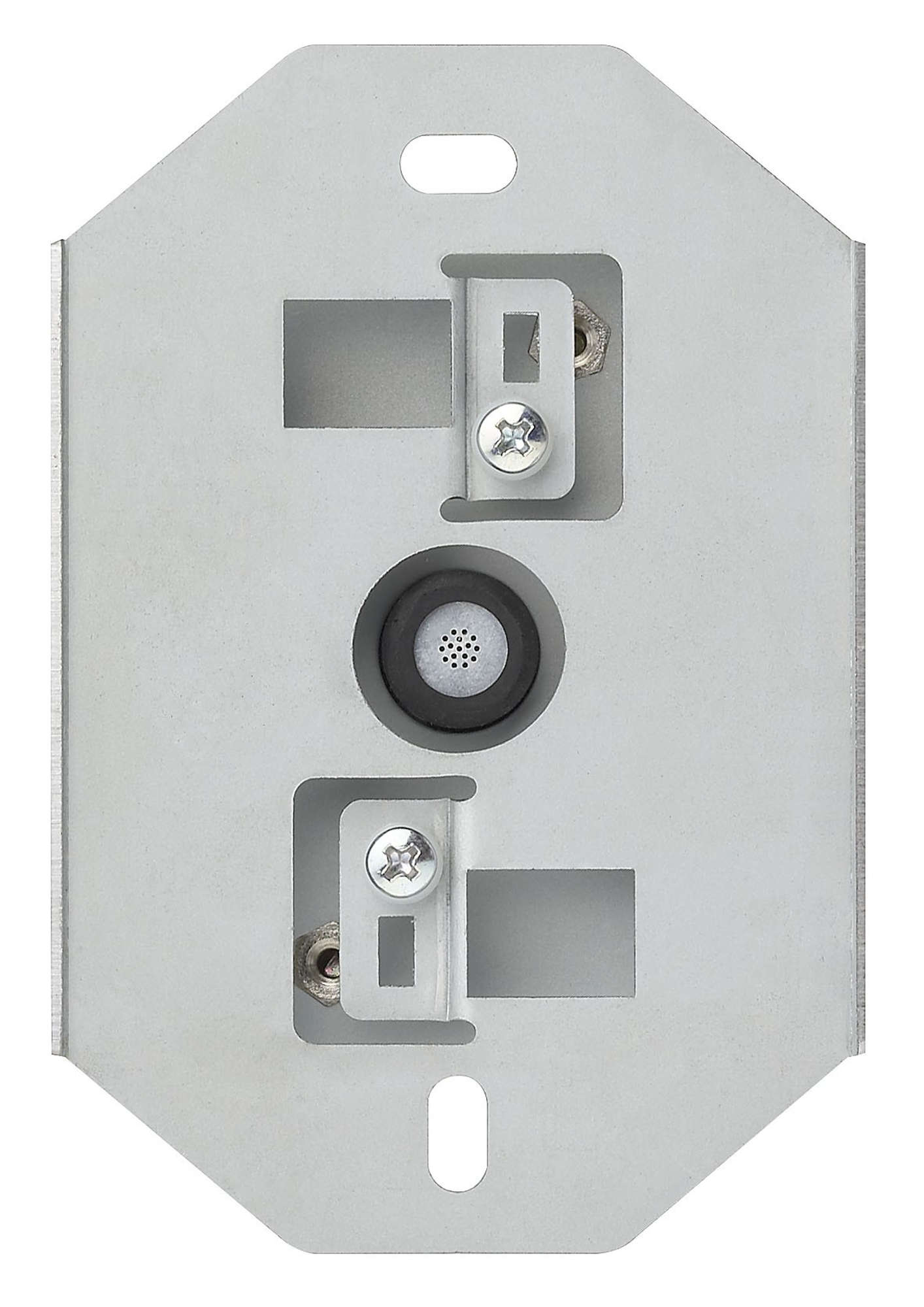

The AN-9001 is an electret condenser microphone designed for ambient noise detection. It is used in conjunction with the AN-001T Ambient Noise Sensor Input module in the 9000 Series system. It can be mounted in a 1-gang electrical box in the ceiling or wall.

Ceiling or wall mount condenser microphone
Fits one gang electrical box
Use with AN-001T module or DP-L2 processor

Specifications A&E Specs Downloads

Type

Electret condenser microphone

Current Consumption

7 mA (at 24 V DC)

Directivity

Omnidirectional (hemispherical)

Impedance

200 Ω

Sensitivity

-5 dB (1 kHz, 0 dB = 1 V/Pa)

Phantom Power

14 - 26 V DC

Frequency Response

100 - 10,000 Hz

Output Terminal

Removable terminal block (3 pins)

Operating Temperature

-10℃ to +40℃

Finish

Panel: ABS resin, white
Frame, Case: Surface-treated steel plate

Dimensions

Φ130 x 37 (D) mm

Weight

170 g

Included Accessories

Removable terminal plug (3 pins) …1, Box mounting screw (No.6-32UNC x 30) …2,
Box mounting screw (M4 x 30) …2

Optional Accessories

9000 series plug-in module: AN-001T

Note: Since no electrical box is supplied with the unit, prepare it separately.

Please download Datasheet to access full specifications.

Microphone with integrated preamp for uptaking ambient noise levels for ambient noise-driven volume control. Unobtrusive ceiling flush-mounting due to flat white baffle. Rear-mounted removable 3-pin screw terminal. Sensitive electret microphone with half space-shaped polar pattern.
