IP-A1SC15

IP Horn Speaker

IP-A1SC15

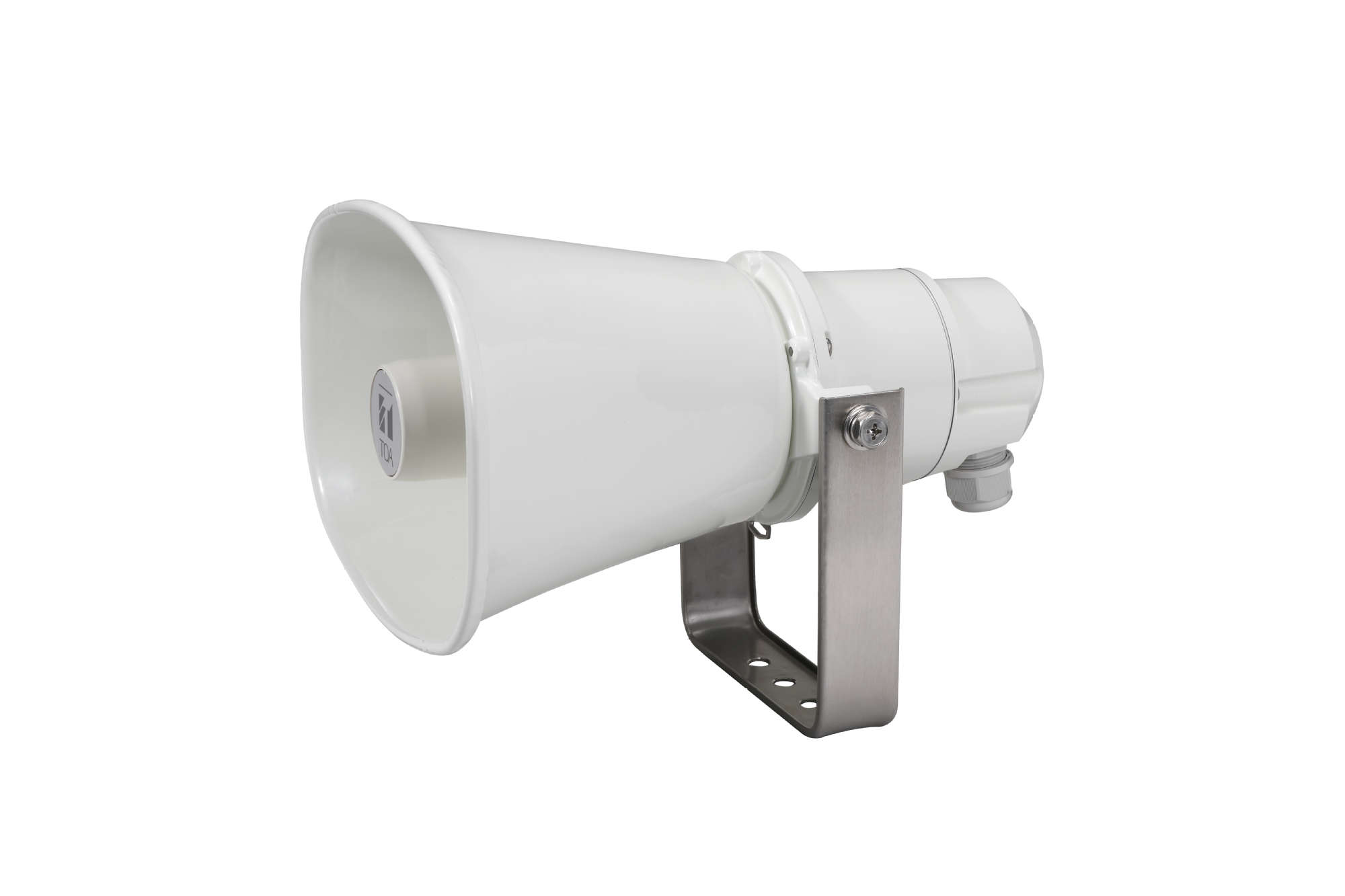

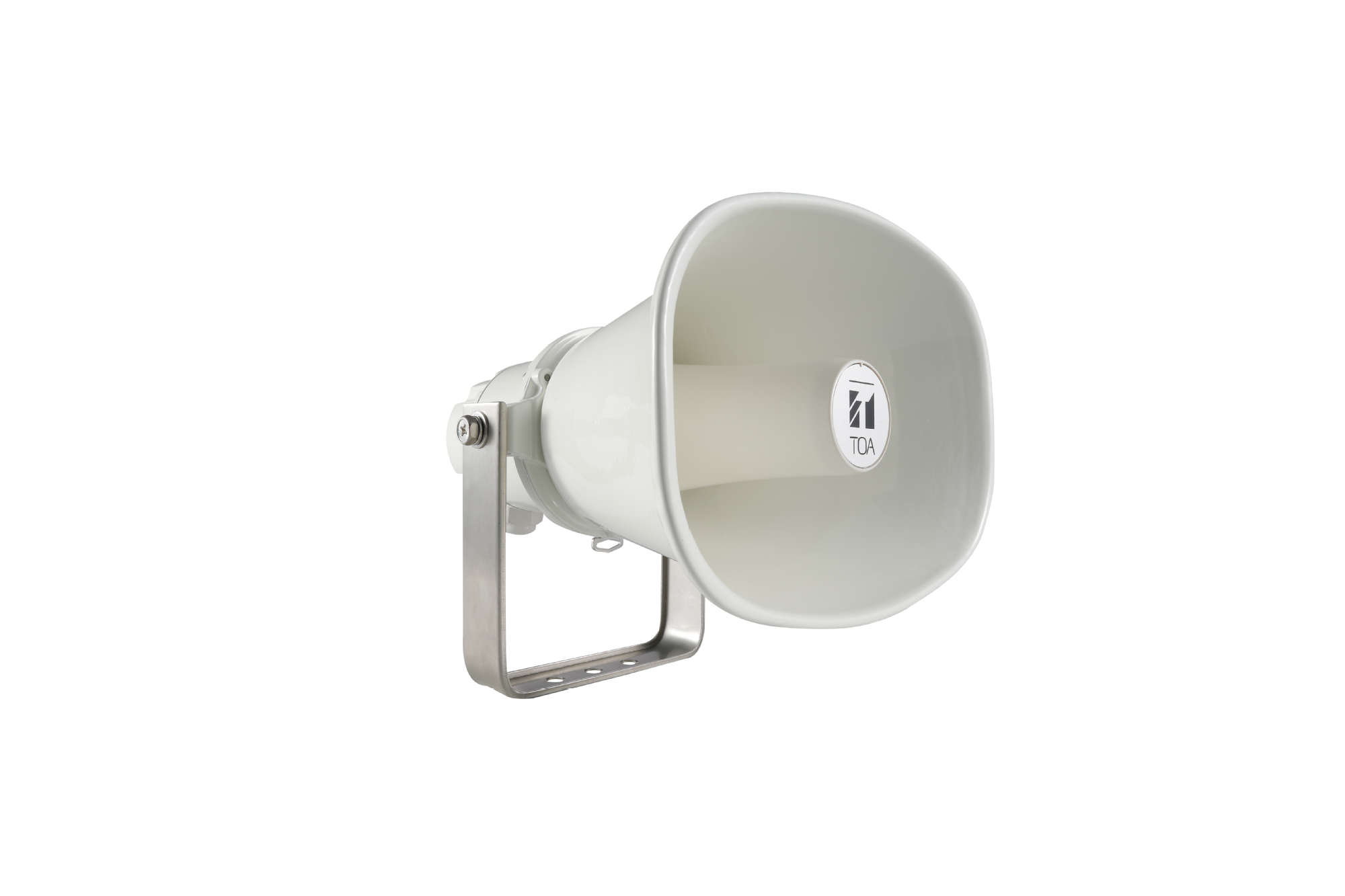

The IP-A1SC15 is an IP paging horn speaker to deliver clear announcements via network with 124 dB output capability powered by PoE+ power source. Its rugged enclosure is IP66 rated for outdoor environments. The IP-A1SC15 supports common network protocols for easy integrations with Video Management Systems and other SIP-compatible VoIP systems and devices. Group paging function is available with 20 Multicast ports for zone paging requirements. Internal sound source file storage allows storing pre-recorded messages or tones which can be played back by 2 control inputs or Remote API (HTTP).

124dB (PoE+ powered) with IP66 rating for outdoor installations
Receive SIP audio, ONVIF Audio and Multicast
Local broadcast using internal audio files
8W (PoE)/15W(PoE+) built-in amplifier, 1 LINE audio output
2 control inputs and 1 control output
HTTP commands (receive)
Audio file storage (20 files, total 80MB, WAV/MP3)
Playback programs (Repeat, Weekly Timer)
PoE/PoE+ powered

Specifications Equipment A&E Specs Downloads

Power Source

PoE+ (IEEE802.3at Class 4), PoE (IEEE802.3af Class 3)

Power Consumption

22 W (at PoE+ powered, rated output)
12.95 W (at PoE powered, rated output)
5 W (IEC62368-1)

Amplifier Rated Output

15 W (at PoE+ powered), 8 W (at PoE powered)

Sensitivity

112 dB (1 W, 1 m) (500 Hz to 2.5 kHz, peak level)

Maximum Sound Pressure Level

124 dB (at PoE+ powered, 15 W, 1 m) (500 Hz to 2.5 kHz, peak level)
121 dB (at PoE powered, 8 W, 1 m) (500 Hz to 2.5 kHz, peak level)

Frequency Response

280 Hz to 12.5 kHz

Audio Codec

Opus, PCMU (G.711u), PCMA (G.711a), G.722

Broadcasting Mode

SIP Broadcasting Mode: Opus/PCMU/PCMA/G.722
Multicast Broadcasting Mode: Opus/PCMU/PCMA/G.722 Auto codec recognition, 20 ports
VMS Broadcasting Mode: PCMU
Internal Message Broadcasting Mode
Note: Each broadcast mode can be assigned an order of priority using the Priority Setting function.

Sound Source Files

Max. 20 files (File storage capacity: 80 MB total)
Supported file formats
WAV file: 8/16/44.1/48 kHz sampling frequency, 8/16 bit, monaural/stereo
MP3 file: 32/44.1/48 kHz sampling frequency, 64 - 320 kbps, CBR/VBR, monaural/stereo
Repeat playback: Playcount(1-10 times), Duration (5-3600 sec) or Timer (from Start time to End time)
Interval time: 0 - 99 sec, Delay time: 0 - 99 sec
Trigger: Control Input or Remote API (HTTP)

Network I/F

100BASE-TX, MDI/MDI-X, RJ-45

Network Protocol

TCP/IP, UDP, HTTP, RTP, RTSP, ARP, ICMP, IGMPv3, NTP, SIP (RFC3261)

Control Input

2 channels, no-voltage make contact inputs, open voltage: 5 V DC, short-circuit current: 2 mA or less, removable terminal block (3 pins)

Control Output

1 channel, open collector output, withstand voltage: 30 V DC, control current: 50 mA or less, removable terminal block (3 pins)

Indicator

LAN LINK/ACT (green), STATUS (orange)

Clock Accuracy

±13 seconds per month

Time Adjustment

Manual time setting, Time adjustment by NTP server

Power Outage Protection Period

24 hours (RTC time retention, at 40 °C (104 °F)

Dust/Water Protection

IP66

Operating Temperature

–30 °C to +55 °C (–22 °F to +131 °F)

Operating Humidity

90 %RH or less (no condensation)

Finish

Horn flare and body: Aluminum, off-white (RAL 9010 equivalent), paint
Reflector horn: ABS resin, off-white (RAL 9010 equivalent)
Rear cover: PC resin, off-white (RAL 9010 equivalent), paint
Bracket, screws and bolts: Stainless steel

Dimensions

222 (W) x 211 (H) x 276 (D) mm (8.74" x 8.31" x 10.87")

Weight

1.4 kg (3.09 lb)

Included Accessories

Rear cover x 1, Removable terminal plug (3 pins) x 2

Optional Accessories

Speaker mount bracket: SP-131, SP-201, SP-301
Pole band: YS-60B

Note: Take special care to avoid mounting this speaker directly to structures (such as ski lift towers) that generate large amounts of vibration. Also, do not use this speaker in environments where it may be exposed to oil or other chemicals, as mounting parts could rapidly deteriorate, possibly resulting in personal injury or other accidents due to the speaker falling.
*ONVIF is a registered trademark of ONVIF Inc.
*These specifications apply to the firmware version 3.1.0 or later. For the latest specifications and firmware, please refer to the TOA DATA Library (https://www.toa-products.com/international/)

Please download Datasheet to access full specifications.

Optional Accessory

SP-131

SP-201

The IP horn loudspeaker shall be able to support various standard network protocols and forums such as API (Application Programming Interface), and shall be able to complement VMS (Video Management System) and other network video integration systems.

For the deployment of multiple speakers, multi-cast paging shall be made possible via a SIP microphone or telephone.
The device shall be protected against the ingress of water and dust to IP 66 standards and shall be SIP compliant to broadcast clear and intelligible messages over a wide area via a single network cable.

There shall be two no-voltage control input and an open collector output for broadcast; internal audio source, calling to a SIP telephone and an external beacon, etc.
Remote settings of the IP horn loudspeaker shall be achieved by connection to a Windows® based personal computer and by using the PC’s browser, operational settings, functions, speaker volumes and system status can be achieved.

The frequency response of the loudspeaker shall be between 280 Hz – 12.5 kHz measured on axis with a Sound Pressure Level (SPL) of 124 dB measured at 1 meter with a power input of 15 watts or 121dB with a power input of 8 watts measured at 1 meter. The internal class-D amplifier shall be capable of producing up to 8 watts of power using PoE and up to 15 watts of power when using PoE+.

The IP horn loudspeaker shall operate in temperature conditions of between -30 to + 55 °C (-22 to 131 °F) and shall be constructed from aluminum with an ABS resin reflector horn finished in an off-white (RAL 9010 equivalent), bracket, screws and bolts shall be stainless steel. Dimensions shall be 222(W) ×211(H) ×276(D) mm (8.74“ × 8.31“ × 10.87 “) weighing 1.4kg (3.09 lb).

Optional extras:

Speaker Mount Bracket: SP-131, SP-201, SP-301

Pole Band: YS-60B

manufactured by TOA Corporation

Manufacturer: TOA Corporation
Model: IP-A1SC15
