TS-690BS-AS
Booster Unit
TS-690BS-AS
The TS-690BS is a booster unit used to connect between TS-690 series conference system's central unit and conference units (TS-691L and TS-692L).
Power Source
36V DC (supplied from the Central Unit TS-690)
Current Consumption
Max. 10 mA
Connection Terminal
Connect to Central unit: Cable length 2m with 8 pin DIN plug

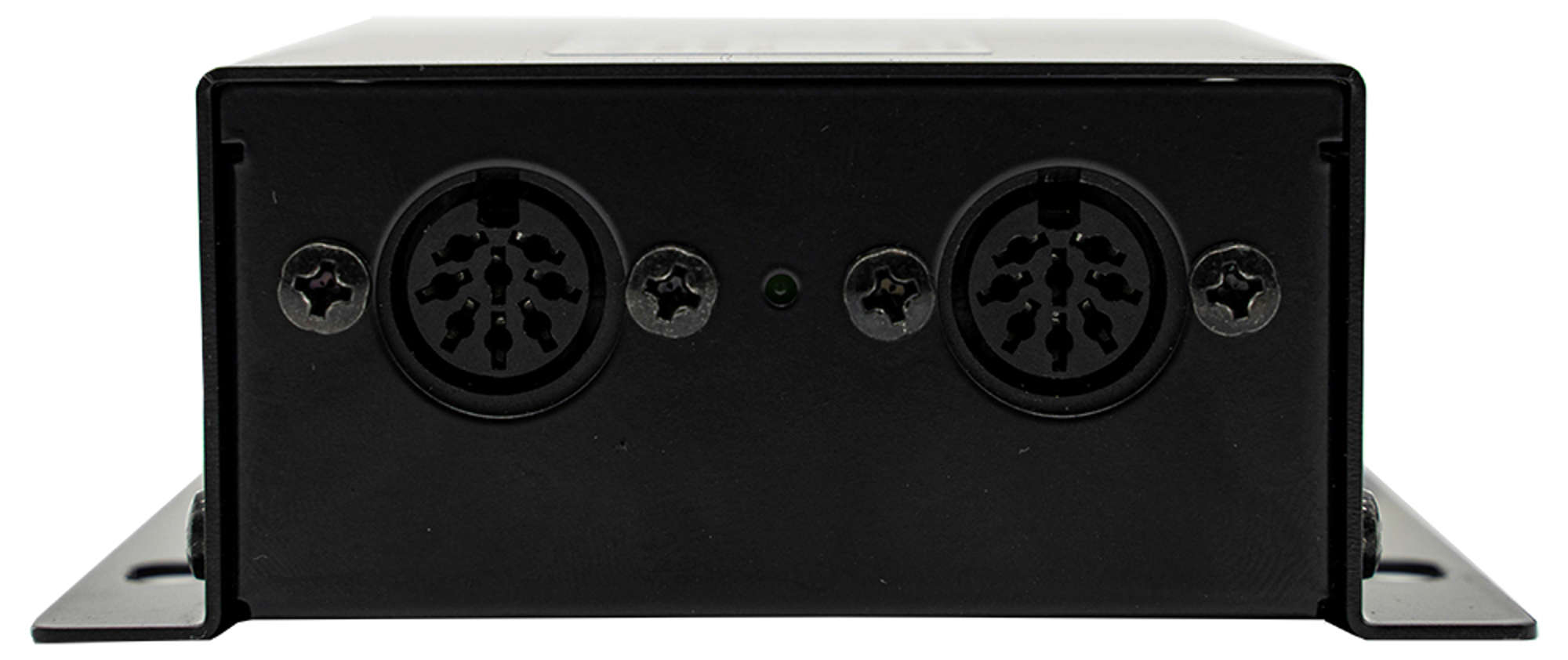

Connect to Conference units: 8 pins DIN socket x 2
Connect to Conference units: 8 pins DIN socket x 2
LED Indicator
Power status indicator
Number of Connectable Conference Units
Max. 30 units
Operating Temperature
0 ゜C to +40゜C(32 ゜F to 104 ゜F)
Operating Humidity
90 %RH or less (no condensation)
Finish
Steel plate, black, 30% gloss, paint
Dimensions
90 (W) x 37 (H) x 97.5 (D) mm
Weight
450 g (1 lb)
Please download Datasheet to access full specifications.
