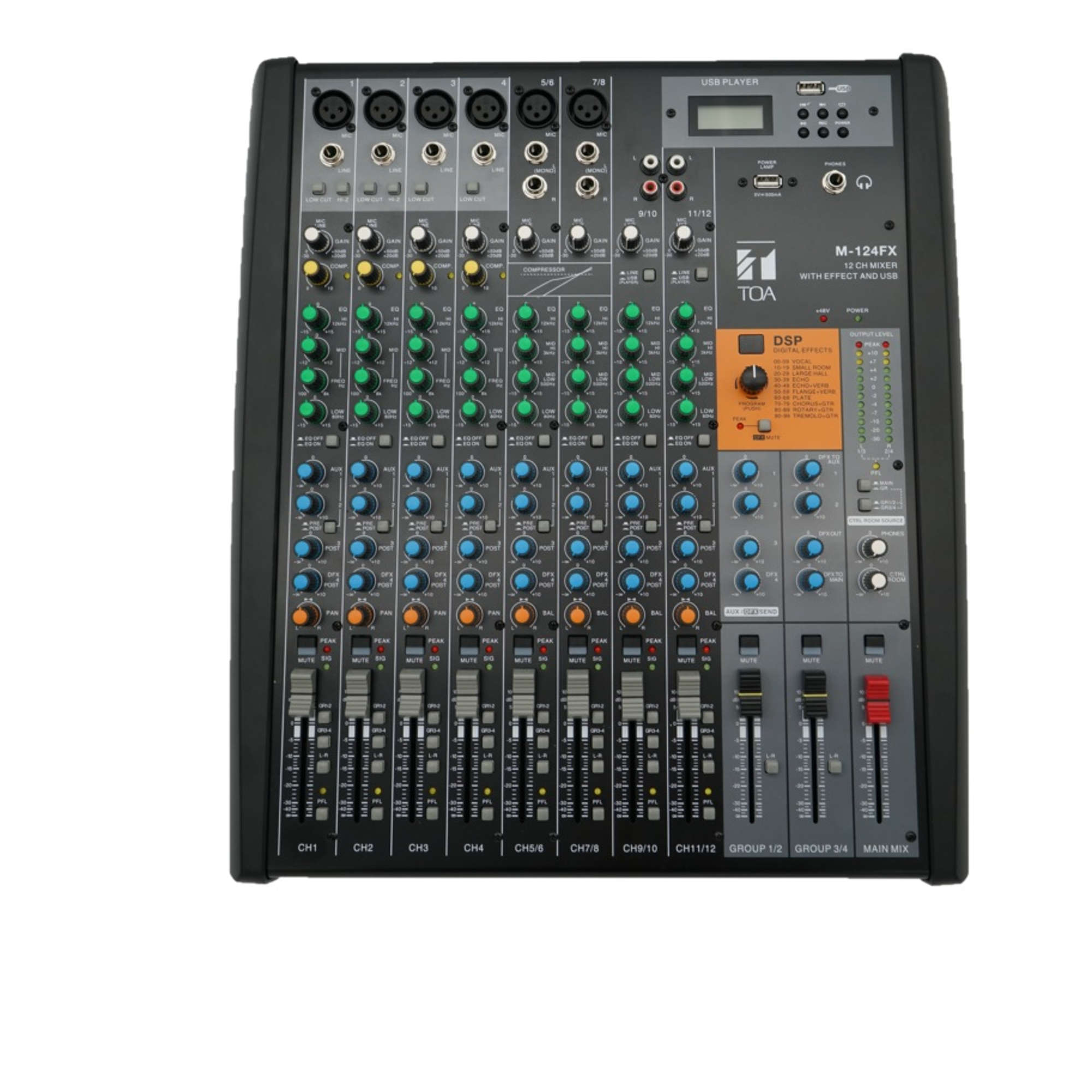

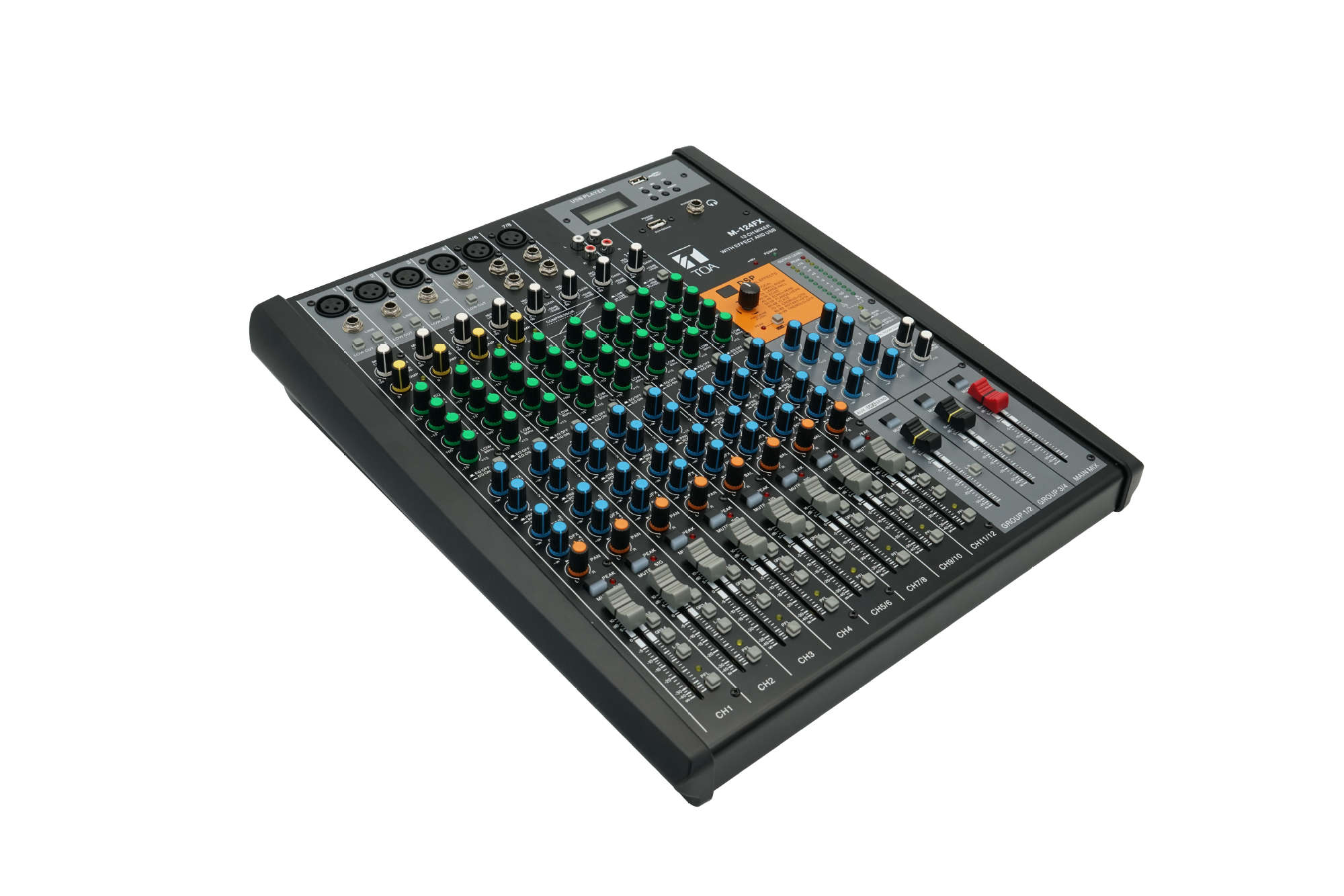

M-124FX-AS
Analogue Console Mixer
M-124FX-AS
The M-124FX is a professional compact 12 Channel Mixing Console with great quality and better reliability. You will get smooth, accurate, more natural and open sound from this apparatus. It is the ideal mixer for gigs, recording and fixed PA installations.
- 12 input channels (4 mono + 4 stereo)
- 6 Mic input with +48V phantom power
- Low cut filter for MIC 1-4 input
- Built-in USB player with playback and recording
- Built-in 24-bit DSP effect with 100 presets
Power Source
100 - 240 V AC, 50 / 60 Hz
Power Consumption
30W
Frequency Response
20 Hz - 20 kHz
Crosstalk
Over 90 dB (A weighted)
Total Harmonic Distortion
0.03 % (LPF 20 kHz)
Signal to Noise Ratio
Over 100 dB (A weighted)
Input
MIC input 1-8: -50dBu, 1.8 kΩ, electronic balanced, female XLR connector
LINE input 1-4: -30dBu, 10 kΩ, electronic balanced, TRS phone-jack
LINE input 5-8: -30 dBu, 10 kΩ, stereo pair, electronic balanced, TRS phone-jack
LINE input 9-12: -30 dBu, 10 kΩ, stereo pair, unbalanced, RCA connector
MAIN INSERT: 0 dBu, 10 kΩ, stereo pair, unbalanced, TRS phone-jack
USB input: Audio formats: MP3, Format: FAT16, FAT32, USB(A) connector
PC input: -30 dBu, USB(B) connector
LINE input 1-4: -30dBu, 10 kΩ, electronic balanced, TRS phone-jack
LINE input 5-8: -30 dBu, 10 kΩ, stereo pair, electronic balanced, TRS phone-jack
LINE input 9-12: -30 dBu, 10 kΩ, stereo pair, unbalanced, RCA connector
MAIN INSERT: 0 dBu, 10 kΩ, stereo pair, unbalanced, TRS phone-jack
USB input: Audio formats: MP3, Format: FAT16, FAT32, USB(A) connector
PC input: -30 dBu, USB(B) connector
Output
MAIN MIX OUTPUT: 0 dBu, 120 Ω, stereo pair, electronic balanced, male XLR connector/TRS phone-jack
MAIN INSERT: 0 dBu, 120 Ω, stereo pair, unbalanced, TRS phone-jack
DFX OUT: 0 dBu, 120 Ω, stereo pair unbalanced, TRS phone-jack
CTRL ROOM: 0 dBu, 120 Ω, stereo pair, unbalanced, TRS phone-jack
GROUP OUT 1-4: 0 dBu, 120Ω, stereo pair, unbalanced, TRS phone-jack
AUX SEND 1-4: 0 dBu, 120 Ω, stereo pair, unbalanced, TRS phone-jack
MAIN INSERT: 0 dBu, 120 Ω, stereo pair, unbalanced, TRS phone-jack
DFX OUT: 0 dBu, 120 Ω, stereo pair unbalanced, TRS phone-jack
CTRL ROOM: 0 dBu, 120 Ω, stereo pair, unbalanced, TRS phone-jack
GROUP OUT 1-4: 0 dBu, 120Ω, stereo pair, unbalanced, TRS phone-jack
AUX SEND 1-4: 0 dBu, 120 Ω, stereo pair, unbalanced, TRS phone-jack
Equalizer/Filter
Channel 1-4: ±15dB at 80Hz, ±12dB at 100Hz-8kHz, ±15dB at 12kHz
Channel 5-12: ±12dB at 80Hz, ±15dB at 500Hz, ±15 at 8kHz, ±12dB at 12kHz
Channel 5-12: ±12dB at 80Hz, ±15dB at 500Hz, ±15 at 8kHz, ±12dB at 12kHz
Compressor
0 - 10 dB
Indicator
Power (green) x1, +48V (red) x1, mute (red) x11, signal (green) x8, peak (red) x8, Output level (green) x18, (yellow) x4, (red) x2, PFL (yellow) x9, DFX mute (red) x1, compressor (yellow) x4
Operating Temperature
0 °C - 40 °C (32 °F - 104 °F)
Finish
Steel plate, black
Dimensions
388.1(W) x 433.2 (H) x 89.4 (D) mm
Weight
5.5 kg
Please download Datasheet to access full specifications.
