HA-1060EN
Long Range Array Speaker

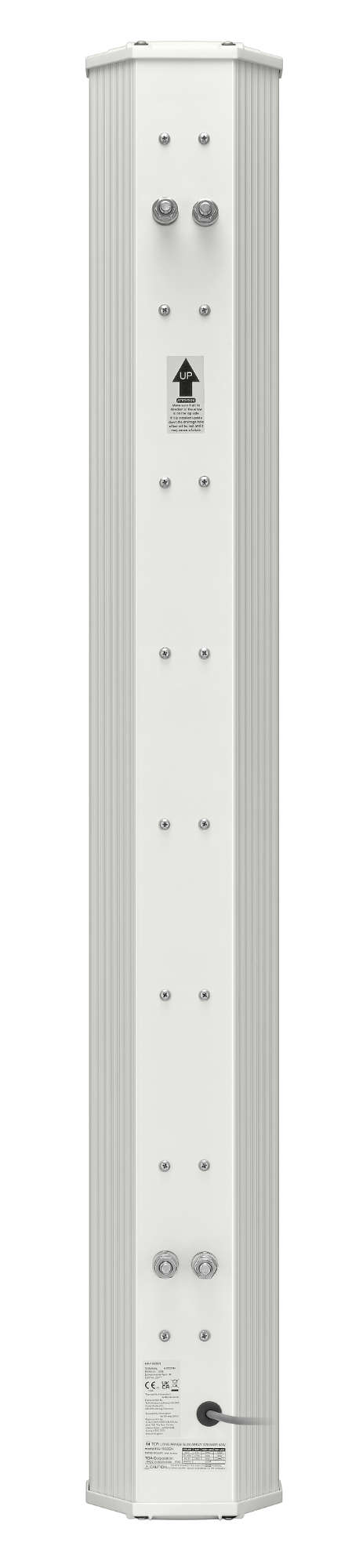

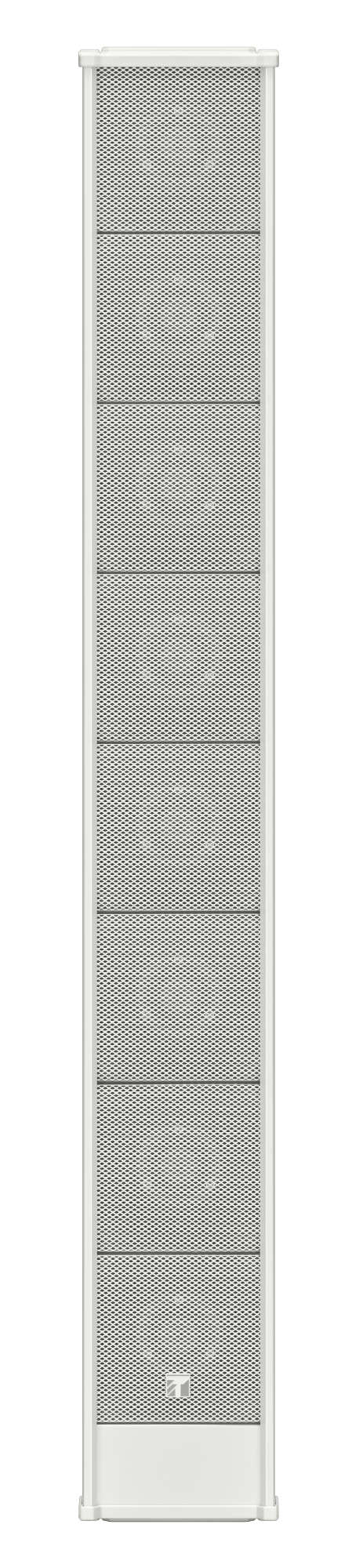

HA-1060EN
The HA-1060EN is composed of multiple horn speakers positioned in an array. It is a highly efficient speaker. Clear voice can be transmitted to a distant place without acoustic correction. The built-in high-pass filter cuts the bass that can damage the speaker. A double drip-proof structure, and a salt-resistant paint finish, it has excellent durability in an outdoor permanent environment.
The HA-1060EN is certified to the European Standard EN 54-24: 2008, Loudspeaker for voice alarm systems for fire detection and fire alarm systems
In compliance with the British Standard BS 5839-8: 2008. DoP number is 23-103.
- Horn array for clear long-range voice projection
- IP66-rated for harsh outdoor use
- Weatherproof durability with double drip-proof design and saltresistant paint finish
- Wide horizontal coverage for broad-area public address applications
- Built-in high-pass filter for speaker protection
- EN 54-24 compliant for evacuation systems
- Optional mounting bracket for flexible installation
Rated Input
60 W
Rated Impedance
100 V line: 170 Ω (60 W), 330 Ω (30 W)
70 V line: 83 Ω (60 W), 170 Ω (30 W)
70 V line: 83 Ω (60 W), 170 Ω (30 W)
Sensitivity
111 dB (1 W, 1 m) (500 Hz - 5 kHz, IEC60268-5)
Max. SPL
128 dB (60 W, 1 m) (500 Hz - 5 kHz, IEC60268-5)
Frequency Response
520 Hz - 4.6 kHz (-10 dB), 350 Hz - 11 kHz (-20 dB)
Speaker Component
Horn speaker unit x 8
Input Terminal
Ceramic terminal (3-pole), can be bridge-connected x1, Ceramic terminal (2-pole) x 1, Thermal fuse is included.
Cable Gland
Size: PG 13.5 - 12 (gray) x 1, Cable Diameter Range: 12.5 - 6.5 mm ( 0.49" - 0.26")
Size: PG 13.5 - 08 (black) x 1, Cable Diameter Range: 9 - 4.5 mm ( 0.35" - 0.18"), Two cable glands are factory-installed.
Size: PG 13.5 - 08 (black) x 1, Cable Diameter Range: 9 - 4.5 mm ( 0.35" - 0.18"), Two cable glands are factory-installed.
Speaker Cable
4-core cabtype cord 2 m (6.56 ft)
Compatible Wire
For Ceramic terminal (3-pole), Conductor: Solid wire or 7-core wire
No bridge connection: 0.8 - 10 mm² (AWG 18 - 7) for solid wire, 0.8 - 8 mm² (AWG 18 - 8) for 7-core wire
Bridge connection: 0.8 - 2.5 mm² (AWG 18 - 13) for solid wire, 0.8 - 1.5 mm² (AWG 18 - 15) for 7-core wire
No bridge connection: 0.8 - 10 mm² (AWG 18 - 7) for solid wire, 0.8 - 8 mm² (AWG 18 - 8) for 7-core wire
Bridge connection: 0.8 - 2.5 mm² (AWG 18 - 13) for solid wire, 0.8 - 1.5 mm² (AWG 18 - 15) for 7-core wire
IP Code
IP66
EN 54-24 Specifications
Sensitivity: 89 dB (1 W, 4 m), Max. SPL: 106 dB (60 W, 4 m)
Coverage Angle (-6 dB):
Horizontal: 190° (500 Hz), 165° (1 kHz), 85° (2 kHz), 45° (4 kHz)
Vertical: 40° (500 Hz), 25° (1 kHz), 15° (2 kHz), 15° (4 kHz)
Environmental Type: B (outdoor applications)
IP Code: IP33C
Coverage Angle (-6 dB):
Horizontal: 190° (500 Hz), 165° (1 kHz), 85° (2 kHz), 45° (4 kHz)
Vertical: 40° (500 Hz), 25° (1 kHz), 15° (2 kHz), 15° (4 kHz)
Environmental Type: B (outdoor applications)
IP Code: IP33C
Operating Temperature
-20 °C to +55 °C (-4 °F to 131 °F)
Finish
Case: Aluminum, white (RAL 9016 equivalent), salt-resistant, paint
Front grille: Aluminum, white (RAL 9016 equivalent), paint, Bolts: Stainless steel
Front grille: Aluminum, white (RAL 9016 equivalent), paint, Bolts: Stainless steel
Dimensions
167 (W) X 1233 (H) X 140.5 (D) mm (6.57" X 48.54" X 5.53")
( excluding projection)
Weight
14 kg (30.86 lb) (unit only)
Included Accessories
Terminal box x 1
Optional Accessories
Speaker mounting bracket: YS-1100A
Notes: The speaker must be installed upright or facing down. Installing the speaker in any other position may render the drainage hole ineffective, eventually leading to an electrical failure or other damage.
Please download Datasheet to access full specifications.
Optional Accessory
The Long Range Array Speaker shall be designed for outdoor public address and emergency voice alarm systems requiring high intelligibility and long-distance coverage. The speaker shall incorporate eight horn speaker units arranged in a vertical array to achieve narrow vertical and wide horizontal directivity.
The speaker shall have a rated input of 60 W and support 100 V and 70 V line systems with selectable impedance settings of 170 Ω (60 W) and 330 Ω (30 W) for 100 V, and 83 Ω (60 W) and 170 Ω (30 W) for 70 V. Sensitivity shall be 111 dB (1 W, 1 m), and maximum SPL shall be 128 dB (60 W, 1 m).
The frequency response shall be 520 Hz – 4.6 kHz (–10 dB) and 350 Hz – 11 kHz (–20 dB). The speaker shall include a built-in high-pass filter for speaker protection. Coverage angle shall be 165°(1 kHz) for horizontal and 25°(1 kHz) for vertical. The speaker shall comply with EN 54-24 standards.
Input terminals shall be ceramic type, consisting of one 3-pole and one 2-pole terminal, and shall include a thermal fuse. The enclosure shall be aluminum with a white RAL 9016 salt-resistant paint finish and stainless steel bolts. The speaker shall be IP66-rated for dust and water protection.
The operating temperature range shall be –20 °C to +55 °C (–4 °F to +131 °F).
Dimensions shall be 167 (W) × 1233 (H) × 140.5 (D) mm (6.57" × 48.54" × 5.53"), and weight shall be 14 kg (30.86 lbs).
Optional extras: Speaker Mounting Bracket (YS-1100A)
Manufacturer: TOA Corporation
Model: HA-1060EN
