F-03BT-WP-UE
Surface Mount Speaker System

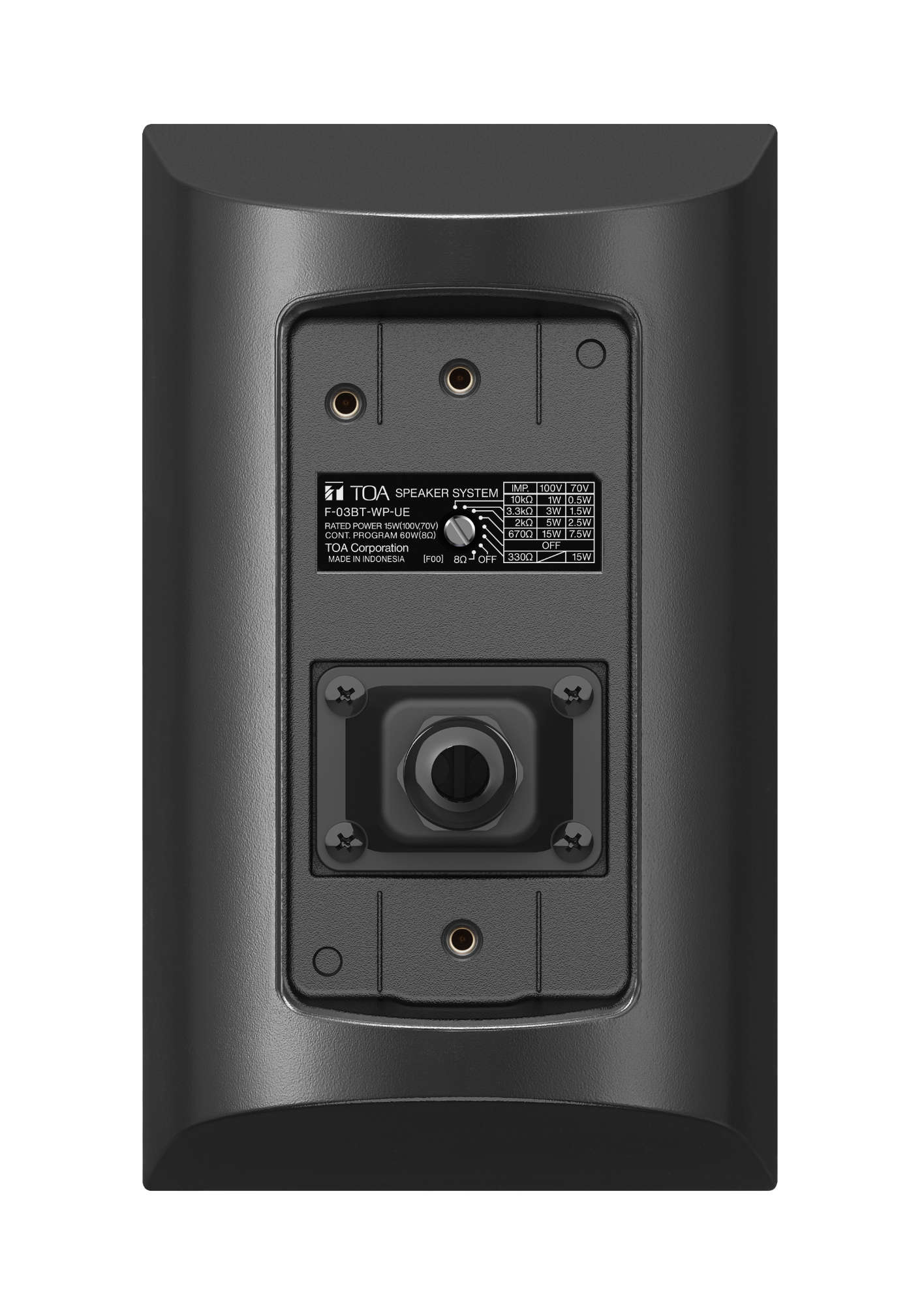

F-03BT-WP-UE
The F-03BT-WP-UE is a full-range surface-mount speaker system designed to deliver high-quality audio for a variety of applications, This versatility makes it ideal for foreground or background music playback, as well as public address announcements. It is IP65-rated and compliant with EN 54-24 Type B as well as UL 1480A (UEAY (Outdoor use).
The F-03BT-WP-UE is certified according to the European Standard EN 54-24: 2008, DoP number is 24-105.
- Versatile 3.5-inch full-range surface-mount speaker system
- Perfect for music and announcements
- Sleek design for seamless integration with walls and ceilings
- Flexible angle adjustment for both wall and ceiling mounts
- IP65-rated for dust and water resistance
- Comliant with EN 54-24 and UL 1480A (UEAY outdoor use)
- Ideal for permanent installs or portable setups
Continuous program: 60 W (8Ω) (*1)
100 V line: 670 Ω (15 W), 2 kΩ (5 W), 3.3 kΩ (3 W), 10 kΩ (1 W)
70 V line: 330 Ω (15 W), 670 Ω (7.5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)
Solid wire, Twisted wire: 0.3 - 3.3 mm² (AWG 22 - 12)
Max. SPL: 85 dB (15 W, 4 m)
Coverage Angle (-6 dB):
Horizontal: 360° (500 Hz), 190° (1 kHz), 125° (2 kHz), 100° (4 kHz)
Vertical: 360° (500 Hz), 150° (1 kHz), 130° (2 kHz), 110° (4 kHz)
Environmental Type: B (outdoor applications)
IP Code: IP33C
Grille: Aluminum, black (RAL 9011 equivalent), paint
U bracket, Speaker bracket: Stainless steel, t2, black (RAL 9011 equivalent), paint
(*2) Avoid installing the speaker in areas with corrosive gases, such as coastal or hot spring areas, or in poorly ventilated indoor swimming facilities, or places with dust or strong wind. Corrosion may cause the speaker to fall, resulting in injury.
(*3) Keep the front part of speaker away from direct sunlight. Otherwise, ultraviolet rays deteriorate the speaker unit's cone, causing the speaker to malfunction.
Note : Bolts and nuts for mounting the bracket to the wall or ceiling are not included. Prepare them separately.
Please download Datasheet to access full specifications.
The speaker shall be a full-range sealed type enclosure for ceiling or wall mounting. The driver shall be a 9 cm (3.5") PP cone-type full-range speaker. The speaker shall have a rated noise power handling capacity of 30 W (8 Ω) and continuous program power 60 W (8 Ω). The rated input for the speaker shall be 15 W when connected to 100 V or 70 V line systems. The speaker shall offer multiple tap settings, including 670 Ω (15 W), 2 kΩ (5 W), 3.3 kΩ (3 W), and 10 kΩ (1 W) for the 100 V line, and 330 Ω (15 W), 670 Ω (7.5 W), 2 kΩ (2.5 W), 3.3 kΩ (1.5 W), and 10 kΩ (0.5 W) for the 70 V line. The impedance shall be 8 Ω for direct connection.
The speaker shall have a sensitivity of 86 dB at 1 W, measured at 1 m distance in a 1/2 free sound field. The frequency response of the speaker shall range from 100 Hz to 20 kHz, with a -10 dB variance in a 1/2 free sound field. The directivity angle of the speaker shall be 100° horizontally and 100° vertically, ensuring broad coverage for optimal sound dispersion. The speaker shall have an ingress protection rating of IP65, providing resistance against dust and water for reliable operation in various environments.
The speaker shall comply with EN 54-24:2008 and UL 1480A (UEAY outdoor use). The specifications in accordance with EN 54-24 shall include a sensitivity of 73 dB (1 W, 4 m), a maximum sound pressure level (SPL) of 85 dB (15 W, 4 m), and a coverage angle (-6 dB) of Horizontal 360° (500 Hz), 190° (1 kHz), 125° (2 kHz), 100° (4 kHz) and Vertical 360° (500 Hz), 150° (1 kHz), 130° (2 kHz), 110° (4 kHz). The ingress protection rating in accordance with EN 54-24 shall be IP33C.
The enclosure shall be constructed of high-impact polystyrene (HIPS) and finished in either black or white. The grille shall be made of aluminum and finished to match the enclosure color.
The U-bracket and speaker bracket shall be made of stainless steel and shall be painted to match the finish of the enclosure.
The speaker shall be capable of operating in a temperature range from -10°C to +50°C (14°F to 122°F). The overall dimensions of the speaker shall be 130 mm (W) x 221 mm (H) x 132 mm (D) (5.12" x 8.7" x 5.2"), and the weight shall be 1.7 kg (3.75 lbs.).
Included accessories shall consist of one U-bracket, two speaker brackets, one set of bracket fixing screws, one terminal cover, and four terminal cover mounting screws.
Manufacturer: TOA Corporation
Model: F-03BT- WP-UE/F-03WT- WP-UE
