ER-2215S-AS

Shoulder Type Megaphone with Siren Signal

Shoulder Type Megaphone with Siren Signal

ER-2215S-AS

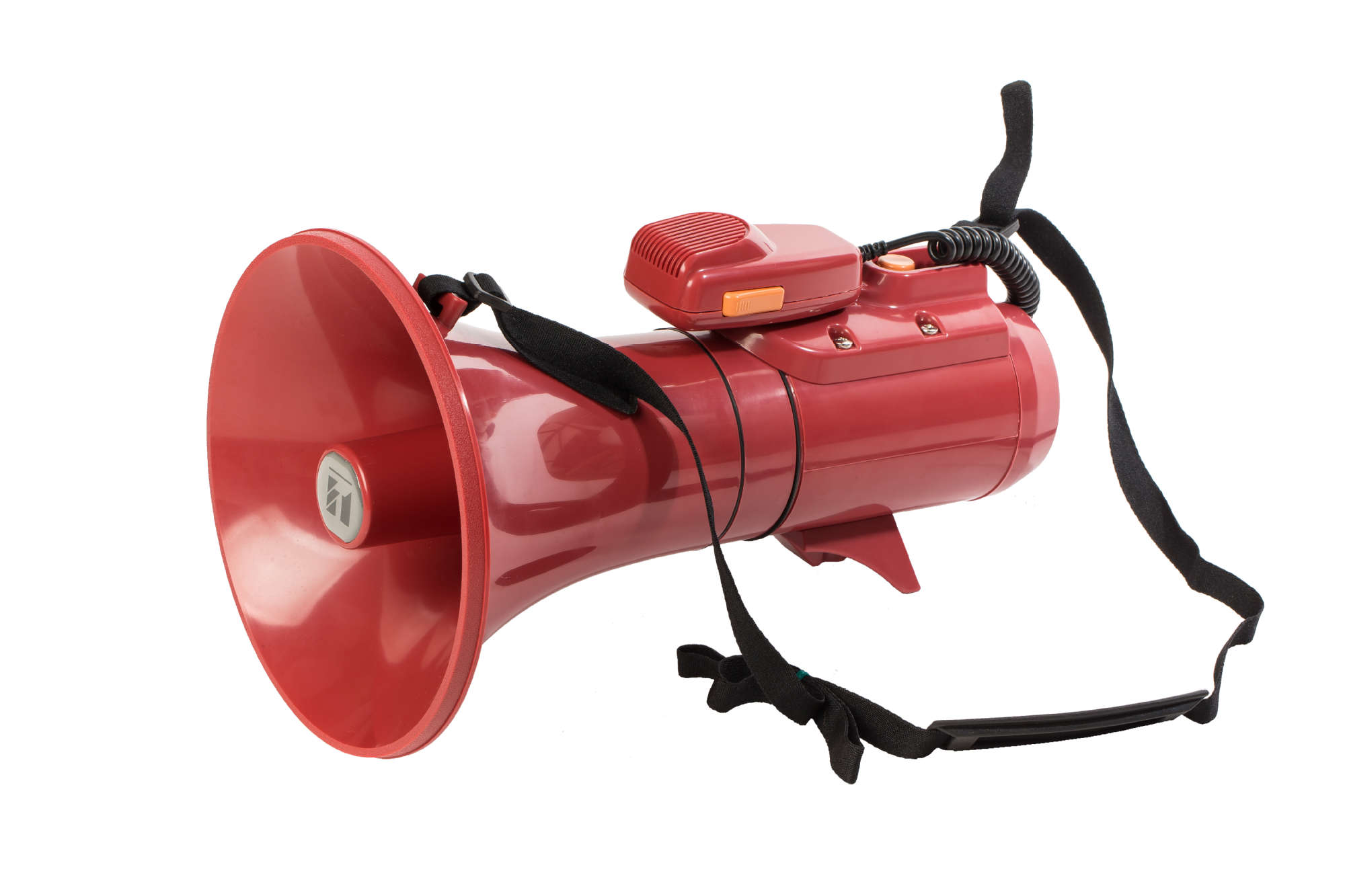

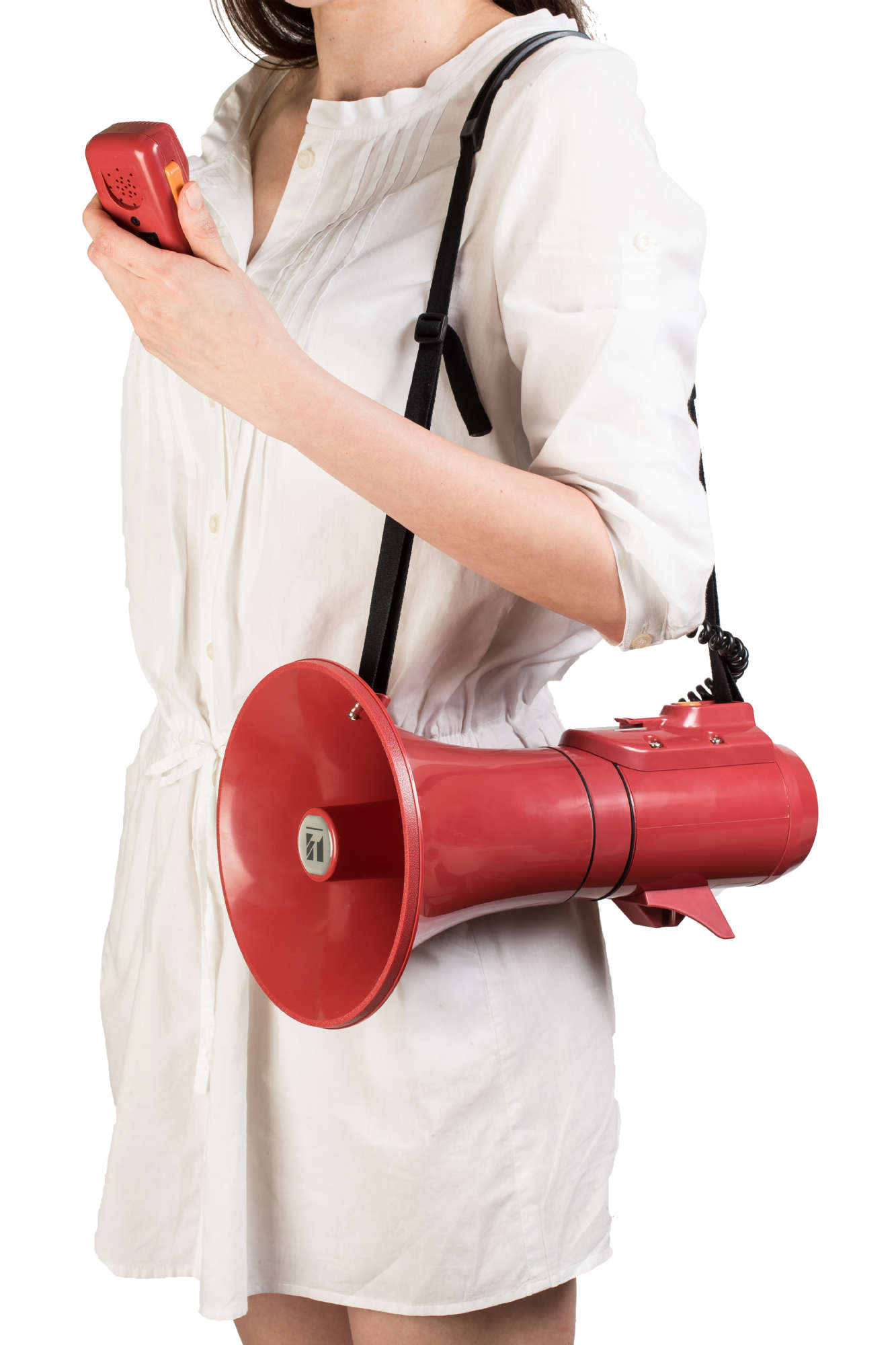

The ER-2215S is a shoulder megaphone rated at 15 W of output. The ER-2215S comes with a siren and has a separate microphone. It can be mounted to the optional ST-16A speaker stand. The newly developed polyimide diaphragm is employed to ensure high sound quality.

Specifications Equipment A&E Specs Downloads

Power Source

Battery R14P (SUM-2), Size "C"× 6 (9 V DC)

Rated Output

15 W

Maximum Output

23 W

Audible Range

Voice: Approx. 400 m (JEITA)*
Siren: Approx. 500 m (JEITA)*

Signal Sound

Siren (sounds at 5 seconds intervals)

Diaphragm

Polyimide film (voice coil, bobbin)

Battery Life

Voice: Approx. 9 hours (JEITA)*
Siren: Approx. 20 minutes (JEITA)*

Operating Temperature

-10 °C to +40 °C

Finish

Horn: ABS resin, red
Microphone and other: ABS resin, red
Strap: Nylon, black

Dimensions

Ø210 × 336 mm

Weight

Body: 1.2 kg (without microphone and batteries)
Microphone: 150 g

Optional Accessories

Speaker stand: ST-16A

Note: Batteries are optional.
*JEITA: Japan electronics and information technology industries association. (EIAJ TT-4501A)

Please download Datasheet to access full specifications.

Optional Accessory

ST-16A

The megaphone is a shoulder-type megaphone has a detectable microphone with rated output at 15W (23W max). The ER-2215S comes with a build-in siren. It can be mounted to the optional ST-16A speaker stand. The newly developed polyimide diaphragm is employed to ensure high sound quality. The approximated talk time is 9 hours and approximated Siren time 20 minutes. Battery requirement shall be 6 pieces of size “C”. Compact shoulder type megaphone made of ABS resin, red and pistol grip, red. The volume control in the handle built-in siren by pressing initiated, Strap: Nylon, black Output power: 15 W / 23 W max Range according to EIAJ: up to approx. 400 m Reach siren according to EIAJ: up to 500m Dimensions (W x D): Ø210 x 336 mm Body Weight: 1.2 Kg (without battery) Microphone weight: 150 g . The Shoulder Type Megaphone with Siren shall be the TOA model ER-2215S-AS.
