D-2012C

D-2012C CE

Remote Console Unit

D-2012C

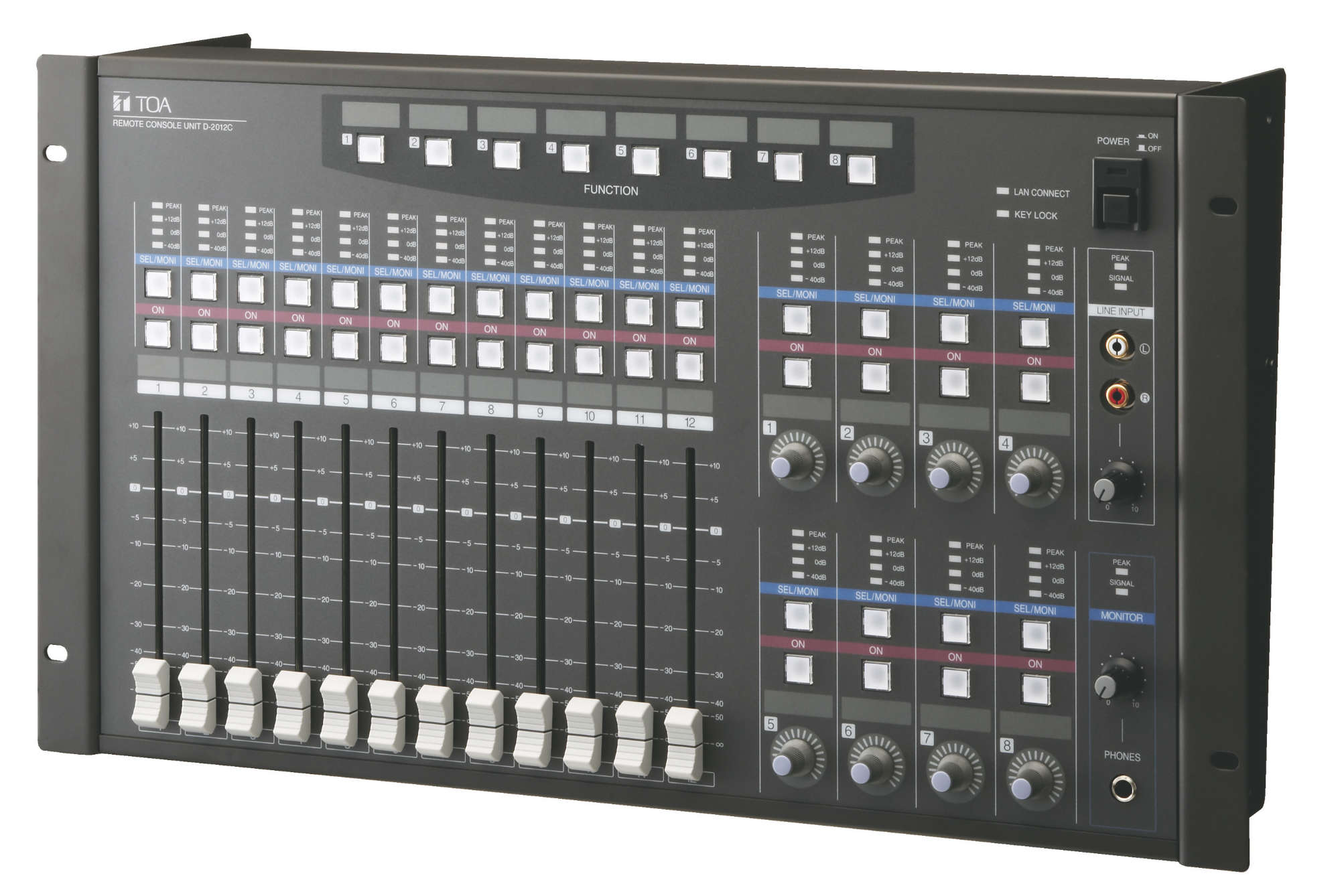

The D-2012C is a 6U rack mountable Remote Console Unit designed for exclusive use with the D-2008SP Digital Mixing Processor Unit. Assigned to any desired channels inside the D-2008SP by the dedicated software, the D-2012C's 12 motorized faders and 8 rotary encoders can remotely adjust their volumes. Desired preset memories can be recalled using 8 function keys. It is equipped with 1 channel line input (stereo), which allows the audio signal to be transmitted to the D-2008SP via monitor bus. Audio signals inside the D-2008SP can be monitored via monitor bus through headphones connected to a stereo headphone output. The D-2012C can be installed on a desk with the additional use of an optional D-2012AS Console Case.

Mixing console offers easy user operation
The digital mixing processor D-2008SP can be connected via network
12 motorized faders and 8 rotary encoders
Access to up to 80 channels
Simplified mixing operation that suit nonprofessional users
Monitoring of input and output channel signal levels
Recalling preset memory settings
Contact control

Specifications Equipment A&E Specs Downloads

*0 dB = 0.775 V

Power Source

220 - 240 V AC, 50/60 Hz

Power Consumption

18 W

Volume Adjustment

100 mm (3.94") motorized fader x 12, rotary encoder x 8

Line Input

1 channel (stereo), +10 to -20 dB*, 10 kΩ, unbalanced, RCA Pin-jack

Headphone Output

Stereo, 100 mW + 100 mW (at 32 Ω load), standard stereo phone jack

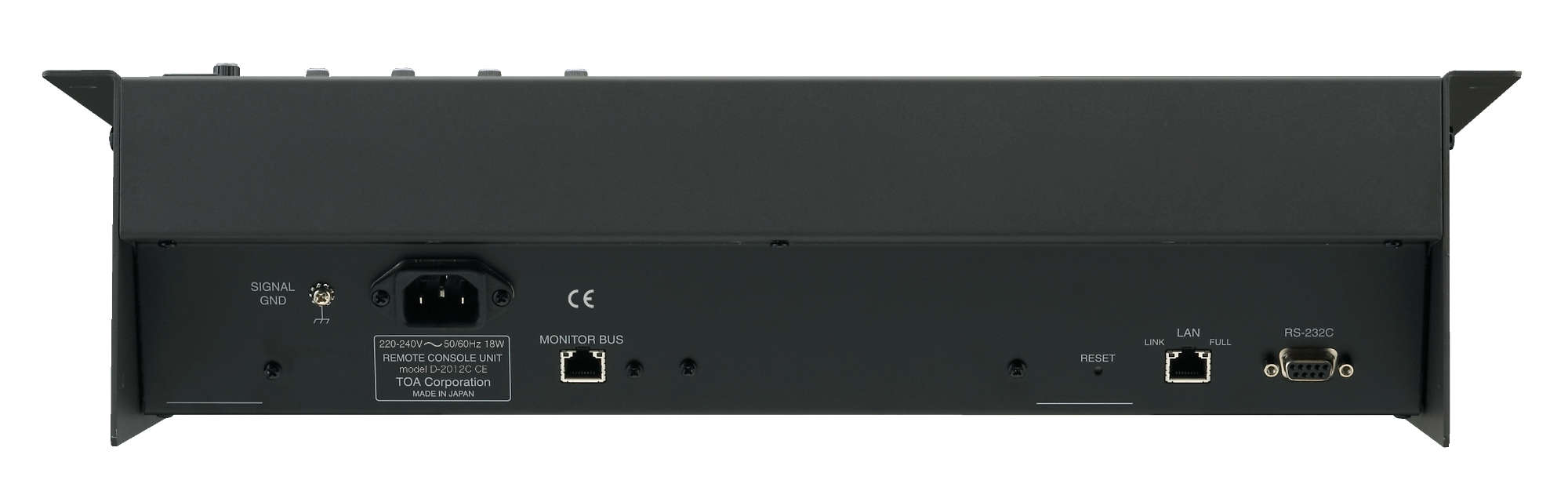

Monitor Bus

1 stereo input, 1 stereo output
Connector: RJ45 connector
Connection cable: Shielded twisted pair (STP) Cat 5 or higher LAN cable
Maximum cable distance: 100 m or 109.36 yd (between D-2012C and D-2008SP)

LAN

Network I/F: 1 channel, 10BASE-T- or 100BASE-TX (Automatic-Negotication), RJ45 connector, Connected via a switching hub
Network Protocol: TCP/IP
Connection cable: Shielded twisted pair (STP) Cat 5 or higher LAN cable
Maximum cable distance: 100 m or 109.36 yd (between D-2012C and a switching hub)

Control

RS-232C: D-sub connector (9 pins) for maintenance use

Operating Temperature

5 °C to 40 °C (41 ºF to 104 ºF)

Finish

Panel: Surface-treated steel sheet, laminated with polycarbonate sheet, gray, mat
Rack mounting bracket: Surface-treated steel sheet, gray, mat

Dimensions

482 (W) x 266 (H) x 138 (D) mm (18.98" x 10.47" x 5.43")

Weight

6.6 kg (14.55 lb)

Included Accessories

Power cord (2m (6.5 ft) x 1, Rack mounting screw x 4, Fader knob (yellow) x 3, Fader knob (red) x 3, Cord clamp (fitting screw) x 1

Optional Accessories

Console case: D-2012AS

Please download Datasheet to access full specifications.

Optional Accessory

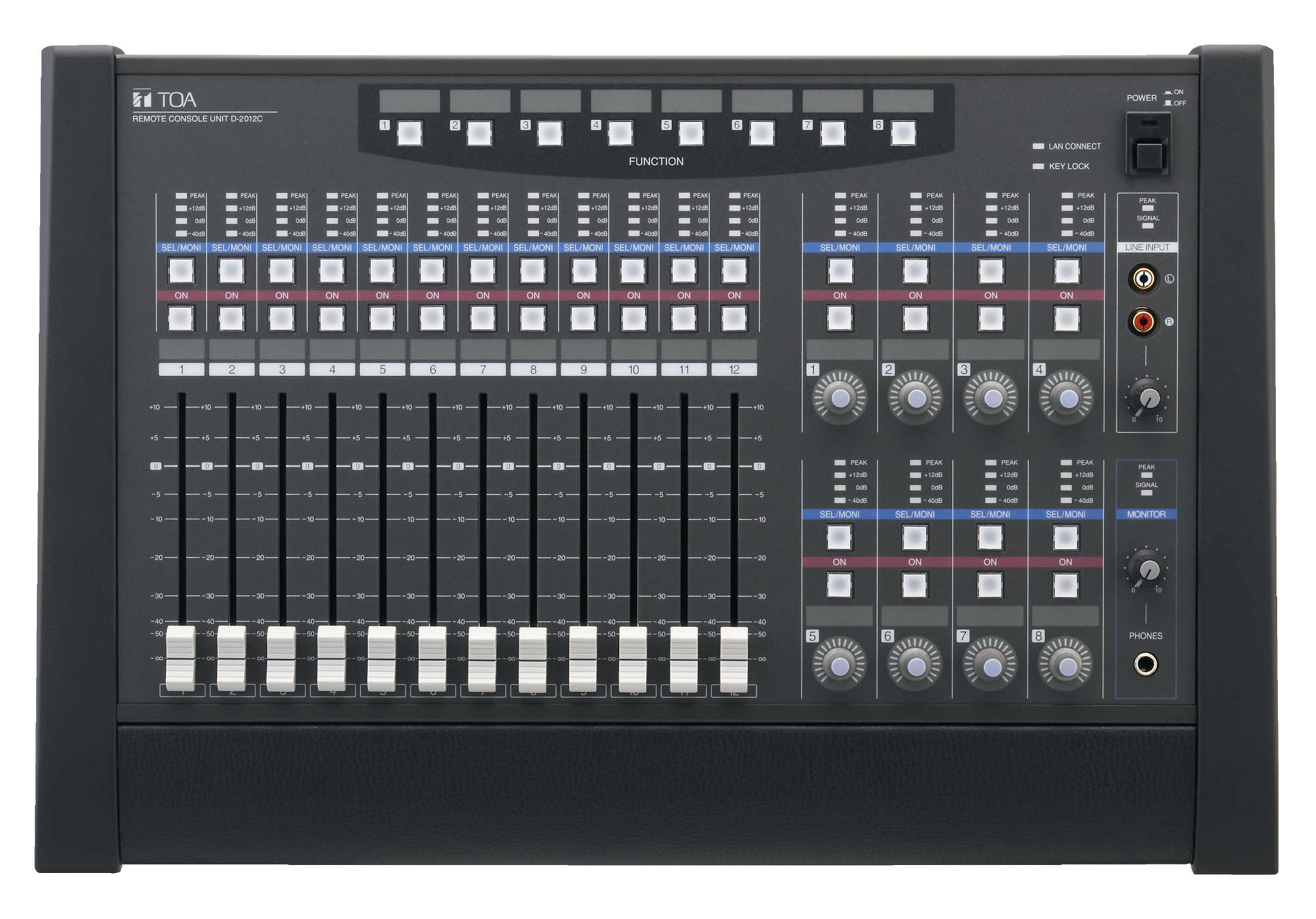

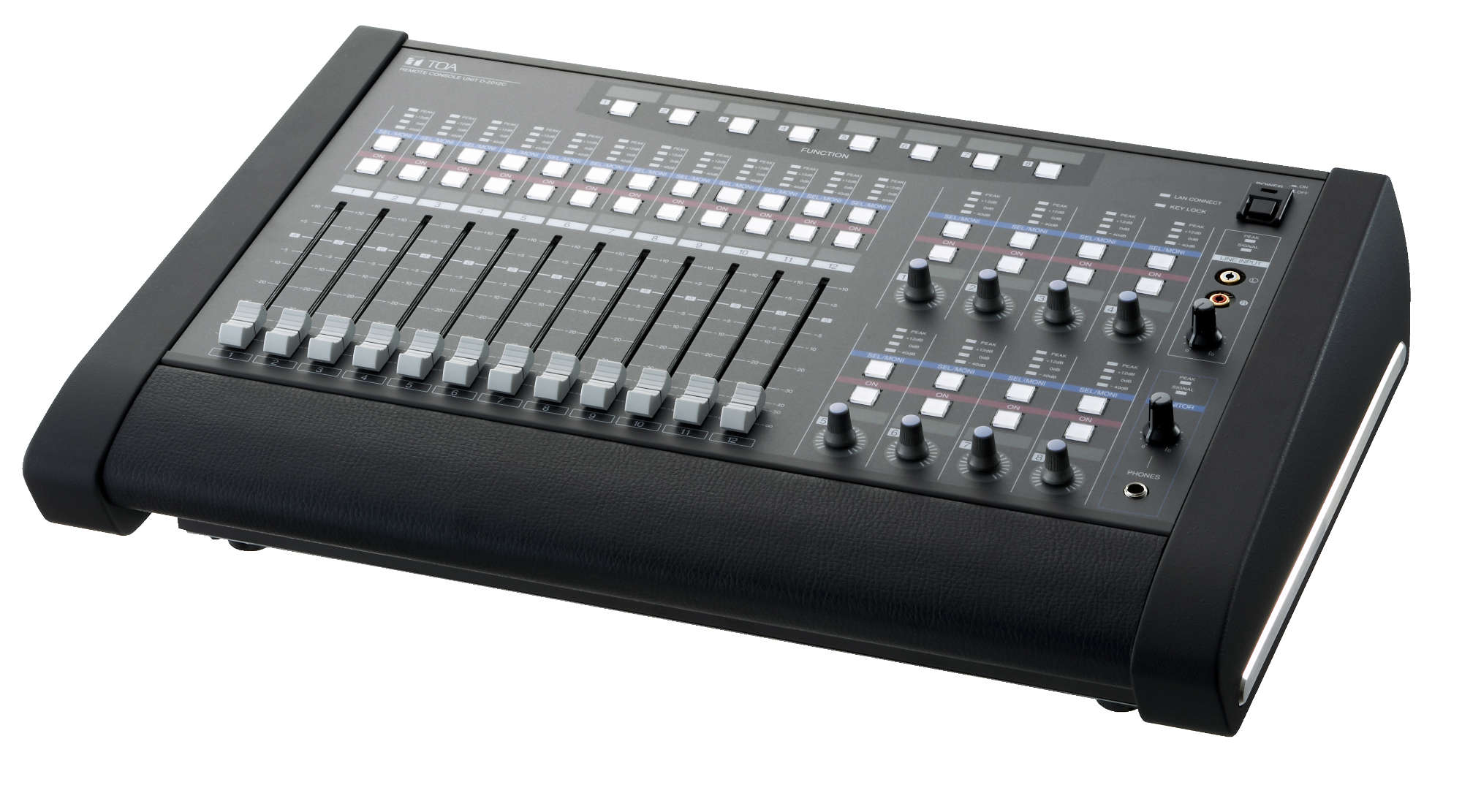

D-2012AS

Remote control console in 19-inch version, 12 smooth-running 100 mm motor faders with 8 rotary encoders to the continuous volume of 12 inputs and 8 outputs, 8 push buttons with integrated LEDs programmable functions such as preset option, input channel selection, channel switch / switch off and gradually increase the volume / lower, light-emitting diode display of preset selection, input channel selection and channel, switched on or off. Level indicated by the LED row for all control. Switch to the remote activation of a single digital mixer or of the complete system. Equipped with a stereo RCA line input to the audio input on the monitor bus. Stereo headphone output signal control in the overall system. Connector RS-232 for parameterization, remote control over media control, to service purposes and to the firmware update. 10BASE-t/100BASE-TX RJ-45 network connector for system connection via TCP/IP. Symmetrical monitor bus with a send and a return channel.

Separate table enclosure with padded wrist rest optional. Manufacturer strangers adapted or consoles created by special are disallowed due to interchangeability, replenishment and service. The console should contain no internal audio signal processing on the basis of simple cabling and interference.
