SS-1010R AS

Speaker Selector

SS-1010R AS

TOA Speaker Selectors are designed to effectively select required speaker zones in a public address system and is ideal for small to medium-sized installation. Up to 10 speaker zones for paging and background music can be selected. For all models, in the situation where announcements have to be made to all zones, an All Call button can be selected to broadcast the message to all areas. For SS-1010 previously selected BGM zones will be mute when paging is done to other zones. With the SS-2010, uninterrupted background music setup can be configured so that paging in one zone does not affect the background music in other zones.

DC 24 V operation
LED indicator for each selector
1U 19” rack size
1 selector for all call (paging)
Protection against DC input overload and reversed DC polarity installation

Specifications Downloads

Power Source

24 V DC

Current Consumption

0.4 A DC

Input

10 Inputs BGM/Paging, 1 Link as Input/Output

Output

10 Outputs with 3 wire R-H-C, each zone max. output 480W

Control

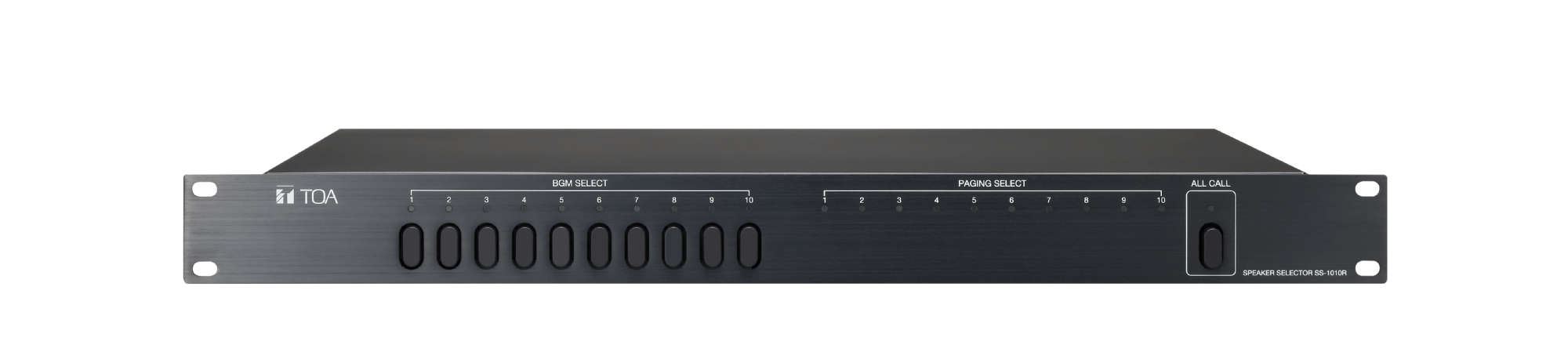

Front: 10 Zone Selectors, 1 All Zone Selector for All Zone

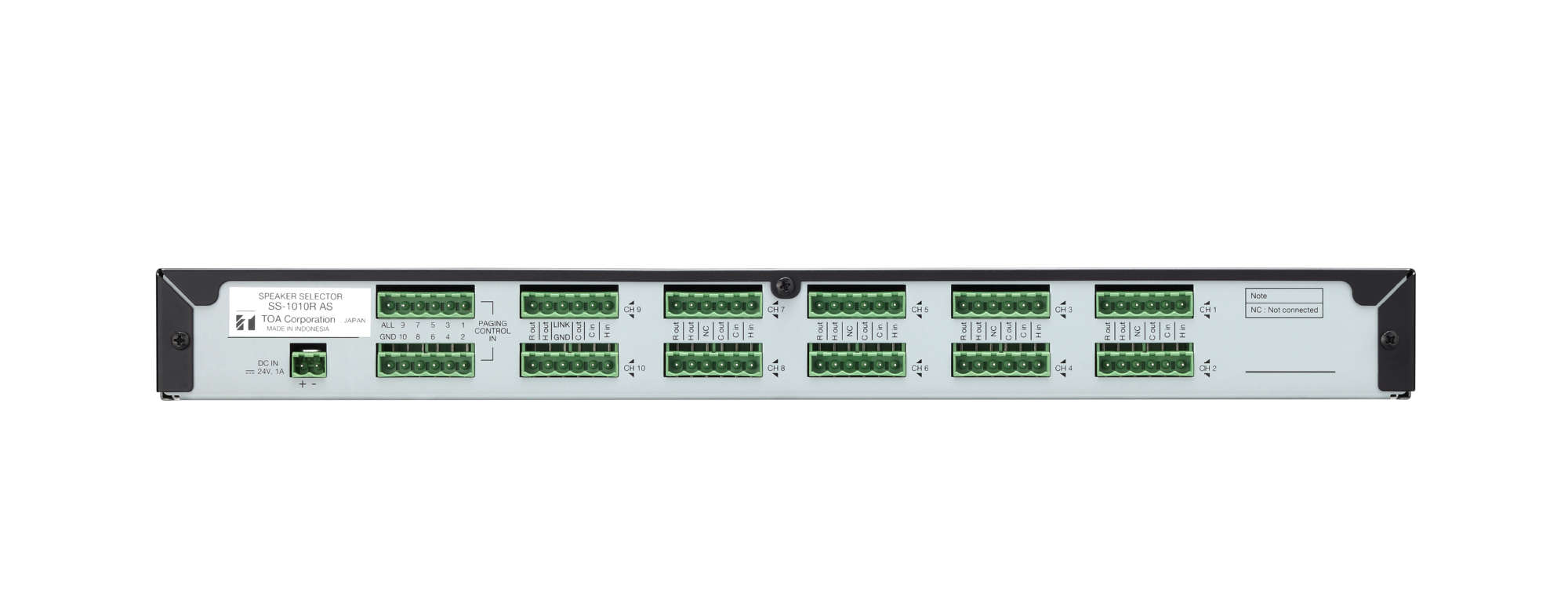

Rear: 1-10 Paging Controls In, All Paging Control In

LED Indicator

10 BGM Selector LEDs, 10 Paging Selector LEDs, 1 All Call LED

Operating Temperature

0°C to +40°C

Finish

Front Panel : Aluminum Hair Line, Etching Black
Case: Steel Plate, Painting Black

Dimensions

420 (W) × 44 (H) × 320 (D) mm

Weight

3.2kg

Included Accessories

6P Connectors x12, 2P Connector x1

Please download Datasheet to access full specifications.
