MD-200-AS HCE
Media Player
MD-200-AS
TOA MD-200 is a media player with digital processing FM radio tuner. It has the capability to store up to 30 receiving channels, each of which can be recalled by one-touch operation. The unit have a MP3 USB, SD Card MP3 playable. The MD-200 can be mounted on an EIA equipment rack.
- 1U 19” rack type media player
- Plays USB, SD/MMC Card, FM Radio
- 3 stereo output terminals (Tuner Out, Priority Out, USB/SD Out)
- FM Radio with 30 preset stations and Sleep Timer
- Backlight
- Remote Control
USB port for memory stick (up to 32 GB, Type file: MP3)
SD/MMC card slot (up to 32 GB, Type file: MP3)
RCA audio output L and R channels for USB/SD
RCA audio output L and R channels for PRIORITY
Case: Steel plate, black
Please download Datasheet to access full specifications.

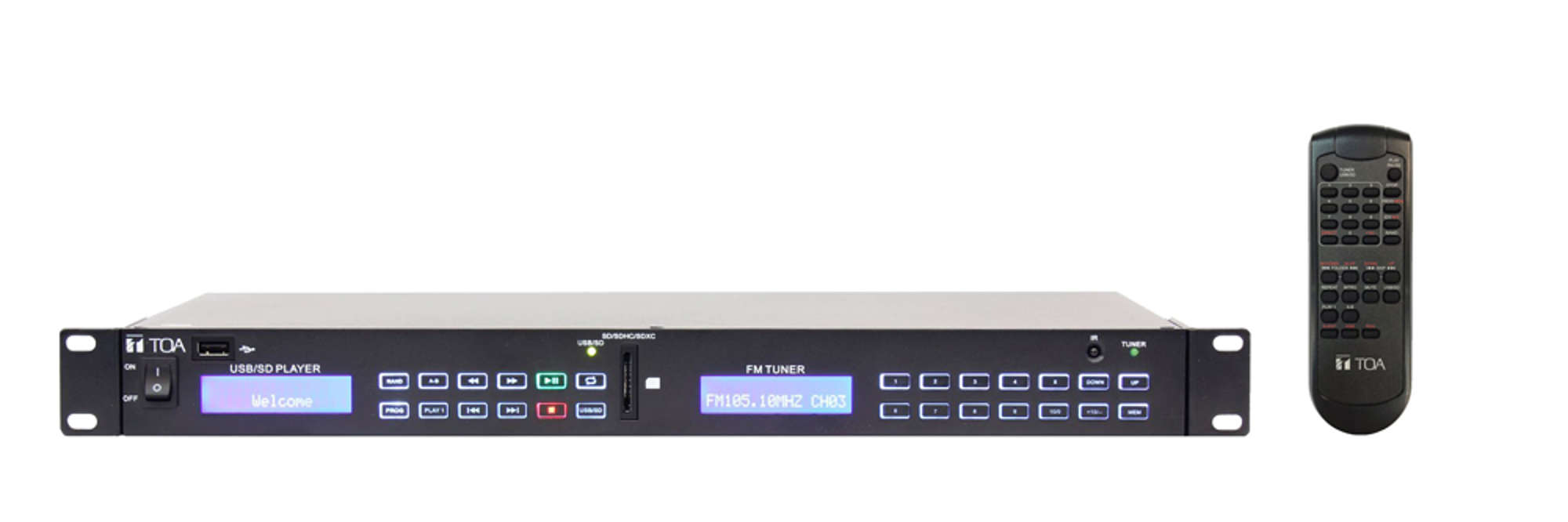

The media player, a 1U 19” rack size all-in-one player, is capable of playing various audio sources, such as USB, SD/MMC Card and FM Radio. In USB mode, USB or SD/MMC Card can be selected to play the audio source, while Tuner mode plays FM Radio. The FM radio tuner is able to store up to 30 channels in preset memory. Sleep function of up to 90min is available in Tuner mode. The media player shall come with a remote controller for addition functions and controls.

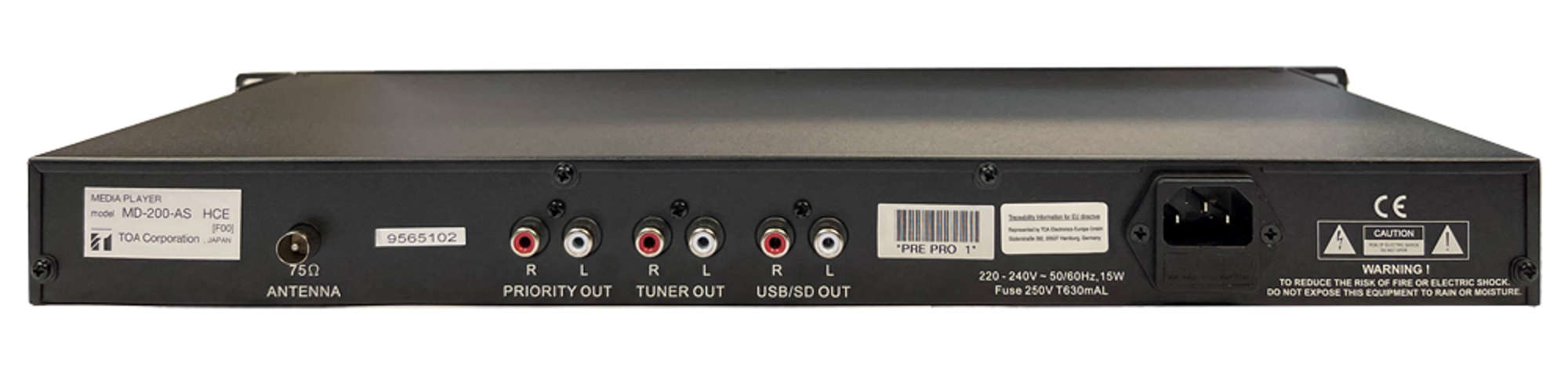

There are 3 RCA stereo output terminals on the rear. (Tuner Out, Priority Out and USB/SD Out). Simultaneous play back of audio from MP3 and FM. The LCD display shall be blue colour and all button with backlight.
The media player shall be 482 (W) × 44 (H) × 186 (D) mm and weigh about 2.6Kg.
Operating temperature is 0 °C to +40 °C
The media player system shall be TOA model MD-200-AS.
