CX-OP1700

CX-OP1700 Y

Video Operation Station

CX-OP1700

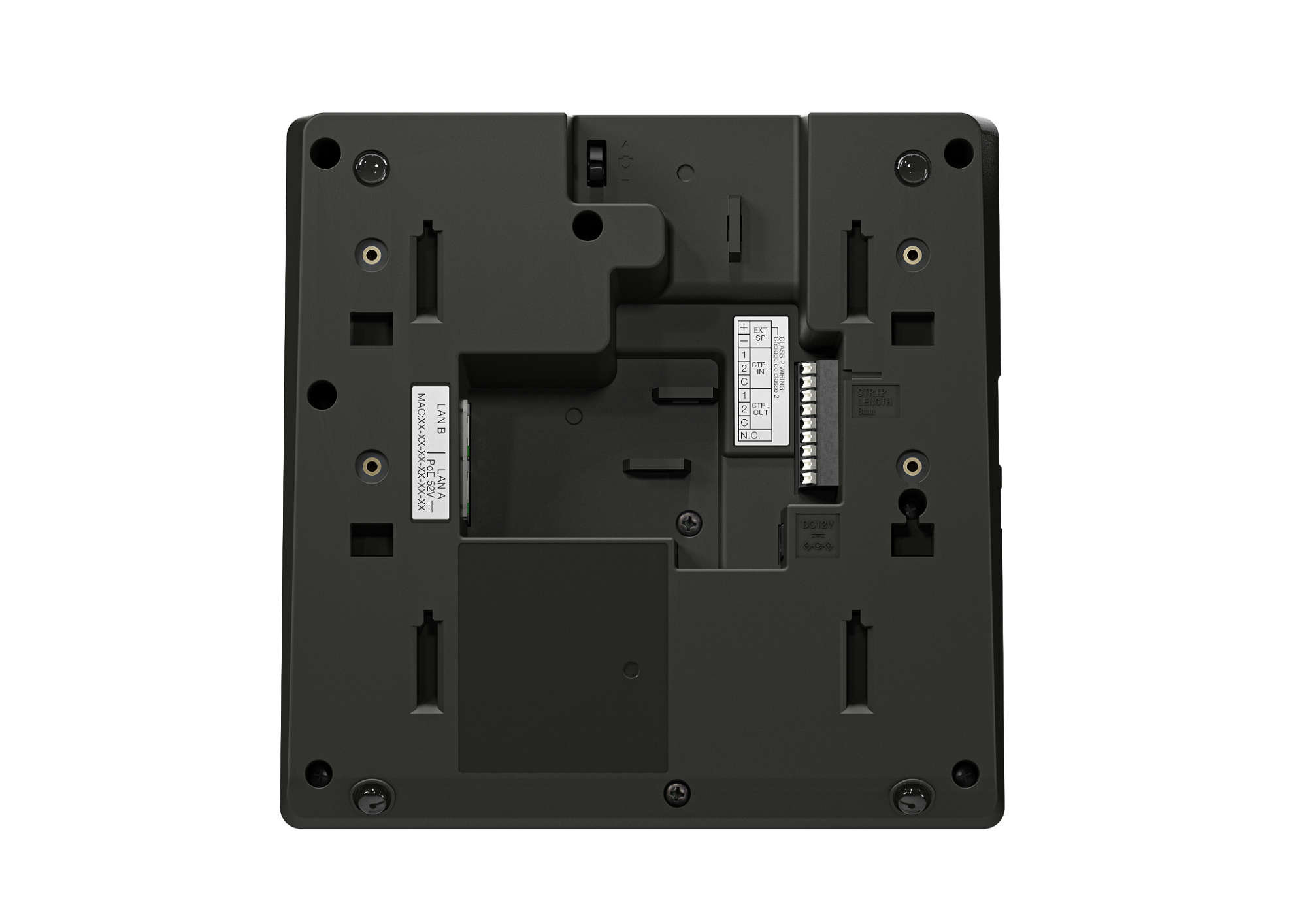

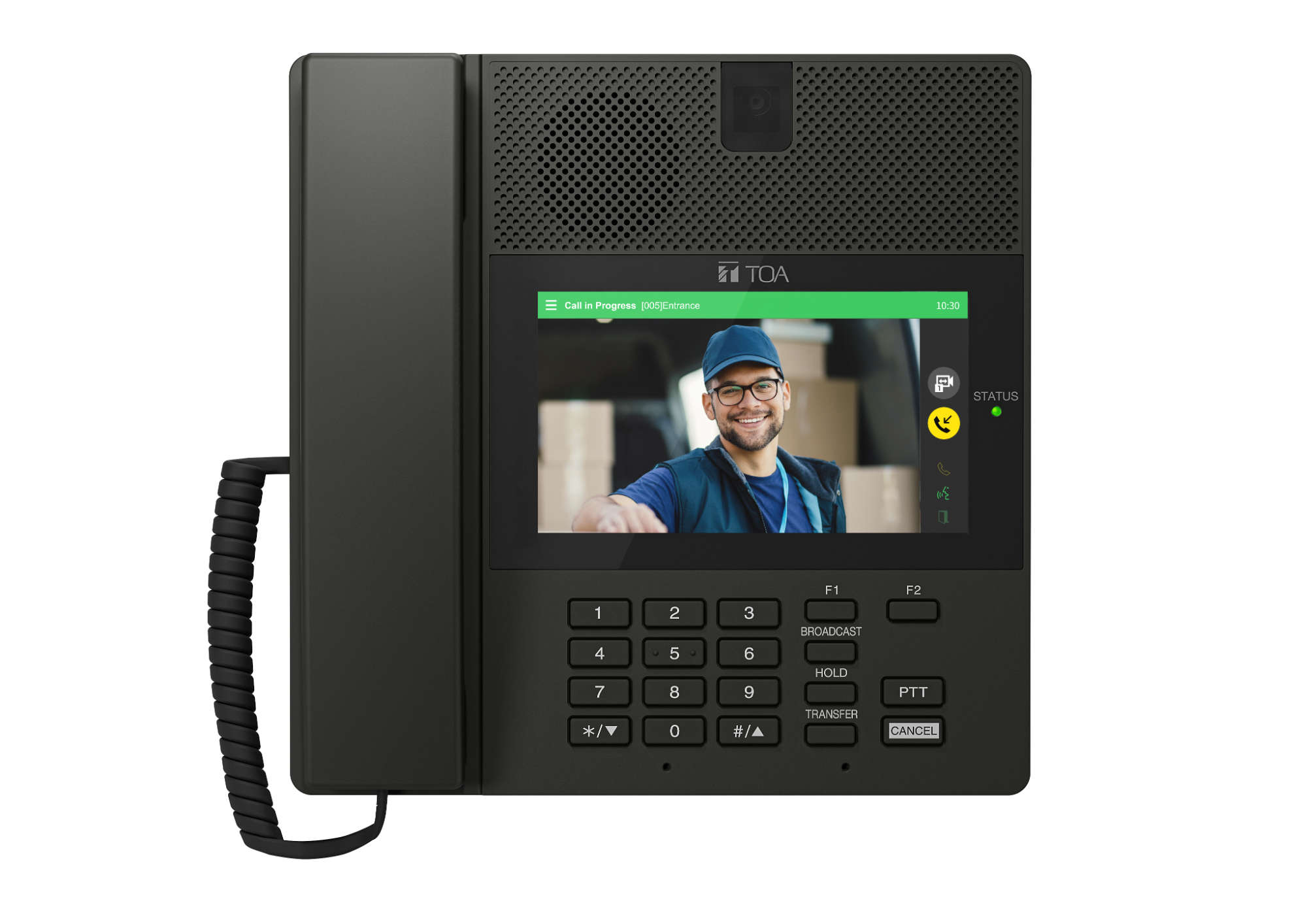

The CX-OP1700 is a Video operation station designed for the CX-1000 series IP communication system. By connecting this station to a network (LAN or WAN), hands-free and handset video conversations and voice conversations can be made using this station or other intercom stations. You can make broadcasts not only to the same model stations and other intercom stations, but also to the Audio interface and amplifier units. It is equipped with a touch screen LCD and a camera, allowing the intuitive operation and video conversations. In addition, other features include a one-touch dialing function, and a headset terminal and an external speaker terminal. Power can be supplied from a PoE-compatible switching hub (in this case, an optional AC adapter is not required). The CX-OP1700 supports the SIP protocol, which allows conversations with general-purpose SIP phones via the System manager. Images from the general-purpose IP cameras can be displayed. The supplied Angle adjustment stand allows you to adjust the angle when it is placed on a desk.Note: We do not guarantee the operations of all IP cameras.

5-inch touch screen LCD with intuitive operation keys
Full-duplex communication via handset and hands-free with echo canceller
Built-in HD camera with 69° horizontal viewing angle
Dual MEMS mics and array processing for clear pickup
3.5mm headset jack for versatile audio output
Supports key audio codecs including G.722 and H.264
2 control inputs and 2 open collector outputs for device control
Desktop or wall mounting options with optional bracket
PoE (IEEE802.3af compliant) or 12 V DC power

Specifications Equipment A&E Specs Downloads

Power Source

PoE (IEEE802.3af compliant) or 12 V DC (use of the optional AC adapter)

Current Consumption

PoE: 210 mA, 12 V DC (AC adapter): 680 mA

Power Consumption

8.5 W

Speech Method

Handset: Full-duplex
Hands-free: Full-duplex (echo canceler + voice switch ), Half-duplex (PTT)

Audio Bandwidth

Conversation: 300 Hz - 7 kHz
Broadcast: 300 Hz - 16 kHz

Hands-free

Speaker: Dynamic type speaker, maximum output 2.0 W
Microphone: Omni-directional digital MEMS microphone x 2

Handset

Receive path: Dynamic type speaker
Send path: Electret condenser microphone

Headset

Speaker: Dynamic type speaker, 32 Ω, Ø3.5 mm mini jack
Microphone: Electret condenser microphone, Ø3.5 mm mini iack

External Speaker

Maximum output 2.0 W, 8 Ω, push-in terminal (2 pins)

Signal Processing

Input channel: Gain, EQ x 2, Comp, AGC, noise canceler, echo canceler, voice switch, microphone array, speech intelligibility filter
Output channel: Gain, EQ x 7

Network Section

Network I/F: 100Base-TX
Network protocol: TCP/IP, UDP, ARP, ICMP, HTTP, RTP, RTSP, I GMP, NTP, SIP, FTP, RSTP, SNMP
Audio packet transmission method: Unicast, Multicast
Number of broadcasting destinations: Unicast (max. 16), Multicast (max. 2999)
Connector: RJ45 connector x 2, LAN A ( PoE compatible), LAN B ( PoE compatible)
Network cable: UTP (Cat5 or greater )

Audio Transmission

Sampling frequency: 48 kHz, 16 kHz, 8 kHz (controllable on the software)
Audio codec: PCM, G.722, G.711 μ-Law/A-Law
Quantization bit depth: 16-bit
Voice packet loss recovery: Silence insertion

Video Transmission

Video codec: H.264, MJPEG
Resolution: HD 1280 x 720 (max.)
Frame rate: 20 fps (max.)

User Control

Touch screen LCD, Dial key, Function 1, Function 2, Broadcast, Hold, Transfer, PTT, Cancel

Indicators

Touch screen LCD: 5" TFT color LCD, 1280 x 780
LED indicators: STATUS (yellow, red, green) x 1

Camera

Image device: 1/2.9 type CMOS
Number of effective pixels: 1280 x 720 (max.)
Angle of view: horizontal 69°, vertical 37.4°

Control Input

2 channels, no-voltage make contact input, open voltage: 12 V DC, short-circuit current: 5 mA or less, push-in terminal (3 pins)

Control Output

2 channels, open collector output, maximum contact capacity : 30 V DC/100 mA, push-in terminal (3 pins)

Installation Method

Desktop installation or wall mounting (Wall mounting needs an optional bracket.)

Dust/Water Protection

Conforming to IP3X

Operating Temperature

0 °C to +40 °C (32 °F to 104 °F)

Operating Humidity

90 %RH (no condensation)

Finish

ABS resin, dark gray

Dimensions

200 (W) x 81.4 (H) x 200 (D) mm (7.87" X 3.2" x 7.87") (excluding cord)

Weight

940 g (2.07 lb)

Included Accessories

Stand x 1, Stand fixing screw x 2, Zip tie x 2

Optional Accessories

AC adaptor: AD-1210P, AD-1215P
Wall mounting bracket: YC-1001

Please download Datasheet to access full specifications.

Optional Accessory

AD-1210P

YC-1001

The Video Operation Station shall be a multifunctional, network-connected audio and video communication device designed for use with TOA’s CX-1000 Series IP communication system. The Video Operation Station shall provide full-duplex audio communication via handset and hands-free modes with echo cancellation, and shall incorporate a built-in HD camera with a 69° horizontal viewing angle for video transmission. A 5-inch touchscreen LCD shall be provided for operation and display. The Video Operation Station shall support video monitoring of images streamed over the network from CX-1000 Series Video Call Stations or other network cameras using a general-purpose IP camera protocol.

Hands-free audio input shall be captured by dual omnidirectional MEMS microphones with array processing, while audio output shall be provided through a dynamic speaker. Audio signal processing functions shall include gain control, 2-band EQ, compressor, Automatic Gain Control (AGC), noise canceler, echo canceler, voice-operated switching, microphone array processing, and a speech intelligibility filter for input channels. Output signal processing shall include 7-band EQ. The unit shall support up to 16 unicast and 2999 multicast audio transmission destinations. An external speaker terminal shall be provided with a maximum output of 2 W at 8 Ω, together with 3.5 mm jacks for external headset connection.

The Video Operation Station shall support data transmission over 100BASE-TX Ethernet. Dual LAN ports shall be provided, with LAN A supporting PoE (IEEE802.3af compliant) and LAN B for redundant network connection. The Video Operation Station shall support TCP/IP, UDP, ARP, ICMP, HTTP, RTP, RTSP, IGMP, NTP, SIP, FTP, and RSTP. The Video Operation Station shall use PCM, G.722, and G.711 μ-Law/A-Law codecs with sampling frequencies of 16 kHz or 8 kHz for audio communications, and video codecs including H.264 and MJPEG with resolutions up to 1280 × 720 at 20 fps.

The Video Operation Station shall support voice announcement recording and preview. A Voice Stack Broadcast function shall be provided, allowing queued announcements to be held during higher-priority broadcasts and automatically delivered once priority broadcasts are completed.

Operation shall be performed using the touchscreen LCD, dial keys, two function keys, and dedicated Broadcast, Hold, Transfer, PTT, and Cancel buttons. LED indicators shall be provided for system operation and network status. Two control inputs and two open collector outputs shall be provided for integration with external devices.

Power shall be supplied via IEEE802.3af-compliant PoE or 12 V DC using an optional AC adapter. Power consumption shall not exceed 8.5 W.

Installation options shall include desktop placement or wall mounting using an optional bracket. A stand accessory shall be supplied to allow angle adjustment of 45° or 60° when placed on a desktop. The unit shall operate within a temperature range of 0 °C to +40 °C (32 °F to 104 °F) and relative humidity up to 90 % (non-condensing), and shall comply with IP3X dust/water protection rating. The Video Operation Station shall be housed in a dark gray ABS resin enclosure. Dimensions shall be 200 (W) × 81.4 (H) × 200 (D) mm (7.87" × 3.20" × 7.87"), excluding the cord, and weight shall be 940 g (2.07 lbs).

Optional extras: AC adapter (AD-1210P, AD-1215P), Wall mounting bracket (YC-1001)
Manufacturer: TOA Corporation
Model: CX-OP1700
