CX-OP1500 Y
Operation Station
CX-OP1500

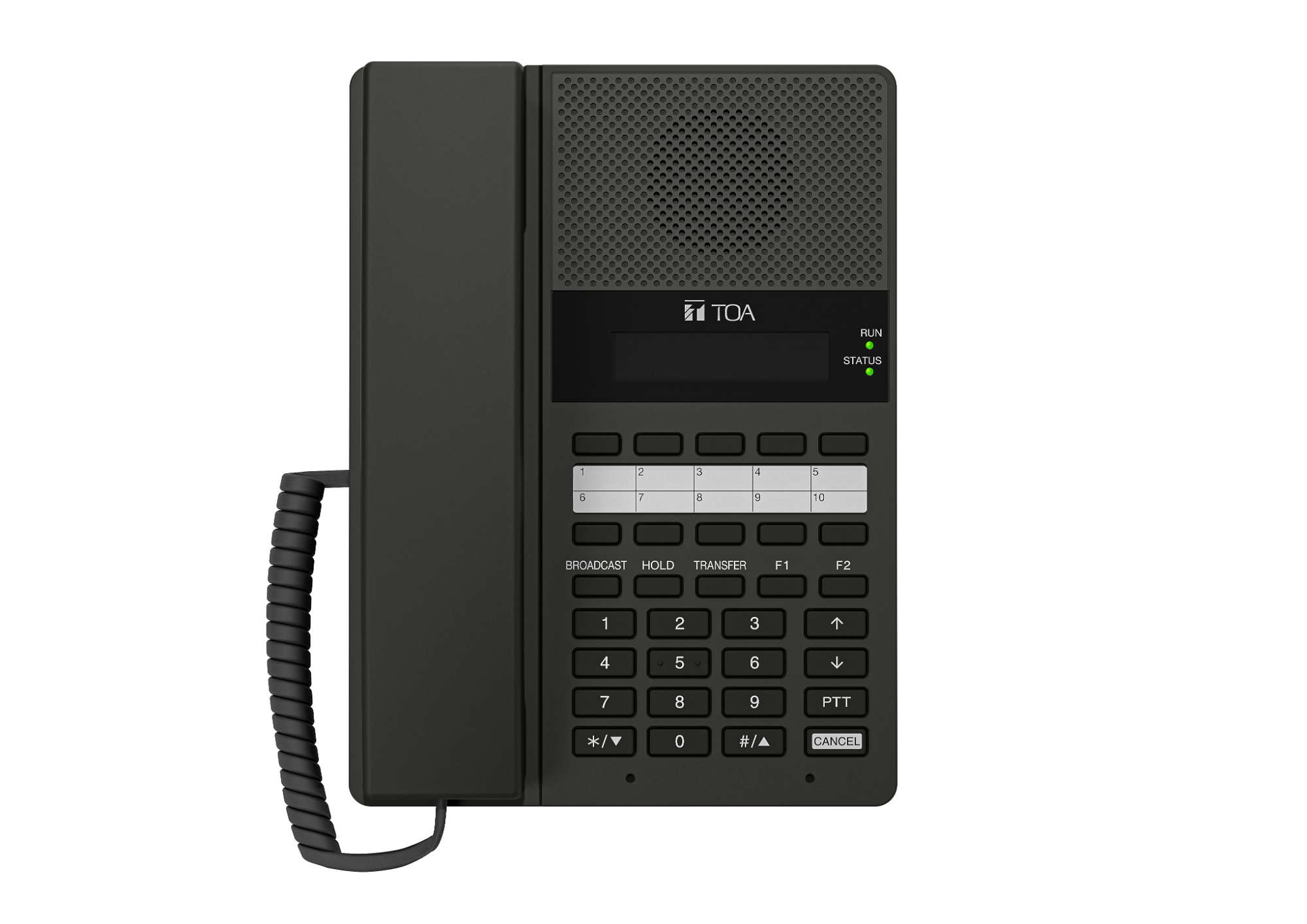

The CX-OP1500 is an Operation station designed for the CX-1000 series IP communication system. By connecting this station to a network (LAN or WAN), hands-free and handset voice conversations can be made using this station or other intercom stations. You can make broadcasts not only to the same model stations and other intercom stations, but also to the Audio interface and amplifier units. It is equipped with an LCD, a one-touch dialing function, a headset terminal, and an external speaker terminal. Power can be supplied from a PoE-compatible switching hub (in this case, an optional AC adapter is not required). The CX-OP1500 supports the SIP protocol, which allows conversations with general-purpose SIP phones via the System manager. The supplied Angle adjustment stand allows you to adjust the angle when it is placed on a desk.
- 16-character × 2-line LCD for clear status display
- Full-duplex communication via handset and hands-free with echo canceller
- Dual MEMS mics and array processing for clear pickup
- 3.5mm headset jack for versatile audio output
- Supports key audio codecs including G.722 and G.711
- 2 control inputs and 2 open collector outputs for device control
- Desktop or wall mounting options with optional bracket
- PoE (IEEE802.3af compliant) or 12 V DC power
Power Source
PoE (IEEE802.3af compliant) or 12 V DC (use of the optional AC adapter)
Current Consumption
PoE: 120 mA, 12 V DC (AC adapter): 340 mA
Power Consumption
4.5 W
Speech Method
Handset: Full-duplex
Hands-free: Full-duplex (echo canceler + voice switch ), Half-duplex (PTT)
Hands-free: Full-duplex (echo canceler + voice switch ), Half-duplex (PTT)
Audio Bandwidth
Conversation /Broadcast: 300 Hz - 7 kHz
Hands-free
Speaker: Dynamic type speaker, maximum output 2.0 W
Microphone: Omni-directional digital MEMS microphone x 2
Microphone: Omni-directional digital MEMS microphone x 2
Handset
Receive path: Dynamic type speaker
Send path: Electret condenser microphone
Send path: Electret condenser microphone
Headset
Speaker: Dynamic type speaker, 32 Ω, Ø3.5 mm mini jack
Microphone: Electret condenser microphone, Ø3.5 mm mini iack
Microphone: Electret condenser microphone, Ø3.5 mm mini iack

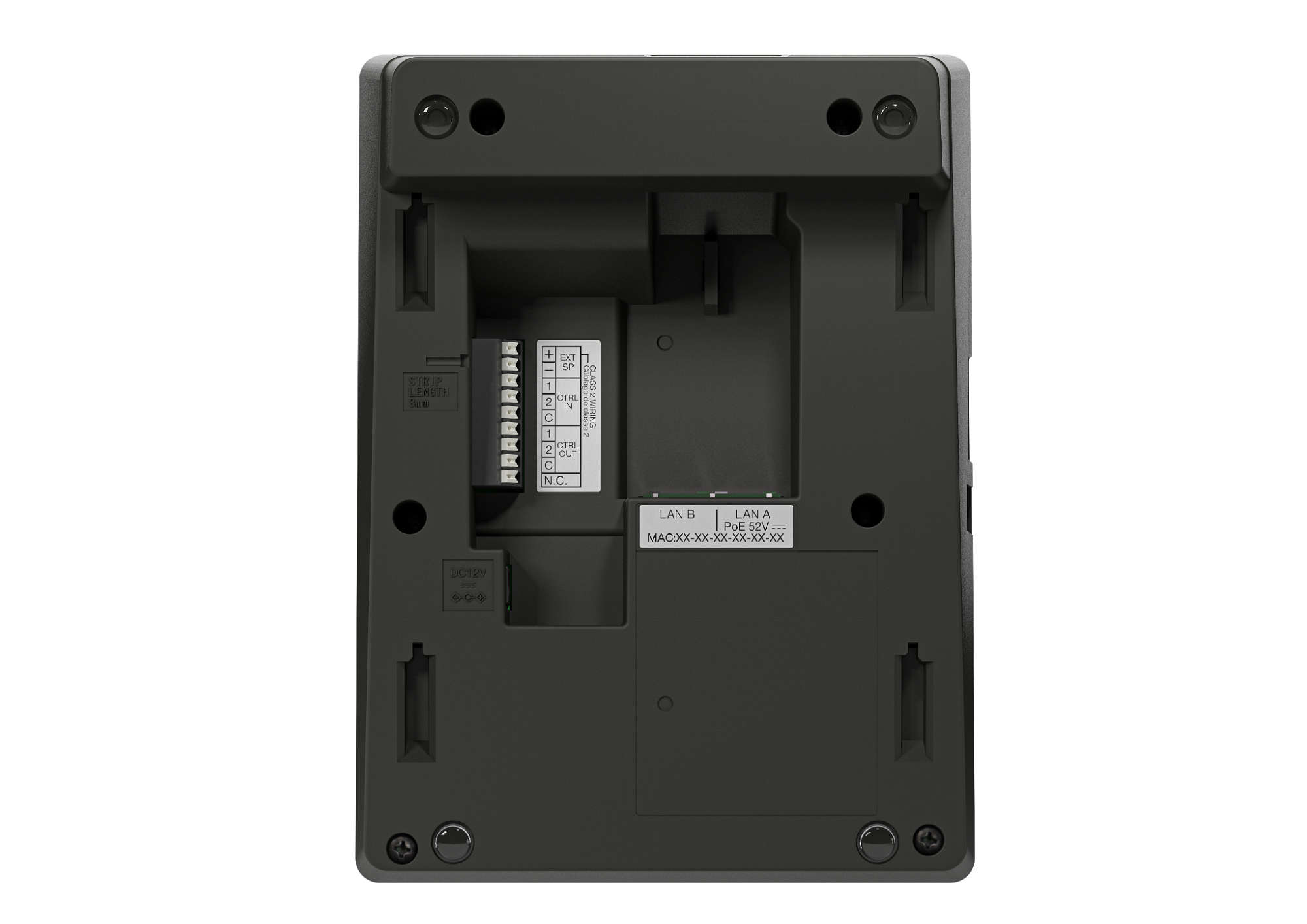

External Speaker
Maximum output 2.0 W, 8 Ω, push-in terminal (2 pins)
Signal Processing
Input channel: Gain, EQ x 2, Comp, AGC, noise canceler, echo canceler, voice switch, microphone array, speech intelligibility filter
Output channel: Gain, EQ x 7
Output channel: Gain, EQ x 7
Network Section
Network I/F: 100Base-TX
Network protocol: TCP/IP, UDP, ARP, ICMP, HTTP, RTP, RTSP, I GMP, NTP, SIP, FTP, RSTP, SNMP
Audio packet transmission method: Unicast, Multicast
Number of broadcasting destinations: Unicast (max. 16), Multicast (max. 2999)
Connector: RJ45 connector x 2, LAN A ( PoE compatible), LAN B ( PoE compatible)
Network cable: UTP (Cat5 or greater )
Network protocol: TCP/IP, UDP, ARP, ICMP, HTTP, RTP, RTSP, I GMP, NTP, SIP, FTP, RSTP, SNMP
Audio packet transmission method: Unicast, Multicast
Number of broadcasting destinations: Unicast (max. 16), Multicast (max. 2999)
Connector: RJ45 connector x 2, LAN A ( PoE compatible), LAN B ( PoE compatible)
Network cable: UTP (Cat5 or greater )
Audio Transmission
Sampling frequency: 16 kHz, 8 kHz (controllable on the software)
Audio codec: PCM, G.722, G.711 μ-Law/A-Law
Quantization bit depth: 16-bit
Voice packet loss recovery: Silence insertion
Audio codec: PCM, G.722, G.711 μ-Law/A-Law
Quantization bit depth: 16-bit
Voice packet loss recovery: Silence insertion
User Control
Dial key, Direct key x10, Function 1, Function 2, Broadcast, Hold, Transfer, PTT, Cancel
Indicators
LCD: 16 characters x 2 lines
LED indicators: RUN (green) x 1, STATUS (yellow, red, green) x 1
LED indicators: RUN (green) x 1, STATUS (yellow, red, green) x 1
Control Input
2 channels, no-voltage make contact input, open voltage: 12 V DC, short-circuit current: 5 mA or less, push-in terminal (3 pins)
Control Output
2 channels, open collector output, maximum contact capacity : 30 V DC/100 mA, push-in terminal (3 pins)
Installation Method
Desktop installation or wall mounting (Wall mounting needs an optional bracket.)
Operating Temperature
0 °C to +40 °C (32 °F to 104 °F)
Operating Humidity
90 %RH (no condensation)
Finish
ABS resin, dark gray
Dimensions
148 (W) x 78.9 (H) x 200 (D) mm (5.83" X 3.11" x 7.87") (excluding cord)
Weight
760 g (1.58 lb)
Included Accessories
Stand x 1, Stand fixing screw x 2, Zip tie x 2
Optional Accessories
AC adaptor: AD-1210P, AD-1215P
Wall mounting bracket: YC-1001
Wall mounting bracket: YC-1001
Please download Datasheet to access full specifications.
Optional Accessory
The Operation Station shall be a network-connected two-way audio communication device designed for use with TOA’s CX-1000 Series IP communication system. The Operation Station shall provide full-duplex communication via both handset and hands-free modes.
Hands-free audio input shall be captured by dual omnidirectional MEMS microphones with array processing, while audio output shall be supported through a built-in dynamic speaker. An external speaker terminal shall be provided with a maximum output of 2 W at 8 Ω, along with 3.5 mm microphone and speaker jacks for external headset connection. The Operation Station shall feature a 16-character × 2-line LCD for clear display of status information.
Audio signal processing functions shall include gain control, 2-band EQ, compressor, Automatic Gain Control (AGC), noise canceler, echo canceler, voice-operated switching, microphone array processing, and a speech intelligibility filter for input channels. Output signal processing shall include 7-band EQ.
The Operation Station shall support data transmission over 100BASE-TX Ethernet. Dual LAN ports shall be provided, with LAN A supporting PoE (IEEE802.3af compliant) and LAN B for redundant network connection. The Operation Station shall allow for up to 16 unicast and 2999 multicast audio transmission destinations. Supported protocols shall include TCP/IP, UDP, ARP, ICMP, HTTP, RTP, RTSP, IGMP, NTP, SIP, FTP, and RSTP. The Audio encoding shall use PCM, G.722, and G.711 μ-Law/A-Law codecs with sampling frequencies of 16 kHz or 8 kHz.
Operation shall be performed using dial keys, ten direct keys, two function keys, and dedicated Broadcast, Hold, Transfer, PTT, and Cancel buttons. A 32-character LCD display shall be provided, together with LED indicators for system operation and network status. Two control inputs and two open collector outputs shall be provided for integration with external devices.
Power shall be supplied via IEEE802.3af-compliant PoE or 12 V DC using an optional AC adapter. Power consumption shall not exceed 4.5 W.
Installation options shall include desktop placement or wall mounting using an optional bracket. A stand accessory shall be provided to allow angle adjustment of 15 degrees when placed on a desktop. The unit shall operate within a temperature range of 0 °C to +40 °C (32 °F to 104 °F) and relative humidity up to 90 % (non-condensing). The Operation Station shall be constructed of dark gray ABS resin.
Dimensions shall be 148 (W) × 78.9 (H) × 200 (D) mm (5.83" × 3.11" × 7.87"), excluding the cord, and weight shall be 760 g (1.68 lbs).
Optional extras: AC adapter (AD-1210P, AD-1215P), Wall mounting bracket (YC-1001)
Manufacturer: TOA Corporation
Model: CX-OP1500
