CX-CC1016
Control I/O Unit
CX-CC1016

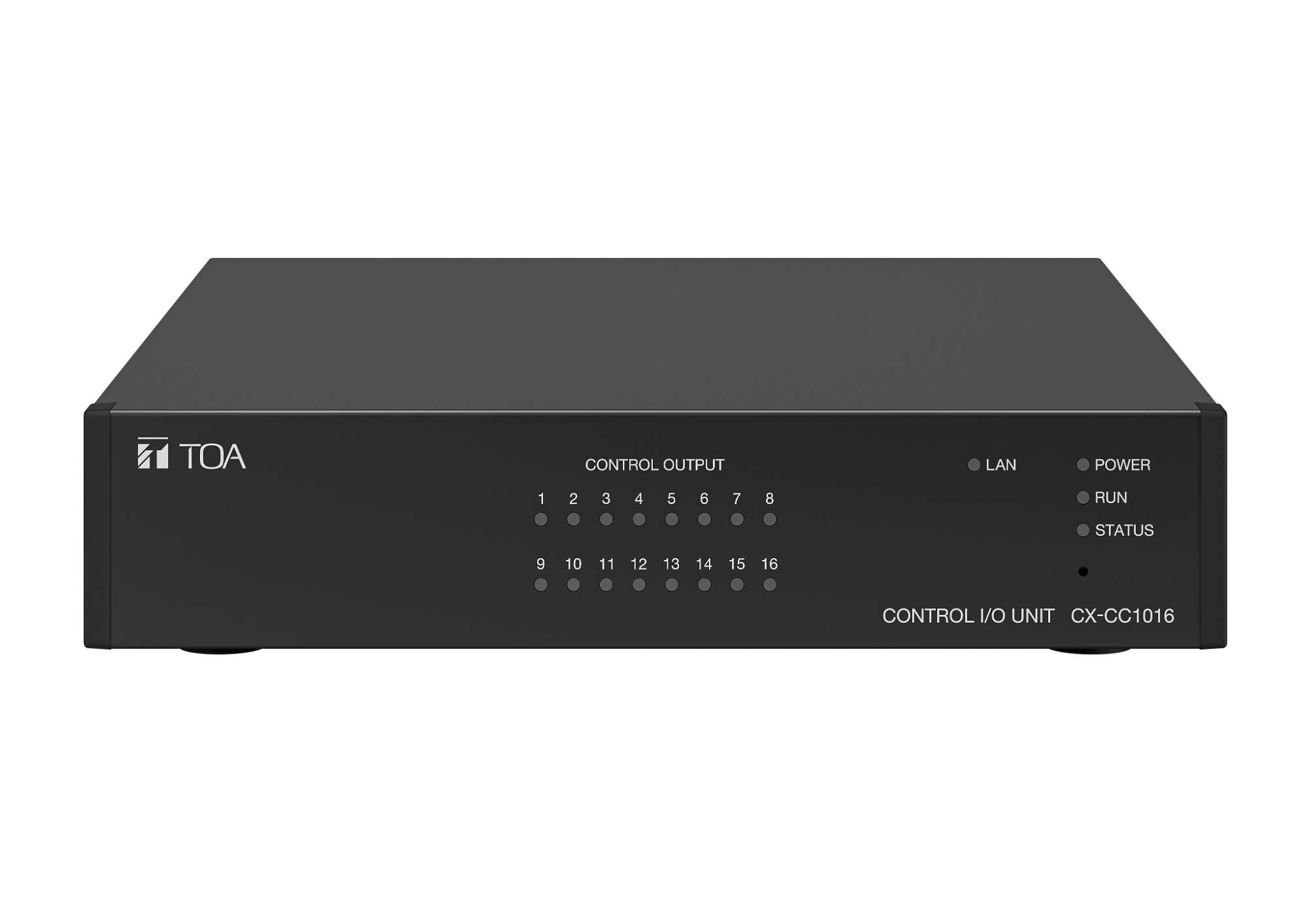

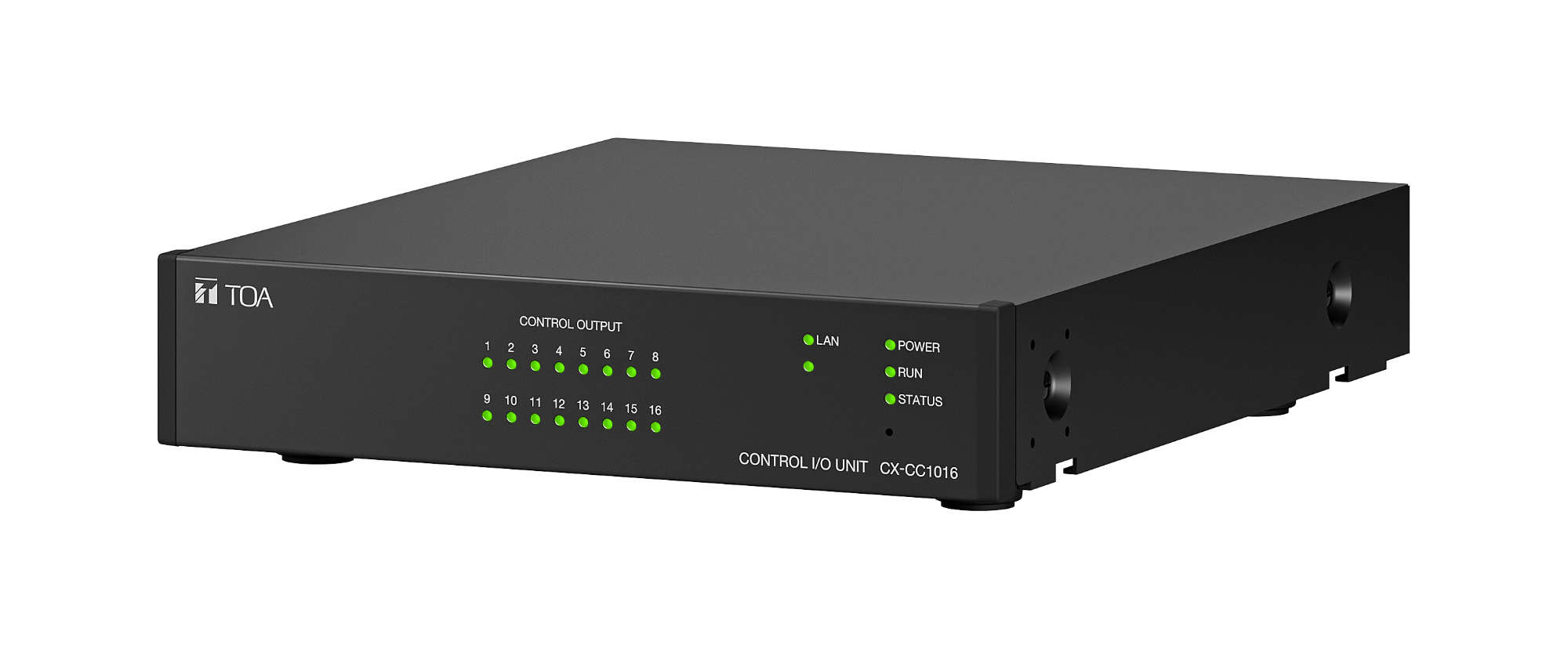

The CX-CC1016 is a Control input/output unit having 16 control inputs and 16 control outputs designed for the CX-1000 series IP Communication system. By connecting this unit to a network (LAN or WAN), you can control external devices connected to the units in the configured CX-1000 system, enable various types of calls, activate broadcasts, and set other functions as needed. The output status can be confirmed with the front panel-mounted indicators.
- Supports 3 balanced audio inputs and 2 balanced audio outputs
- Comprehensive volume control with 6 input and 2 output
- Signal processing with gain, EQ, comp, AGC, trim, gate (VOX)
- Network support with dual RJ45 connectors and key protocols
- Unicast and multicast audio packet transmission
- 10 direct keys and extensive LED status indicators
- 10 control inputs and 10 control outputs
- Installation: desktop, rack, or wall mount with optional bracke
Power Source
24 V DC (operating range: 21.6 - 26.4 V DC)
Removable terminal block (2 pins) or use of the optional AC adapter
Removable terminal block (2 pins) or use of the optional AC adapter
Current Consumption
230 mA
Power Consumption
5.5 W
Network Section
Network I/F: 100Base-TX
Network protocol: TCP/IP, UDP, ARP, ICMP, HTTP, FTP
Connector: RJ45 connector x 1
Network cable: UTP (Cat5 or greater)
Network protocol: TCP/IP, UDP, ARP, ICMP, HTTP, FTP
Connector: RJ45 connector x 1
Network cable: UTP (Cat5 or greater)
User Control
Reset key x 1
Indicators

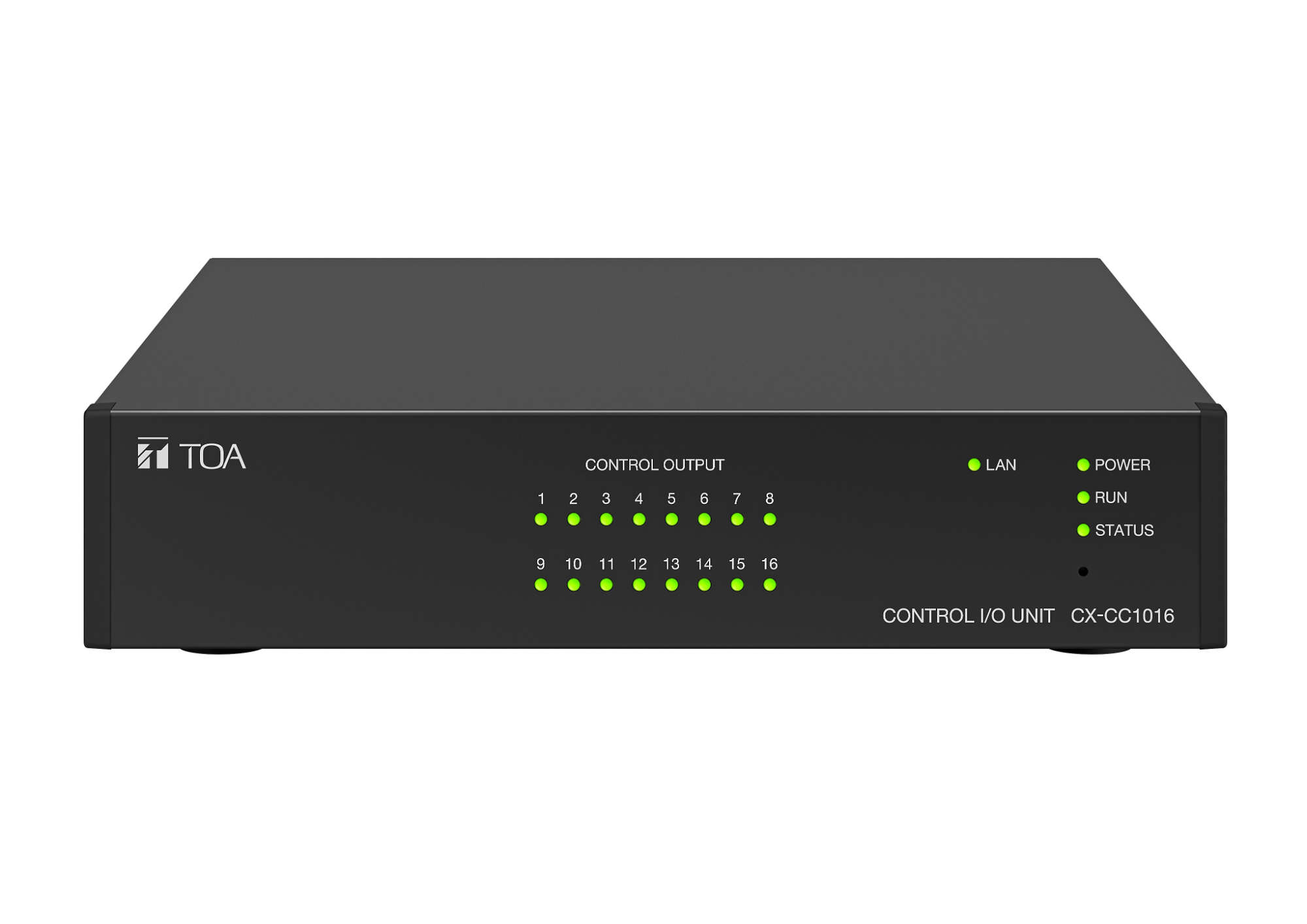

LED indicators: LAN (green) x1, POWER (green) x1, RUN (green) x1, STATUS (yellow, red, green) x1
Control output indicators: CONTROL OUTPUT (green) x16
Control output indicators: CONTROL OUTPUT (green) x16
Control Input

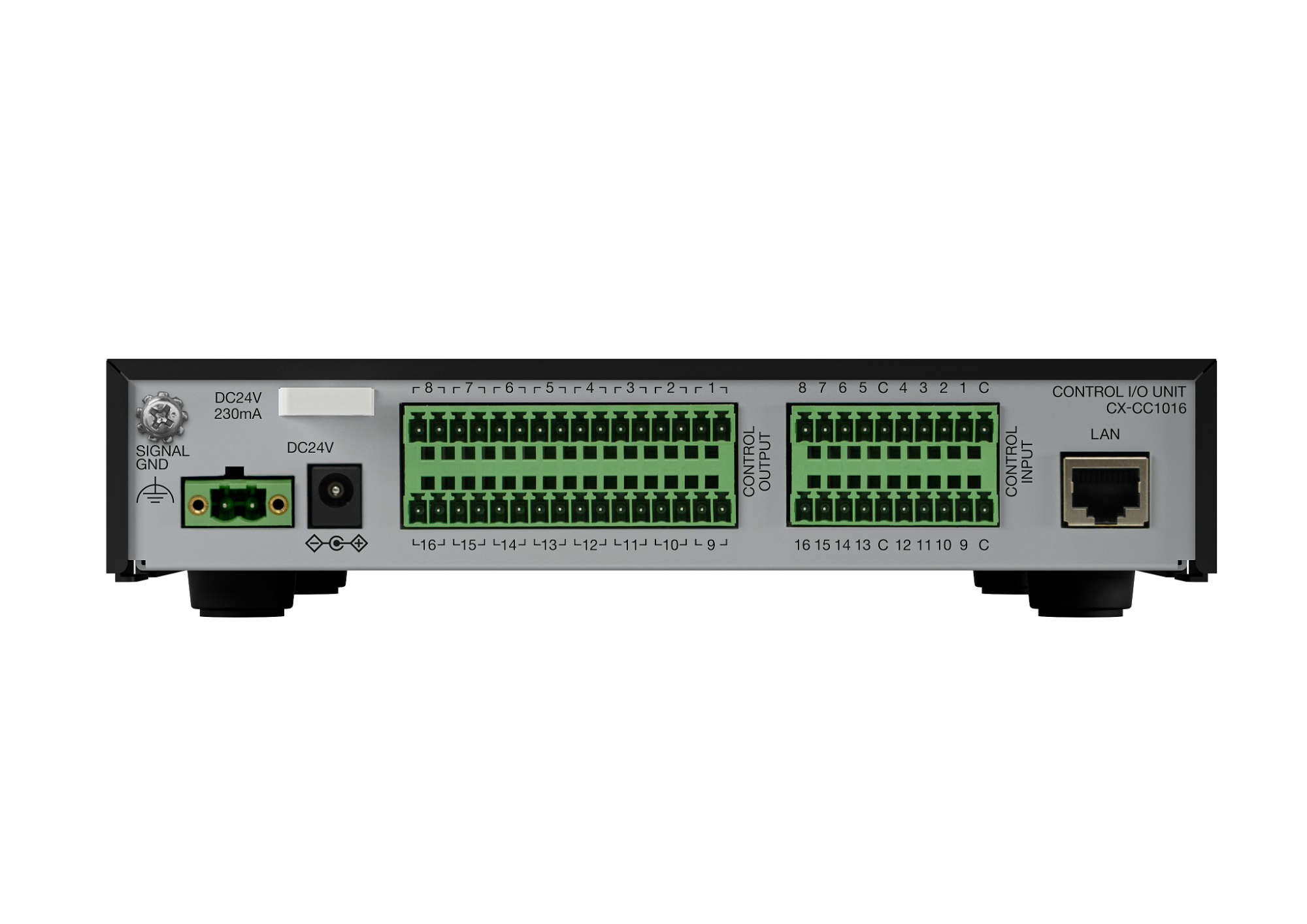

16 channels, no-voltage make contact input, open voltage: 24 V DC, short-circuit current: 10 mA or less, removable terminal block (10 pins x2)
Control Output
16 channels, relay contact output, maximum contact capacity: 30 V DC/1.0 A, removable terminal block (16 pins x2)
Installation Method
Desktop, rack, or wall mounting (Rack or wall mounting needs optional brackets.)
Operating Temperature
0 °C to +40 °C (32 °F to 104 °F)
Operating Humidity
90 %RH (no condensation)
Finish
Panel, Case: Pre-coated steel plate, black, 30 % gloss
Dimensions
210 (W) x44.3 (H) x266.7 (D) mm (8.27" x1.74" x10.5")
Weight
1.5 kg (3.31 lb)
Included Accessories
Removable terminal plug (2 pins) x 1, Removable terminal plug (10 pins) x 2, Removable terminal plug (16 pins) x 2, Plastic foot x4, Screw for fitting plastic foot x 4
Optional Accessories
AC adaptor: AD-246
Wall mounting bracket: YC-850
Half width blank panel: MB-15B-BK (for rack mounting one CX-CC1016 unit)
Rack joint bracket: MB-15B-J (for rack mounting two CX-CC1016 units)
Wall mounting bracket: YC-850
Half width blank panel: MB-15B-BK (for rack mounting one CX-CC1016 unit)
Rack joint bracket: MB-15B-J (for rack mounting two CX-CC1016 units)
Please download Datasheet to access full specifications.
The Control I/O Unit shall be a network-connected control I/O interface device designed for use with TOA’s CX-1000 Series IP communication system.
The Control I/O Unit shall provide 16 no-voltage make contact inputs and 16 relay contact outputs, enabling integration with external devices for system-wide control. Each relay output channel shall support a maximum contact capacity of 30 V DC at 1.0 A.
The Control I/O Unit shall connect via a single RJ45 LAN port and support 100BASE-TX Ethernet. Supported protocols shall include TCP/IP, UDP, ARP, ICMP, HTTP, and FTP. LED indicators shall be provided for power, network status, system operation, and individual output channels. A reset key shall be included for maintenance access, and all input and output connections shall use removable terminal blocks.
The Control I/O Unit shall support desktop placement and shall be mountable in a rack or on a wall using optional brackets. Power shall be supplied via 24 V DC through a removable terminal block or by an optional AC adapter. Power consumption shall not exceed 5.5 W. The unit shall operate within a temperature range of 0 °C to +40 °C (32 °F to 104 °F) and relative humidity up to 90 % (non-condensing).
The Control I/O Unit shall be housed in a pre-coated black steel chassis. Dimensions shall be 210 (W) × 44.3 (H) × 266.7 (D) mm (8.27" × 1.74" × 10.50"), and weight shall be 1.5 kg (3.31 lbs).
Optional Accessories: AC Adapter (AD-246), Wall Mounting Bracket (YC-850), Half-Width Blank Panel (MB-15B-BK), Rack Joint Bracket (MB-15B-J)
Manufacturer: TOA Corporation
Model: CX-CC1016
