CX-AF1062
Audio Interface 6in2out
CX-AF1062

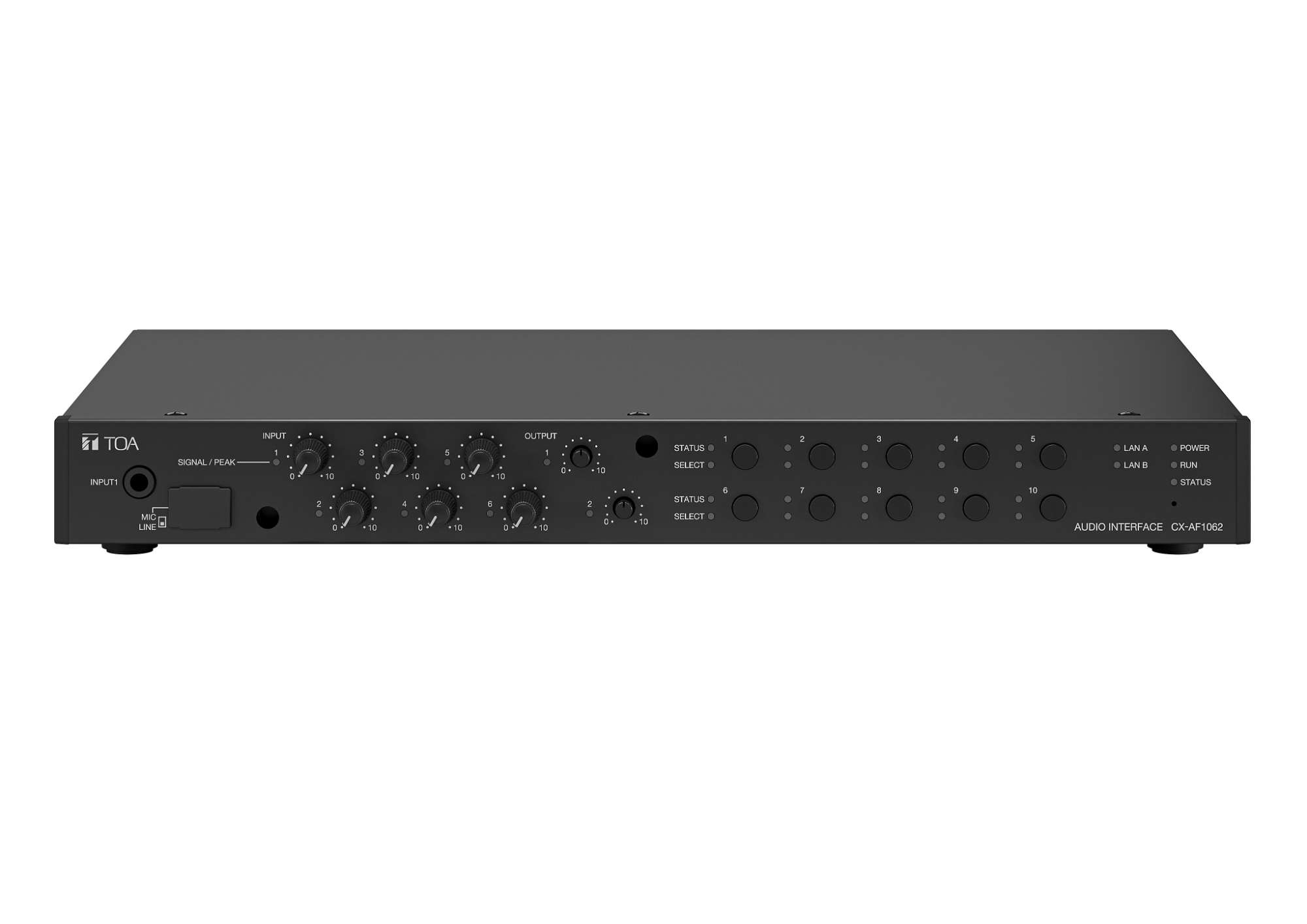

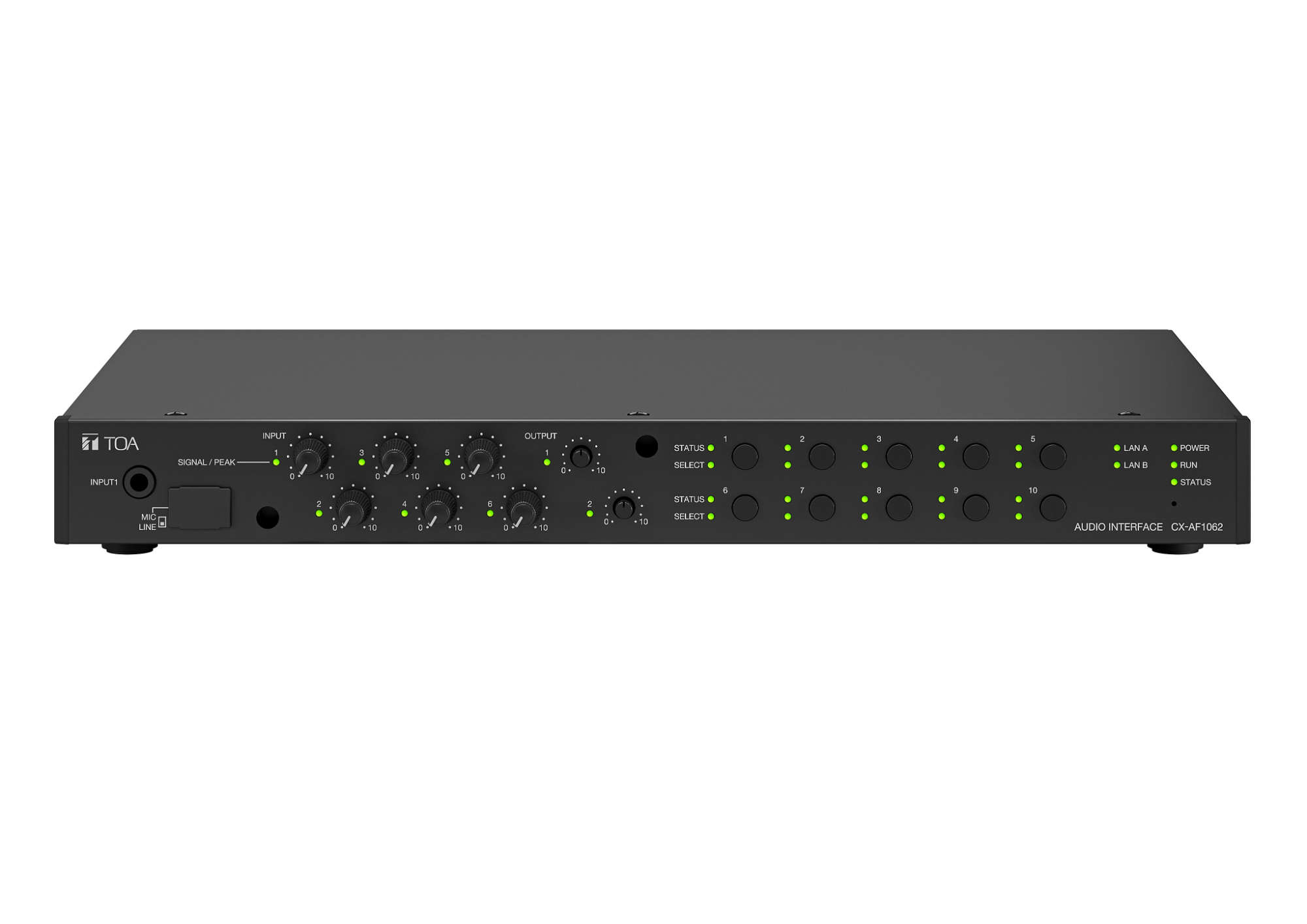

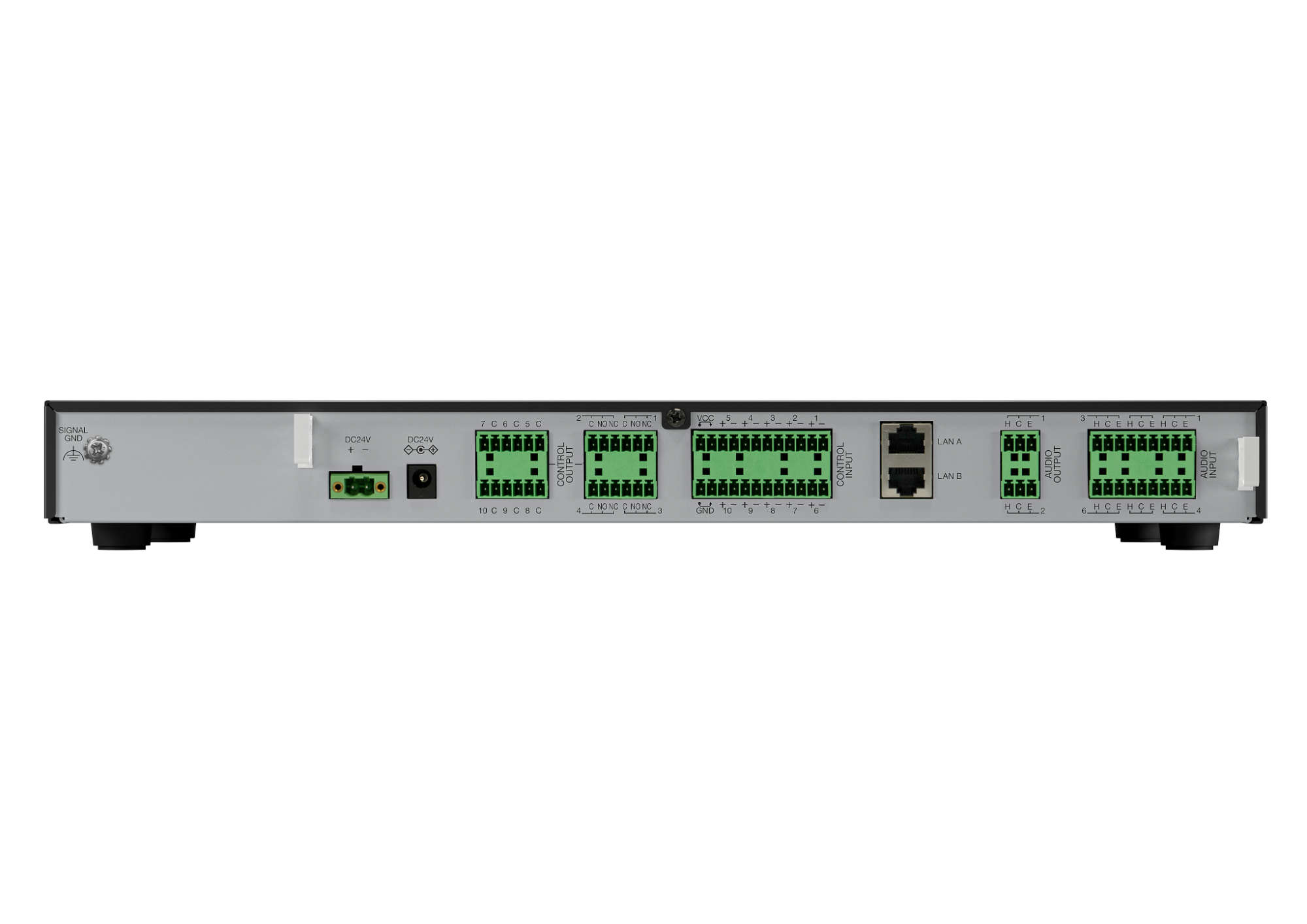

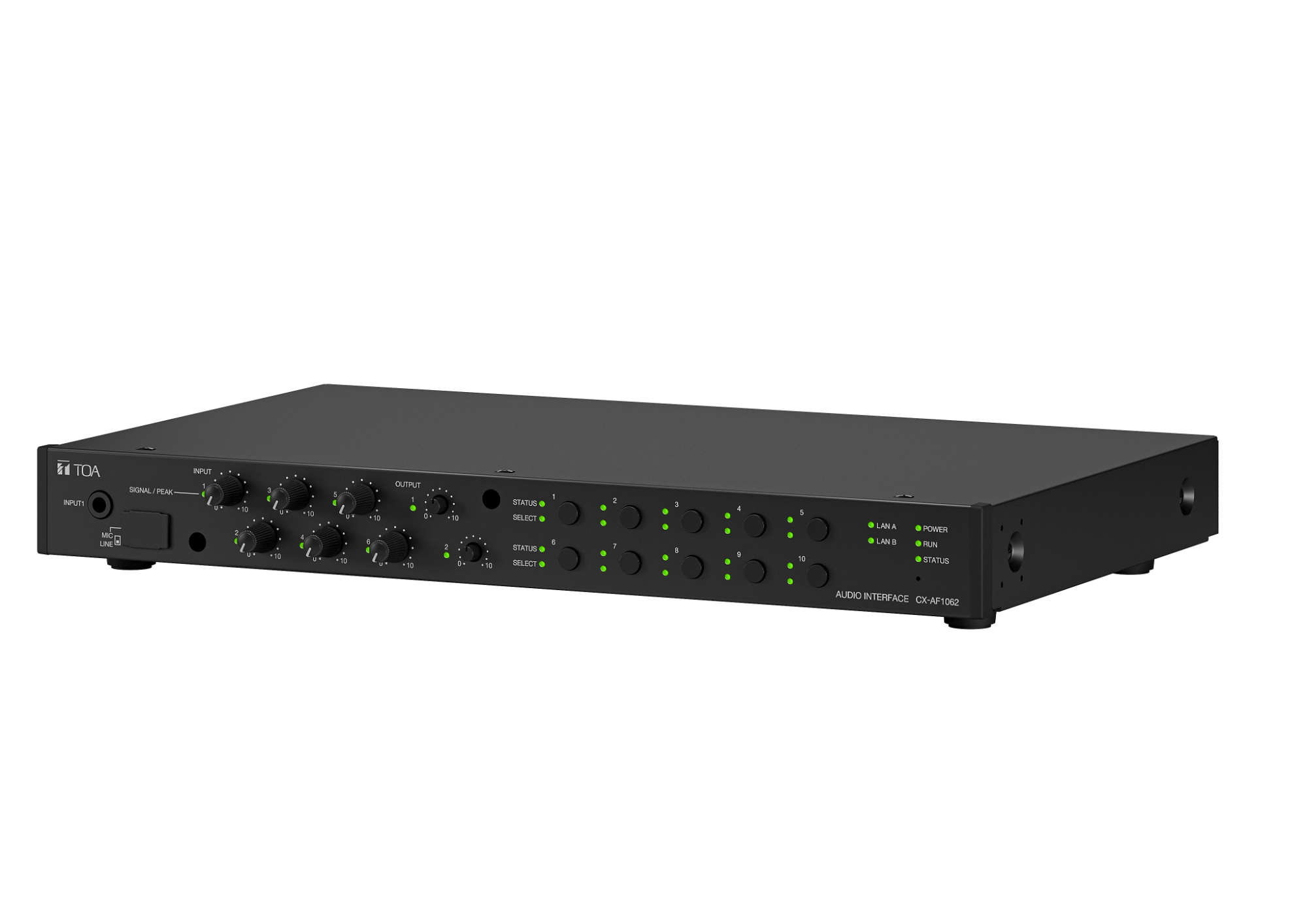

The CX-AF1062 is an Audio interface designed for the CX-1000 series IP communication system that features decentralized distribution configuration. By simply connecting to a network (LAN or WAN), it is possible to make audio announcements from the microphone or audio source devices connected to this unit to the intercom stations or amplifier units. By registering audio files in the unit's built-in memory, Chime broadcast and EV broadcast can be performed. It is equipped with 6 analog audio inputs and 2 analog audio outputs. You can adjust the volume for each audio input/output channel using the front panel-mounted volume knob or by software. In addition, the sound quality for each audio input/output channel can also be adjusted by software. Announcements and various functions can be started or stopped using the front panel-mounted direct keys.
- Supports 3 balanced audio inputs and 2 balanced audio outputs
- Comprehensive volume control with 6 input and 2 output
- Signal processing with gain, EQ, comp, AGC, trim, gate (VOX)
- Network support with dual RJ45 connectors and key protocols
- Unicast and multicast audio packet transmission
- 10 direct keys and extensive LED status indicators
- 10 control inputs and 10 control outputs
- Installation: desktop, rack, or wall mount with optional brackets
Power Source
24 V DC (operating range: 21.6 - 26.4 V DC)
Removable terminal block (2 pins) or use of the optional AC adapter
Removable terminal block (2 pins) or use of the optional AC adapter
Current Consumption
340 mA
Power Consumption
8 W
Audio Input
3 channels, -60 dB (*1)/0 dB (*1) selectable, 600 Ω, transformer-balanced
3 channels, 0 dB (*1), 10 kΩ, electronically-balanced
Removable terminal block (9 pins x 2)
Only Input 1 is used in common with the front-mounted Ø6.3 mm phone jack.
3 channels, 0 dB (*1), 10 kΩ, electronically-balanced
Removable terminal block (9 pins x 2)
Only Input 1 is used in common with the front-mounted Ø6.3 mm phone jack.
Audio Output
2 channels, 0 dB (*1), 10 kΩ, electronically-balanced, removable terminal block (3 pins x 2)
Audio Bandwidth
200 Hz - 16 kHz
Signal to Noise Ratio
60 dB or more
Distortion
1% or less
Volume Control
Audio input volume control x 6, Audio output volume control x 2
Signal Processing
Input channel: Gain, EQ x 2, Comp, AGC, Trim, Gate (for VOX function)
Output channel: Gain, EQ x 7
Output channel: Gain, EQ x 7
Network Section
Network I/F: 100BASE-TX
Network protocol: TCP/IP, UDP, ARP, ICMP, HTTP, RTP, RTSP, IGMP, NTP, FTP, RSTP
Audio packet transmission system: Unicast, Multicast
Number of paging destinations: Unicast (max. 16), Multicast (max. 2999)
Connector: RJ45 connector x 2
Network cable: UTP (Cat5 or greater)
Network protocol: TCP/IP, UDP, ARP, ICMP, HTTP, RTP, RTSP, IGMP, NTP, FTP, RSTP
Audio packet transmission system: Unicast, Multicast
Number of paging destinations: Unicast (max. 16), Multicast (max. 2999)
Connector: RJ45 connector x 2
Network cable: UTP (Cat5 or greater)
Audio Transmission
Sampling frequency: 48 kHz, 16 kHz (controllable on the software)
Audio codec: PCM, G.722
Quantization bit depth: 16-bit
Voice packet loss recovery: Silence insertion
Audio codec: PCM, G.722
Quantization bit depth: 16-bit
Voice packet loss recovery: Silence insertion
User Control
Direct key x 10, Reset key x 1, Setting switch (input level setting (MIC/LINE selectable) x 1
Indicators
LED indicators: LAN (green) x 2, POWER (green) x 1, RUN (green) x 1, STATUS (yellow, red, green) x 1, INPUT (red, green) x 6, OUTPUT (red, green) x 2
Direct keys: SELECT (green) x 10, STATUS (yellow, red, green) x 10
Direct keys: SELECT (green) x 10, STATUS (yellow, red, green) x 10
Control Input
10 channels, no-voltage make contact input, open voltage: 24 V DC, short-circuit current: 5 mA or less, removable terminal block (12 pins x 2)
Control Output
4 channels, relay output, maximum contact capacity : 30 V DC/1.0 A, removable terminal block (6 pins x 2)
6 channels, open collector output, maximum contact capacity : 30 V DC/100 mA, removable terminal block (6 pins x 2)
6 channels, open collector output, maximum contact capacity : 30 V DC/100 mA, removable terminal block (6 pins x 2)
Installation Method
Desktop, rack, or wall mounting (Rack or wall mounting needs optional brackets.)
Operating Temperature
0 °C to +40 °C (32 °F to 104 °F)
Operating Humidity
90 %RH (no condensation)
Finish
Panel, Case: Pre-coated steel plate, black, 30% gloss

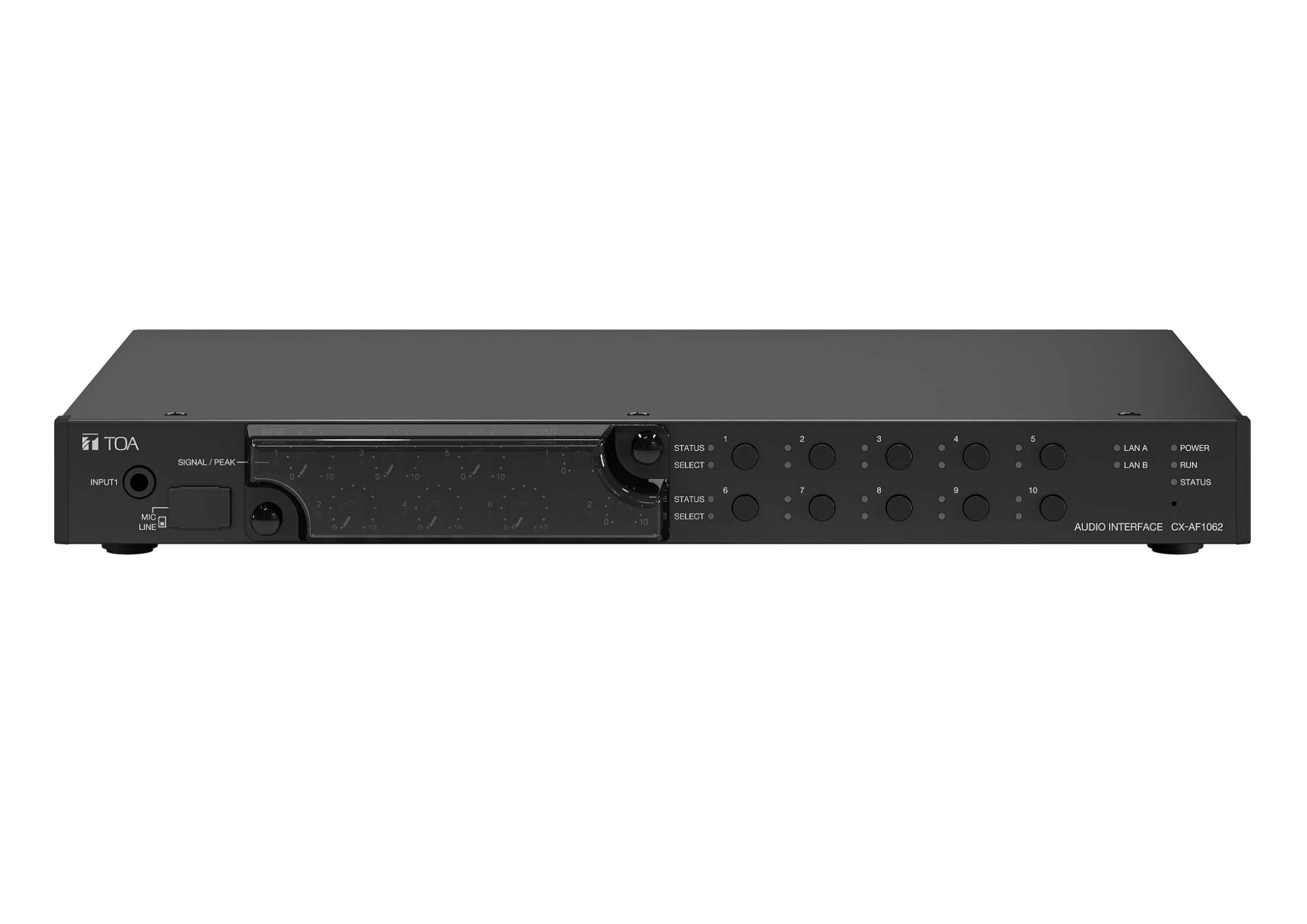

Front cover: ABS resin, gray smoke
Front cover: ABS resin, gray smoke
Dimensions
420 (W) x 44.3 (H) x 284.5 (D) mm (16.54" x 1.74" x 11.2")
Weight
3.1 kg (6.83 lb)
Included Accessories
Removable terminal plug 2 pins) x 1, Removable terminal plug (3 pins) x 2, Removable terminal plug (6 pins) x 4, Removable terminal plug (9 pins) x 2, Removable terminal plug (12 pins) x 2, Plastic foot x 4, Screw for fitting plastic foot x 4, Removable terminal plug 2 pins) x1
Optional Accessories
AC adaptor: AD-246
Wall mounting bracket: YC-850
Rack mounting bracket: MB-15B
Wall mounting bracket: YC-850
Rack mounting bracket: MB-15B
(*1) 0 dB = 1 V
Please download Datasheet to access full specifications.
The Audio Interface shall be a multifunctional, network-connected device designed to integrate external audio sources and control signals into IP-based audio systems, specifically for use with TOA’s CX-1000 Series IP communication system.
The Audio Interface shall provide six balanced audio inputs and two balanced audio outputs, each with adjustable gain and equalization (EQ).
The Audio Interface shall include independent volume controls for all six input channels and both output channels, as well as signal processing functions including gain, EQ, compressor, Automatic Gain Control (AGC), trim, and VOX (voice-operated switch) gating.
The Audio Interface shall support audio transmission over 100BASE-TX Ethernet using both unicast and multicast delivery. Dual LAN ports shall be provided, with LAN A supporting PoE (IEEE802.3af compliant) and LAN B for redundant network connection. Supported protocols shall include TCP/IP, UDP, ARP, ICMP, HTTP, RTP, RTSP, NTP, FTP, and RSTP. Audio encoding shall use PCM or G.722 codecs with 16-bit quantization and selectable sampling rates of 48 kHz or 16 kHz.
The Audio Interface shall provide ten control inputs and ten control outputs for integration with external control systems. Ten direct-operation keys and corresponding LED indicators shall be provided for intuitive operation and real-time status monitoring.
The Audio Interface shall support desktop placement and shall be mountable in a rack or on a wall using optional brackets. Power shall be supplied via 24 V DC through a removable terminal block or by an optional AC adapter. Power consumption shall not exceed 8 W. The unit shall operate within a temperature range of 0 °C to +40 °C (32 °F to 104 °F) and relative humidity up to 90 % (non-condensing).
The Audio Interface shall be housed in a pre-coated black steel chassis with an ABS resin front panel. Dimensions shall be 420 (W) × 44.3 (H) × 284.5 (D) mm (16.54" × 1.74" × 11.20"), and weight shall be 3.1 kg (6.83 lbs).
Optional Accessories: AC Adapter (AD-246), Wall Mounting Bracket (YC-850), Rack Mounting Bracket (MB-15B)
Manufacturer: TOA Corporation
Model: CX-AF1062
